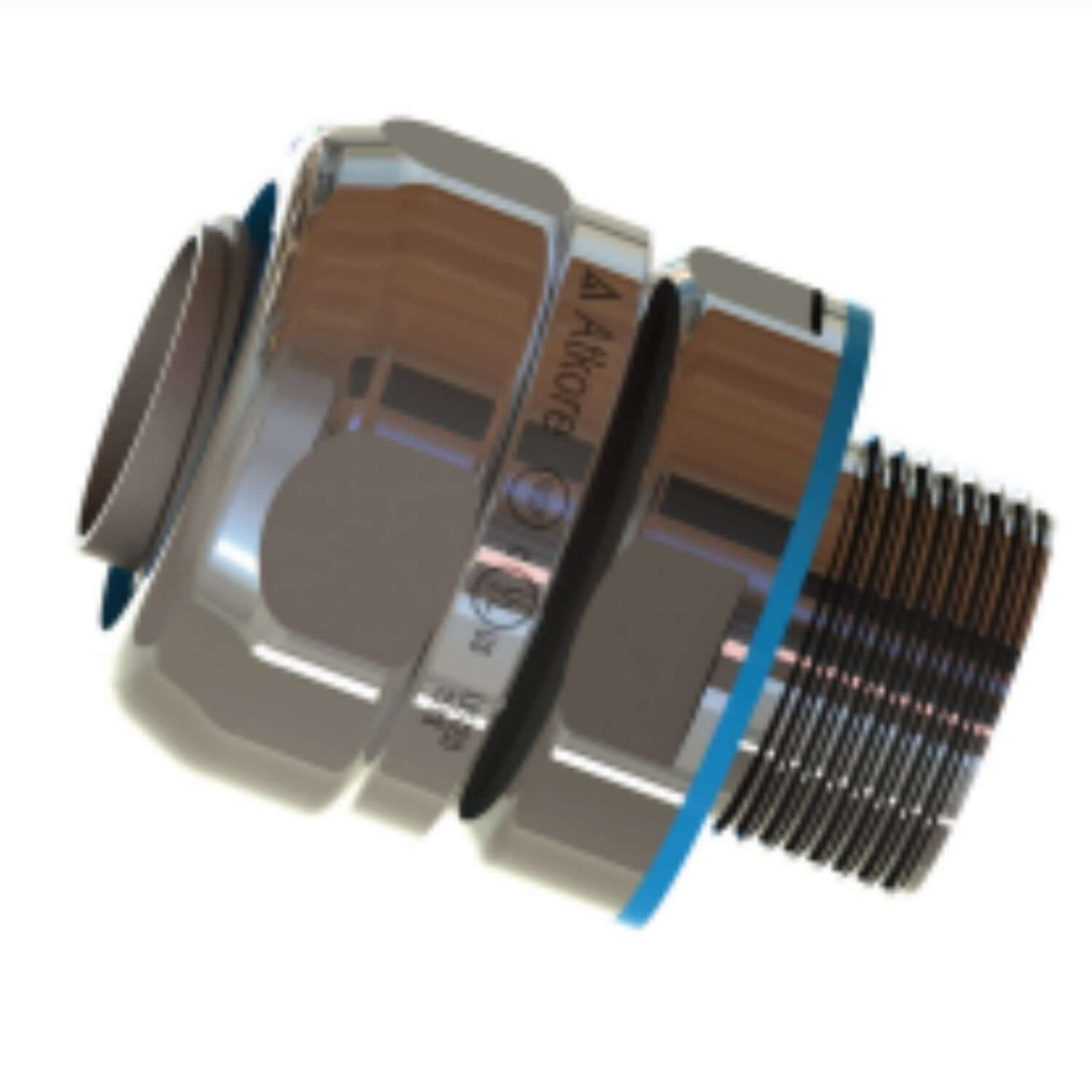

Stainless Steel Hygienic Straight Flex Connectors deliver exceptional performance for sanitary and high-purity conduit systems. Built from Type 316 stainless steel and FDA-grade materials, these connectors are ideal for applications requiring the highest hygiene standards — including food processing, pharmaceuticals, and cleanroom environments.
Each connector features a high-strength compression design that includes a nut, insert, and compression seal for a tight, leak-free connection. The FDA-approved Thermo Plastic Co-Polyester face seal and Polyamide 6 conduit seal ensure safe contact with food and beverages, while maintaining resistance to corrosion, oils, and chemicals. Rated for extreme temperatures from -58°F to 275°F, these connectors ensure long-term durability in harsh operating environments.
Key Features & Benefits
- Premium Type 316 Stainless Steel: Provides maximum corrosion resistance and long service life in hygienic and industrial settings.
- FDA-Grade Components: All sealing and insulating parts are made from FDA-approved materials suitable for food and beverage contact.
- High Mechanical Strength: Compression fitting design includes nut, insert, and nylon compression seal for superior pull resistance and security.
- Temperature Performance: Rated for continuous operation from -58°F to 275°F without loss of integrity or flexibility.
- Oil & Chemical Resistant: Ideal for harsh industrial cleaning and washdown environments.
- Quick Installation: Compatible with both knockouts and threaded entries for efficient installation.
Certifications & Compliance
- NEMA 4X Rated for outdoor and washdown environments
- UL 514B Listed and CSA Certified
- IP Ratings: IP66, IP67, IP68, IP69 — superior protection against water, dust, and high-pressure washdown
- NSF/ANSI 169 Certified for food-grade use
- ROHS Compliant — free from halogen, sulfur, and phosphorous for low fire hazard performance
Applications
- Food & beverage processing facilities
- Pharmaceutical manufacturing and cleanroom environments
- Medical and laboratory equipment installations
- Any sanitary location requiring high-performance flex conduit connections

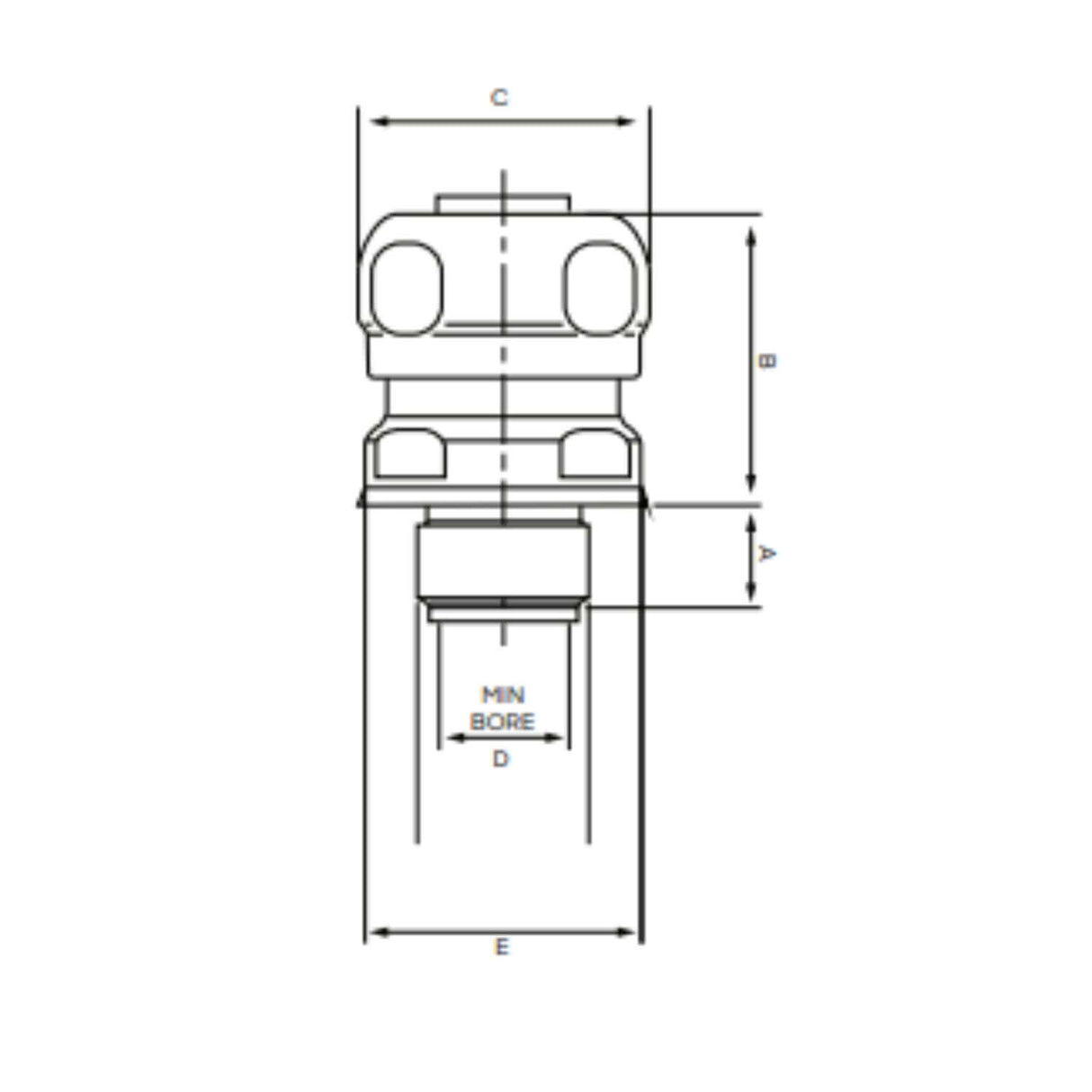

Dimensional Data
| Part Number | Trade Size (in) | A (in) | B (in) | C (in) | D (in) | E (in) | Weight (lb/ea) |
|---|---|---|---|---|---|---|---|
| S60500FCHG | 1/2 | 0.47 | 1.34 | 1.34 | 0.57 | 1.26 | 0.25 |
| S60700FCHG | 3/4 | 0.55 | 1.39 | 1.57 | 0.74 | 1.50 | 0.35 |
| S61000FCHG | 1 | 0.59 | 1.52 | 1.87 | 0.97 | 1.75 | 0.46 |
| S61200FCHG | 1 1/4 | 0.63 | 1.67 | 2.32 | 1.29 | 2.17 | 0.75 |
| S61500FCHG | 1 1/2 | 0.63 | 1.83 | 2.55 | 1.48 | 2.44 | 1.00 |
| S62000FCHG | 2 | 0.63 | 1.83 | 2.99 | 1.93 | 2.95 | 1.28 |
