Hydronic Pump Flange Ball Valve with Drain | 2415 Series | Solder x Flange
Hydronic Pump Flange Ball Valve with Drain | 2415 Series | Solder x Flange | Full Port | 600 WOG

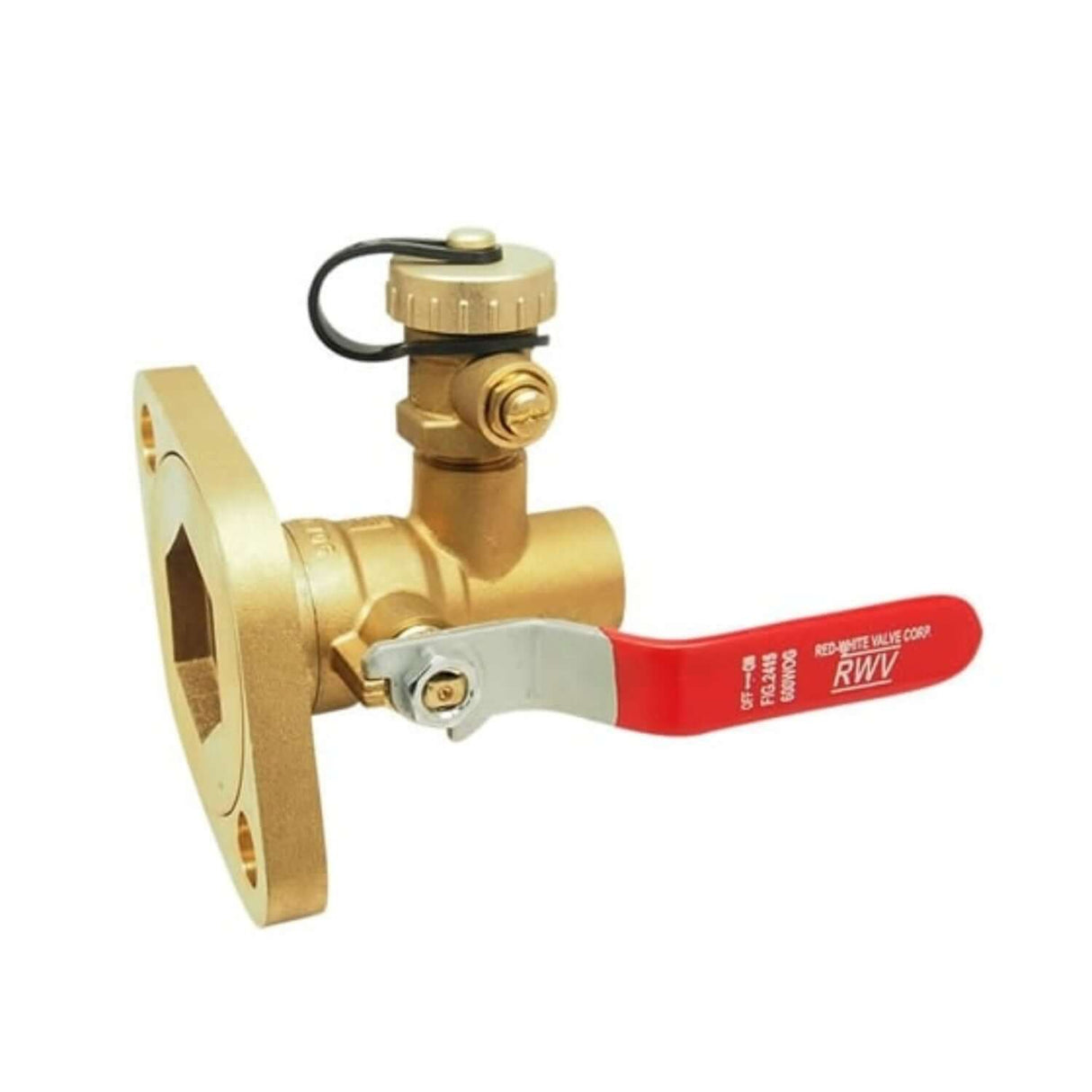

The Red-White 2415 Brass Pump Flange Ball Valve with Drain is a high-performance, full-port valve engineered for durability, reliability, and easy installation in hydronic heating, plumbing, and HVAC systems. With a rotating flange design, solder x flange connections, and an integrated side drain valve, it’s built to simplify setup, maintenance, and long-term service.
Featuring a 3-piece brass body, chrome-plated brass ball, and PTFE seats, this valve delivers smooth, leak-free operation at pressures up to 600 PSI WOG. It comes equipped with a wing handle and bolt kit for complete, ready-to-install convenience.
Key Features
- Full Port Flow: Maximizes efficiency and minimizes pressure drop across the system.
- Rotating Flange Design: Simplifies alignment and pump connection during installation.
- Integrated Side Drain: Built-in drain valve with cap allows controlled system drainage or winterization.
- ¼-Turn Operation: Smooth handle action for easy shutoff control.
- Durable 3-Piece Body: Provides easy service access and maintenance without full removal.
- Solder x Flange Ends: Built to ASME B16.22 for secure, soldered connections.
- Chrome-Plated Brass Ball: Offers corrosion resistance and long-lasting smooth operation.
- Includes Wing Handle & Bolt Kit: Everything needed for fast and professional installation.
Technical Specifications
| Specification | Detail |
|---|---|
| Pressure Rating | 600 PSI WOG (Water, Oil, Gas) |
| Construction | 3-Piece Brass Body with Chrome-Plated Ball |
| Connection Type | Solder x Flange |
| Operation | ¼-Turn Wing Handle |
| Compliance | ASME B16.22 Solder End |
| Temperature Range | Suitable for Residential & Commercial HVAC/Plumbing Use |
Dimensions & Weights (inches-lbs.)
| Size | ⌀ (in) | A | B | C | H | L | P | Weight (lb) |
|---|---|---|---|---|---|---|---|---|
| 3/4″ | 0.877–0.881 | 3.10 | 2.52 | 0.75 | 2.07 | 3.58 | 0.73 | 1.20 |
| 1″ | 1.128–1.131 | 3.45 | 2.63 | 0.91 | 2.36 | 4.96 | 0.94 | 1.40 |
| 1-1/4″ | 1.378–1.381 | 3.99 | 2.80 | 0.98 | 2.58 | 4.96 | 1.22 | 1.82 |
| 1-1/2″ | 1.628–1.632 | 4.48 | 2.93 | 1.09 | 2.87 | 5.55 | 1.46 | 2.10 |
| 2″ | 2.128–2.132 | 5.59 | 3.23 | 1.34 | 3.25 | 5.55 | 1.95 | 3.86 |
Material & Specifications
| Part | Material | Specification |
|---|---|---|
| Body | Brass | ASTM B283 C37700 |
| End Piece* | Brass | ASTM B283 C37700 |
| End Piece | Brass | ASTM B124 C37700 |
| Ball | Brass / Chrome-Plated | ASTM B30 C85700 |
| Seat | PTFE | PTFE |
| Flange | Brass | ASTM B283 C37700 |
| Stem | Brass | ASTM B124 C37700 |
| O-Ring | FKM | NSF Approved |
| Packing Ring | PTFE | PTFE |
| Packing Nut | Brass | ASTM B124 C37700 |
| Handle | Steel / Dacromet Plated | ASTM A36 |
| Handle Nut | Steel / Zinc Plated | ASTM A36 |
*Only for 1-1/2″ and 2″ sizes
⚠ California Proposition 65 Warning:
This product contains chemicals including lead, known to the State of California to cause cancer and reproductive harm.
For more information, visit www.P65Warnings.ca.gov.
