Brass Pump Flange Ball Valve | 2417 Series | FNPT x Flange
Brass Pump Flange Ball Valve | 2417 Series | FNPT x Flange | Full Port | 600 WOG

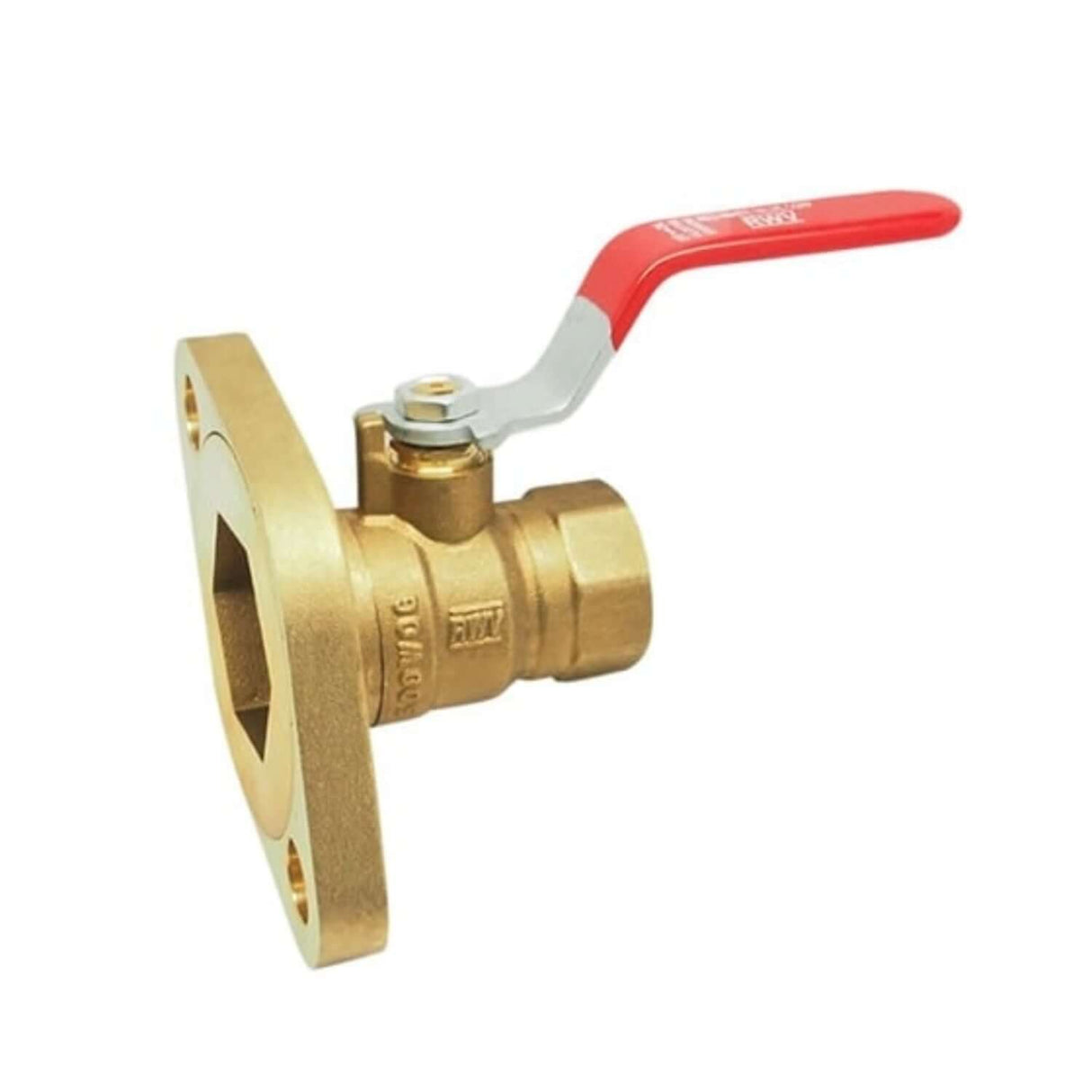

The Red-White 2417 Brass Pump Flange Ball Valve is built for precision, strength, and longevity in demanding hydronic and mechanical applications. Featuring a rotating flange design and a full port brass body, this valve offers smooth, unrestricted flow and reliable ¼-turn shutoff control. Rated at 600 PSI WOG, it’s a trusted choice for pump isolation and HVAC system integration.
Designed for professional use, the 2417 combines a FNPT threaded end (ASME B1.20.1) with a rotating flange outlet (flange outlet available only on the 2″ size). Its 3-piece body construction allows easy maintenance, while the chrome-plated brass ball and PTFE seats deliver long-term performance under high pressure and temperature variations.
Key Features
- 600 WOG Pressure Rating: Ideal for water, oil, and gas systems requiring high performance and durability.
- Full Port Design: Ensures maximum flow with minimal restriction for efficient pump operation.
- Rotating Flange Connection: Simplifies installation and alignment, reducing stress on connected piping.
- 3-Piece Brass Construction: Provides superior serviceability and structural integrity.
- ¼-Turn Positive Shutoff: Smooth operation with quick, secure closure for maintenance or isolation.
- Chrome-Plated Brass Ball: Corrosion-resistant for long-term reliability.
- Virgin PTFE Seats & FKM O-Rings: Leak-proof sealing and high chemical resistance.
- Includes Wing Handle & Bolt Kit: Ready-to-install design saves time and ensures a professional finish.
Applications
- Hydronic heating and cooling systems
- Commercial and industrial pump installations
- Water distribution and control systems
- Mechanical room and HVAC applications
Dimensions & Weights (inches-lbs.)
| Size | Thread | A (in) | C (in) | H (in) | L (in) | P (in) | Weight (lb) |
|---|---|---|---|---|---|---|---|
| 3/4″ | 3/4 - 14 NPT | 2.50 | 0.63 | 2.07 | 3.58 | 0.73 | 1.30 |
| 1″ | 1 - 11.5 NPT | 2.81 | 0.75 | 2.36 | 4.96 | 0.94 | 1.44 |
| 1-1/4″ | 1-1/4 - 11.5 NPT | 3.32 | 0.77 | 2.58 | 4.96 | 1.22 | 1.86 |
| 1-1/2″ | 1-1/2 - 11.5 NPT | 3.70 | 0.77 | 2.87 | 5.55 | 1.46 | 2.18 |
| 2″ | 2 - 11.5 NPT | 4.57 | 0.79 | 3.25 | 5.55 | 1.95 | 3.86 |
Material & Specifications
| # | Part | Material | Specification |
|---|---|---|---|
| 1 | Body | Brass | ASTM B283 C37700 |
| 2 | End Piece* | Brass | ASTM B283 C37700 |
| 3 | End Piece | Brass | ASTM B124 C37700 |
| 4 | Ball | Brass / Chrome Plated | ASTM B30 C85700 |
| 5 | Seat | PTFE | PTFE |
| 6 | Flange | Brass | ASTM B283 C37700 |
| 7 | Stem | Brass | ASTM B124 C37700 |
| 8 | O-Ring | FKM | NSF Approved |
| 9 | Packing Ring | PTFE | PTFE |
| 10 | Packing Nut | Brass | ASTM B124 C37700 |
| 11 | Handle | Steel / Dacromet Plated | ASTM A36 |
| 12 | Handle Nut | Steel / Zinc Plated | ASTM A36 |
* Only for 1-1/2″ and 2″ sizes
⚠ California Proposition 65 Warning:
This product contains chemicals including lead, known to the State of California to cause cancer and reproductive harm.
For more information, visit www.P65Warnings.ca.gov.
