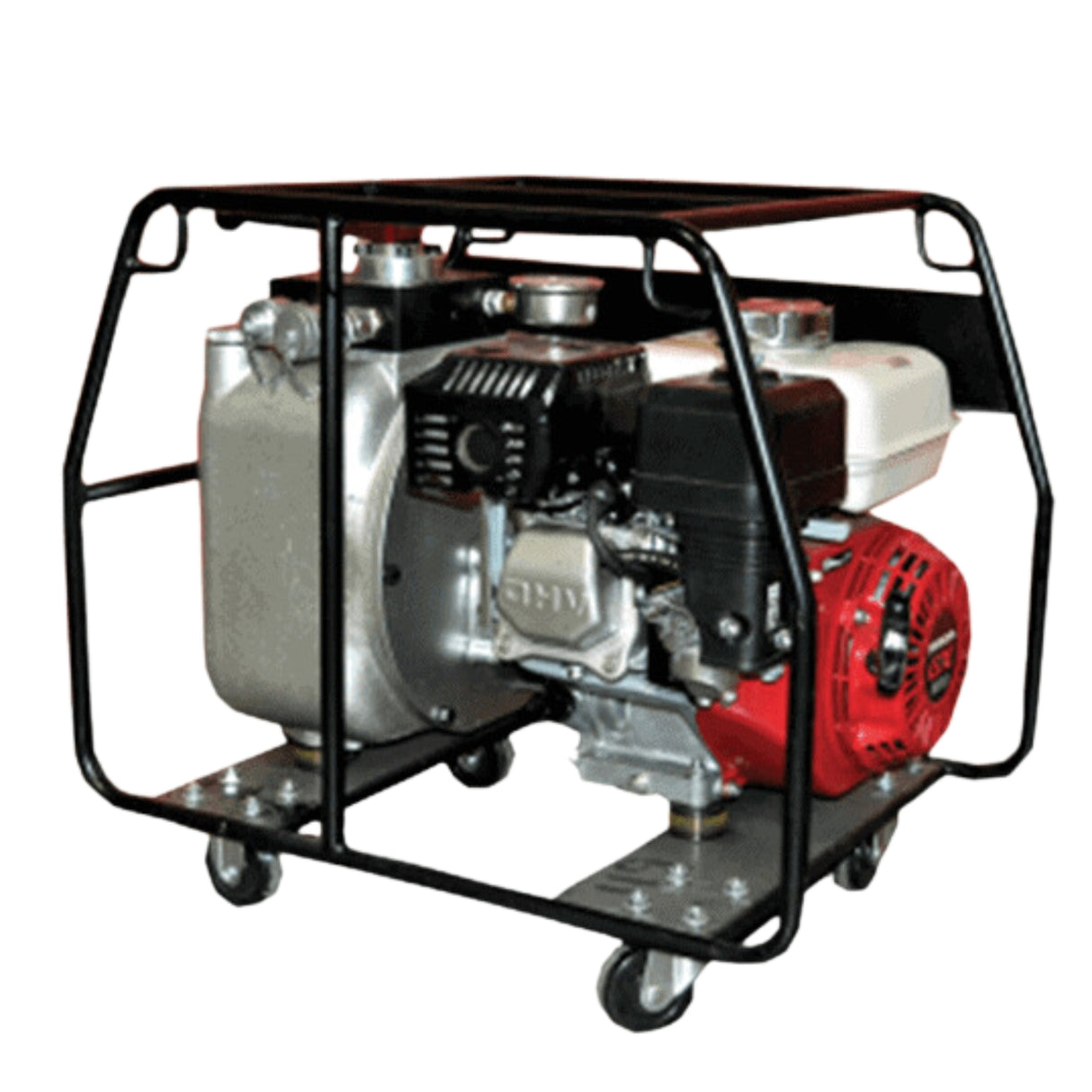

5.5 HP Gas Engine Hydraulic Pump | 10,000 PSI | HPM-P3
$6,917.00
Unit price
/
Select Option
5.5 Hp Gas Engine Hydraulic Pump (10,000 PSI) | HPM-P3 — Product Overview
The HPM-P3 Gas Engine Hydraulic Pump is a high-performance, self-contained 10,000 psi pump built for both single- and double-acting hydraulic tools. Powered by a reliable 5.5 HP Honda engine, it offers efficient fuel consumption, strong output, and user-friendly control for a wide range of job site applications.
Key Features:
- Powerful Honda Engine: 5.5 HP air-cooled, 4-stroke OHV engine delivers consistent performance at 3600 RPM.
- Dual Tool Compatibility: Four-way valve allows use of one double-acting or two single-acting hydraulic tools.
- Inline Pressure Gauge: Easy-to-read gauge located directly on the valve for accurate pressure monitoring.
- Portable Design: Supplied with rugged roll cage and castors for easy transport across job sites.
- Oil Sight Gauge: Clearly displays fluid levels to help ensure optimal operation and prevent downtime.
- Self-Contained Unit: No external power source needed—manual controls ensure simple, efficient use.
- Safety First: Use only 10,000 psi-rated non-conductive hoses (NC-16 series) with this pump for safe operation.
Specifications:
- Engine Type: Honda air-cooled, 4-stroke OHV
- Power Output: 5.5 HP @ 3600 RPM
- Max Pressure: 10,000 psi
- Oil Capacity: 2.5 gallons
- Oil Delivery (Low Pressure): 2.6 gal/min
- Oil Delivery (High Pressure): 0.63 gal/min
- Fuel Tank: 3.3 quarts (unleaded gasoline only)
- Weight: 105 lbs.
Documentation:
| Specifications | |
|---|---|
| Engine Type | Honda Air-cooled, 4-stroke OHV |
| Oil Capacity | 2.5 Gallons |
| Power Output | 5.5 HP @ 3600 RPM |
| Max Pressure | 10,000 psi |
| Oil Delivery (Low Pressure) | 2.6 gal/min |
| Oil Delivery (High Pressure) | 0.63 gal/min |
| Fuel Tank Capacity | 3.3 Quarts |
| Fuel Type | Unleaded Gasoline ONLY |
| Weight | 105 lbs. |
