RED-WHITE VALVE CORP.  |  SKU: 30078273  |  MPN: 5014AB 1/2

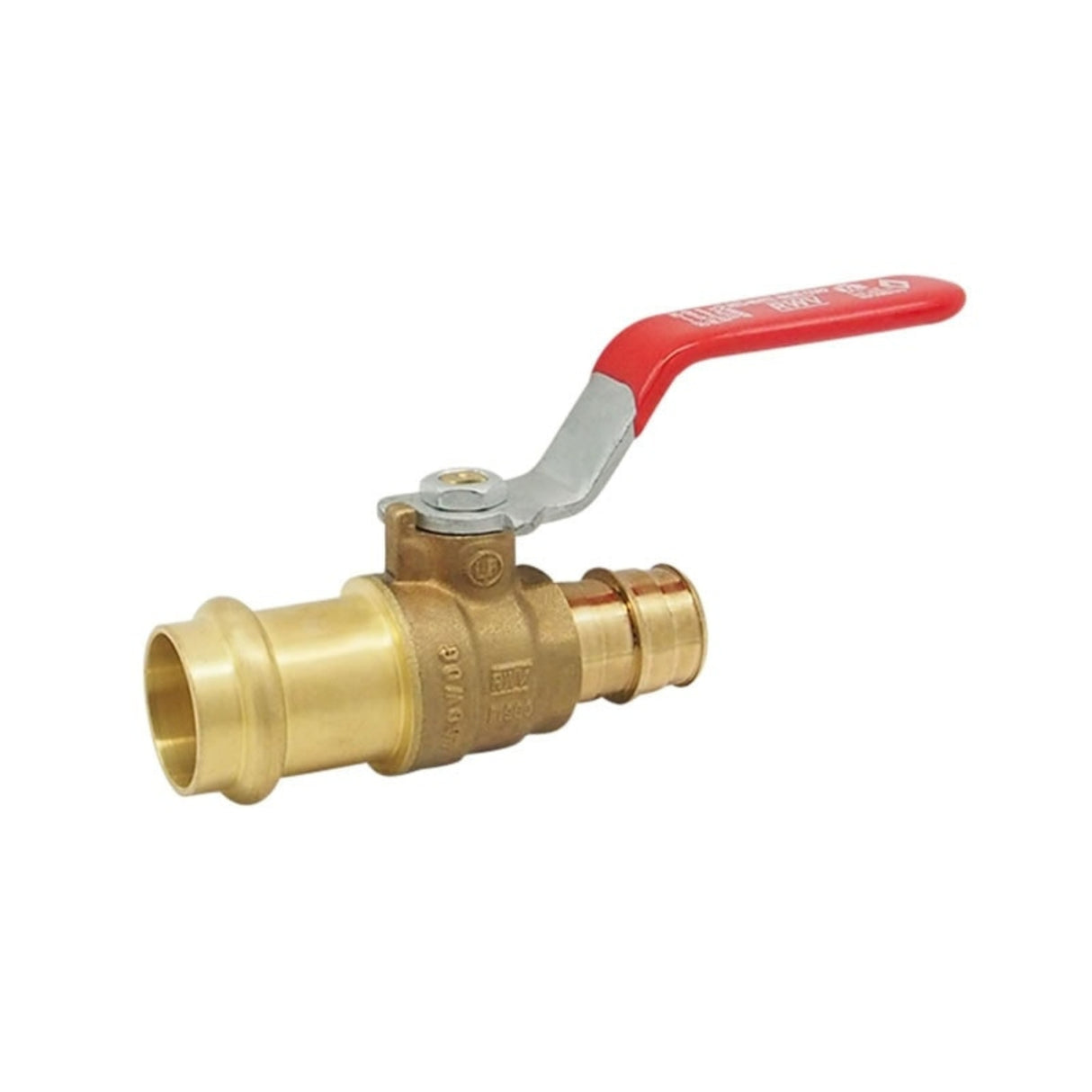

Hydronic Ball Valve | 5014AB Series | Barb x EzPress

$11.75
  • Lead-Free DZR Brass Body — Corrosion-resistant brass construction ensures long-lasting durability and potable water safety.
  • Full-Port Flow Design — Maximizes water flow while reducing pressure loss for efficient hydronic performance.
  • Dual Connection System — Combines F1960 PEX barb inlet with EzPress outlet for quick, reliable installation.
  • Leak-Free Sealing — Features double NBR O-rings, PTFE seats, and a blow-out proof stem for secure shutoff.
  • 400 PSI WOG Rated — Suitable for water, oil, and gas systems with optional wing handle and extension stem configurations.
📄 Download Spec Sheet

Hydronic Ball Valve | 5014AB Series | Barb × EzPress | Lead-Free Brass

5014AB Series Hydronic Ball Valves are engineered for durable, leak-free performance in potable water and hydronic heating systems. Constructed from DZR lead-free brass and featuring a F1960 PEX barb inlet with a secure EzPress outlet, this full-port valve ensures easy installation and long-term reliability in both residential and commercial plumbing systems.

Key Features & Benefits

  • Lead-Free DZR Brass Construction — Dezincification-resistant ASTM B927 C27453 brass ensures corrosion resistance and long service life.
  • Full-Port Flow Design — Provides maximum water flow with minimal pressure drop for efficient system operation.
  • Reliable Sealing System — Features double NBR O-ring seals and PTFE seats for smooth operation and tight shutoff.
  • Secure Connection Options — F1960 barb inlet and EzPress outlet allow fast, tool-free installation with no soldering or gluing required.
  • High Pressure Rating — Rated 400 PSI WOG for water, oil, and gas applications.

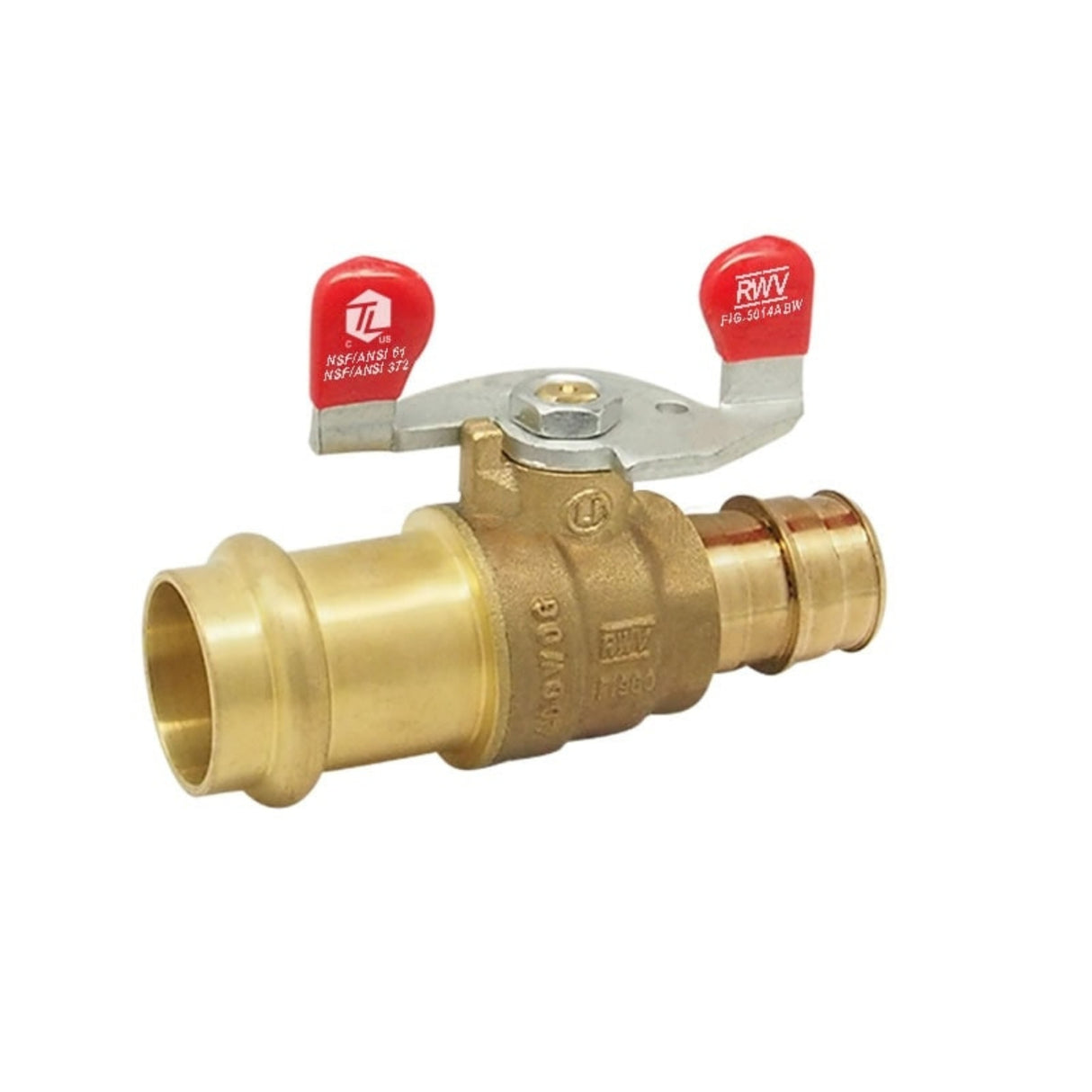

  • Optional Configurations — Available with wing handle (5014ABW) or extension stem for deeper installations.

Pressure / Temperature Rating

Pressure Temperature Range
400 PSI WOG Up to 250 °F

Dimension, Weight

Size EzPress [in] A [in] H [in] L [in] P [in] C [in] Weight [lb]
1/2" 0.638 2.62 1.38 3.19 0.39 0.87 0.26
3/4" 0.886 2.38 1.77 3.58 0.61 0.98 0.49
1" 1.138 4.05 1.93 3.58 0.81 1.06 0.75

Material Construction

# Part Material Specification
1 Body DZR Lead-Free Brass ASTM B927 C27453
2 End Piece DZR Lead-Free Brass ASTM B927 C27453
3 Ball Chrome-Plated Lead-Free Brass ASTM B927 C27453
4 Seat PTFE PTFE
5 Stem DZR Lead-Free Brass ASTM B927 C27453
6 O-Ring NBR NSF Approved
7 Handle Steel, Dacromet Plated ASTM A36
8 Handle Nut Steel, Zinc Plated ASTM A36

Warning (California Prop 65): This product can expose you to chemicals including lead, known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
