Hydronic Full Port Ball Valve with Drain | 5060AB Series | FNPT
Hydronic Full Port Ball Valve with Drain | 5060AB Series | FNPT x FNPT

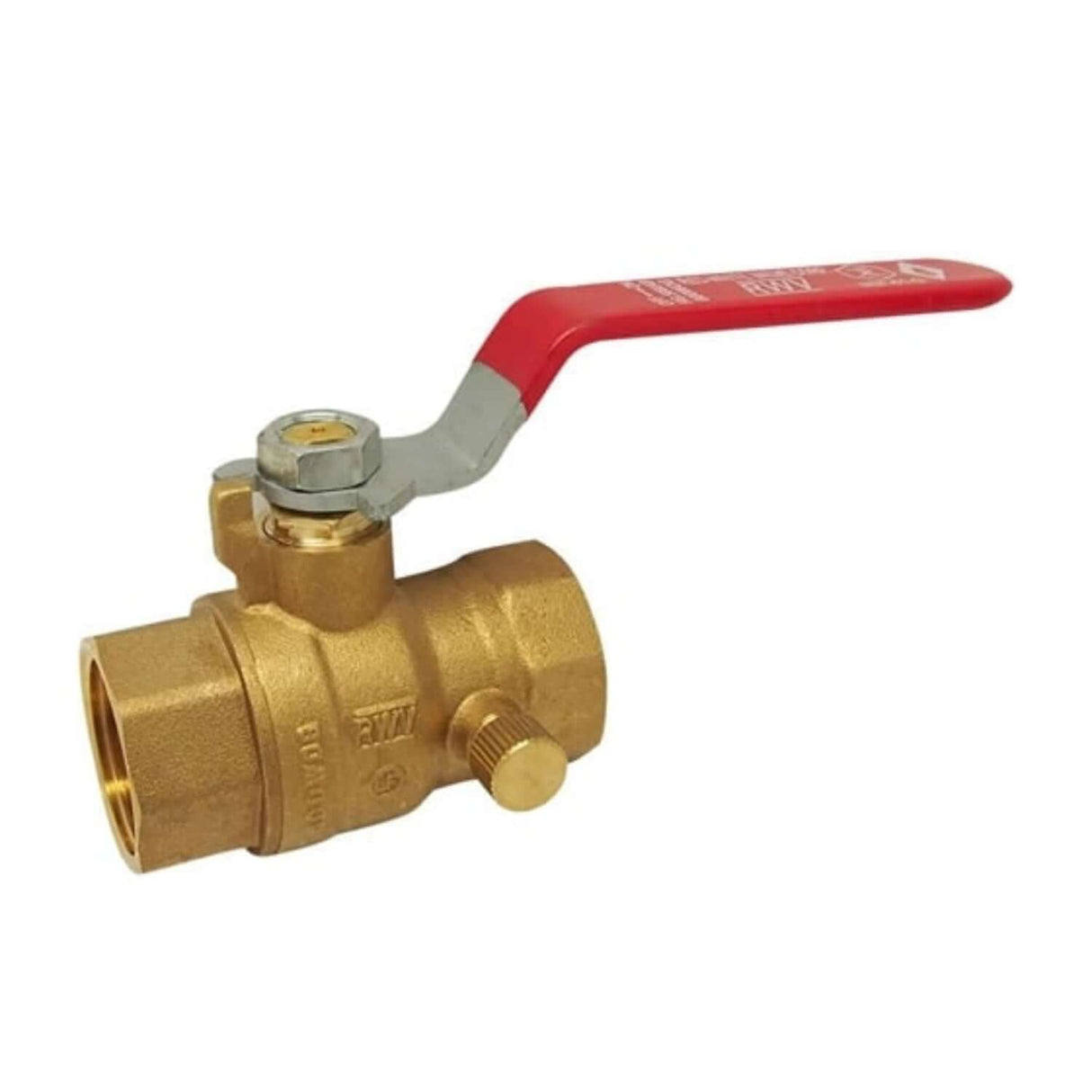

The 5060AB ECO-VALVE is a high-performance lead-free brass full port ball valve with drain designed for dependable service in residential, commercial, and light industrial potable water systems. Constructed from ASTM B927 C28450 lead-free brass, it offers exceptional durability while meeting NSF/ANSI 61 & 372 and AB1953 standards for drinking water safety.
Rated at 600 PSI WOG and operating from 15°F to 160°F at full pressure (up to 200°F at 150 PSI), this valve delivers long-term reliability in demanding hydronic or plumbing applications. The FNPT x FNPT threaded ends meet ASME B1.20.1-NPT standards, and the integrated drain port allows convenient system drainage and winterization without disconnecting the valve.
Key Features
- Lead-Free Brass Construction: Made from ASTM B927 C28450 alloy, compliant with NSF/ANSI 61 & 372 and AB1953 lead-free standards.
- Full Port Design: Maximizes flow efficiency while minimizing pressure loss in potable water and HVAC systems.
- Integrated Drain Port: Provides easy system drainage and maintenance for convenience and serviceability.
- 600 PSI WOG Rating: Handles high pressure safely, with 150 PSI max at 200°F for hot water systems.
- Blow-Out Proof Stem: Ensures added safety under system pressure and prevents accidental disassembly.
- Virgin PTFE Seats and Packing: Provides excellent chemical resistance and long-term leak-free performance.
- Chrome-Plated Brass Ball: Delivers smooth operation and enhanced corrosion protection.
- Adjustable Packing Gland: Allows for easy field maintenance and adjustment to extend service life.
- Steel Handle with Zinc-Plated Nut: Durable, corrosion-resistant design for dependable operation.
- Compliant and Certified: Meets MSS-SP-110, AB1953, and NSF/ANSI 61 & 372 certification standards.
Applications
- Potable water distribution systems
- Hydronic and HVAC installations
- Commercial and industrial plumbing
- System maintenance and winterizing
Dimension, Weight
| Size | Thread | A (in) | C (in) | H (in) | L (in) | P (in) | P1 (in) | Weight (lb) |
|---|---|---|---|---|---|---|---|---|
| 1/2" | 1/2 - 14 NPT | 2.34 | 0.61 | 1.93 | 3.59 | 0.50 | 1.00 | 0.46 |
| 3/4" | 3/4 - 14 NPT | 2.56 | 0.63 | 2.07 | 3.59 | 0.73 | 1.16 | 0.64 |
| 1" | 1 - 11.5 NPT | 3.08 | 0.75 | 2.35 | 4.97 | 0.94 | 1.33 | 1.06 |
Pressure / Temperature Rating
| 600 PSI from 15°F to 160°F | 150 PSI Max at 200°F |
|---|
Material
| # | Part | Material | Specification |
|---|---|---|---|
| 1 | Body | Lead-Free Brass | ASTM B927 C28450 |
| 2 | End Piece | Lead-Free Brass | ASTM B927 C28450 |
| 3 | Ball | Lead-Free Brass / Chrome-Plated | ASTM B927 C28450 |
| 4 | Seat | PTFE | PTFE |
| 5 | Stem | Lead-Free Brass | ASTM B927 C28450 |
| 6 | O-Ring | FKM | - |
| 7 | Packing | PTFE | PTFE |
| 8 | Packing Nut | Brass | ASTM B124 C37700 |
| 9 | Handle | Steel | A36 |
| 10 | Handle Nut | Steel / Zinc-Plated | A36 |
| 11 | Cap Gasket | NBR | NSF Approved |
| 12 | Plug | Brass | ASTM B124 C37700 |
⚠ California Prop 65 Warning:
This product can expose you to chemicals including lead, known to the State of California to cause cancer and reproductive harm.
For more information, visit www.P65Warnings.ca.gov.
