Aluminum Test Mandrels | Duct Proving & Roundness
$107.80
Unit price
/
Select Option
Each
Lead Time:
Aluminum Test Mandrels | Duct Proving & Roundness Testing — Product Overview

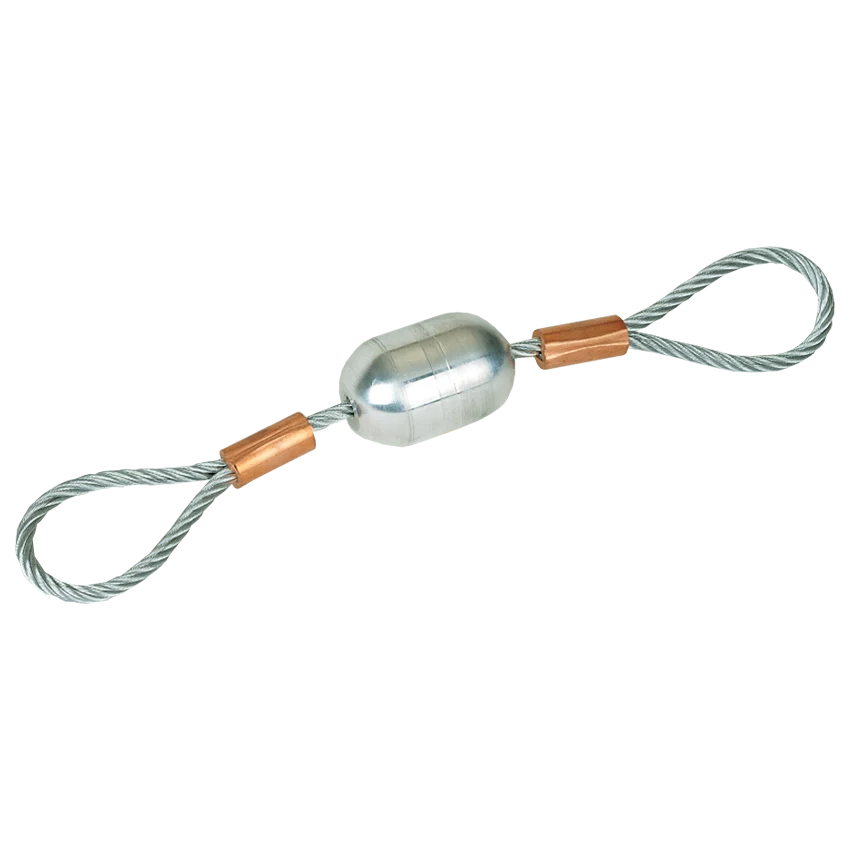

Aluminum Test Mandrels are pulled through a duct to prove it is clear and round before cable goes in. If the mandrel passes, the duct is free of crushed, out-of-round or obstructed sections that would stop or damage cable during the pull.
Available for 1.5" to 8" ducts. Sizes up to 3" are rated for 2,200 lbs (9,786 N); 3.5" and larger are rated for 4,500 lbs (20,016 N).
Key Features
- Proves the Duct: Confirms the duct is clear and round before the cable pull.
- Finds Problems Early: Catches crushed, deformed or obstructed sections before they cost a pull.
- Aluminum Body: Lightweight aluminum construction that pulls easily through the duct.
- Nine Duct Sizes: Sized for 1.5" through 8" ducts.
- Pair With: Flexible Steel Mandrels to clear obstructions before proving the duct. LINK
Ordering Information
| Part Number | Duct Size (in) | Duct Size (mm) | Body Length (in) | Body Length (mm) | Max O.D. (in) | Max O.D. (mm) | Load Capacity (lbs) | Load Capacity (N) |
|---|---|---|---|---|---|---|---|---|
| 08059515 | 1-1/2 | 38 | 1.74 | 44 | 1.18 | 30 | 2,200 | 9,786 |
| 08059520 | 2 | 51 | 2.40 | 61 | 1.62 | 41 | 2,200 | 9,786 |
| 08059525 | 2-1/2 | 64 | 2.98 | 76 | 2.00 | 51 | 2,200 | 9,786 |
| 08059530 | 3 | 76 | 3.50 | 89 | 2.37 | 61 | 2,200 | 9,786 |
| 08059535 | 3-1/2 | 89 | 4.10 | 104 | 2.75 | 70 | 4,500 | 20,016 |
| 08059540 | 4 | 102 | 4.84 | 123 | 3.25 | 83 | 4,500 | 20,016 |
| 08059550 | 5 | 127 | 5.98 | 152 | 4.00 | 102 | 4,500 | 20,016 |
| 08059560 | 6 | 152 | 7.08 | 180 | 4.75 | 121 | 4,500 | 20,016 |
| 08059580 | 8 | 203 | 9.44 | 240 | 6.38 | 162 | 4,500 | 20,016 |
