RED-WHITE VALVE CORP.  |  SKU: 30078149  |  MPN: 8050E-EF 050E050F

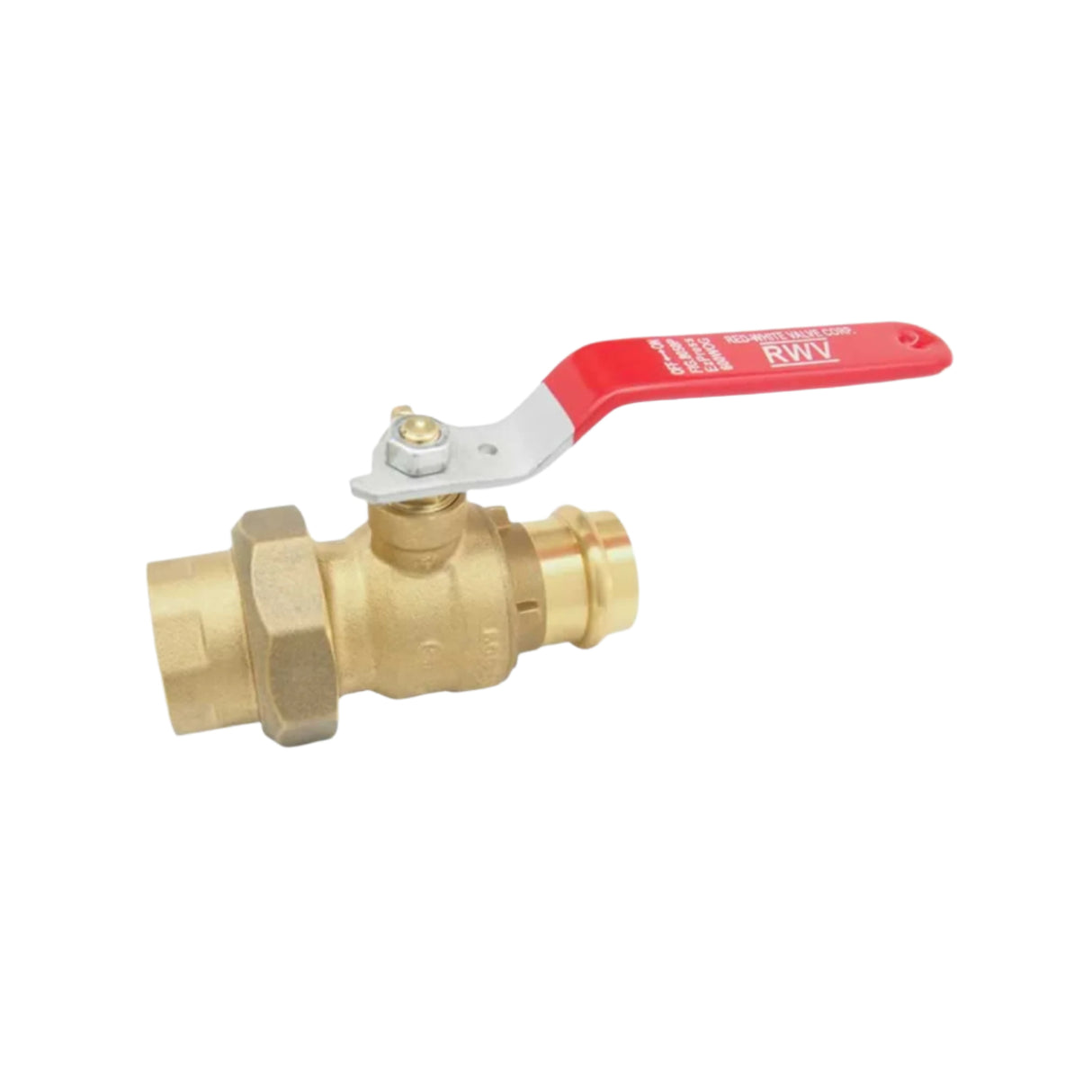

Union Ball Valve | 8050P Series | Press x FNPT

$16.10
Each
  • PEX F1960 × FNPT Connection — Combines expansion-style PEX with threaded connection versatility for plumbing and hydronic systems.
  • 400 PSI WOG Rating — Handles high working pressures with dependable performance in potable water and HVAC applications.
  • DZR Lead-Free Brass Body — Certified to AB1953 and NSF/ANSI/CAN 61 & 372 for safe, corrosion-resistant use.
  • Union Body Design — Allows fast disassembly and service without cutting pipe.
  • Full-Port Chrome-Plated Ball — Ensures smooth flow and long-term reliability with PTFE seats and EPDM O-rings.
📄 Download Spec Sheet

Union Ball Valve | 8050E-EF Series | PEX F1960 × FNPT | Full Port | DZR Lead-Free Brass

The Red-White Valve 8050E-EF Union Ball Valve is engineered for reliability, flow efficiency, and safety in potable water and hydronic systems. Featuring PEX F1960 × FNPT connections, a DZR (Dezincification-Resistant) lead-free brass body, and a 400 PSI WOG rating, this full-port valve provides a long-lasting, corrosion-resistant solution for both residential and commercial installations.

Key Features & Benefits

  • PEX F1960 × FNPT Connection — Combines a secure, expansion-style PEX connection with traditional female threading for versatile system use.
  • 400 PSI WOG Rating — Handles high working pressures for demanding plumbing and hydronic applications.
  • DZR Lead-Free Brass Body — Safe for drinking water, fully compliant with AB1953 and NSF/ANSI/CAN 61 & 372 standards.
  • Full-Port Chrome-Plated Ball — Maximizes flow capacity while minimizing turbulence and pressure loss.
  • Union Body Design — Enables quick installation, servicing, and replacement without cutting pipe.
  • Virgin PTFE Seats — Provide superior sealing, chemical resistance, and smooth operation.
  • Adjustable Packing Gland — Maintains long-term seal integrity and leak prevention.
  • Blow-Out Proof Stem — Ensures operator safety under system pressure.

Technical Specifications

  • Body Material: DZR Lead-Free Brass (ASTM B927 C27453)
  • Seats: Virgin PTFE
  • O-Ring: EPDM Perox 70 SH (NSF Approved)
  • Pressure Rating: 400 PSI WOG
  • Temperature Range: 15°F to 260°F
    • Below 32°F – Use with antifreeze additives
    • Above 212°F – Use with anti-boil additives
  • Certifications: AB1953, NSF/ANSI/CAN 61 & 372

Dimension, Weight

Part # Size Thread PEX Spec B [in] C [in] D [in] E [in] H [in] L [in] φP [in] Wt. [lb]
8050E 050E050E 1/2" 1/2 - 14 NPT PEX F1960 3.03 4.88 0.63 2.24 1.50 3.19 0.39 0.50
8050E 075E075E 3/4" 3/4 - 14 NPT PEX F1960 3.75 5.56 0.73 2.94 2.11 3.60 0.60 0.88
8050E 100E100E 1" 1 - 11.5 NPT PEX F1960 4.34 5.85 0.75 3.35 2.26 3.60 0.80 1.23
8050E 125E125E 1-1/4" 1-1/4 - 11.5 NPT PEX F1960 4.73 7.27 0.77 3.75 2.57 4.98 0.98 2.08

Material

No. Part Material Specification
1 Body DZR Lead-Free Brass ASTM B927 C27453
2 Fixed End DZR Lead-Free Brass ASTM B927 C27453
3 Ball DZR Lead-Free Brass / Cr Plated ASTM B927 C27453
4 Seat PTFE –
5 Handle Steel / Dacromet® Plated ASTM A36
6 Nut Steel / Zn Plated ASTM A36
7 Packing Nut Brass ASTM B124 C37700
8 Packing Ring PTFE –
9 Stem DZR Brass ASTM B927 C27453
10 Union Nut Brass ASTM B283 C37700
11 Union DZR Lead-Free Brass ASTM B927 C27453
12 O-Ring EPDM Perox 70 SH NSF Approved

Warning (California Prop 65): This product can expose you to chemicals including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
