Brass Full Port Ball Valve | 5044F Series | FNPT | 600 PSI | UL/FM
Brass Full Port Ball Valve | 5044F Series | FNPT x FNPT | 600 WOG | UL & FM Certified

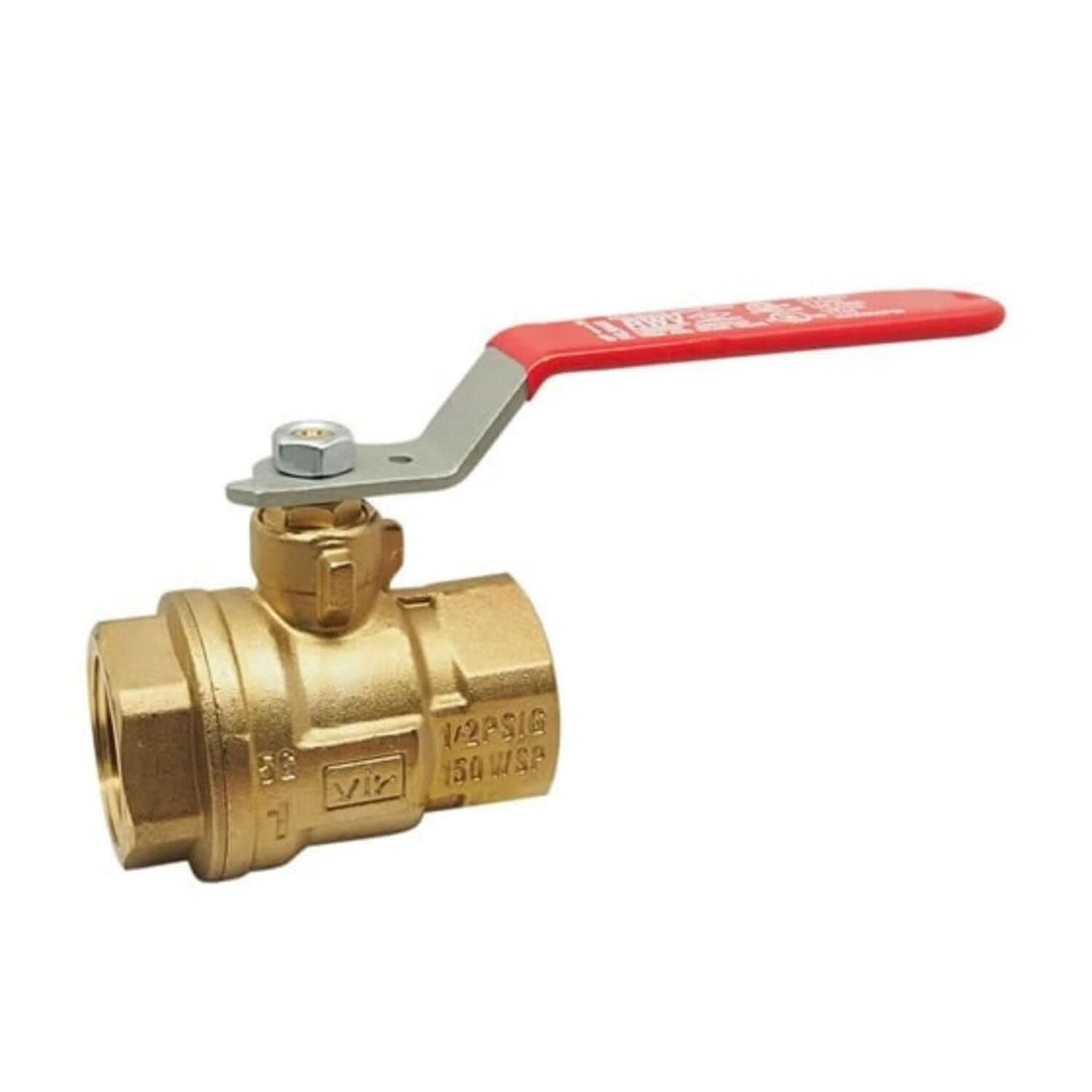

The 5044F Series Full Port Brass Ball Valve from Red-White Valve Corp. delivers heavy-duty, industrial-grade performance for water, oil, gas, and vacuum systems. Featuring a solid brass body with full port design and FNPT x FNPT threaded ends, this valve ensures unrestricted flow, maximum efficiency, and long-term dependability under demanding conditions.
Ideal for HVAC, plumbing, and mechanical applications, the 5044F is both UL listed and FM approved (sizes ¼″–2″), CSA certified for gas and vacuum use, and BAA compliant for government projects. Whether you’re managing high-pressure fluid systems or vacuum-rated installations, this valve offers the assurance professionals rely on.
Key Features
- Heavy-Duty Full Port Design: Maintains unrestricted flow for maximum efficiency and reduced pressure loss.
- High Pressure & Temperature Rating: 600 PSI WOG (15°F–160°F) and 150 PSI WSP (up to 366°F).
- FNPT x FNPT Threaded Ends: Built to ASME B1.20.1 standard for universal compatibility and secure connections.
- Blow-Out Proof Stem: Engineered for safe, reliable operation under high pressure.
- Adjustable PTFE Packing: Ensures long-term, leak-free performance with minimal maintenance.
- UL Listed & FM Approved: Certified for use in fire protection, HVAC, and gas applications (¼″–2″ sizes).
- CSA Certified: Rated for ½, 5, and 125 PSI across various sizes; approved for vacuum service (29 in-Hg).
- BAA Compliant: Meets Build America, Buy America requirements for federal and municipal projects.
Applications
- Industrial and commercial plumbing systems
- HVAC and hydronic applications
- Fuel, gas, and oil lines
- Vacuum-rated installations
- Government or infrastructure projects
Pressure / Temperature Rating
- 600 PSI WOG: from 15°F to 160°F
- 150 PSI Max: at 366°F
- Vacuum Rating: 29 in-Hg
Dimension, Cv, Weight
| Size | Connection | A (in) | C (in) | H (in) | L (in) | P (in) | Cv | Weight (lb) |
|---|---|---|---|---|---|---|---|---|
| ¼″ | ¼ - 18 NPT | 1.73 | 0.45 | 1.55 | 3.19 | 0.39 | 8 | 0.34 |
| ⅜″ | ⅜ - 18 NPT | 1.73 | 0.45 | 1.55 | 3.19 | 0.39 | 8 | 0.32 |
| ½″ | ½ - 14 NPT | 2.13 | 0.55 | 2.13 | 3.60 | 0.59 | 15 | 0.58 |
| ¾″ | ¾ - 14 NPT | 2.56 | 0.59 | 2.26 | 3.60 | 0.79 | 30 | 0.86 |
| 1″ | 1 - 11.5 NPT | 2.92 | 0.71 | 2.57 | 4.98 | 0.98 | 60 | 1.34 |
| 1¼″ | 1¼ - 11.5 NPT | 3.39 | 0.73 | 2.79 | 4.98 | 1.26 | 110 | 2.14 |
| 1½″ | 1½ - 11.5 NPT | 3.90 | 0.77 | 3.28 | 5.57 | 1.57 | 130 | 3.12 |
| 2″ | 2 - 11.5 NPT | 4.45 | 0.81 | 3.58 | 5.57 | 1.97 | 360 | 4.82 |
| 2½″ | 2½ - 8 NPT | 6.02 | 1.18 | 4.70 | 11.07 | 2.56 | 450 | 9.78 |
| 3″ | 3 - 8 NPT | 6.81 | 1.22 | 5.15 | 11.07 | 3.15 | 620 | 13.9 |
| 4″ | 4 - 8 NPT | 7.64 | 1.32 | 5.64 | 11.07 | 3.94 | 1200 | 20.4 |
Material
| # | Part | Material | Specification |
|---|---|---|---|
| 1 | Body | Brass | ASTM B283 C37700 |
| 2 | End Piece | Brass | ASTM B283 C37700 |
| 3 | Ball | Brass / Chrome-Plated | ASTM B283 C37700 |
| 4 | Seat | PTFE | PTFE |
| 5 | Stem | Brass | ASTM B124 C37700 |
| 6 | Packing | PTFE | PTFE |
| 7 | Packing Nut | Brass | ASTM B124 C37700 |
| 8 | Handle | Steel / Geomet Plated | A36 |
| 9 | Handle Nut | Steel / Zinc Plated | A36 |
⚠ California Prop 65 Warning:
This product contains chemicals including lead, known to the State of California to cause cancer and reproductive harm.
For more information, visit www.P65Warnings.ca.gov.
