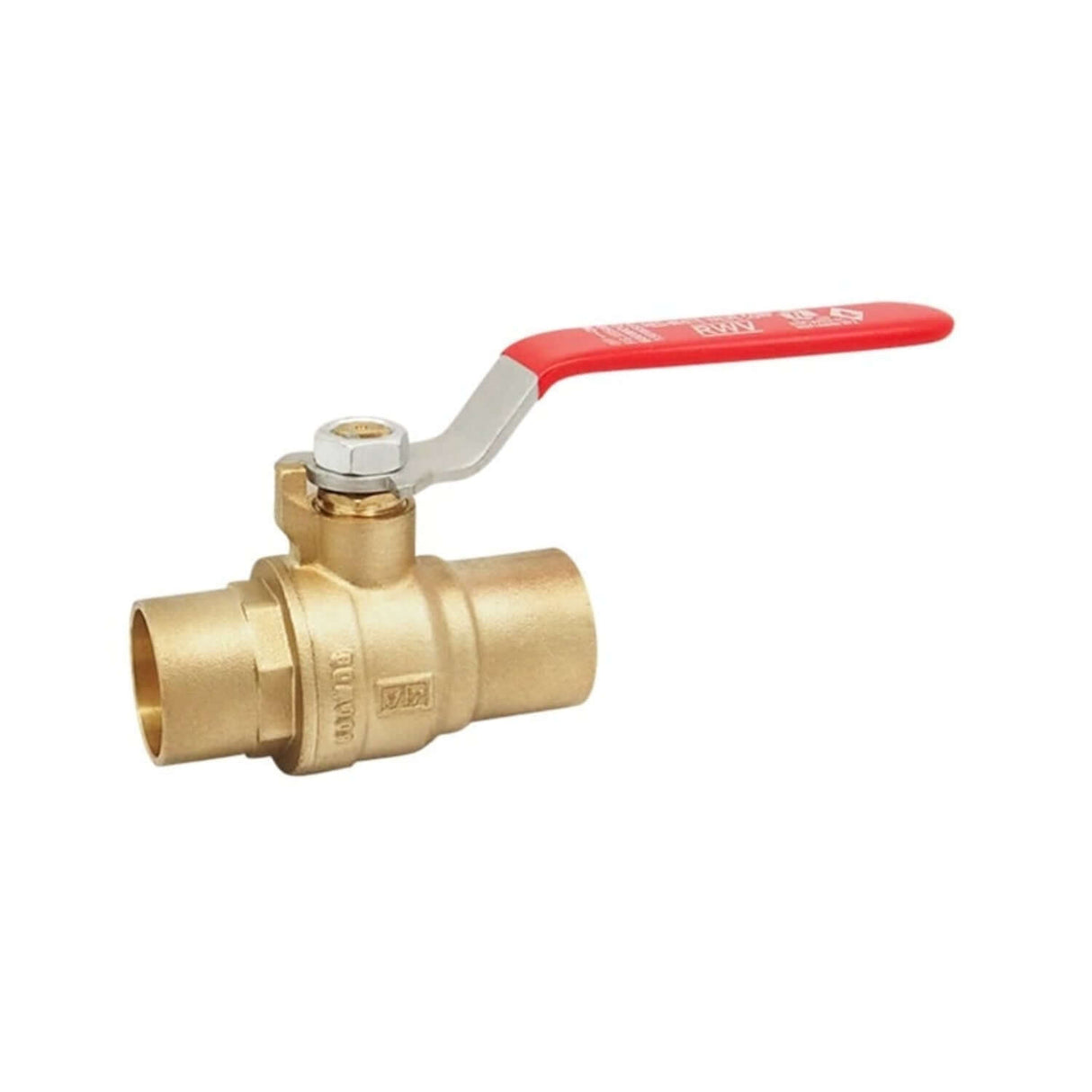

Hydronic Brass Ball Valve | 5595AB Series | Solder x Solder
Hydronic Brass Ball Valve | 5595AB Series | Solder x Solder | Lead-Free Brass | 600 WOG
The 5595AB Lead-Free Brass Ball Valve is engineered for professional-grade performance in hydronic, plumbing, and potable water systems. Featuring a full-port flow design and solder x solder ends compliant with ASME B16.22, this valve offers seamless integration into copper piping networks while maintaining maximum flow efficiency. Built with C28000 lead-free brass, it meets all current AB1953 and NSF/ANSI 61 & 372 standards for safe drinking water applications.
Designed to perform under demanding conditions, the 5595AB withstands 600 PSI WOG and 150 PSI WSP at temperatures up to 366°F. With its blow-out proof stem, adjustable PTFE packing, and Dacromet-coated steel handle, it ensures long-term durability and leak-free reliability across a wide range of hydronic and HVAC environments.
Key Features
- Lead-Free Brass Construction: Made from premium C28000 brass and certified to NSF/ANSI 61 & 372 and AB1953 standards.
- Full Port Design: Provides unrestricted flow with minimal pressure loss — ideal for high-efficiency systems.
- High Pressure & Temperature Rating: 600 PSI WOG (15°F–160°F) and 150 PSI WSP (up to 366°F).
- Solder x Solder Ends: ASME B16.22 compliant for clean, reliable connections using 95-5 Tin-Antimony solder.
- Blow-Out Proof Stem: Ensures safety and reliability under fluctuating pressures.
- Adjustable PTFE Packing: Leak-resistant design allows for easy maintenance and long service life.
- Dacromet-Coated Handle & Hardware: Corrosion-resistant materials extend performance life in humid or industrial settings.
Applications
- Residential and commercial plumbing
- Hydronic and HVAC systems
- Potable water distribution
- Industrial piping and facility upgrades
Pressure / Temperature Rating
- 600 PSI WOG: from 15°F to 160°F
- 150 PSI Max: at 366°F
Dimension, Cv, Weight
| Size | Ø (in) | A (in) | C (in) | H (in) | L (in) | P (in) | Cv | Weight (lb) |
|---|---|---|---|---|---|---|---|---|
| ½" | 0.627–0.631 | 2.20 | 0.51 | 1.93 | 3.58 | 0.50 | 11 | 0.38 |
| ¾" | 0.877–0.881 | 2.87 | 0.75 | 2.07 | 3.58 | 0.73 | 26 | 0.52 |
| 1" | 1.128–1.131 | 3.43 | 0.91 | 2.36 | 4.96 | 0.95 | 55 | 0.90 |
| 1¼" | 1.378–1.381 | 3.82 | 0.98 | 2.60 | 4.96 | 1.22 | 103 | 1.20 |
| 1½" | 1.628–1.632 | 4.25 | 1.09 | 2.87 | 5.55 | 1.46 | 111 | 1.74 |
| 2" | 2.128–2.132 | 5.31 | 1.34 | 3.25 | 5.55 | 1.95 | 353 | 2.84 |
| 2½" | 2.628–2.632 | 6.34 | 1.50 | 4.17 | 9.91 | 2.44 | 409 | 5.46 |
| 3" | 3.128–3.132 | 7.72 | 1.69 | 5.13 | 11.06 | 2.91 | 530 | 8.50 |
Material
| # | Part | Material | Specification |
|---|---|---|---|
| 1 | Body | Lead-Free Brass | C28000 |
| 2 | End Piece | Lead-Free Brass | C28000 |
| 3 | Ball | Lead-Free Brass / Chrome-Plated | C28000 |
| 4 | Seat | PTFE | PTFE |
| 5 | Stem | Lead-Free Brass | C28000 |
| 6 | O-Ring | FKM | NSF Approved |
| 7 | Packing | PTFE | PTFE |
| 8 | Packing Nut | Brass | B124 C37700 |
| 9 | Handle | Steel / Dacromet-Coated | A36 |
| 10 | Handle Nut | Steel / Zinc-Plated | A36 |
⚠ California Prop 65 Warning:
This product can expose you to chemicals including lead, known to the State of California to cause cancer and reproductive harm.
For more information, visit www.P65Warnings.ca.gov.
