Brass Radiator Gate Valve | 9107F Series | FNPT x Male Union | 200# WOG
$49.00
Unit price
/
Select Option

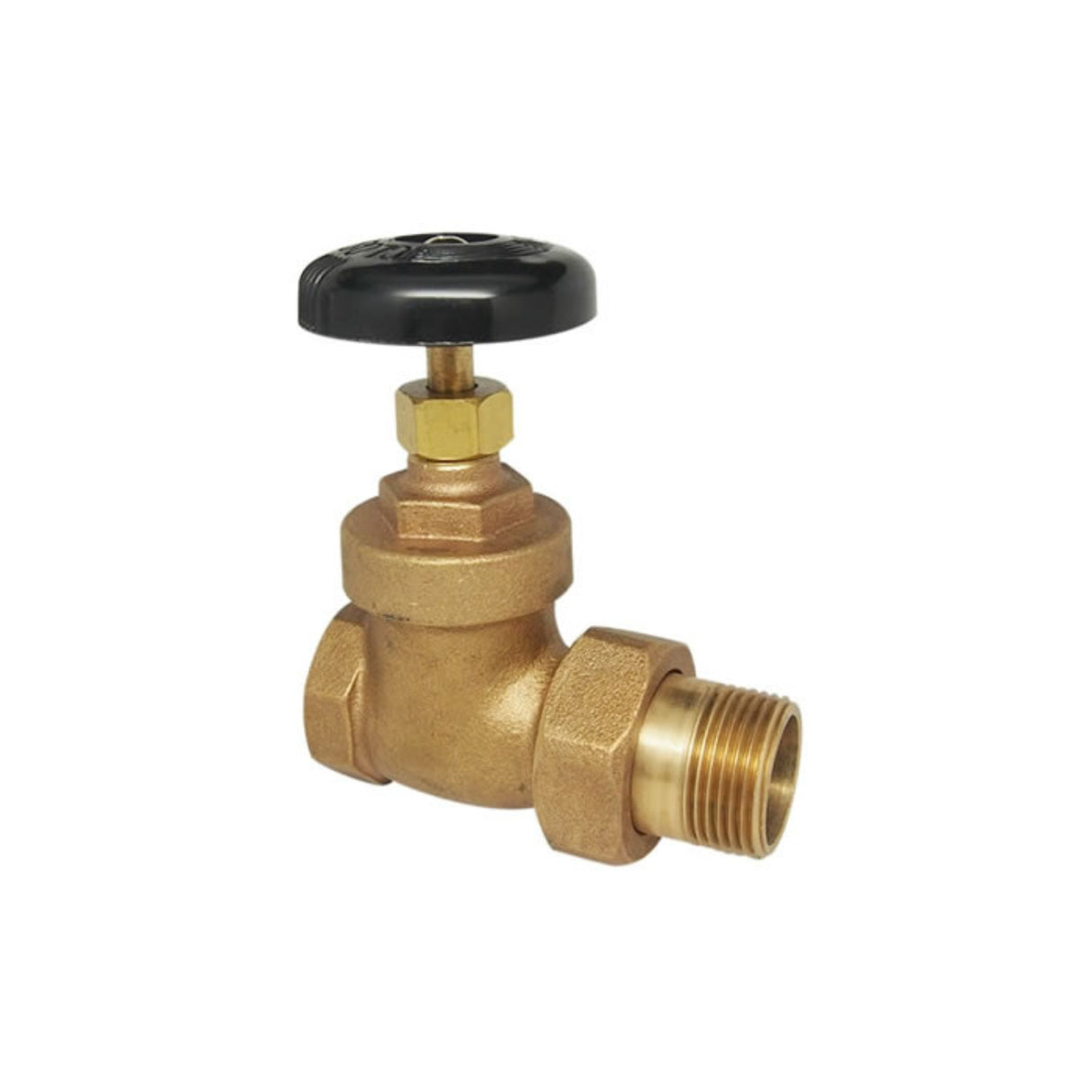

Brass Radiator Gate Valve | 9107F Series | FNPT × Male Union | Screw-In Bonnet | 200# WOG
Red-White Valve 9107F Series Brass Radiator Gate Valves are designed for superior performance and longevity in heating and radiator systems. Manufactured from ASTM B283 C37700 brass, this valve features a screw-in bonnet for secure closure and FNPT × Male Union connections for convenient installation and maintenance. Its precision-machined body and wedge ensure tight shutoff and smooth flow control, even under high-pressure conditions.
Key Features & Benefits
- Durable Brass Construction: Brass body, wedge, and bonnet provide excellent corrosion resistance and structural integrity for long-term reliability.
- FNPT × Male Union Connection: Allows quick installation and easy servicing without disrupting the full system line.
- Screw-In Bonnet Design: Enables fast internal access for inspection and repairs while ensuring a secure seal.
- Pressure Ratings: Rated for 200# WOG and 15# WSP (steam), providing dependable performance across water, oil, and gas applications.
- Leak-Proof Stem & Packing: Equipped with Graphite SIGRAFLEX® APX packing and PTFE body/bonnet seal for superior leak resistance.
- Easy Operation: Features a phenolic resin handwheel for comfortable manual control in tight mechanical spaces.
Applications
- Hydronic and steam radiator systems
- Commercial and industrial HVAC piping
- Water, oil, and gas distribution systems
Dimensions & Weight
| Size | T | T1 | A [in] | B [in] | C [in] | C1 [in] | P [in] | H [in] | Wt. [lb] |
|---|---|---|---|---|---|---|---|---|---|
| ½″ | ½ - 14 NPT | ½ - 14 NPT | 2.95 | 2.05 | 0.54 | 0.63 | 0.52 | 2.72 | 0.66 |
| ¾″ | ¾ - 14 NPT | ¾ - 14 NPT | 3.43 | 2.48 | 0.56 | 0.71 | 0.72 | 2.95 | 0.92 |
| 1″ | 1 - 11.5 NPT | 1 - 11.5 NPT | 3.78 | 2.72 | 0.67 | 0.91 | 0.87 | 3.35 | 1.26 |
| 1¼″ | 1¼ - 11.5 NPT | 1¼ - 11.5 NPT | 4.45 | 3.23 | 0.69 | 0.98 | 1.15 | 3.88 | 2.04 |
| 1½″ | 1½ - 11.5 NPT | 1½ - 11.5 NPT | 4.76 | 3.54 | 0.69 | 0.98 | 1.39 | 4.13 | 2.90 |
Material
| Part | Material | Specification |
|---|---|---|
| Body | Brass | ASTM B283 C37700 |
| Wedge | Brass | ASTM B283 C37700 |
| Stem Ring | Brass | ASTM B124 C37700 |
| Stem | Brass | ASTM B124 C37700 |
| Body/Bonnet Seal | PTFE | PTFE |
| Bonnet | Brass | ASTM B283 C37700 |
| Packing Ring | Graphite SIGRAFLEX® APX | - |
| Packing Nut | Brass | ASTM B124 C37700 |
| Handwheel | Phenolic Resin | - |
| Disk | Aluminum | - |
| Screw | Steel / Zn Plated | ASTM A36 |
| Tailpiece | Brass | ASTM B283 C37700 |
| Union Nut | Brass | ASTM B283 C37700 |
All specifications verified against Red-White Valve 9107F spec sheet.
