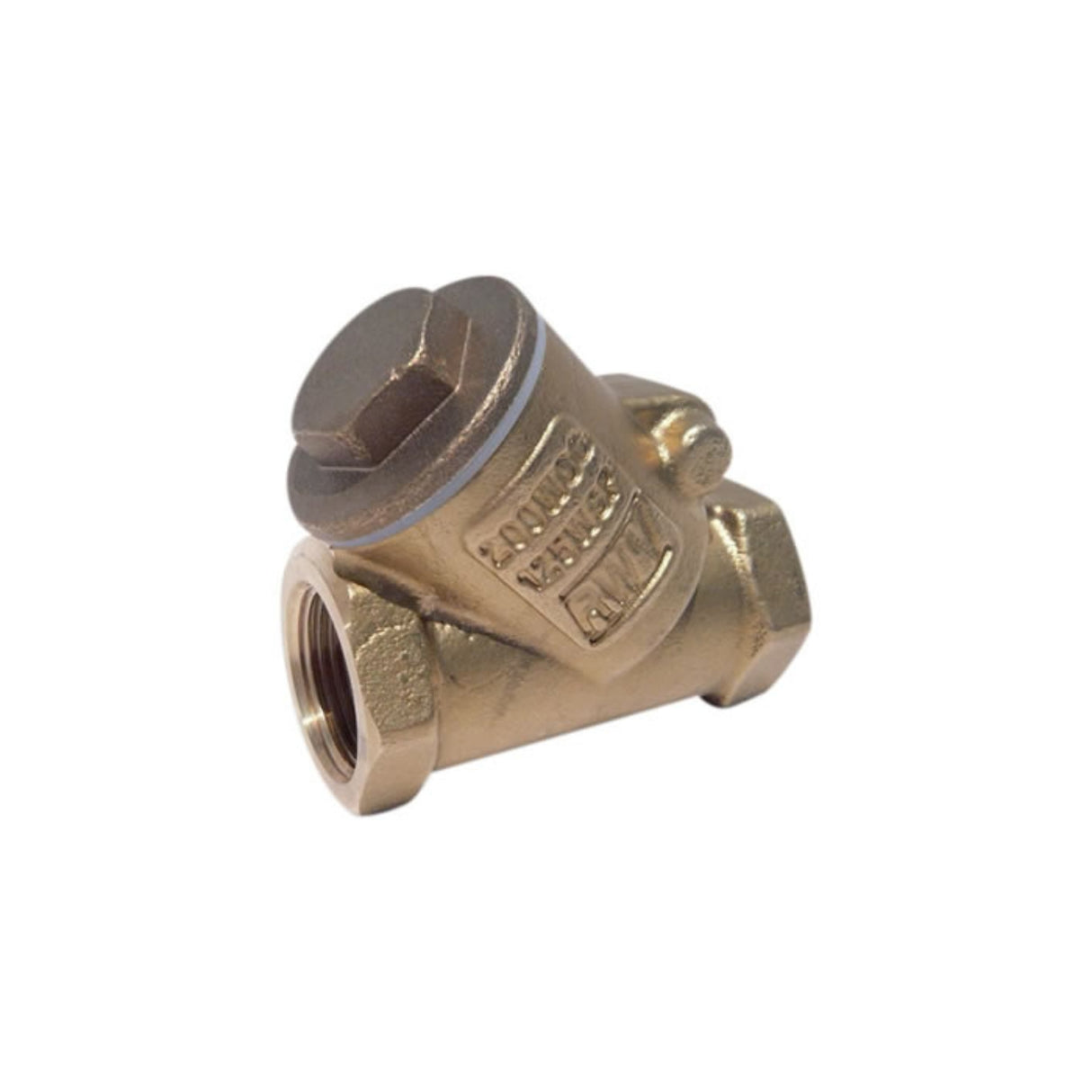

Bronze Swing Check Valve | 360 Series | FNPT | Y Pattern | 500# WOG

Brass Swing Check Valve | 236F Series | FNPT × FNPT | Y Pattern | 300# WSP | 500# WOG

Red-White Valve 236F Series is a precision-engineered brass Y-pattern swing check valve designed for high-pressure applications. Its durable brass body and disc construction provide excellent corrosion resistance and long-term reliability across water, gas, and steam systems. Built to MSS-SP-80 standards and rated for 300# WSP / 500# WOG, this valve ensures consistent, one-way flow control and backflow prevention in demanding installations.

Key Features & Benefits

• Heavy-Duty Pressure Rating: Handles 300# WSP and 500# WOG for superior performance under pressure.
• Brass Construction: Made from ASTM B124 C37700 for corrosion resistance and dependable service life.
• Y-Pattern Swing Design: Ensures smooth, low-turbulence flow and reliable backflow protection.
• Threaded FNPT × FNPT Ends: Conforms to ASME B1.20.1-NPT standards for simple installation and secure sealing.
• MSS-SP-80 Compliant: Meets industry standards for swing check valve quality and performance.

Applications

• Water, gas, and steam systems
• Industrial process lines
• Boiler and mechanical rooms
• HVAC and hydronic piping

Specifications

• Series: 236F
• Material: Brass ASTM B124 C37700
• Connection Type: FNPT × FNPT (ASME B1.20.1-NPT)
• Pressure Rating: 300# WSP / 500# WOG
• Design Standard: MSS-SP-80
• Size Range: ½″ through 2″

Dimensions & Flow Data

Material Specifications

For complete pressure and dimensional data, refer to the Red-White Valve 236F specification sheet.
