Bronze Threaded Globe Valve | 214 Series | 400# WOG | SS Seat
$78.25
Unit price
/
Select Option

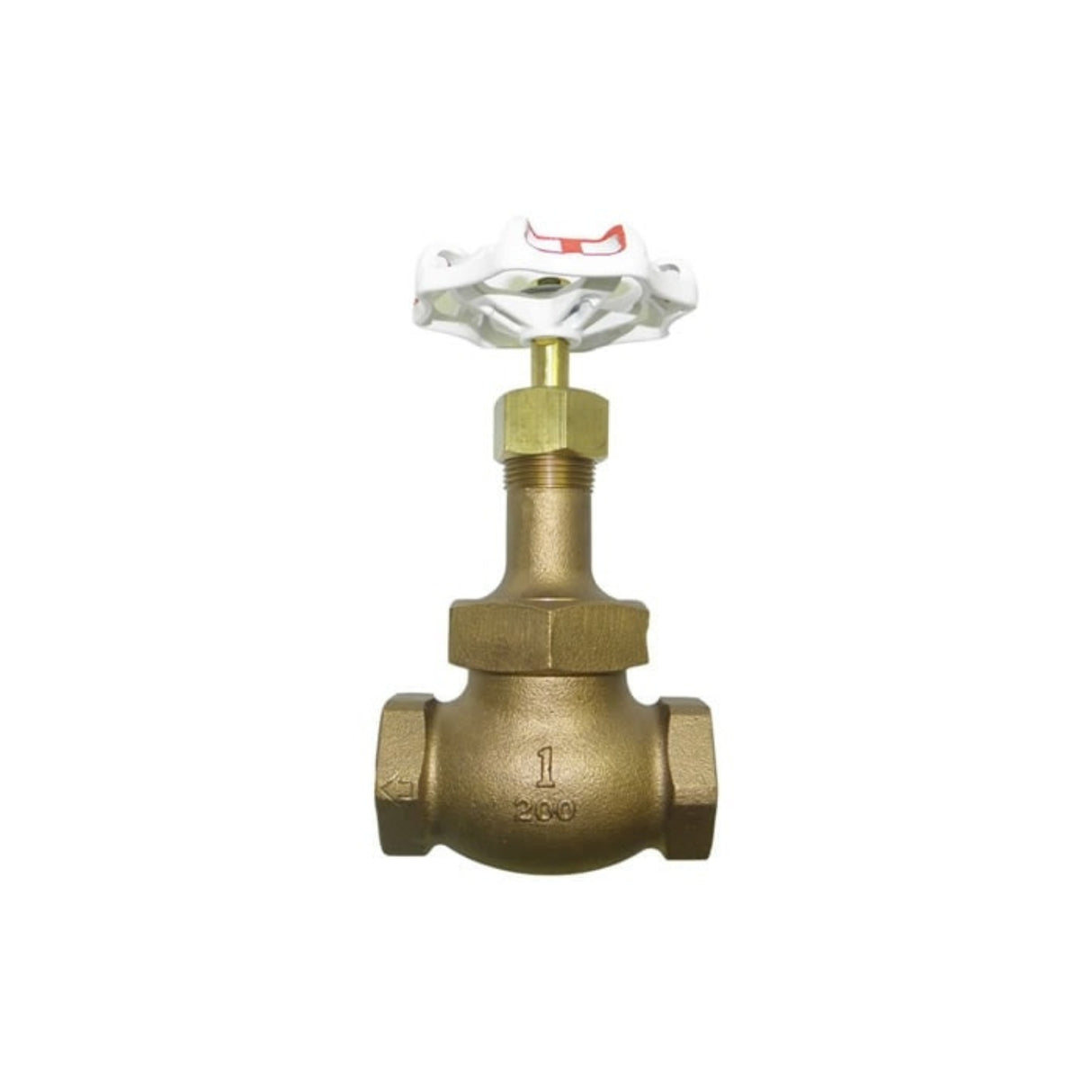

Bronze Threaded Globe Valve | 214 Series | FNPT × FNPT | 200# WSP / 400# WOG
Red-White Valve’s 214 Bronze Threaded Globe Valve delivers robust performance for high-pressure systems across water, oil, gas, and steam service. Engineered with a cast bronze body and bonnet (B61-C92200) and stainless steel disc and seat rings, it ensures corrosion resistance, wear protection, and consistent shutoff in demanding applications. The union bonnet design simplifies maintenance while maintaining tight, leak-free performance.
Key Features & Benefits
- Pressure Rating — 200 PSI Steam (WSP) / 400 PSI Water, Oil & Gas (WOG) for reliable high-pressure operation.
- Durable Bronze Body — Constructed from B61-C92200 cast bronze for superior corrosion resistance and mechanical strength.
- Stainless Steel Disc & Seat Rings — A276-403 stainless components provide exceptional sealing and wear resistance.
- Union Bonnet Design — Enables easy servicing and secure sealing for long-term system reliability.
- Threaded FNPT Ends — Standard ASME B1.20.1 threaded connections for quick, leak-free installation.
- MSS-SP-80 Compliant — Built to industry standards for bronze valves in industrial, mechanical, and HVAC systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Pressure Rating | 200# WSP / 400# WOG |
| Body & Bonnet | Cast Bronze (B61-C92200) |
| Disc & Seat Rings | Stainless Steel (A276-403) |
| Stem | Brass (DR Alloy) |
| Connection Type | FNPT × FNPT (ASME B1.20.1) |
| Bonnet Type | Union Bonnet |
| Compliance | MSS-SP-80 |
Dimensions / Weights (inches-lbs.)
| Size | D | d (NPT) | H | L | S | Cv | Wt. [lb] |
|---|---|---|---|---|---|---|---|
| ½″ | 2.76 | 0.50 | 5.16 | 2.68 | 1.26 | 3.5 | 1.4 |
| ¾″ | 3.15 | 0.75 | 6.02 | 3.15 | 1.50 | 6.5 | 2.5 |
| 1″ | 3.54 | 1.00 | 6.61 | 3.74 | 1.81 | 12 | 3.5 |
| 1¼″ | 3.94 | 1.25 | 7.48 | 4.25 | 2.21 | 21 | 5.4 |
| 1½″ | 4.33 | 1.50 | 8.23 | 4.72 | 2.48 | 30 | 7.7 |
| 2″ | 4.92 | 2.00 | 9.25 | 5.71 | 2.99 | 49 | 12 |
Material Construction
| # | Part | Material | Specification |
|---|---|---|---|
| 1 | Body | Cast Bronze | B61-C92200 |
| 2 | Bonnet | Cast Bronze | B61-C92200 |
| 3 | Stem | Brass | DR Alloy |
| 4 | Disc | Stainless Steel | A276-403 |
| 5 | Seat Rings | Stainless Steel | A276-403 |
| 6 | Lock Nut | Brass | B124-C37700 |
| 7 | Gland | Brass | B124-C37700 |
| 8 | Union Nut | Bronze | B61-C92200 |
| 9 | Packing Nut | Bronze / Brass | B62-C83600 / B16-C36000 |
| 10 | Gland Packing | Plastic Graphite | T#2996NA |
| 11 | Handwheel | Aluminum Alloy / Zinc Alloy (½″) | B85-SC114A / B86-AG40A |
| 12 | Wheel Nut | Steel | A36 |
| 13 | Name Plate | Aluminum | B209 |
