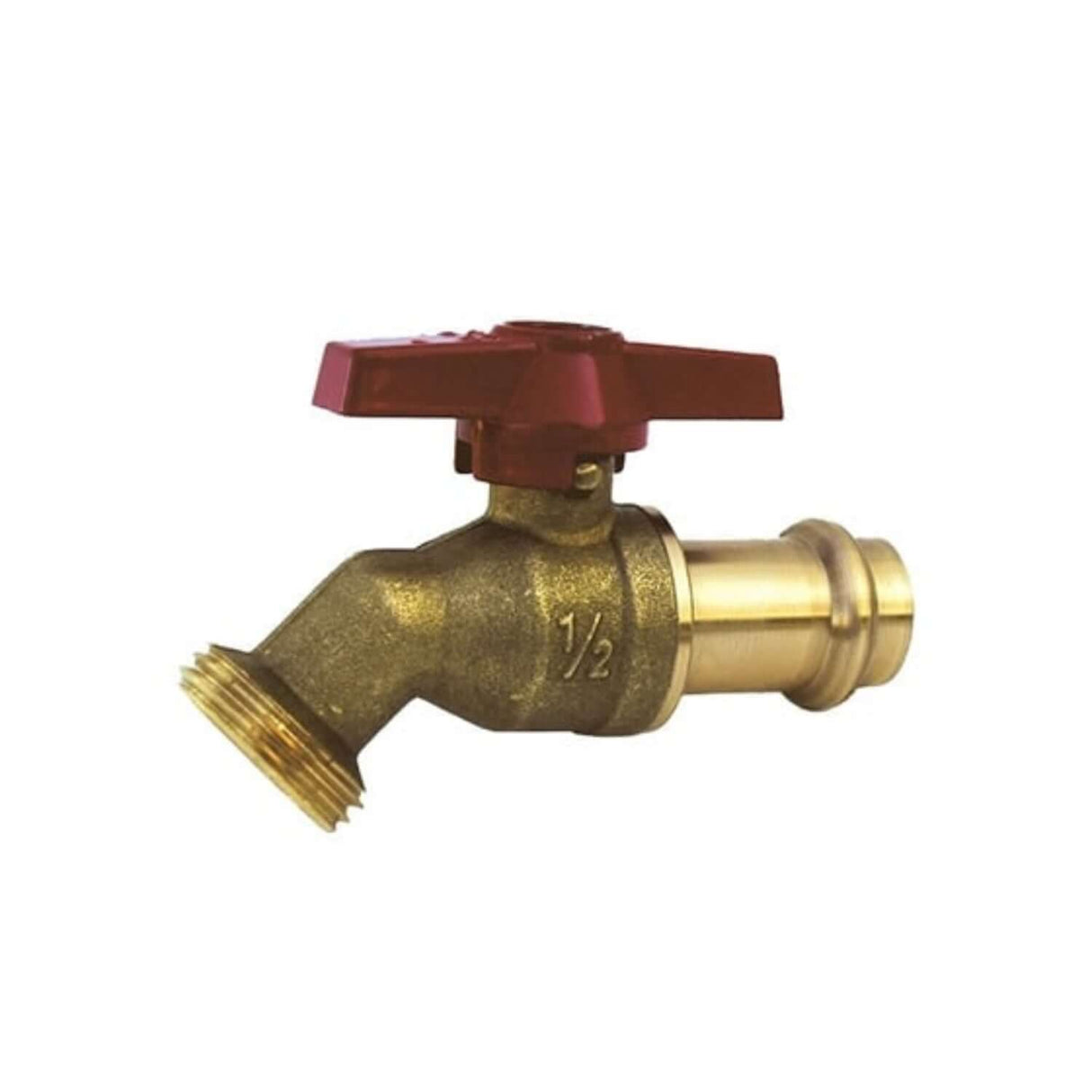

Lead-Free Hose Bibb | RW-320AB | EzPress x No-Kink
Lead-Free Hose Bibb | RW-320AB Series | EzPress x No-Kink Hose | 125 CWP
The RW-320AB Lead-Free Brass EzPress Hose Bibb provides a safe, durable, and efficient solution for outdoor and potable water applications. Featuring a lead-free brass body and no-kink hose outlet, it’s engineered to prevent flow restriction and ensure reliable performance over years of use. The EzPress connection allows for quick, flame-free installation—ideal for both residential and commercial plumbing professionals.
Certified to meet AB1953 and NSF/ANSI 61 & 372 standards, this hose bibb guarantees compliance with drinking water requirements while delivering superior flow control and corrosion resistance. Perfect for new installations or replacements where safety and performance matter most.
Key Features
- Lead-Free Certified: Complies with AB1953 and NSF/ANSI 61 & 372 standards for safe potable water use.
- Durable Construction: Forged from C28000/C27453 lead-free brass for long-term corrosion resistance.
- No-Kink Hose Outlet: Optimized for smooth water flow and easy garden hose attachment.
- Chrome-Plated Ball: Provides smooth shutoff action and long-lasting durability.
- Virgin PTFE Seats: Ensures tight sealing and resistance to wear or deformation.
- Blow-Out Proof Stem: Adds protection and safety under pressure.
- Quick EzPress Connection: Tool-free, solder-free press-fit installation saves time on every job.
Performance Ratings
| Pressure / Temperature Rating |
|---|
| 125 CWP from 15°F to 200°F |
Applications
- Residential hose bibb installations
- Garden and outdoor spigot replacements
- Commercial and light industrial plumbing systems
- New construction potable water projects
Dimensions & Weights (inches-lbs.)
| Size | D (in) | T (in) | A (in) | A1 (in) | H (in) | H1 (in) | L (in) | P (in) | C (in) | B (in) | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2″ | 0.638 | 1/2 - 11.5NH | 3.62 | 1.91 | 1.37 | 0.91 | 2.20 | 0.50 | 0.24 | 0.71 | 0.39 |
| 3/4″ | 0.886 | 3/4 - 11.5NH | 3.62 | 1.91 | 1.37 | 0.91 | 2.20 | 0.50 | 0.24 | 0.71 | 0.42 |
Material & Specifications
| Part | Material | Specification |
|---|---|---|
| 1 - Body | Lead-Free Brass | C28000 |
| 2 - End Piece | Lead-Free Brass | C27453 |
| 3 - Ball | Low Lead Brass / Chrome Plated | C28000 |
| 4 - Seat | PTFE | – |
| 5 - Stem | Low Lead Brass | C28000 |
| 6 - O-ring | NBR | NSF Approved |
| 7 - Handle | Aluminum | ASTM B85-A03840 |
| 8 - Screw | Steel / Zinc Plated | ASTM 36 |
| 9 - Packing O-ring | EPDM-Perox | NSF Approved |
⚠ California Proposition 65 Warning:
This product contains chemicals including lead, known to the State of California to cause cancer and reproductive harm.
For more information, visit www.P65Warnings.ca.gov.
