Fairlead Quadrant Block | 60″ Radius | 10,000 lb
$12,869.99
Unit price
/
Select Option
Each
Fairlead Quadrant Block | 60″ Radius | 10,000 lb — Product Overview

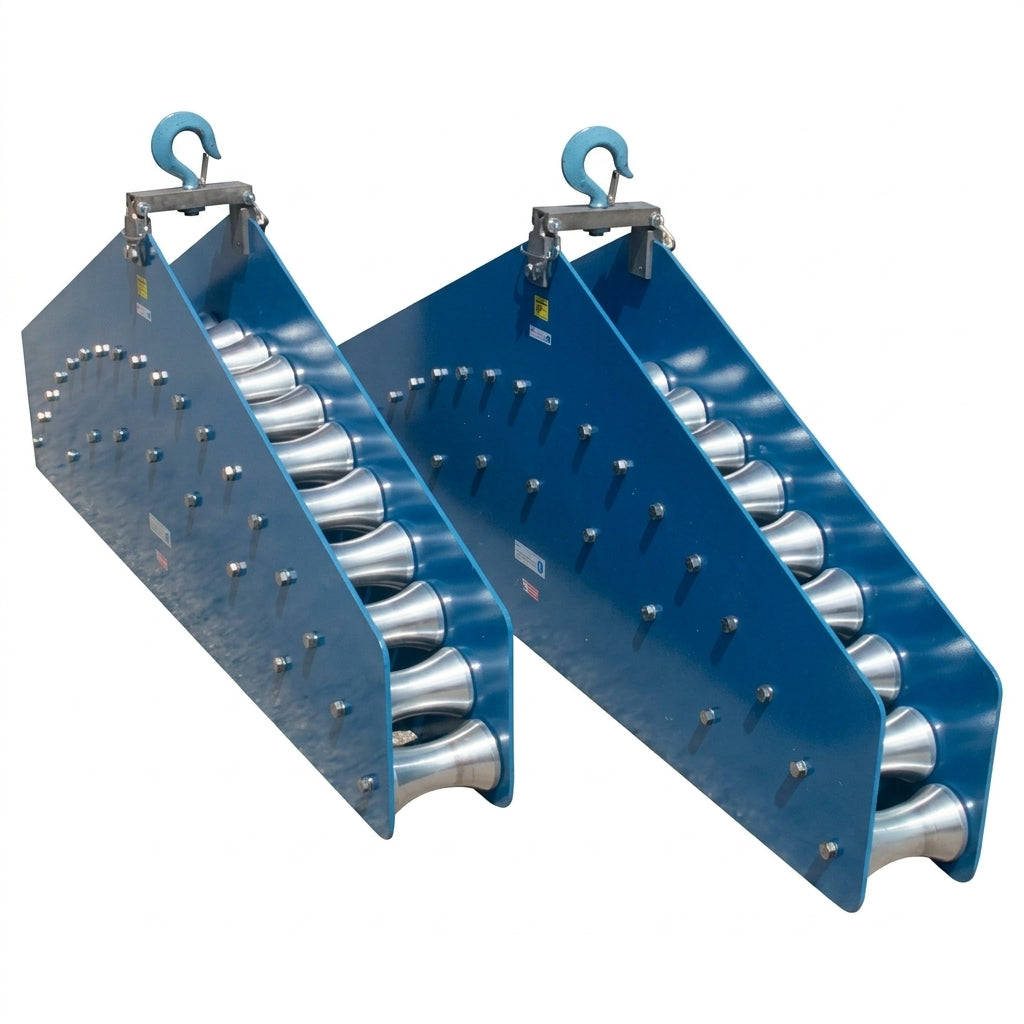

The Condux Fairlead Quadrant Block guides cable around a gradual 90° turn using a 60″ (1,524 mm) pulling radius. Condux specifies a 10,000 lb capacity.
The block has 18 machined rollers mounted on bronze bearings. Each roller measures 8″ (203 mm) wide × 5.5″ (140 mm) in diameter. Choose aluminum rollers under part number 08094500 or Nylatron rollers under part number 08094510.
Key Features
- 60″ Pulling Radius: Provides a 1,524 mm radius for cable guidance.
- Gradual 90° Turn: Roller arrangement guides cable through a quarter turn.
- 18 Machined Rollers: Rollers are mounted on bronze bearings.
- Two Roller Options: Available with aluminum or Nylatron rollers.
- 10,000 lb Capacity: Rated capacity specified by Condux.
Ordering Information
| Part Number | Roller Material | A (in / mm) | B (in / mm) | C (in / mm) |
|---|---|---|---|---|
| 08094500 | Aluminum | 96 / 2,438 | 36 / 914 | 9 / 229 |
| 08094510 | Nylatron | 96 / 2,438 | 36 / 914 | 9 / 229 |

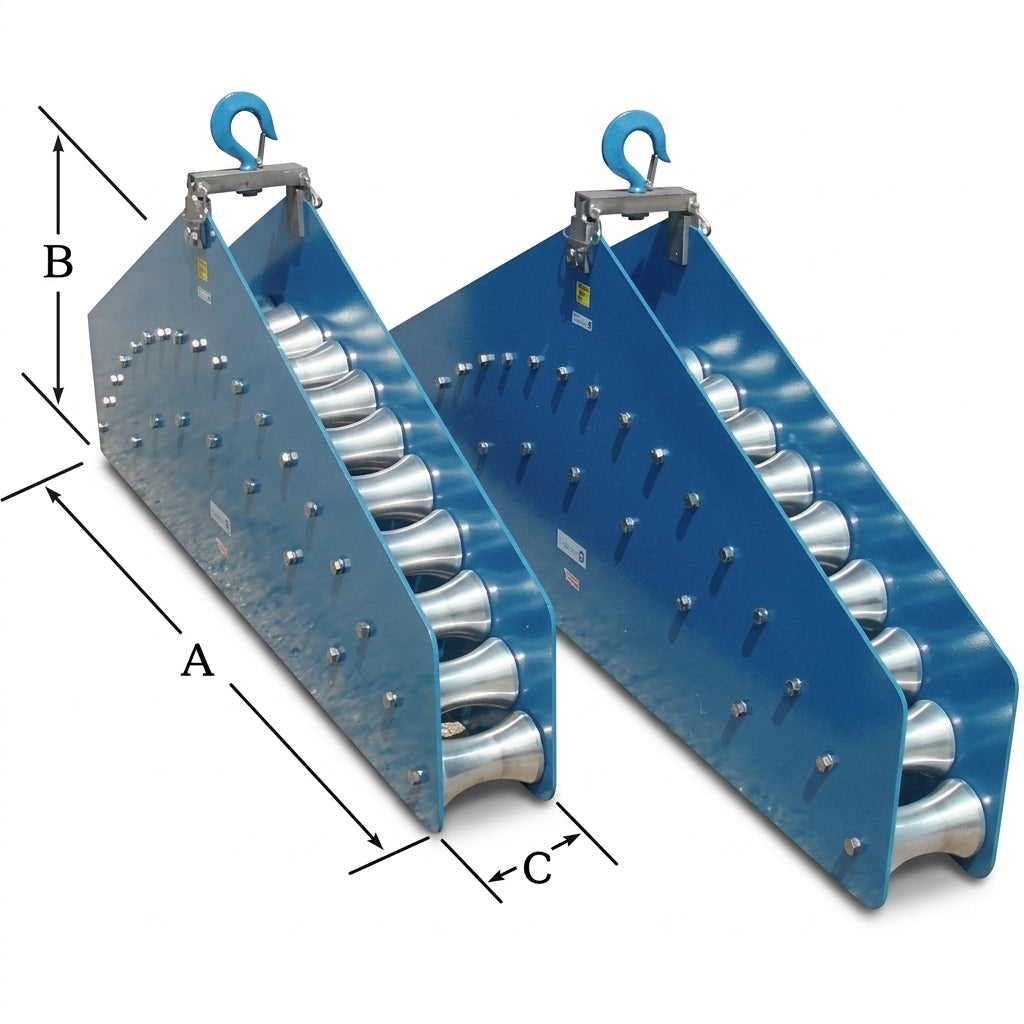

Dimension note: A, B and C refer to the dimensions shown in the Condux product diagram.
Replacement Sheaves and Returns
Replacement sheaves are available. Call (815) 337-8845 for part numbers.
Return restriction: Condux identifies this item as non-returnable.
