Fixed Head Innerduct Pulling Eye | Threaded
Fixed Head Innerduct Pulling Eye | Tapered Buttress Thread Design — Product Overview

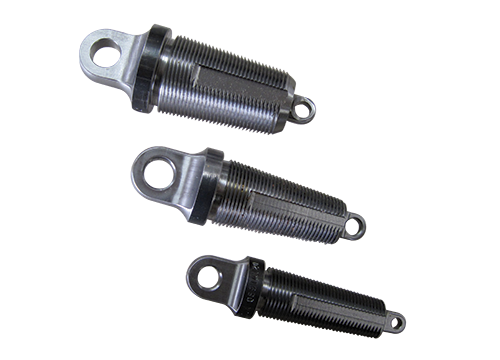

The Fixed Head Innerduct Pulling Eye features tapered buttress threads that engage directly with the innerduct for cable pulling applications. The threaded design provides pulling strength and allows the pulling eye to connect directly to compatible Condux swivels.
When properly sized and installed, the pulling eye is designed to remain engaged with the innerduct during pulling operations. It is available in six nominal sizes, from .75" to 2", for different innerduct inside diameters.
Important Sizing Note: Measure the actual innerduct inside diameter (I.D.) before selecting a pulling eye. The measured I.D. must be greater than dimension A and smaller than dimension B.
Product Features
- Tapered Buttress Threads: Thread directly into the innerduct for pulling applications.
- Direct Swivel Connection: Designed to connect directly to compatible Condux swivels.
- Fixed Head Configuration: Provides a threaded pulling-eye connection without an integrated swivel head.
- Six Nominal Sizes: Available in .75", 1", 1.25", 1.5", 1.75", and 2" sizes.
- Innerduct Sizing: Select the appropriate model using the measured innerduct I.D. and the manufacturer's specified A–B range.
- Pulling Applications: Designed for installing innerduct in conduit systems.
- Swivel Compatibility: Compatible swivel models depend on the pulling-eye size and connection requirements.
Documentation
Innerduct Compatibility Chart
| Part Number | Nominal Size | Innerduct I.D. Range | .75" Innerduct | 1" Innerduct | 1.25" Innerduct | 1.5" Innerduct | 2" Innerduct |
|---|---|---|---|---|---|---|---|
| 08914110 | .75" | .73"–.94" | SDR 9, 11, 13.5, 15.5 | — | — | — | — |
| 08914122 | 1" | .97"–1.14" | — | SDR 9, 11, 13.5, 15.5; SCH 40 | — | — | — |
| 08914130 | 1.25" | 1.16"–1.43" | — | SDR 21 | SDR 7, 9, 11, 13.5 | SDR 7 | — |
| 08914142 | 1.5" | 1.50"–1.67" | — | — | SDR 21 | SDR 11, 13.5, 15.5, 17; SCH 40 | — |
| 08914150 | 1.75" | 1.72"–1.85" | — | — | — | SDR 21 | — |
| 08914162 | 2" | 1.88"–2.07" | — | — | — | — | SDR 11, 13.5, 15.5; SCH 40, SCH 80 |
Ordering Information

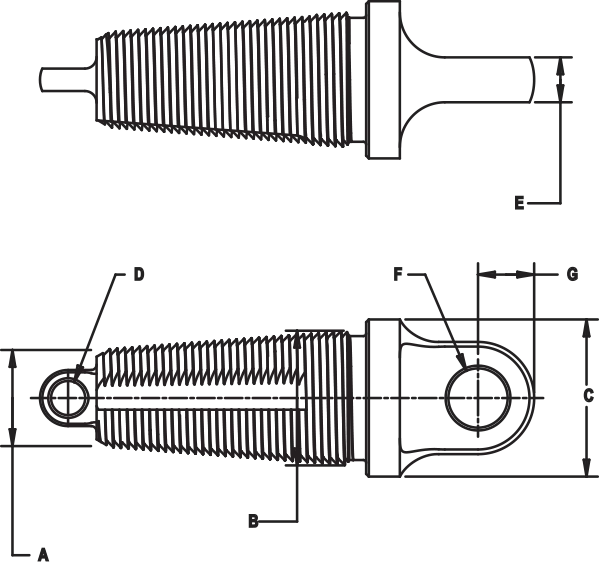

| Part Number | Nominal Size (in) | Innerduct I.D. Range (in) | Innerduct I.D. Range (mm) | Max O.D. C (in/mm) | Hole Diameter D (in/mm) | Tang Thickness E (in/mm) | Tang Hole Diameter F (in/mm) | Tang Hole Location G (in/mm) |
|---|---|---|---|---|---|---|---|---|
| 08914110 | .75" | .73–.94 | 19–24 | 1.25 / 32 | .25 / 6 | .38 / 10 | .50 / 13 | .50 / 13 |
| 08914122 | 1" | .97–1.14 | 25–29 | 1.38 / 35 | .25 / 6 | .38 / 10 | .50 / 13 | .50 / 13 |
| 08914130 | 1.25" | 1.16–1.43 | 29–36 | 1.75 / 44 | .38 / 10 | .50 / 13 | .66 / 17 | .63 / 16 |
| 08914142 | 1.5" | 1.50–1.67 | 38–42 | 2 / 51 | .38 / 10 | .50 / 13 | .66 / 17 | .63 / 16 |
| 08914150 | 1.75" | 1.72–1.85 | 44–47 | 2.25 / 57 | .38 / 10 | .50 / 13 | .66 / 17 | .75 / 19 |
| 08914162 | 2" | 1.88–2.07 | 48–53 | 2.50 / 64 | .38 / 10 | .50 / 13 | .81 / 21 | .75 / 19 |
Compatibility Note: Confirm the appropriate threaded connector and Condux swivel for the selected pulling-eye size before installation.
