RED-WHITE VALVE CORP. | SKU: 30074466 | MPN: 5063AB 1/2

Full Port Brass Ball Valve with Drain | 5063AB Series | Solder

$33.00

Size | Connection Type | Min Order Qty (MOQ)

Product variants

Full Port Flow Design – Maximizes water flow and system efficiency with unrestricted bore for high-capacity performance.
Integrated Drain Port – Built-in side drain simplifies system maintenance, draining, and winterization.
Lead-Free Brass Body – Constructed to ASTM B927 C28450 standards, NSF/ANSI 61 & 372 certified, and AB1953 compliant.
High Pressure Rating – 600 PSI WOG and 150 PSI at 200°F, delivering dependable operation in potable and hydronic systems.
Solder x Solder Ends – ASME B16.22 compliant for copper piping with 95-5 tin-antimony solder (ASTM B32 Grade 95TA).

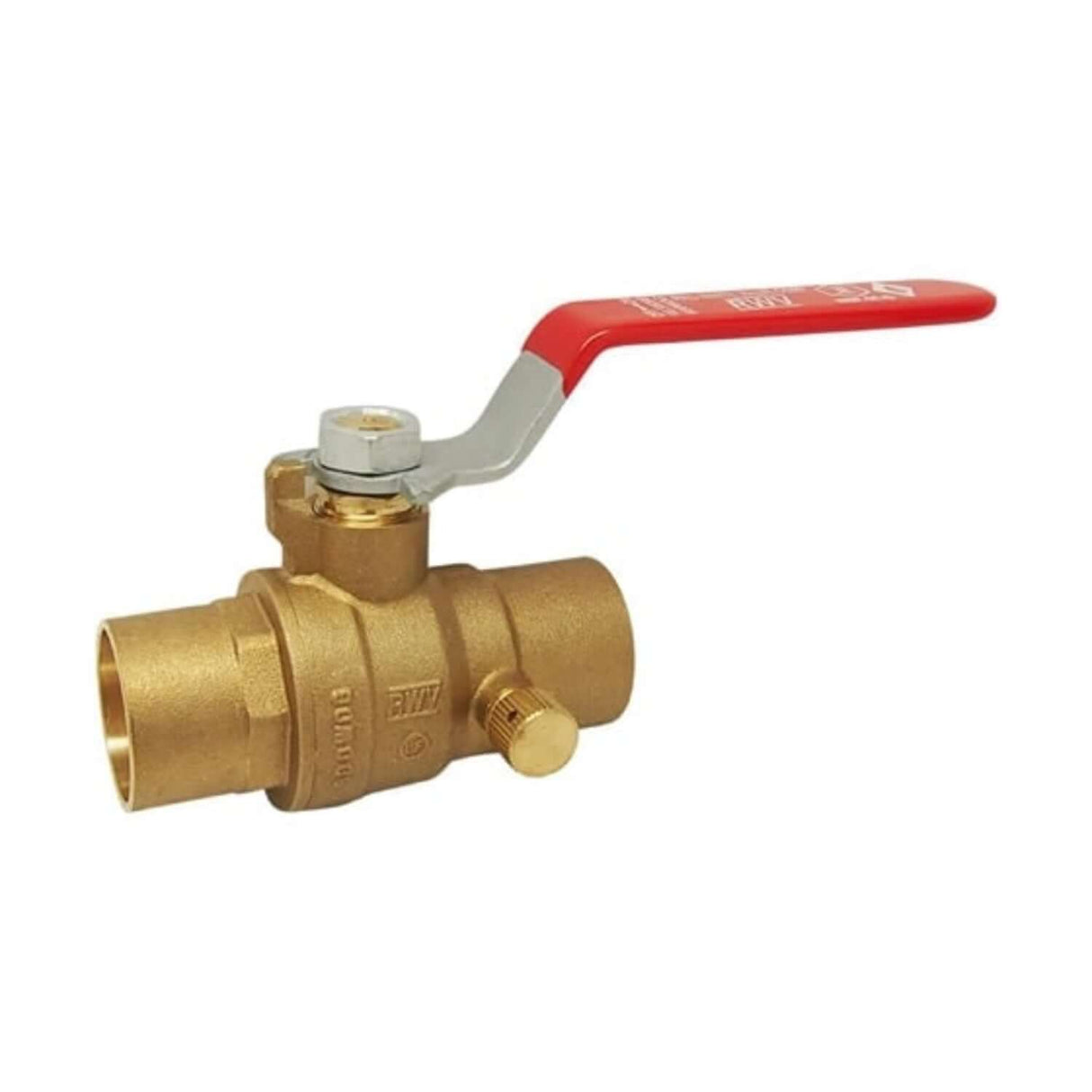

Full Port Brass Ball Valve with Drain | 5063AB Series | Solder x Solder

The 5063AB ECO-VALVE is a lead-free, full port brass ball valve with drain engineered for reliability, easy maintenance, and compliance with modern potable water standards. Ideal for residential plumbing, commercial HVAC systems, and industrial water applications, this valve combines robust construction with long-term performance and safety certification.

Key Features

Lead-Free Brass Construction: Built from ASTM B927 C28450 brass, the 5063AB meets NSF/ANSI 61 & 372 certification and AB1953 requirements for low-lead compliance (<0.25% lead in wetted surfaces).
Full Port Design: Ensures maximum flow capacity with minimal pressure drop, improving system efficiency and performance.
Integrated Drain Port: Provides easy system draining and maintenance access without removing the valve—perfect for winterizing and service applications.
Solder x Solder Connections: Ends comply with ASME B16.22 and are compatible with 95-5 tin-antimony solder (ASTM B32 Grade 95TA) for secure copper piping installation.
High Pressure & Temperature Ratings: Rated 600 PSI WOG (15°F–160°F) and 150 PSI max at 200°F for dependable service under varying conditions.
Durable Internal Components: Features a chrome-plated brass ball, PTFE seats and packing, and a blow-out proof stem for reliable, leak-free operation.
MSS-SP-110 Compliant: Meets recognized standards for interchangeability and quality in ball valves.

Applications

Potable water and plumbing systems
Hydronic heating and cooling systems
Drainable water lines and mechanical rooms
Commercial and industrial piping projects

Dimension, Weight

Size	Φ (in)	A (in)	C (in)	H (in)	L (in)	P (in)	P1 (in)	Weight (lb)
1/2"	0.627–0.631	2.31	0.51	1.93	3.59	0.50	1.10	0.42
3/4"	0.877–0.881	2.96	0.75	2.07	3.59	0.73	1.16	0.60
1"	1.128–1.131	3.56	0.91	2.35	4.97	0.94	1.33	1.00

Pressure / Temperature Rating

600 PSI from 15°F to 160°F	150 PSI Max at 200°F

Connection Working Pressure

Solder Used in Joint	Working Temp (°F)	Max Working Pressure (PSI)
95-5 Tin Antimony (ASTM B32 Grade 95TA)	100	500
	150	400
	200	300
	250	200

Material

Part	Material	Specification
1 – Body	Lead-Free Brass	ASTM B927 C28450
2 – End Piece	Lead-Free Brass	ASTM B927 C28450
3 – Ball	Lead-Free Brass / Chrome-Plated	ASTM B927 C28450
4 – Seat	PTFE	PTFE
5 – Stem	Lead-Free Brass	ASTM B927 C28450
6 – O-Ring	FKM	-
7 – Packing	PTFE	PTFE
8 – Packing Nut	Brass	ASTM B124 C37700
9 – Handle	Steel	A36
10 – Handle Nut	Steel / Zinc-Plated	A36
11 – Cap Gasket	NBR	NSF Approved
12 – Plug	Brass	ASTM B124 C37700

⚠ California Prop 65 Warning:
This product contains chemicals including lead, known to the State of California to cause cancer and reproductive harm. For more information, visit www.P65Warnings.ca.gov.
