Full Port Brass Ball Valve | 5070AB Series | EzGRIP Push-Fit
Full Port Brass Ball Valve | 5070AB Series | EzGRIP x EzGRIP

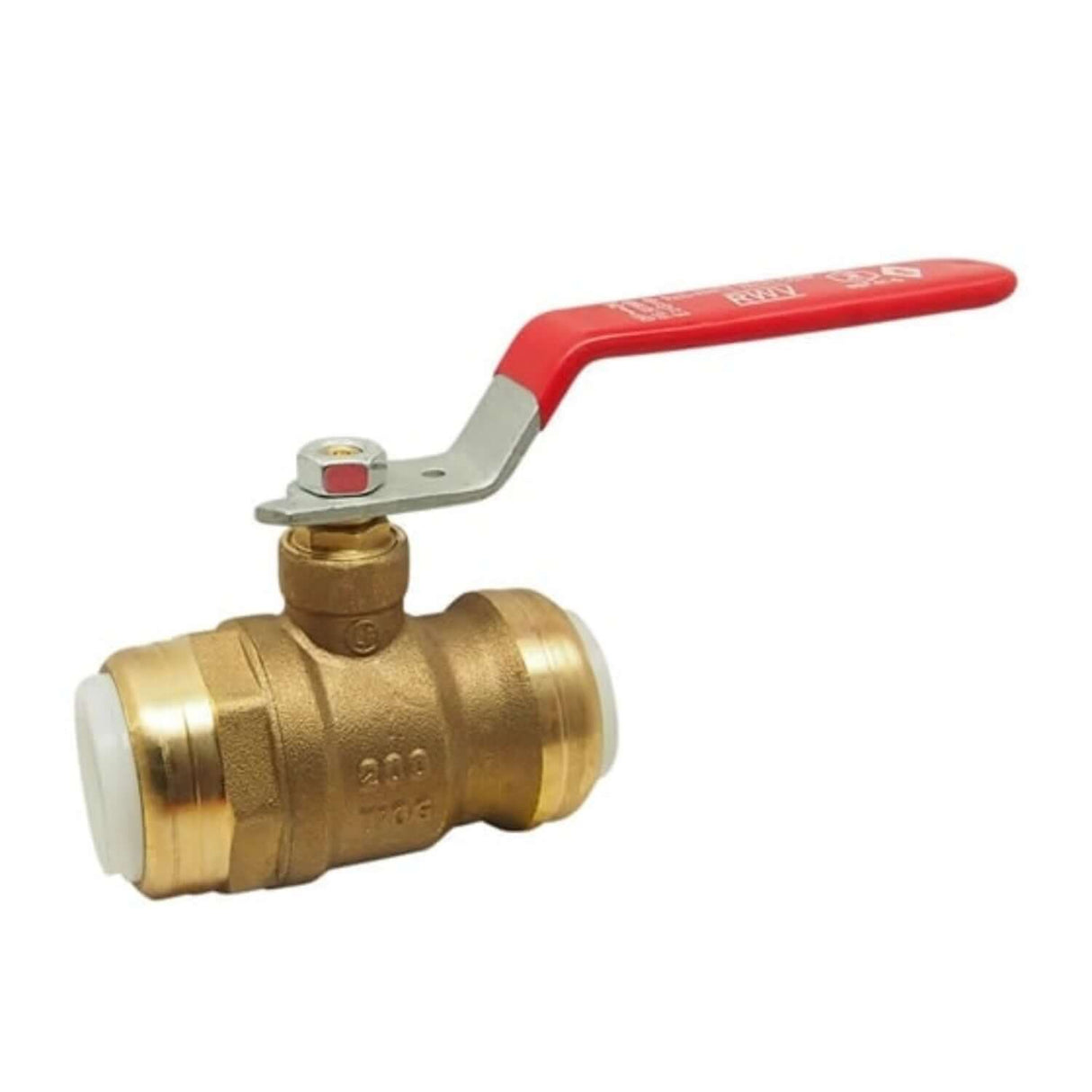

The 5070AB EzGRIP ECO-VALVE is a lead-free, full port brass ball valve designed for fast, secure installation without tools or solder. Engineered for both professional and DIY use, this valve provides push-fit EzGRIP x EzGRIP ends that connect easily to Copper, CPVC, or PEX tubing—no glue, clamps, or crimp rings required.
Constructed from ASTM B927 C28450 lead-free brass, the 5070AB meets NSF/ANSI 61 & 372 and AB1953 potable water standards. Its blow-out proof stem, PTFE seats, and Geomet®-plated steel handle ensure long-term durability and safety, while the 200 PSI WOG pressure rating makes it ideal for residential and commercial hydronic or water systems.
Key Features
- EzGRIP Push-Fit Connections: Quick, tool-free installation on Copper, CPVC, or PEX—ideal for tight spaces and retrofit applications.
- Lead-Free Brass Construction: Certified to NSF/ANSI 61 & 372 and AB1953 for potable water safety and compliance.
- Full Port Flow: Unrestricted bore ensures maximum system efficiency and minimal pressure loss.
- Adjustable PTFE Packing: Field-serviceable design allows easy maintenance and resealing without system shutdown.
- Blow-Out Proof Stem: Provides enhanced safety under pressure and prevents stem separation.
- Durable Handle Design: Geomet®-plated steel handle resists corrosion and wear in demanding environments.
- 200 PSI WOG Rated: Built for long-term use in water, oil, and gas service applications.
Applications
- Potable water and plumbing systems
- Residential and commercial hydronic systems
- Retrofit or repair projects
- CPVC, PEX, or Copper installations
Dimension, Weight
| Size | Φ (in) | A (in) | C (in) | H (in) | L (in) | P (in) | Weight (lb) |
|---|---|---|---|---|---|---|---|
| 1/2" | 1/2" | 2.58 | 0.80 | 2.12 | 3.60 | 0.59 | 0.56 |
| 3/4" | 3/4" | 3.08 | 0.90 | 2.25 | 3.60 | 0.79 | 0.80 |
| 1" | 1" | 3.50 | 1.05 | 2.55 | 4.98 | 0.98 | 1.18 |
Material
| # | Part | Material | Specification |
|---|---|---|---|
| 1 | Body | Lead-Free Brass | ASTM B927 C28450 |
| 2 | End Piece | Lead-Free Brass | ASTM B927 C28450 |
| 3 | Ball | Lead-Free Brass / Chrome-Plated | ASTM B927 C28450 |
| 4 | Seat | PTFE | PTFE |
| 5 | Stem | Lead-Free Brass | ASTM B927 C28450 |
| 6 | Packing Ring | PTFE | PTFE |
| 7 | Packing Nut | Brass | ASTM B124 C37700 |
| 8 | Handle | Steel / Geomet® Plated | ASTM A36 |
| 9 | Handle Nut | Steel / Zinc-Plated | ASTM A36 |
| 10 | O-Ring | EPDM Perox | NSF Approved |
| 11 | Cartridge | POM Resin | - |
⚠ California Prop 65 Warning:
This product can expose you to chemicals including lead, known to the State of California to cause cancer and reproductive harm.
For more information, visit www.P65Warnings.ca.gov.
