RED-WHITE VALVE CORP. | SKU: 30074508 | MPN: 5586AB 1/2

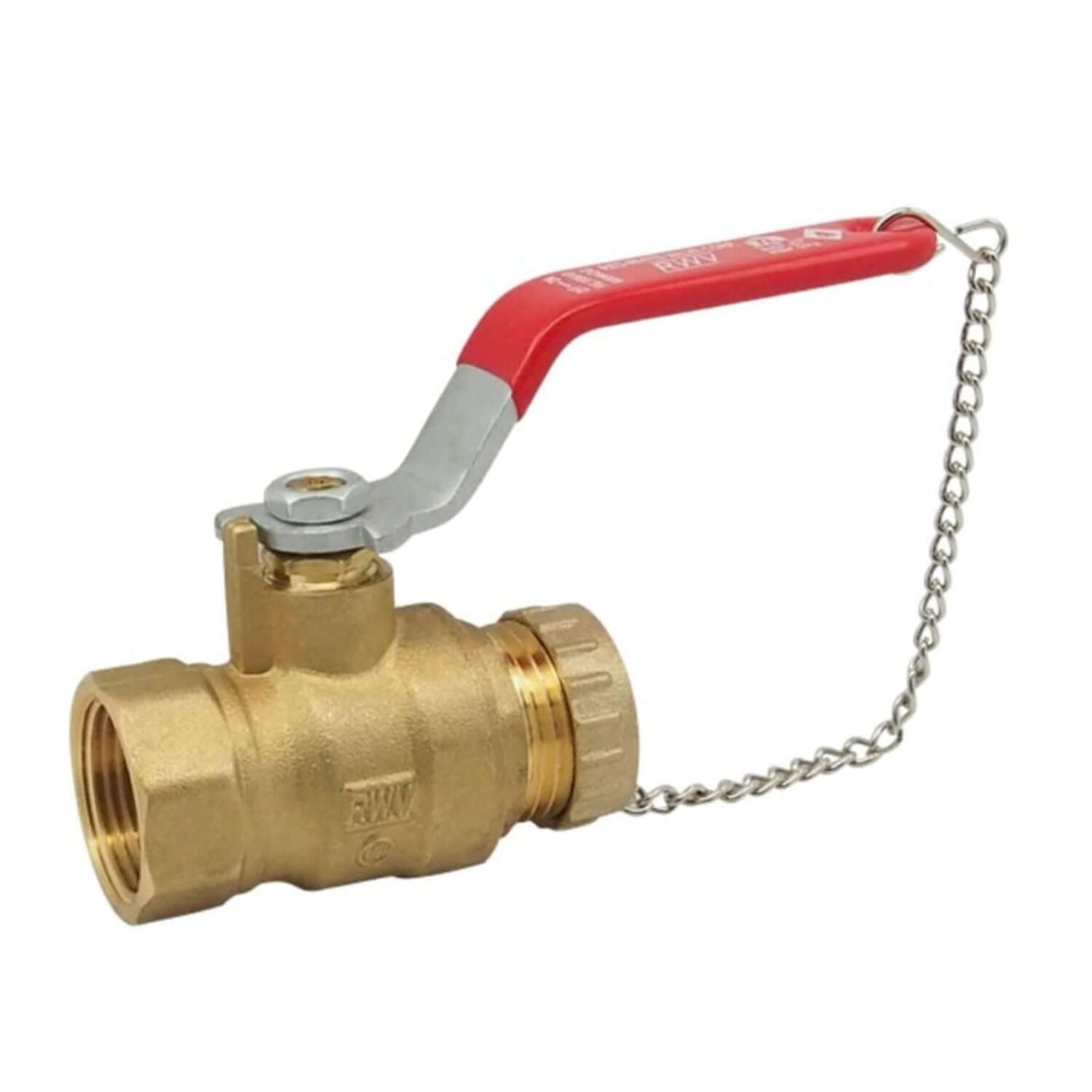

Hose End Ball Valve | 5586AB Series | FNPT x Hose

$21.75

Size | Connection Type | Min Order Qty (MOQ)

Product variants

Lead-Free Brass Construction – DZR brass body certified to NSF/ANSI 61 & 372 with <0.25% lead content for potable water use.
FNPT x Hose End Threads – Standard FNPT inlet and male NH outlet for secure connection to common hose fittings.
Full Port Flow Design – Chrome-plated ball reduces pressure loss and ensures smooth, efficient operation.
600 PSI WOG Pressure Rating – Handles 600 psi at 15–160 °F and 150 psi max at 366 °F for reliable performance under pressure.
Drain Cap with Chain – Simplifies draining and prevents cap loss in irrigation and utility applications.

Lead-Free Brass Hose End Ball Valve | 5586AB Series | FNPT x Hose

The 5586AB Hose End Ball Valve provides durable, code-compliant shutoff and flow control for plumbing, irrigation, and utility systems. Constructed from DZR (Dezincification-Resistant) lead-free brass, it meets NSF/ANSI 61 & 372 and AB1953 standards, ensuring safe use in potable water applications.

Key Features

Certified Lead-Free Construction: Complies with AB1953, NSF/ANSI 61 & 372 — wetted surfaces contain less than 0.25% lead by volume.
DZR Brass Body & Stem: Built to ASTM B927 C27453 for superior corrosion and dezincification resistance.
Full Port Flow: Unrestricted internal bore reduces pressure loss and improves efficiency.
PTFE Seats & Adjustable Packing: Ensures long-term sealing performance and chemical resistance.
Chrome-Plated Brass Ball: Smooth operation and extended service life in demanding conditions.
Blow-Out Proof Stem: Provides additional safety and reliability under pressure.
Drain Cap with Chain: Simplifies draining and prevents cap loss for convenient maintenance.
FNPT x Hose End Threads: Compatible with ASME B1.20.1 (NPT) and ASME B1.20.7 (NH) standards.
Pressure Rating: 600 psi WOG (15 °F–160 °F) | 150 psi max at 366 °F.
Operating Temp: Recommended maximum 200 °F for longevity.

Built for Professionals. Designed for Longevity.

This valve is trusted across commercial, municipal, and residential systems for hose-end shutoff, potable water lines, and wash-down service. Each valve is pressure-tested for leak-free reliability and engineered for long service life.

Common Applications

Potable water service lines
Hose bibs and utility sinks
Wash-down stations and maintenance areas
Irrigation and outdoor water outlets

Dimension, Cv, Weight

Size	TF (NPT)	TM (NH)	A (in)	B (in)	C (in)	H (in)	L (in)	P (in)	Weight (lb)
1/2"	1/2 - 14	3/4 - 11.5	2.50	0.51	0.61	2.07	3.60	0.50	0.52
3/4"	3/4 - 14	3/4 - 11.5	2.89	0.51	0.63	2.20	3.60	0.73	0.70

Pressure / Temperature Rating

600 psi from 15 °F–160 °F	150 psi max at 366 °F

Material

Part	Material	Specification
1 – Body	DZR Lead-Free Brass	ASTM B927 C27453
2 – End Piece	DZR Lead-Free Brass	ASTM B927 C27453
3 – Ball	Lead-Free Brass, Chrome-Plated	ASTM B927 C27450
4 – Seat	PTFE	PTFE
5 – Stem	DZR Lead-Free Brass	ASTM B927 C27453
6 – O-Ring	FKM	NSF Approved
7 – Packing Ring	PTFE	PTFE
8 – Packing Nut	Brass	ASTM B124 C37700
9 – Handle	Steel, Dacromet Plated	ASTM A36
10 – Handle Nut	Steel, Zinc Plated	ASTM A36
11 – Gasket	NBR	NSF Approved
12 – Drain Cap + Chain	Brass	ASTM B283 C37700
