12-Ton Remote Hydraulic C Crimping Head | EP-510HK

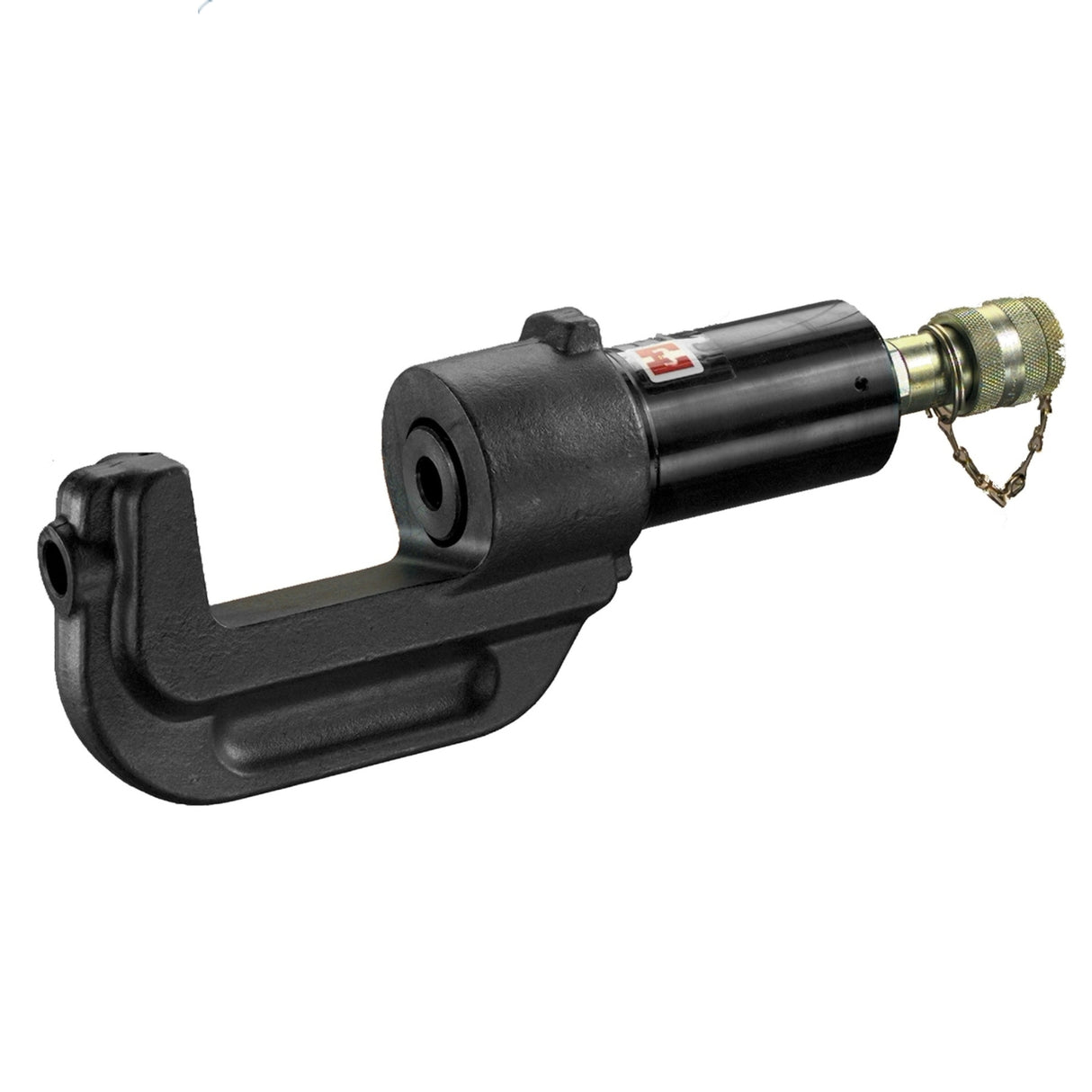

12 Ton Remote Hydraulic “C” Crimping Head | EP-510HK — Product Overview
The EP-510HK 12 Ton Remote Hydraulic “C” Crimping Head is engineered for heavy-duty utility and electrical applications. Built to accept both Kearney and industry-standard U-type dies, this versatile compression head is an ideal solution for mid-span sleeves, lugs, and splices up to 1033 MCM.
Fully compatible with PH-2, WH-2, and WH-3 Kearney-style dies, this tool is trusted by utility professionals for reliable performance in substation, overhead, and energized applications. With the optional UDK-1 adapter, it also accepts all standard “U” type dies.
This tool is powered by an external 10,000 psi hydraulic pump and includes a 3/8" male screw-type coupler (EP-510HK) or a snap coupler (EP-510HKSC). Its open “C” head design with a 1.5" jaw opening allows for easy connector placement and removal in tight or overhead spaces. A rubber boot adds safety and protection in the field.
Key Features:
- 12 Ton Output: Designed to crimp lugs up to 1033 MCM and 477 ACSR splices
- Kearney Die Compatibility: Accepts PH-2, WH-2, WH-3 dies directly; “U” dies with UDK-1 adapter
- Open “C” Head Design: Allows quick connector insertion, ideal for tight-access jobs
- 1.5” Jaw Opening: Supports a wide range of conductor sizes
- Protective Rubber Boot: Increases tool durability and operator safety
- Coupler Options: Choose standard 3/8" male screw-type (EP-510HK) or snap coupler (EP-510HKSC)
DOCUMENTATION
SPECIFICATIONS
| SPECIFICATION | DETAIL |
|---|---|
| Output | 12 Ton |
| Weight | 13.5 lbs |
| Length | 14" |
| Jaw Opening | 1.5" |
CONNECTOR RANGE
| APPLICATION | CAPACITY |
|---|---|
| Lugs | Up to 1033 MCM Stranded |
| Splices | 477 ACSR |
