Hydronic Ball Valve | 5024 Series | EzPress x FNPT | 600 WOG
Hydronic Ball Valve | 5024 Series | EzPress x FNPT | Full Port | 600 WOG

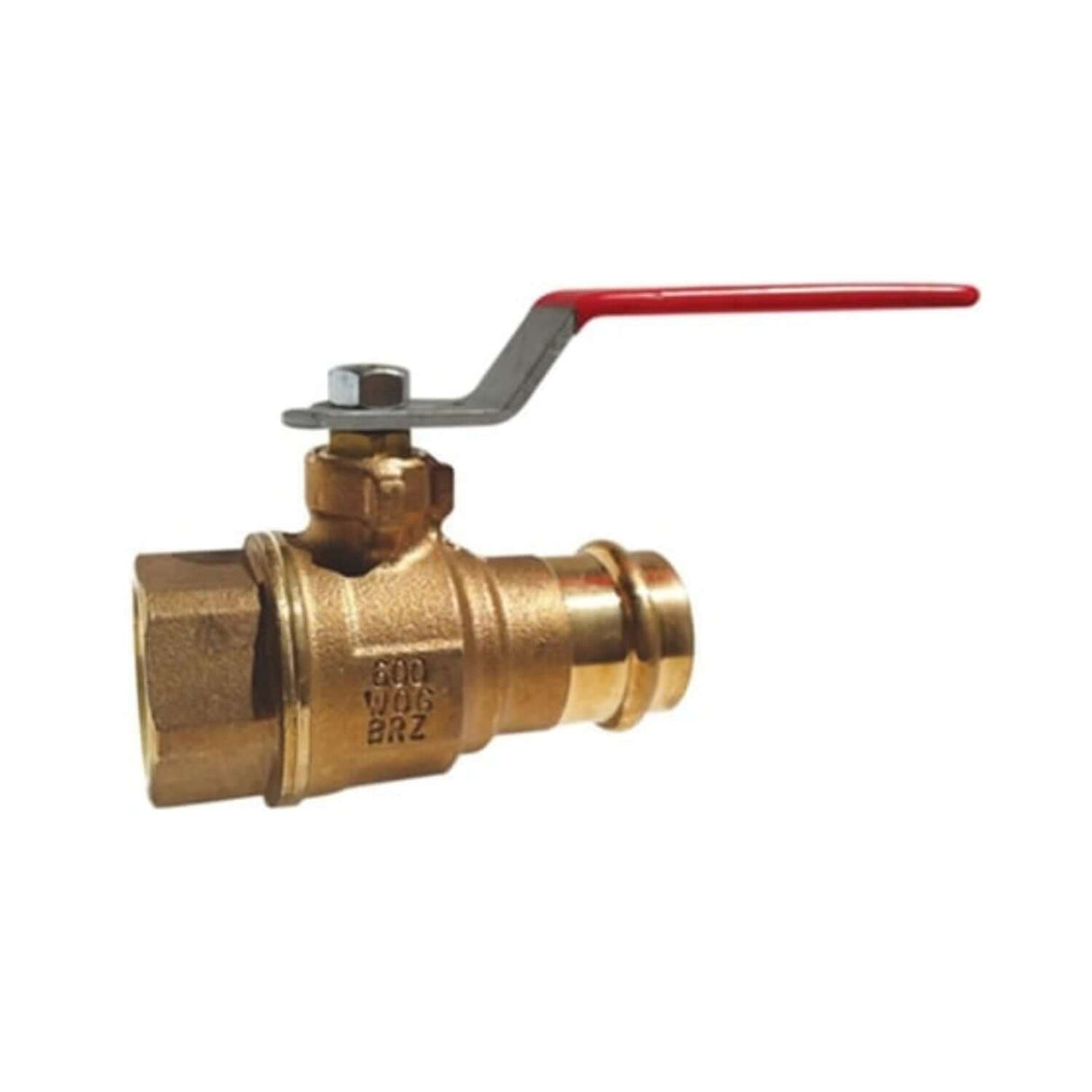

The 5024 Bronze Full Port Ball Valve with EzPress x FNPT connections combines durability, precision, and installation flexibility in one design. Built from solid bronze (ASTM B62 C83600) with a chrome-plated brass ball and PTFE seats, this valve ensures smooth, reliable shutoff performance. The hybrid press and threaded configuration offers both fast, tool-free installation and compatibility with traditional pipe threads for retrofits or system upgrades.
Engineered to meet MSS-SP-110 and BAA compliance standards, the 5024 Series is rated for 600 PSI WOG and designed to handle demanding residential, commercial, and light industrial hydronic applications.
Key Features
- Full Port Design: Provides maximum flow efficiency and minimal pressure loss.
- EzPress x FNPT Ends: Combines modern press-fit technology with standard NPT threading for versatile installation.
- Durable Bronze Body: Cast from ASTM B62 C83600 for corrosion resistance and long service life.
- PTFE Seats & Packing: Chemically resistant materials provide smooth operation and tight sealing.
- Blow-Out Proof Stem: Safety design ensures stem integrity under high pressure.
- Adjustable Packing Nut: Enables easy maintenance and leak prevention over time.
- Steel Handle with Geomet Coating: Offers rust resistance and long-lasting performance.
- Complies with MSS-SP-110 and BAA Requirements.
Pressure & Temperature Ratings
| Category | Pressure / Temperature Rating |
|---|---|
| Valve Body & Stem | 600 PSI (15°F–160°F) | 150 PSI Max @ 366°F |
| Press Connections | 250 PSI (15°F–160°F) | 150 PSI Max @ 250°F |
Applications
- Hydronic and HVAC systems
- Commercial and residential plumbing
- Industrial water control systems
- Retrofit installations with mixed connection types
Dimensions & Weights (inches-lbs.)
| Size | NPT | Φ (in) | A (in) | L (in) | H (in) | C (in) | C1 (in) | P (in) | Cv | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|
| 1/2″ | 1/2 - 14 NPT | 0.64 | 2.76 | 3.60 | 2.13 | 0.79 | 0.61 | 0.59 | 15 | 0.56 |
| 3/4″ | 3/4 - 14 NPT | 0.89 | 3.33 | 3.60 | 2.26 | 0.91 | 0.65 | 0.79 | 30 | 0.80 |
| 1″ | 1 - 11.5 NPT | 1.14 | 3.80 | 4.98 | 2.58 | 0.95 | 0.77 | 0.98 | 60 | 1.28 |
| 1-1/4″ | 1-1/4 - 11.5 NPT | 1.39 | 4.29 | 4.98 | 2.80 | 1.22 | 0.85 | 1.26 | 110 | 1.94 |
| 1-1/2″ | 1-1/2 - 11.5 NPT | 1.64 | 5.02 | 5.57 | 3.29 | 1.42 | 0.85 | 1.57 | 130 | 3.16 |
| 2″ | 2 - 11.5 NPT | 2.14 | 5.89 | 5.57 | 3.58 | 1.73 | 0.98 | 1.97 | 360 | 4.58 |
Material & Specifications
| # | Part | Material | Specification |
|---|---|---|---|
| 1 | Body | Bronze | ASTM B62 C83600 |
| 2 | End Piece | Bronze | ASTM B62 C83600 |
| 3 | Ball | Brass / Chrome Plated | ASTM B124 C37700 |
| 4 | Seat | PTFE | PTFE |
| 5 | Stem | Brass | ASTM B124 C37700 |
| 6 | Packing Ring | PTFE | PTFE |
| 7 | Packing Nut | Brass | ASTM B124 C37700 |
| 8 | Handle | Steel / Geomet Plated | ASTM A36 |
| 9 | Nut | Steel / Zinc Plated | ASTM A36 |
| 10 | O-ring | EPDM Peroxide | NSF Approved |
