RED-WHITE VALVE CORP.  |  SKU: 30074522  |  MPN: 5049AB 1/2

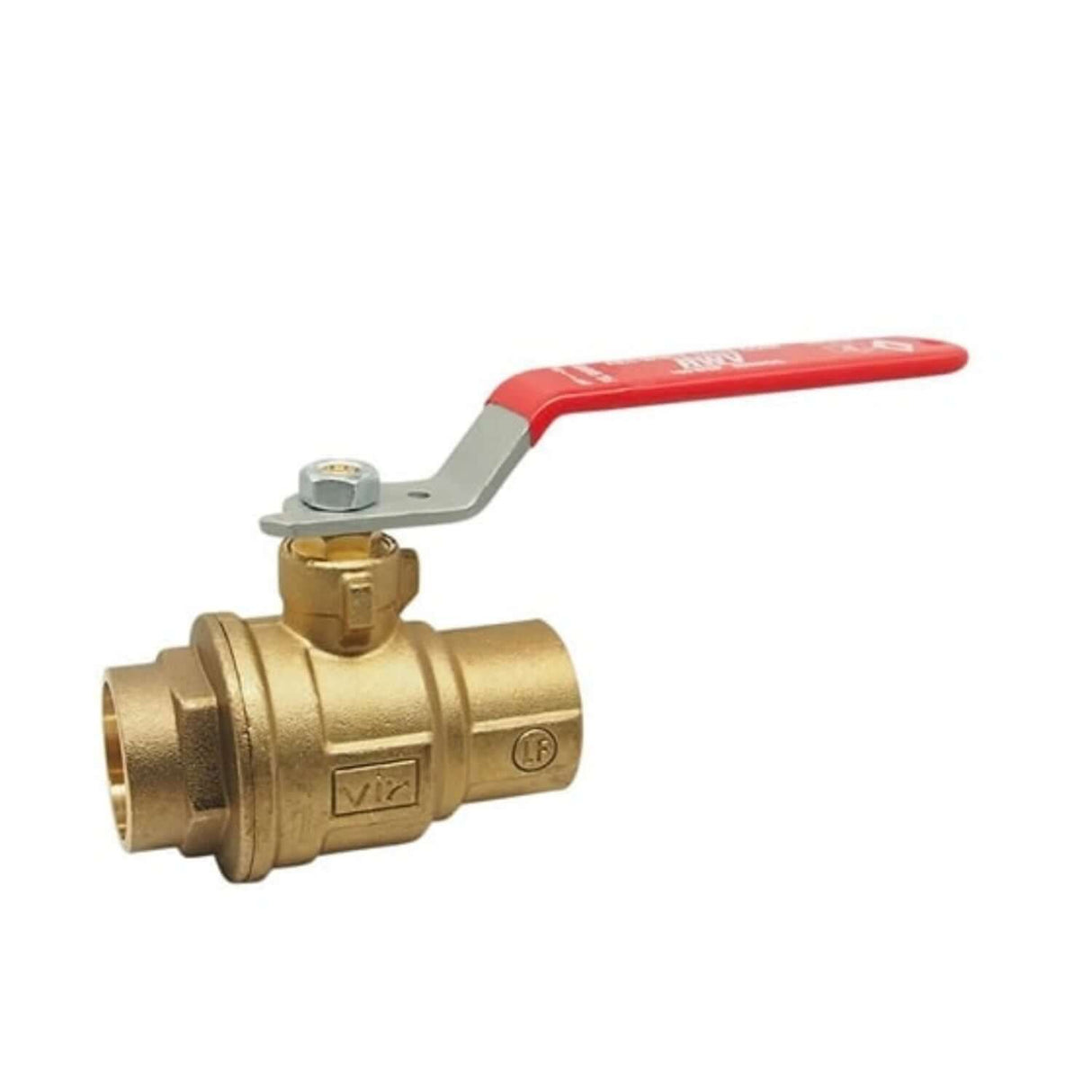

Hydronic Full Port Ball Valve | 5049AB Series | Solder x Solder

$19.00
  • Full Port DZR Lead-Free Brass – Constructed with ASTM B927 C27453 brass, offering full-port flow and NSF/ANSI 61 & 372 certification for potable systems.
  • Solder x Solder Connections – Designed to ASME B16.22 and compatible with 95-5 tin-antimony solder for copper piping installations.
  • 600 WOG / 150 WSP Pressure Rating – Handles up to 600 PSI at 160°F and 150 PSI at 366°F with vacuum service capability.
  • Blow-Out Proof Stem & Adjustable Packing – MSS-SP-110 certified design ensures safety, while PTFE packing provides long-term sealing.
  • AB1953, NSF & BAA Compliant – Fully compliant with U.S. lead-free laws and Buy American Act for specification-driven projects.
📄 Download Spec Sheet

Hydronic Full Port Ball Valve | 5049AB Series | Solder x Solder

Upgrade your plumbing systems with confidence using the 5049AB Full Port Ball Valve. Constructed from DZR (Dezincification-Resistant) lead-free brass, this valve offers superior reliability and compliance for potable water applications. The solder x solder ends meet ASME B16.22 standards for copper tubing systems, while NSF/ANSI 61 & 372 certifications ensure it’s fully safe for drinking water use.

Key Features

  • Lead-Free DZR Brass Construction: Made from ASTM B927 C27453 alloy, compliant with AB1953 and the Safe Drinking Water Act for potable water safety.
  • Full Port Design: Allows unrestricted flow and minimal pressure drop, ideal for high-efficiency water systems.
  • Solder x Solder Ends: Compliant with ASME B16.22 for seamless integration with copper pipe using 95-5 tin-antimony solder (ASTM B32 Grade 95TA).
  • Blow-Out Proof Stem & Adjustable Packing: Enhanced safety and long-term durability under pressure with PTFE packing and seals.
  • Pressure & Vacuum Rated: Handles up to 600 PSI WOG, 150 PSI WSP, and 29 in-Hg vacuum service.
  • Certified & Compliant: Meets MSS-SP-110, AB1953, NSF/ANSI 61 & 372, and BAA requirements for lead-free construction.
  • Temperature Range: Operates from 15°F to 366°F, suitable for both cold and hot water systems.
  • Precision Engineering: Designed and manufactured in Italy, with the origin clearly marked under the handle.

Applications

  • Potable water and plumbing systems
  • Residential and commercial HVAC installations
  • Industrial water and mechanical systems
  • General service and retrofit plumbing upgrades

Dimension, Cv, Weight

Size Φ (in) A (in) C (in) H (in) L (in) P (in) Cv Weight (lb)
1/2" 0.627–0.631 2.60 0.51 2.13 3.60 0.59 15 0.56
3/4" 0.877–0.881 3.15 0.75 2.24 3.60 0.79 30 0.80
1" 1.128–1.131 3.31 0.91 2.57 4.98 0.98 60 1.18
1-1/4" 1.378–1.381 3.86 0.97 2.79 4.98 1.26 110 2.08
1-1/2" 1.628–1.632 4.53 1.09 3.28 5.57 1.57 130 3.00
2" 2.128–2.132 5.51 1.34 3.58 5.57 1.97 360 4.50
2-1/2" 2.628–2.632 6.65 1.50 4.70 11.07 2.56 450 9.02
3" 3.128–3.132 7.72 1.69 5.15 11.07 3.07 620 13.50

Pressure / Temperature Rating

600 PSI from 15°F to 160°F | 150 PSI max at 366°F

Connection Working Pressure (Solder Joints)

Solder Used in Joint Working Temp (°F) Max Working Pressure (PSI)
3/8"–1" 1-1/4"–2" 2-1/2"–4"
95-5 Tin Antimony (ASTM B32 Grade 95TA) 100 500 400 300
150 400 350 275
200 300 250 200
250 200 175 150

Material

Part Material Specification
1 – Body DZR Lead-Free Brass ASTM B927 C27453
2 – End Piece DZR Lead-Free Brass ASTM B927 C27453
3 – Ball DZR Lead-Free Brass / Chrome-Plated ASTM B927 C27453
4 – Seat PTFE PTFE
5 – Stem DZR Lead-Free Brass ASTM B927 C27453
6 – Packing PTFE PTFE
7 – Packing Nut Brass ASTM B124 C37700
8 – Handle Steel, Geomet Plated ASTM A36
9 – Handle Nut Steel, Zinc Plated ASTM A36

⚠ California Prop 65 Warning:
This product may expose you to chemicals including lead, known to the State of California to cause cancer and reproductive harm. For more information, visit www.P65Warnings.ca.gov.
