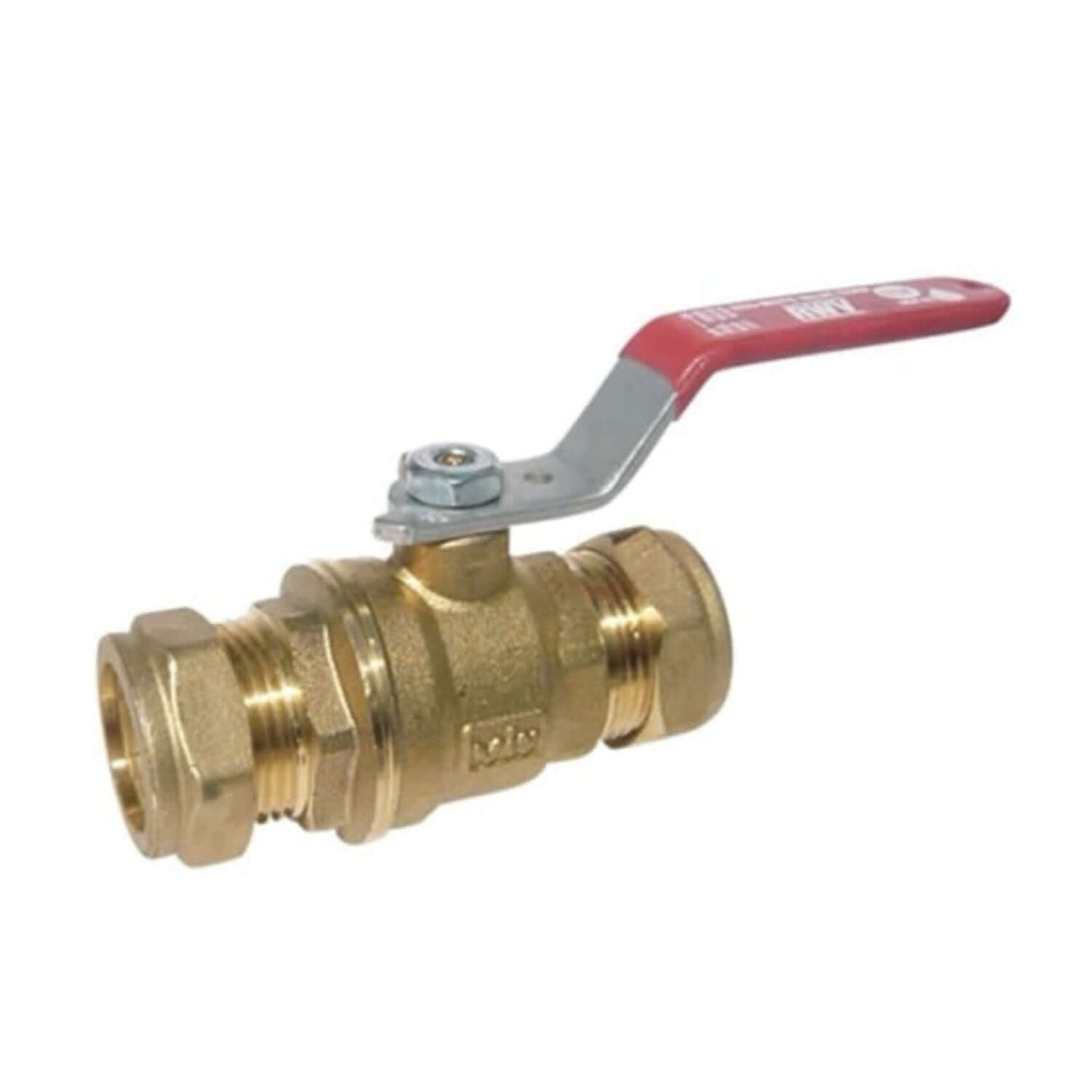

The 5065AB ECO-VALVE from Red-White Valve Corp. is a lead-free brass, full port ball valve with drain designed for high reliability, pressure performance, and compliance with potable water standards. With compression x compression ends, it installs quickly and securely on copper tubing—ideal for residential, light commercial, and hydronic applications requiring easy drain access.
Constructed from ASTM B927 C28450 lead-free brass, this valve complies with AB1953 and NSF/ANSI 61 & 372 standards, ensuring safety for drinking water systems. The chrome-plated brass ball, PTFE seats, and blow-out proof stem deliver lasting durability under demanding service conditions, while the integrated drain port allows for easy maintenance and winterization.
Key Features
- Lead-Free Brass Construction: Certified under AB1953 and NSF/ANSI 61 & 372 for safe potable water applications.
- Full Port Flow: Allows unrestricted water flow for maximum efficiency and minimal pressure drop.
- Integrated Drain Port: Simplifies system draining and service without full disassembly.
- Compression x Compression Ends: Provides a leak-resistant seal for copper tubing—no soldering required.
- Durable Internal Components: Chrome-plated brass ball, virgin PTFE seats, and FKM O-ring ensure long-term reliability.
- Blow-Out Proof Stem: Safety-engineered design prevents accidental stem removal under pressure.
- Adjustable PTFE Packing: Enables field adjustments to maintain a secure seal throughout the valve’s life cycle.
- High Pressure Rating: Rated 600 PSI WOG (15°F–160°F) and 150 PSI at 200°F.
- MSS-SP-110 Compliant: Built to recognized industry quality standards.
Applications
- Potable water systems
- Residential and light commercial plumbing
- Hydronic heating and cooling systems
- Irrigation and maintenance systems requiring periodic drainage
Dimension, Weight
| Size | Φ (in) | A (in) | A1 (in) | C (in) | H (in) | L (in) | P (in) | Weight (lb) |
|---|---|---|---|---|---|---|---|---|
| 1/2" | 0.627–0.631 | 2.81 | 2.16 | 0.50 | 1.93 | 3.59 | 0.50 | 0.52 |
| 3/4" | 0.877–0.881 | 3.20 | 2.50 | 0.55 | 2.06 | 3.59 | 0.73 | 0.72 |
| 1" | 1.128–1.131 | 3.84 | 3.00 | 0.63 | 2.35 | 4.97 | 0.94 | 1.20 |
Pressure / Temperature Rating
| 600 PSI from 15°F to 160°F | 150 PSI Max at 200°F |
|---|
Material
| # | Part | Material | Specification |
|---|---|---|---|
| 1 | Body | Lead-Free Brass | ASTM B927 C28450 |
| 2 | End Piece | Lead-Free Brass | ASTM B927 C28450 |
| 3 | Ball | Lead-Free Brass / Chrome-Plated | ASTM B927 C28450 |
| 4 | Seat | PTFE | PTFE |
| 5 | Stem | Lead-Free Brass | ASTM B927 C28450 |
| 6 | O-Ring | FKM | — |
| 7 | Packing | PTFE | PTFE |
| 8 | Packing Nut | Brass | ASTM B124 C37700 |
| 9 | Handle | Steel | A36 |
| 10 | Handle Nut | Steel / Zinc-Plated | A36 |
| 11 | Compression Nut | NBR | NSF Approved |
| 12 | Ferrule | Brass | ASTM B124 C37700 |
