RED-WHITE VALVE CORP.  |  SKU: 30074461  |  MPN: 5592ABLS 3/4

Hydronic Ball Valve | 5592ABLS Series | FNPT x FNPT

$25.75
  • Certified Lead-Free Brass – Constructed from ASTM B927 C27450 and compliant with AB1953, NSF/ANSI/CAN 61 & 372 for potable water systems.
  • Full Port Design – Allows unrestricted flow and minimizes pressure drop for efficient system performance.
  • High Pressure Rating – Rated 600 PSI WOG and 150 PSI WSP for water, oil, or gas service.
  • Stainless Steel Handle & Nut – AISI 304 construction provides exceptional corrosion resistance and longevity.
  • UL & CSA Certified – Meets MSS-SP-110, CSA ΔC, CSA ½, 5 & 125 PSI, and UL approval standards for quality assurance.
📄 Download Spec Sheet

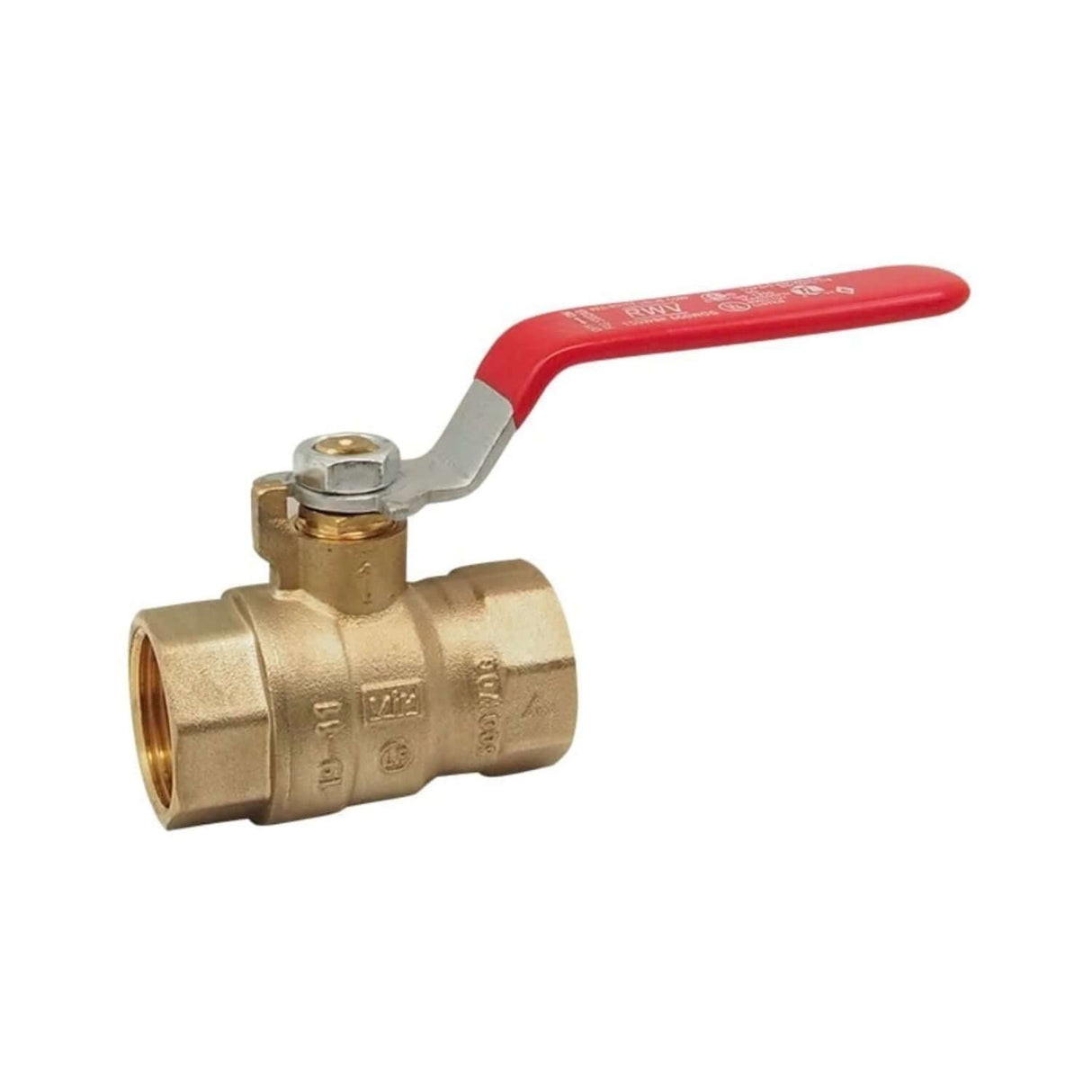

Hydronic Ball Valve | 5592ABLS Series | FNPT x FNPT

Upgrade your plumbing or hydronic system with the 5592ABLS ECO-VALVE — a high-performance, full-port brass ball valve designed for reliability, safety, and long-term service life. Constructed from lead-free brass and certified to NSF/ANSI/CAN 61 & 372, this valve meets AB1953 low-lead requirements and UL approval standards for potable water use.

Key Features

  • Certified Lead-Free: Made from ASTM B927 C27450 brass and fully compliant with AB1953, NSF/ANSI/CAN 61, and 372 standards for drinking water safety.
  • High Pressure Ratings: Supports 600 PSI WOG and 150 PSI WSP, suitable for water, oil, or gas applications.
  • Durable Construction: Features a blow-out-proof stem, virgin PTFE seats, and AISI 304 stainless steel handle and nut for corrosion resistance.
  • Full Port Flow: Ensures unrestricted water flow with minimal pressure loss and smooth operation.
  • Temperature Resilient: Operates from 15°F to 366°F, ideal for both cold and hot water systems.
  • Versatile Sizing: Available in 3/4" and 1" FNPT x FNPT connections per ASME B1.20.1-NPT standards.
  • Certified & Approved: Meets MSS-SP-110, CSA ΔC, CSA ½, 5 & 125 PSI, and UL certification for superior reliability.

Applications

  • Residential and commercial hydronic systems
  • Potable water and HVAC pipelines
  • Industrial plumbing and mechanical applications
  • General service and system upgrades

Dimension, Cv, Weight

Size Thread Type A (in) C (in) H (in) L (in) P (in) Cv Weight (lb)
3/4" 3/4 - 14 NPT 2.40 0.63 2.05 3.58 0.73 26 0.59
1" 1 - 11.5 NPT 2.91 0.75 2.36 4.96 0.95 55 1.13

Pressure / Temperature Rating

600 PSI from 15°F to 160°F 150 PSI Max at 366°F

Material

Part No. Component Material Specification
1 Body Lead-Free Brass ASTM B927 C27450
2 End Piece Lead-Free Brass ASTM B927 C27450
3 Ball Lead-Free Brass / Chrome-Plated ASTM B927 C27450
4 Seat PTFE PTFE
5 Stem Lead-Free Brass ASTM B927 C27450
6 O-Ring FKM NSF Approved
7 Packing Nut PTFE PTFE
8 Packing Nut Brass ASTM B124 C37700
9 Handle Stainless Steel AISI 304
10 Handle Nut Stainless Steel AISI 304

⚠ California Prop 65 Warning:
This product may expose you to chemicals including lead, known to the State of California to cause cancer and reproductive harm. For more information, visit www.P65Warnings.ca.gov.
