Jamb Skid Extension System | 20,000 lb Capacity
$3,015.20
Unit price
/
Select Option
Each

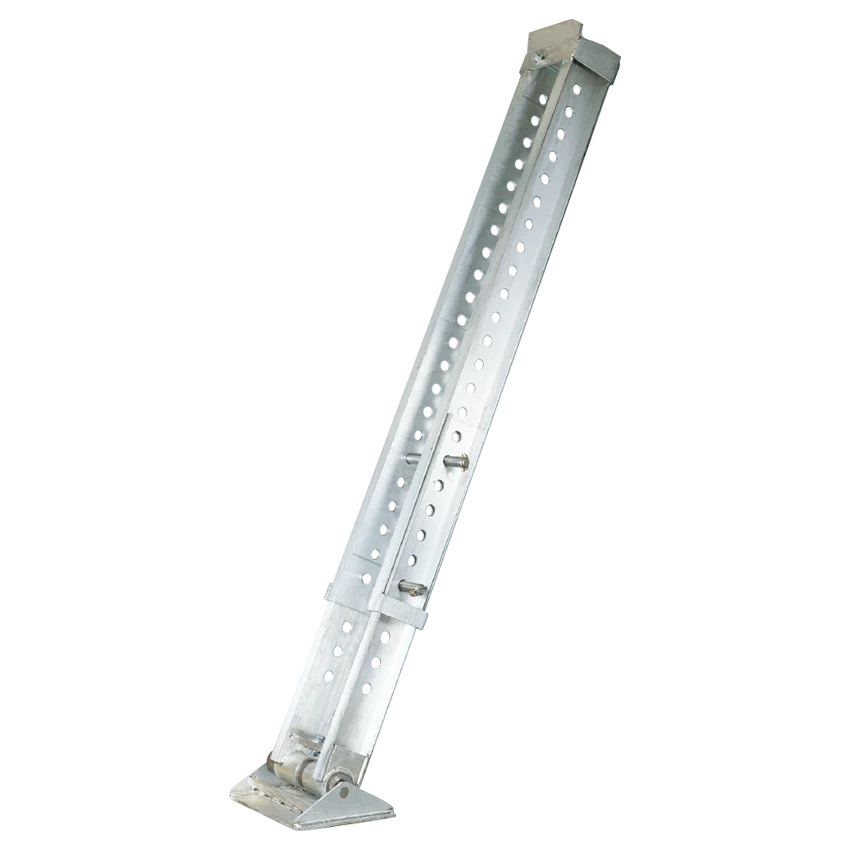

Jamb Skid Extension System | Steel | 20,000 lb Cable Tension
The 20,000 lb Jamb Skid is constructed of steel and rated for 20,000 lb (88,964 N) cable tension. The system offers a base section and three extension lengths for cable-pulling setups.
The base section includes a sheave pin and locking pins. Select the required base section, extension, and sheave using the ordering tables below. Components are ordered separately.
Key Features
- Steel Construction – Steel Jamb Skid system for cable-pulling applications.
- 20,000 lb Rating – Rated for 20,000 lb (88,964 N) cable tension.
- Base Section Hardware – Includes a sheave pin and locking pins.
- Three Extension Lengths – Available in 43" (1.09 m), 76" (1.93 m), and 109" (2.8 m) lengths.
- Matching Sheave – An 8" × 11" (203 × 279 mm) sheave is available separately as part number 08097504.
Ordering Information
| Part Number | Description |
|---|---|
| 08097509 | Base Section |
| 08097532 | 43" (1.09 m) Extension |
| 08097529 | 76" (1.93 m) Extension |
| 08097508 | 109" (2.8 m) Extension |
Sheave for 20,000 lb Jamb Skid
| Part Number | Sheave Size |
|---|---|
| 08097504 | 8" × 11" (203 × 279 mm) |
Ordering Note: Select the individual component required from the product options. The base section, extensions, and sheave are sold separately.
