Lead-Free Brass Ball Valve | 5595ABW | Wing Handle | Solder

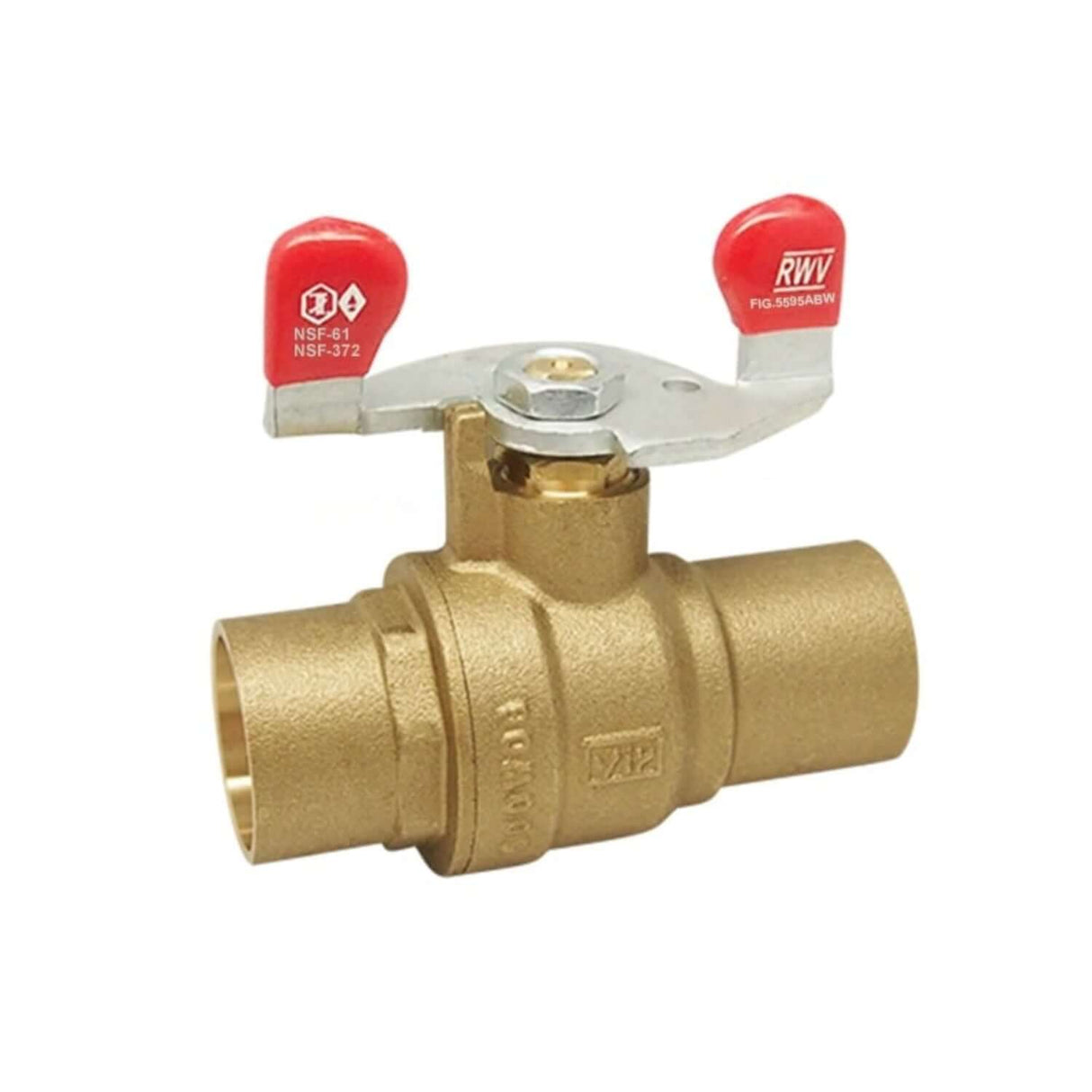

Lead-Free Brass Ball Valve with Wing Handle | 5595ABW Series | Solder x Solder
The 5595ABW Lead-Free Brass Ball Valve is a full port, solder-end valve engineered for dependable shutoff in residential, commercial, and light industrial water systems. Built from C28000 lead-free brass, this valve provides safe, high-flow performance and corrosion resistance, meeting modern potable water standards with ease.
Designed with a compact steel wing handle for quick manual operation, the 5595ABW is ideal for tight or overhead installations. The solder x solder ends conform to ASME B16.22 for smooth integration into copper piping, while PTFE seats and FKM O-rings deliver long-term, leak-free service. Fully certified under NSF/ANSI 61 & 372 and AB1953, this valve guarantees safety and reliability.
Key Features
- Certified Lead-Free Brass: Complies with AB1953, NSF/ANSI 61 & 372, and the U.S. Safe Drinking Water Act; wetted surfaces contain less than 0.25% lead.
- Full Port Design: Maximizes Cv (up to 55) and minimizes pressure loss for efficient system flow.
- High Pressure Rating: Rated 600 PSI WOG from 15°F to 160°F and 150 PSI at 366°F.
- Solder x Solder Ends: Conform to ASME B16.22 for dependable soldered copper pipe installations.
- Blow-Out Proof Stem: Prevents stem ejection and enhances operational safety under pressure.
- Wing Handle Control: Dacromet-coated steel handle provides firm grip and corrosion protection.
- Durable Sealing Components: PTFE seats and packing with FKM O-ring ensure smooth actuation and chemical resistance.
- Maintenance Friendly: Adjustable PTFE packing allows in-line resealing without disassembly.
Pressure / Temperature Rating
- 600 PSI WOG: from 15°F to 160°F
- 150 PSI WSP: max at 366°F
Applications
- Potable water systems
- Hydronic heating and cooling systems
- Commercial and residential plumbing
- General shutoff and isolation valves
Dimension, Weight
| Size | S (in) | A (in) | C (in) | H (in) | L (in) | P (in) | Cv | Weight (lb) |
|---|---|---|---|---|---|---|---|---|
| 1/2" | 0.627–0.631 | 2.20 | 0.51 | 1.93 | 2.44 | 0.50 | 11 | 0.32 |
| 3/4" | 0.877–0.881 | 2.87 | 0.75 | 2.05 | 2.44 | 0.73 | 26 | 0.51 |
| 1" | 1.128–1.131 | 3.43 | 0.91 | 2.52 | 3.27 | 0.95 | 55 | 0.92 |
Material
| # | Part | Material | Specification |
|---|---|---|---|
| 1 | Body | Lead-Free Brass | C28000 |
| 2 | End Piece | Lead-Free Brass | C28000 |
| 3 | Ball | Lead-Free Brass / Chrome-Plated | C28000 |
| 4 | Seat | PTFE | PTFE |
| 5 | Stem | Lead-Free Brass | C28000 |
| 6 | O-Ring | FKM | NSF Approved |
| 7 | Packing | PTFE | PTFE |
| 8 | Packing Nut | Brass | B124 C37700 |
| 9 | Wing Handle | Steel / Dacromet®-Plated | A36 |
| 10 | Handle Nut | Steel / Zinc-Plated | A36 |
