PEX Ball Valve | 5009AB Series | F1807 Barb x Barb
PEX Ball Valve | 5009AB Series | F1807 Barb x Barb

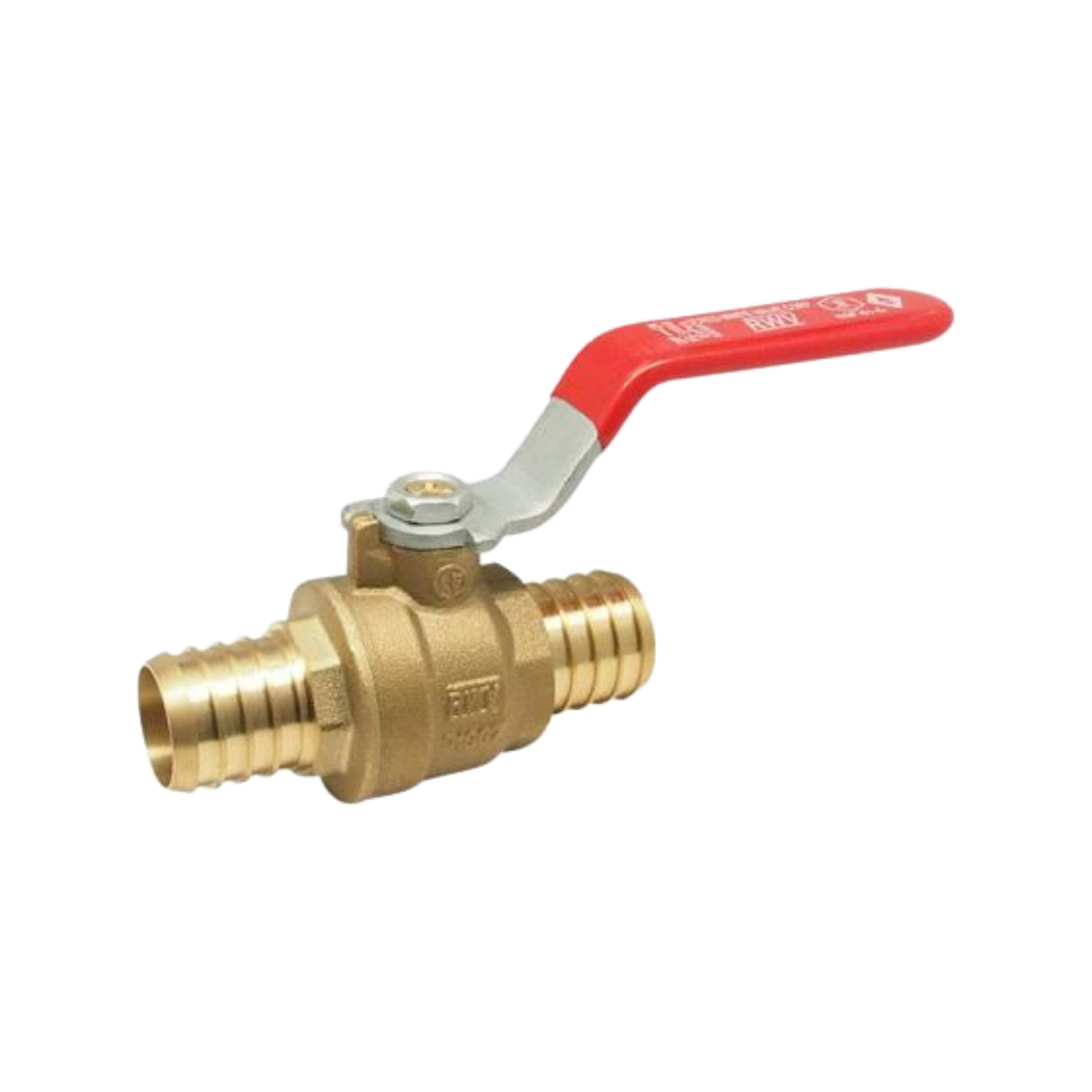

Red-White Valve’s 5009AB Lead-Free Brass PEX Ball Valve is engineered for high performance, long-term reliability, and full compliance with today’s potable water standards. Constructed from DZR (Dezincification Resistant) Lead-Free Brass and certified to NSF/ANSI 61 & 372 and AB1953, this valve delivers strength, safety, and corrosion resistance for residential and commercial systems alike.
Designed with full-port F1807 PEX Barb x Barb connections, the 5009AB ensures unrestricted flow and easy installation using crimp or clamp fittings. Its chrome-plated brass ball, PTFE seats, and double NBR O-ring packing provide a secure, leak-free seal through years of demanding use. The blow-out proof stem and steel handle with Dacromet coating add durability and safety to this compact, high-value valve.
Key Features
- DZR Lead-Free Brass Body — ASTM B927 C27453 material meets AB1953 and NSF/ANSI 61 & 372 lead-free requirements.
- Full Port F1807 Connections — PEX Barb × PEX Barb ends for smooth flow and quick installation.
- Durable Construction — Chrome-plated brass ball, PTFE seats, and blow-out proof stem ensure consistent operation.
- Dual NBR O-Rings — Provide long-term sealing integrity under thermal and pressure cycles.
- Pressure Rated 400 WOG — Handles up to 300 PSI (15–160°F) and 150 PSI at 200°F.

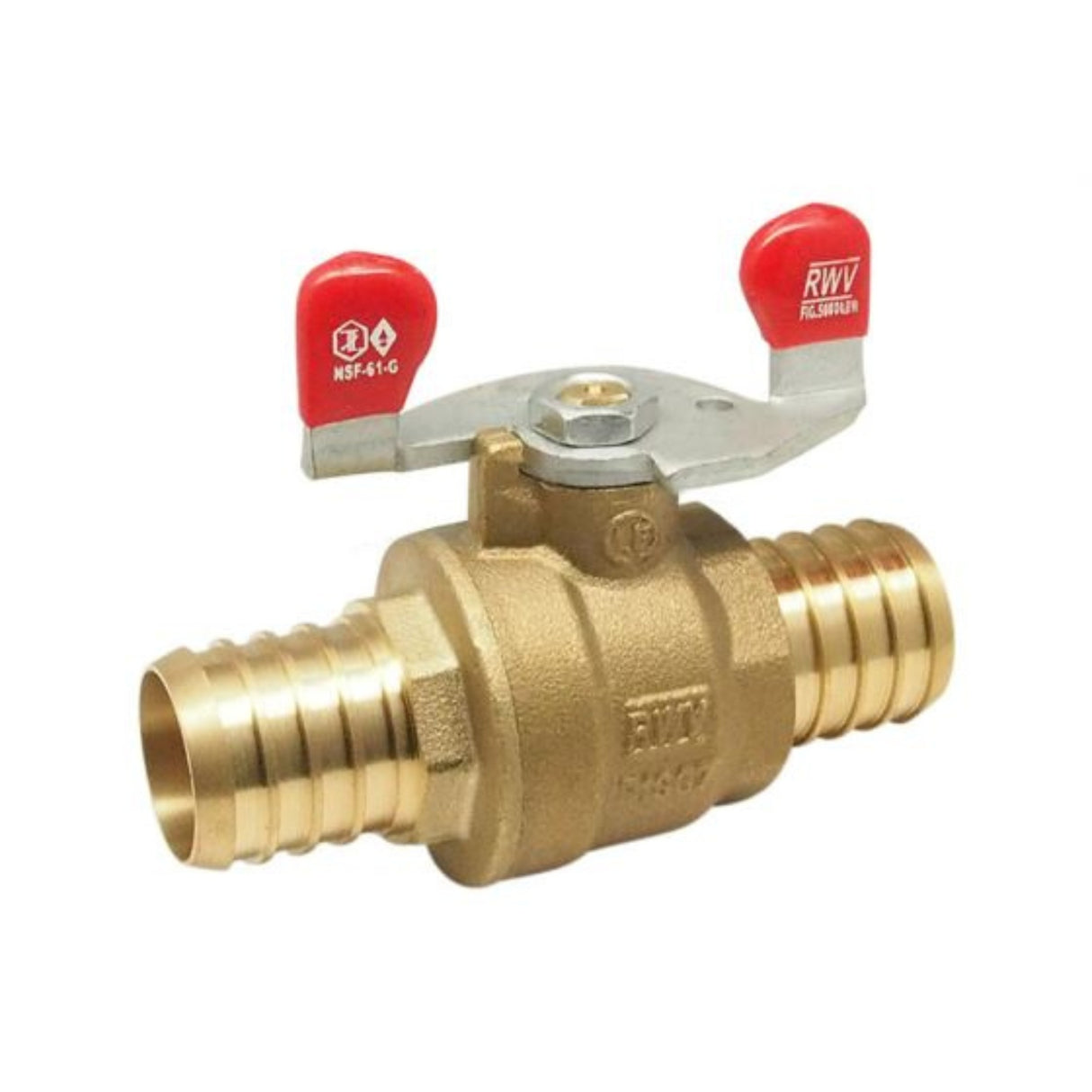

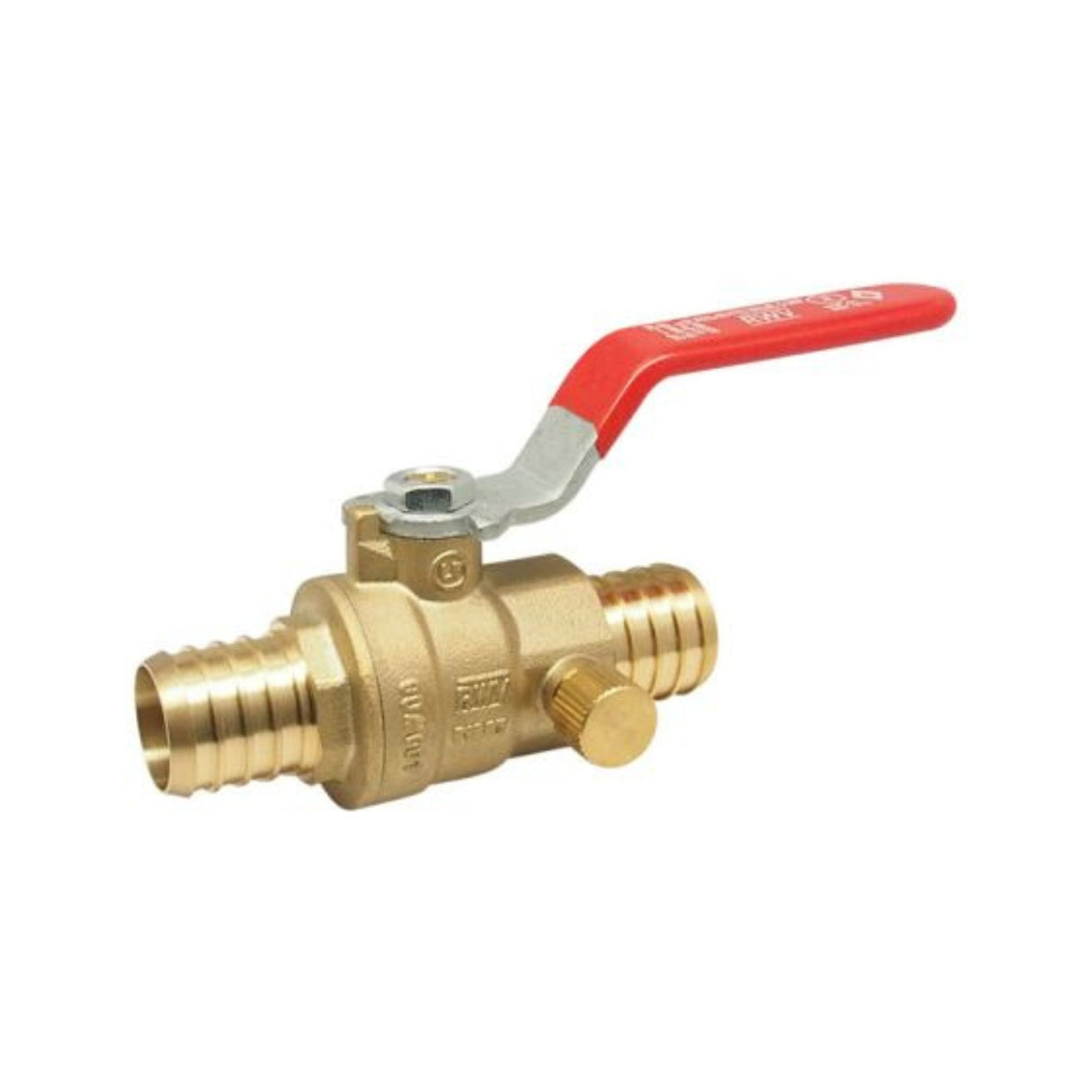

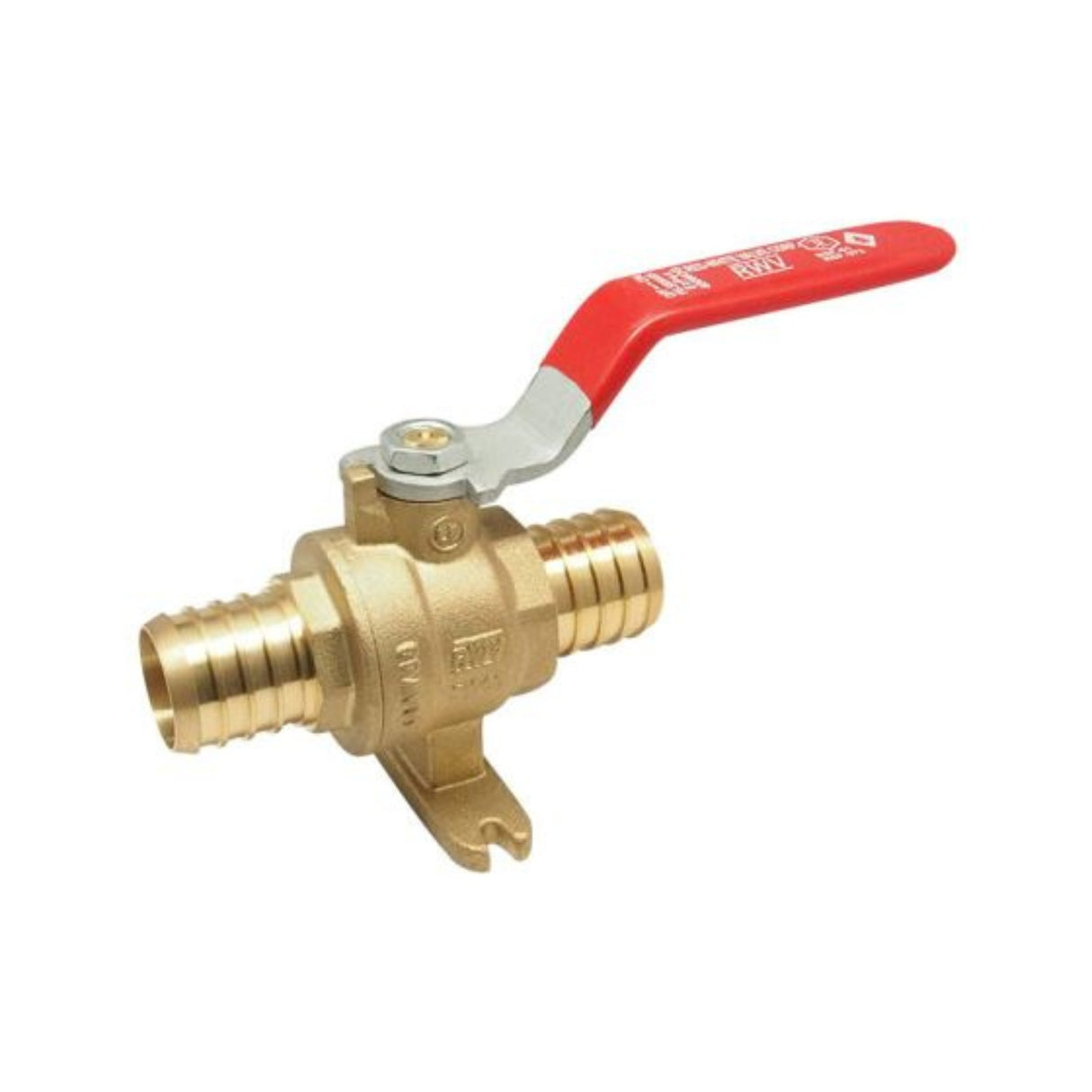

- Optional Models — Available with drain (5009ABD), mounting foot (5009ABF), drain & foot (5009ABDF), or wing handle (5009ABW).
Pressure & Temperature Ratings
| Pressure / Temperature Rating | |
|---|---|
| 300 PSI from 15°F to 160°F | 150 PSI max at 200°F |
Dimension, Weight
| Size | A [in] | H [in] | L [in] | P [in] | Wt. [lb] |
|---|---|---|---|---|---|
| ½″ | 2.31 | 1.38 | 3.19 | 0.35 | 0.24 |
| ¾″ | 2.61 | 1.73 | 3.58 | 0.53 | 0.36 |
| 1″ | 3.15 | 1.85 | 3.58 | 0.71 | 0.52 |
| 1¼″ | 3.68 | 1.99 | 4.97 | 0.87 | 0.90 |
| 1½″ | 4.35 | 2.19 | 4.97 | 1.02 | 1.27 |
| 2″ | 5.39 | 2.71 | 5.56 | 1.37 | 2.09 |
Material Construction
| Part | Material | Specification |
|---|---|---|
| 1. Body | DZR Lead-Free Brass | ASTM B927 C27453 |
| 2. End Piece | DZR Lead-Free Brass | ASTM B927 C27453 |
| 3. Ball | DZR Lead-Free Brass / Chrome Plated | ASTM B927 C27453 |
| 4. Seat | PTFE | PTFE |
| 5. Stem | DZR Lead-Free Brass | ASTM B927 C27453 |
| 6. O-Ring | NBR (Nitrile Rubber) | NSF Approved |
| 7. Handle | Steel / Dacromet® Plated | ASTM A36 |
| 8. Handle Nut | Steel / Zinc Plated | ASTM A36 |
Warning (California Prop 65): This product can expose you to chemicals including lead, known to the State of California to cause cancer, birth defects, or reproductive harm. For more information, visit www.P65Warnings.ca.gov.
