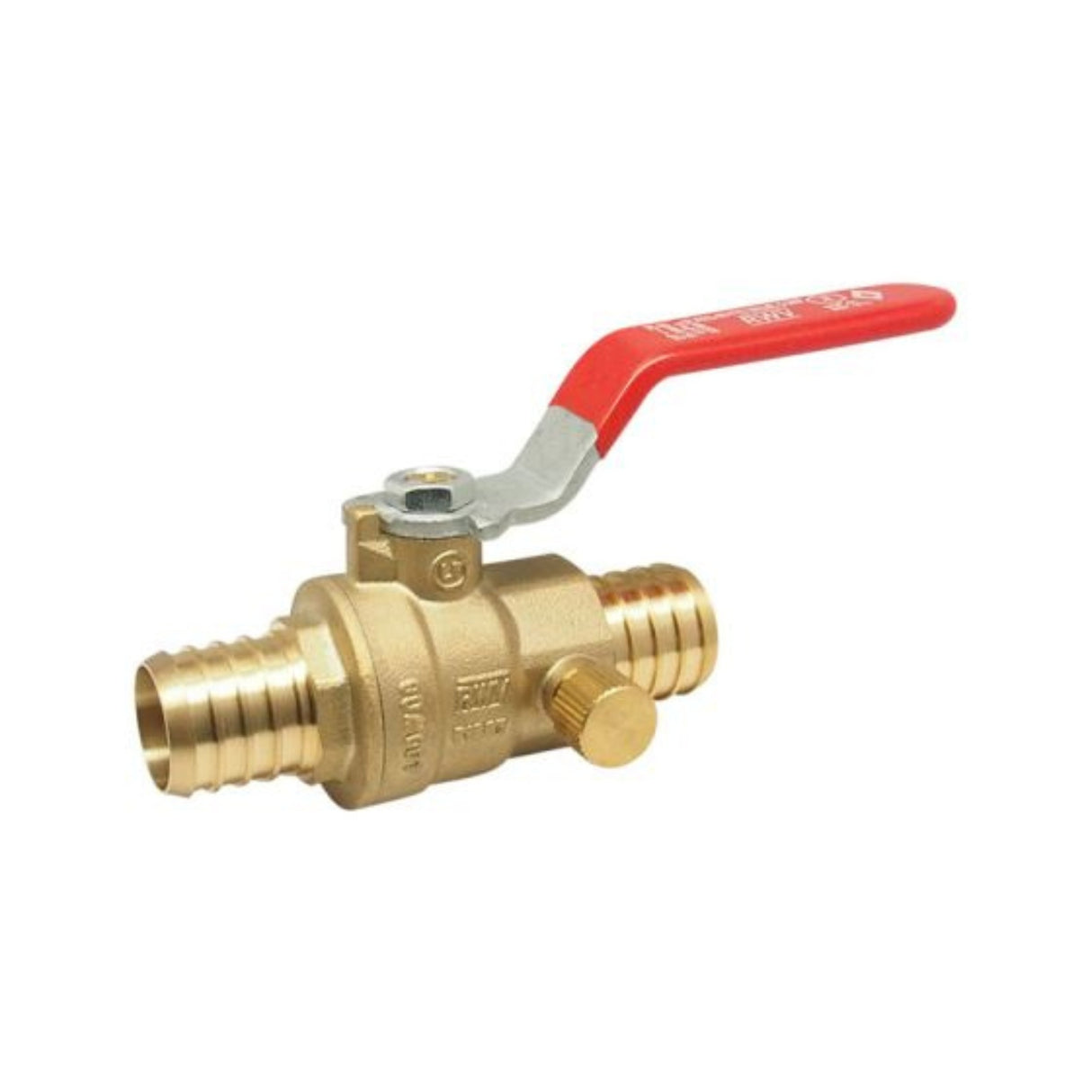

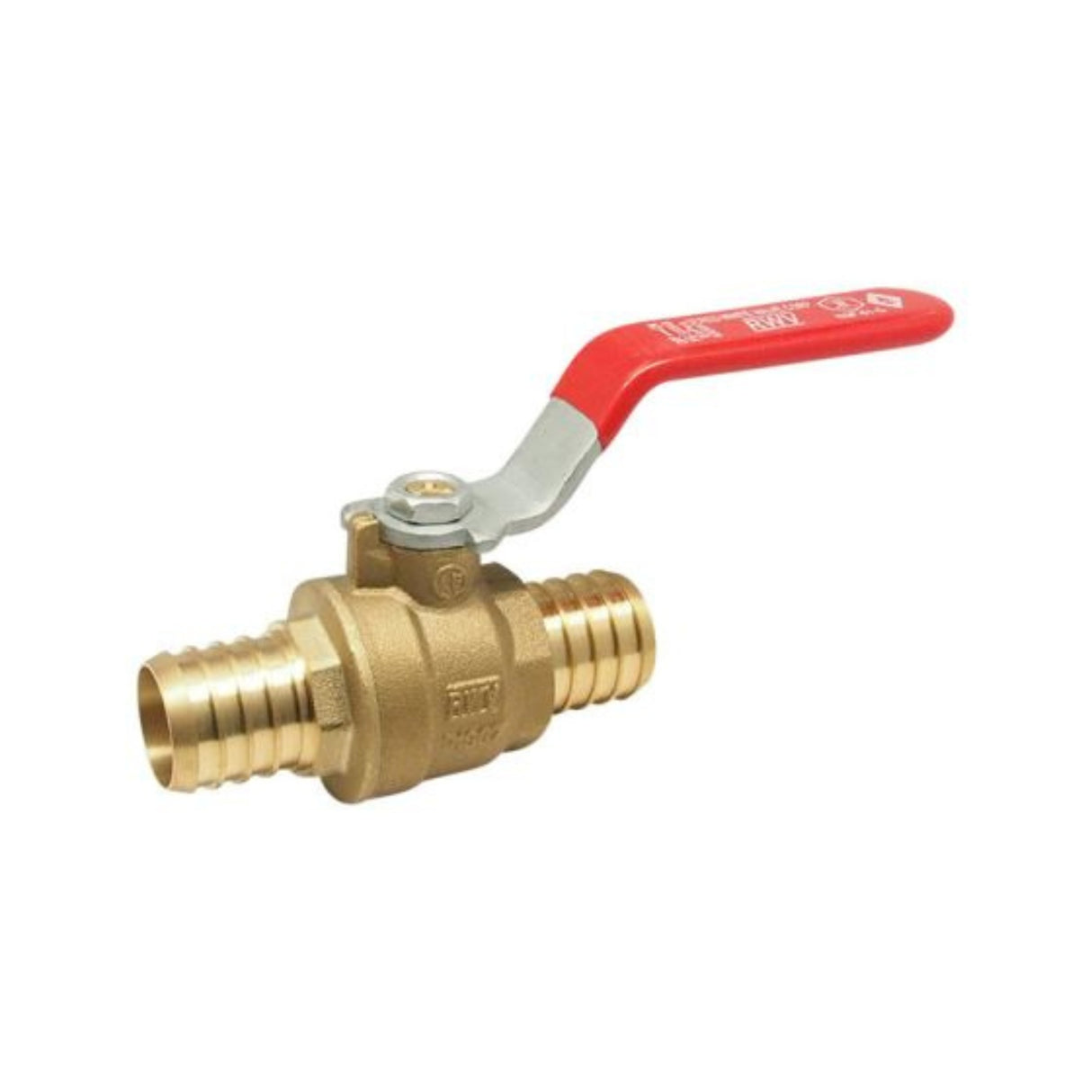

PEX Ball Valve with Drain | 5009ABDF Series | Barb x Barb

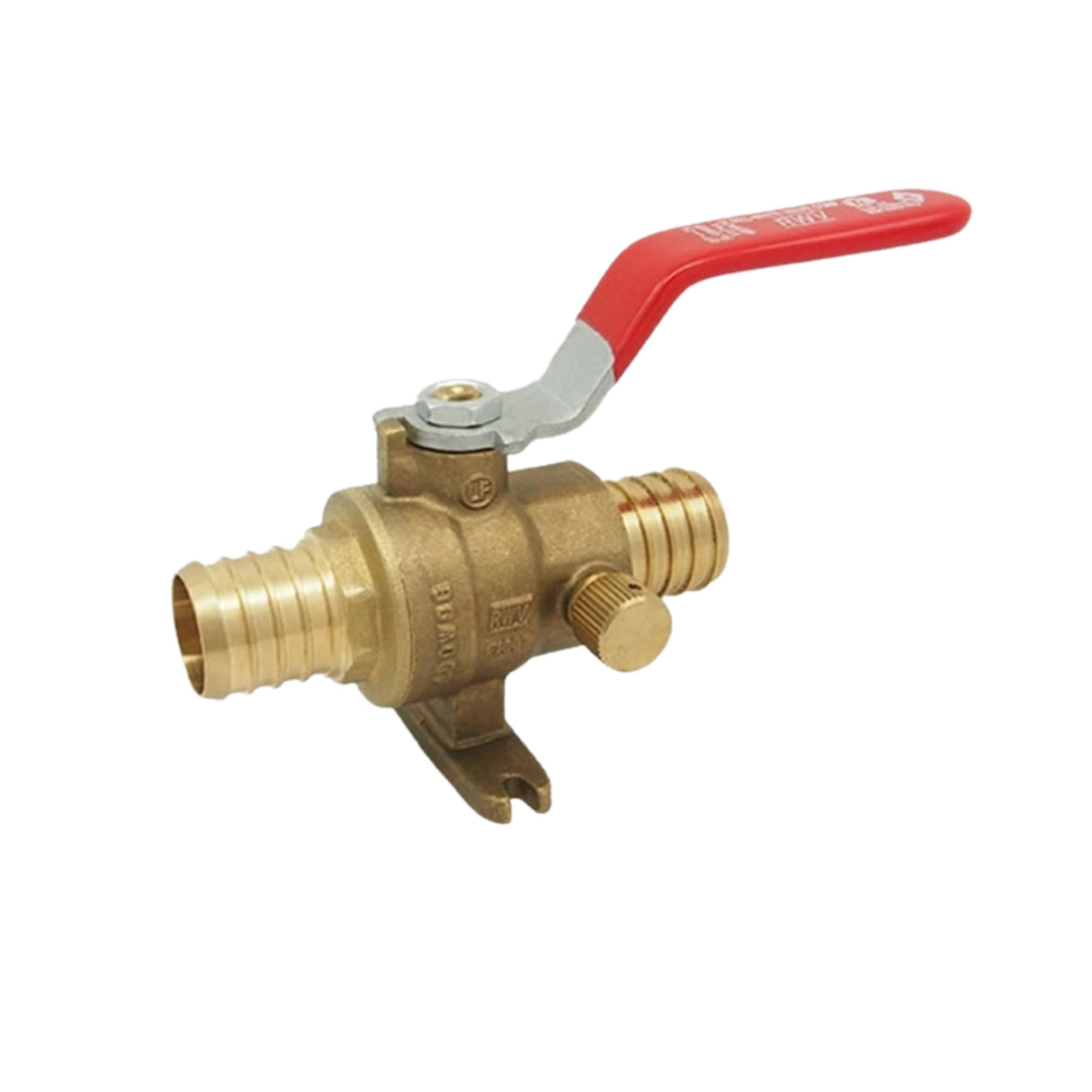

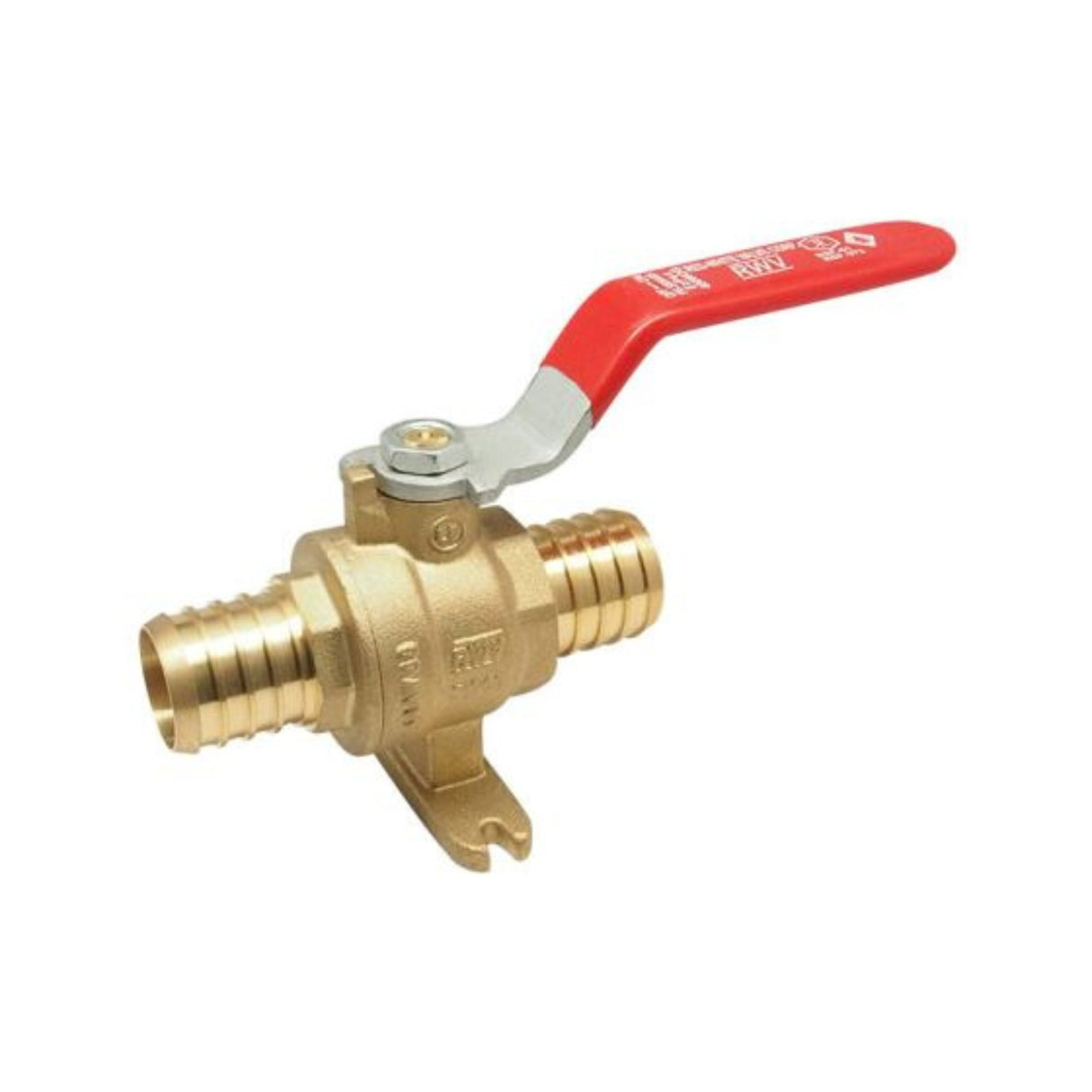

PEX Ball Valve with Drain & Mounting Foot | 5009ABDF Series | Barb x Barb
Red-White Valve’s 5009ABDF DZR Lead-Free Brass Ball Valve provides reliable shut-off, drainage, and secure installation in potable water and hydronic systems. Designed for PEX applications, this full-port valve combines a drain port and mounting foot for both service convenience and structural stability.
Constructed from DZR (Dezincification-Resistant) Lead-Free Brass and certified to NSF/ANSI 61 & 372 and AB1953, it delivers superior corrosion resistance and long-term performance. The chrome-plated brass ball, PTFE seats, and double NBR O-ring stem packing ensure smooth operation and tight sealing under demanding conditions.
Key Features
- DZR Lead-Free Brass Body — ASTM B927 C27453 brass meets NSF/ANSI 61 & 372, AB1953, and CSA B125.14 requirements.
- Integrated Drain Port & Mounting Foot — Combines serviceability and structural support in one compact design.
- Full Port F1807 Connections — True full-bore flow through ASTM F1807 PEX Barb × Barb ends.
- Chrome-Plated Brass Ball — Provides corrosion resistance and long-lasting reliability.
- Double NBR O-Ring Stem Seals — Ensures leak-free operation under pressure and temperature cycling.
- PTFE Seats — Deliver smooth operation and chemical resistance for clean water systems.
- Pressure Rating — 400 WOG; 300 PSI from 15°F–160°F and 150 PSI max at 200°F.
Pressure & Temperature Ratings
| Pressure / Temperature Rating | |
|---|---|
| 300 PSI from 15°F to 160°F | 150 PSI max at 200°F |
Dimension, Weight
| Size | A [in] | H [in] | L [in] | L1 [in] | E [in] | D [in] | P [in] | Wt. [lb] |
|---|---|---|---|---|---|---|---|---|
| ½″ | 2.62 | 1.38 | 3.19 | 0.91 | 0.93 | 0.93 | 0.35 | 0.37 |
| ¾″ | 2.93 | 1.73 | 3.19 | 1.04 | 1.06 | 1.06 | 0.53 | 0.50 |
| 1″ | 3.50 | 1.85 | 3.58 | 1.14 | 1.16 | 1.16 | 0.71 | 0.71 |
Material Construction
| Part | Material | Specification |
|---|---|---|
| 1. Body | DZR Lead-Free Brass | ASTM B927 C27453 |
| 2. End Piece | DZR Lead-Free Brass | ASTM B927 C27453 |
| 3. Ball | DZR Lead-Free Brass / Chrome Plated | ASTM B927 C27453 |
| 4. Seat | PTFE | PTFE |
| 5. Stem | DZR Lead-Free Brass | ASTM B927 C27453 |
| 6. O-Ring | NBR (Nitrile Rubber) | NSF Approved |
| 7. Handle | Steel / Dacromet® Plated | ASTM A36 |
| 8. Handle Nut | Steel / Zinc Plated | ASTM A36 |
| 9. Cap Gasket | NBR | NSF Approved |
| 10. Plug | Brass | ASTM B124 C37700 |
