RED-WHITE VALVE CORP.  |  SKU: 30078238  |  MPN: 5017AB 1/2

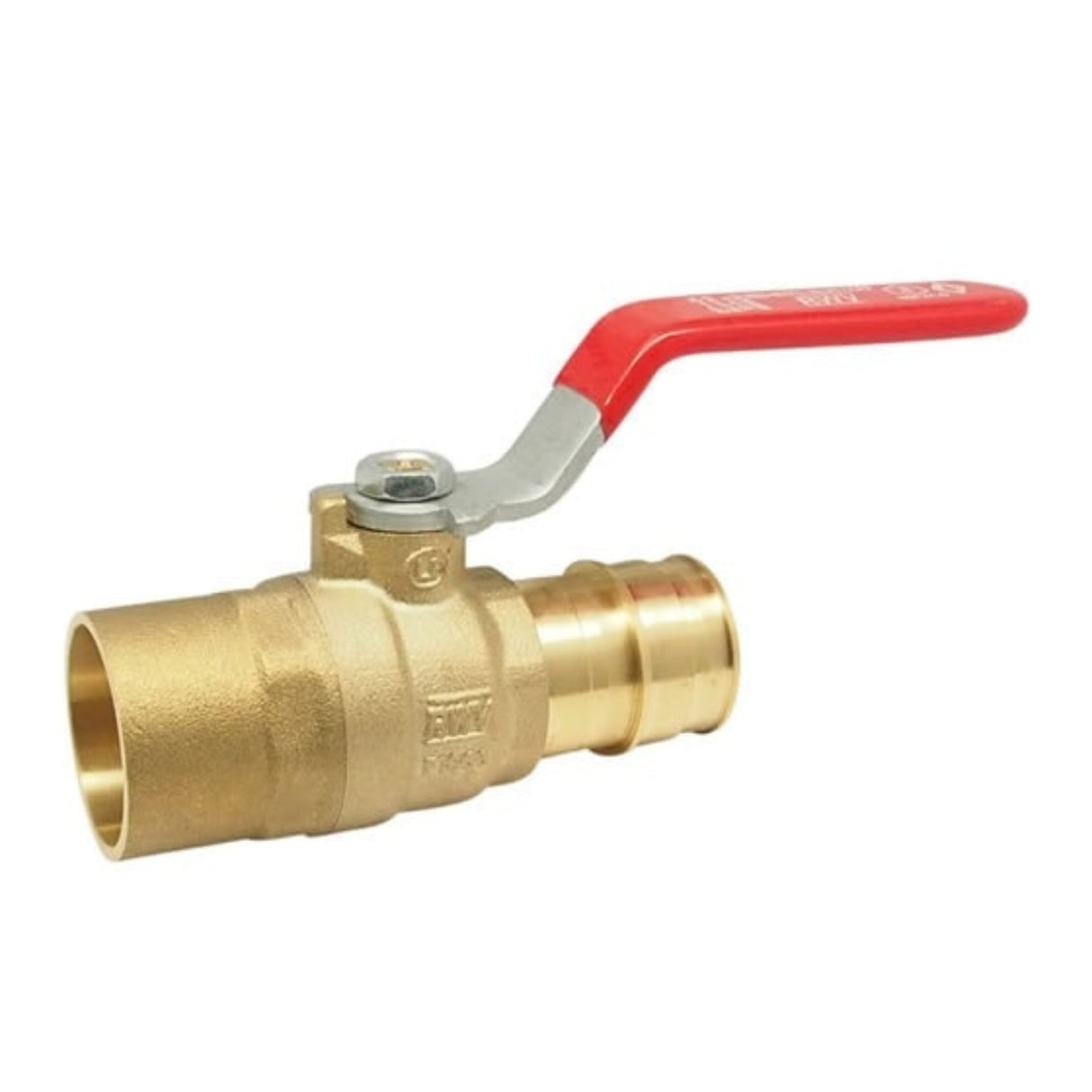

PEX x Solder Ball Valve | 5017AB Series | F1960 Full Port

$11.00
  • Lead-Free DZR Brass Construction — Corrosion-resistant brass meets NSF/ANSI 61 & 372 standards for potable water systems.
  • Full-Port Flow Path — Allows maximum water flow with minimal restriction for efficient hydronic performance.
  • Versatile PEX × Solder Connection — F1960 barb inlet and solder outlet provide flexibility between PEX and copper lines.
  • Double Seal Protection — Includes dual NBR O-rings, PTFE seats, and a blow-out proof stem for leak-free operation.
  • Pressure Rated 300 PSI WOG — Handles up to 300 PSI from 15°F to 160°F and 150 PSI at 200°F, with optional wing handle configurations.
📄 Download Spec Sheet

PEX × Solder Ball Valve | 5017AB Series | Full Port | DZR Lead-Free Brass

5017AB Series Ball Valves deliver long-lasting reliability and easy installation in potable water and hydronic systems. Constructed from DZR lead-free brass for superior corrosion resistance, this full-port valve combines a F1960 PEX barb inlet with a solder end outlet for seamless transitions between PEX and copper systems.

Key Features & Benefits

  • Lead-Free DZR Brass Construction — Dezincification-resistant ASTM B927 C27453 brass ensures corrosion protection and full compliance with lead-free standards.
  • Full-Port Flow Design — Provides unrestricted flow to minimize pressure loss in both residential and commercial installations.
  • Reliable Dual-Seal System — Features double NBR O-rings and PTFE seats for smooth operation and long-term leak protection.
  • Dual Connection Options — Combines F1960 PEX barb and solder end (ASME B16.22) for flexible integration with existing piping networks.
  • Durable, Service-Ready Design — Chrome-plated ball, blowout-proof stem, and precision machining ensure lasting performance under demanding conditions.

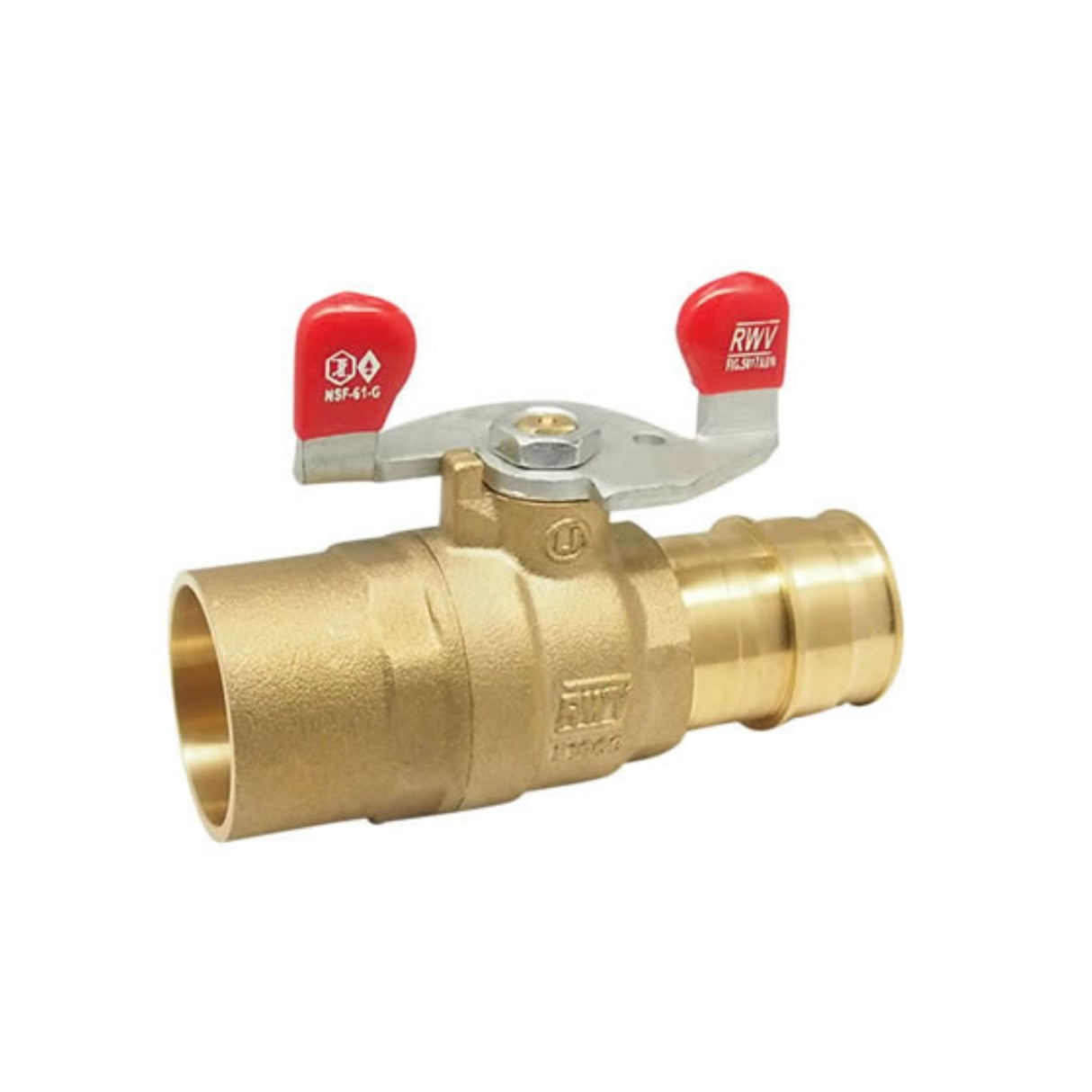

  • Optional Configurations — Available with wing handle (5017ABW & 5017SMW for 5/8") for improved access in tight spaces.

Pressure / Temperature Rating

Pressure Temperature Range
300 PSI WOG 15 °F to 160 °F
150 PSI Up to 200 °F

Dimension, Weight

Size S [in] A [in] H [in] L [in] P [in] C [in] Weight [lb]
1/2" 0.627–0.631 2.17 1.38 3.19 0.39 0.51 0.26
5/8" 0.877–0.881 2.85 1.72 2.44 0.50 0.75 0.43
3/4" 0.877–0.881 2.93 1.77 3.58 0.50 0.75 0.44
1" 1.128–1.131 3.46 1.77 3.58 0.73 0.91 0.60

Material Construction

# Part Material Specification
1 Body DZR Lead-Free Brass ASTM B927 C27453
2 End Piece DZR Lead-Free Brass ASTM B927 C27453
3 Ball Chrome-Plated Lead-Free Brass ASTM B927 C27453
4 Seat PTFE PTFE
5 Stem DZR Lead-Free Brass ASTM B927 C27453
6 O-Ring NBR NSF Approved
7 Handle Steel, Dacromet Plated ASTM A36
8 Handle Nut Steel, Zinc Plated ASTM A36

Warning (California Prop 65): This product can expose you to chemicals including lead, known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
