PP-R Ball Valve | 1515AB Series | Polyfusion x Barb
$50.50
Unit price
/
Select Option

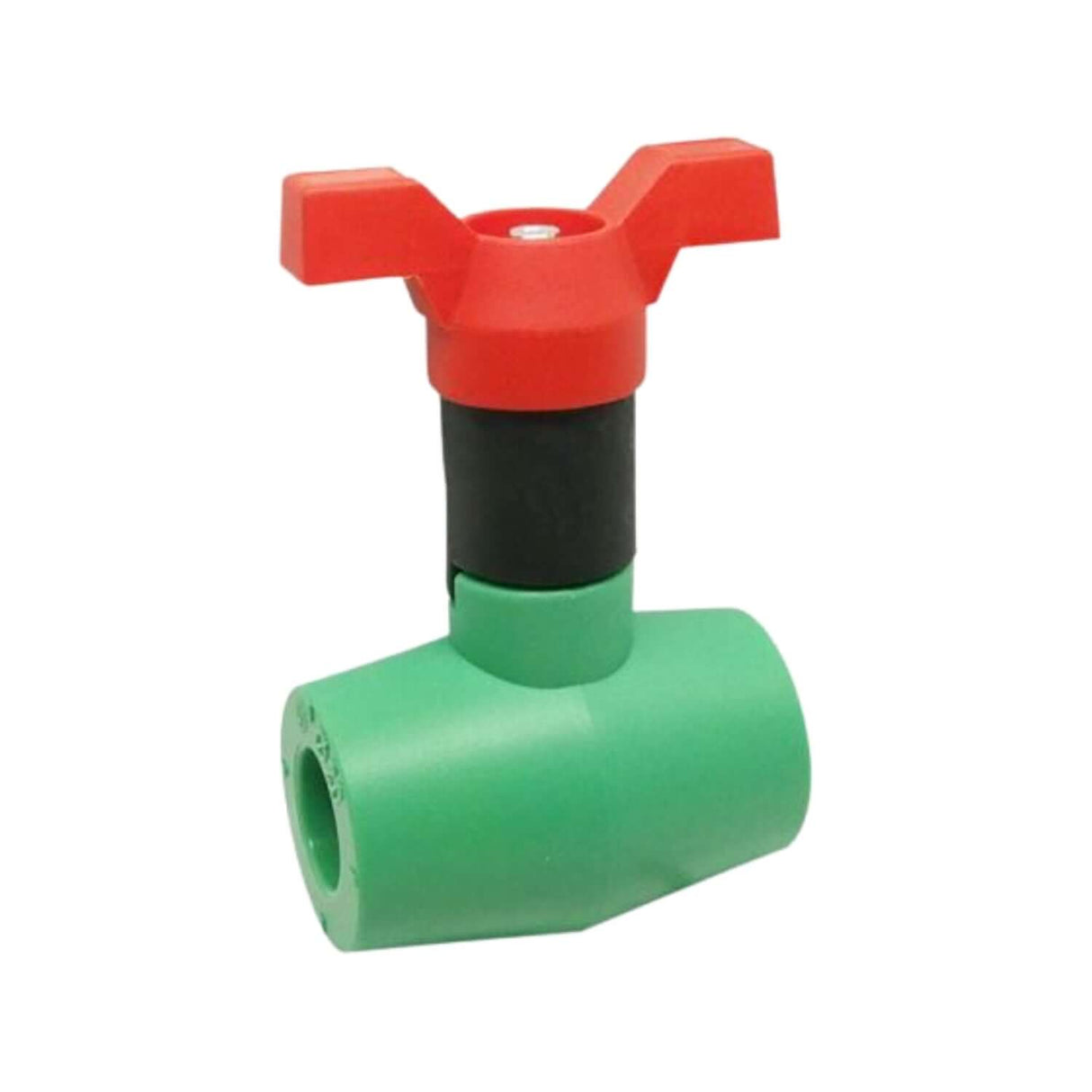

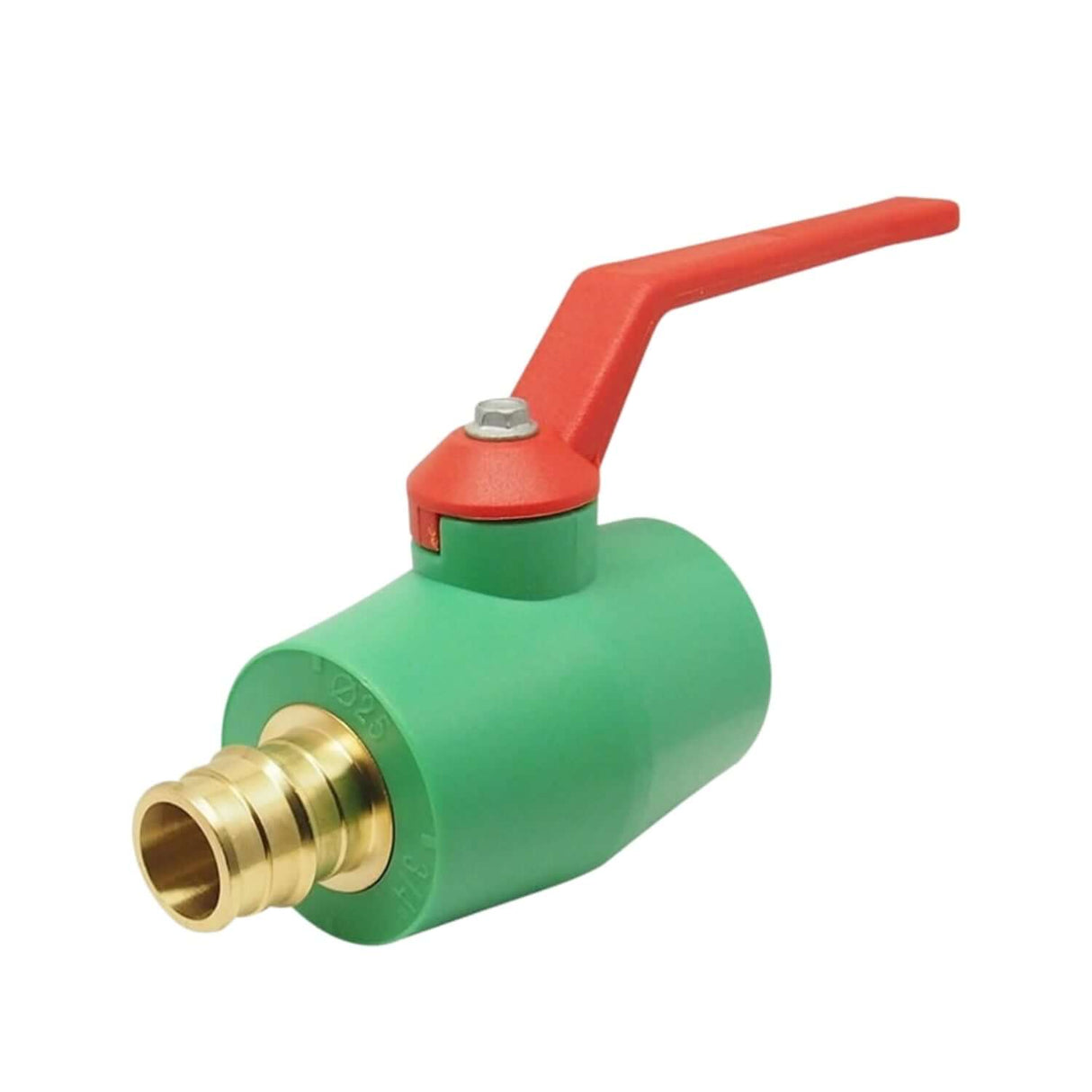

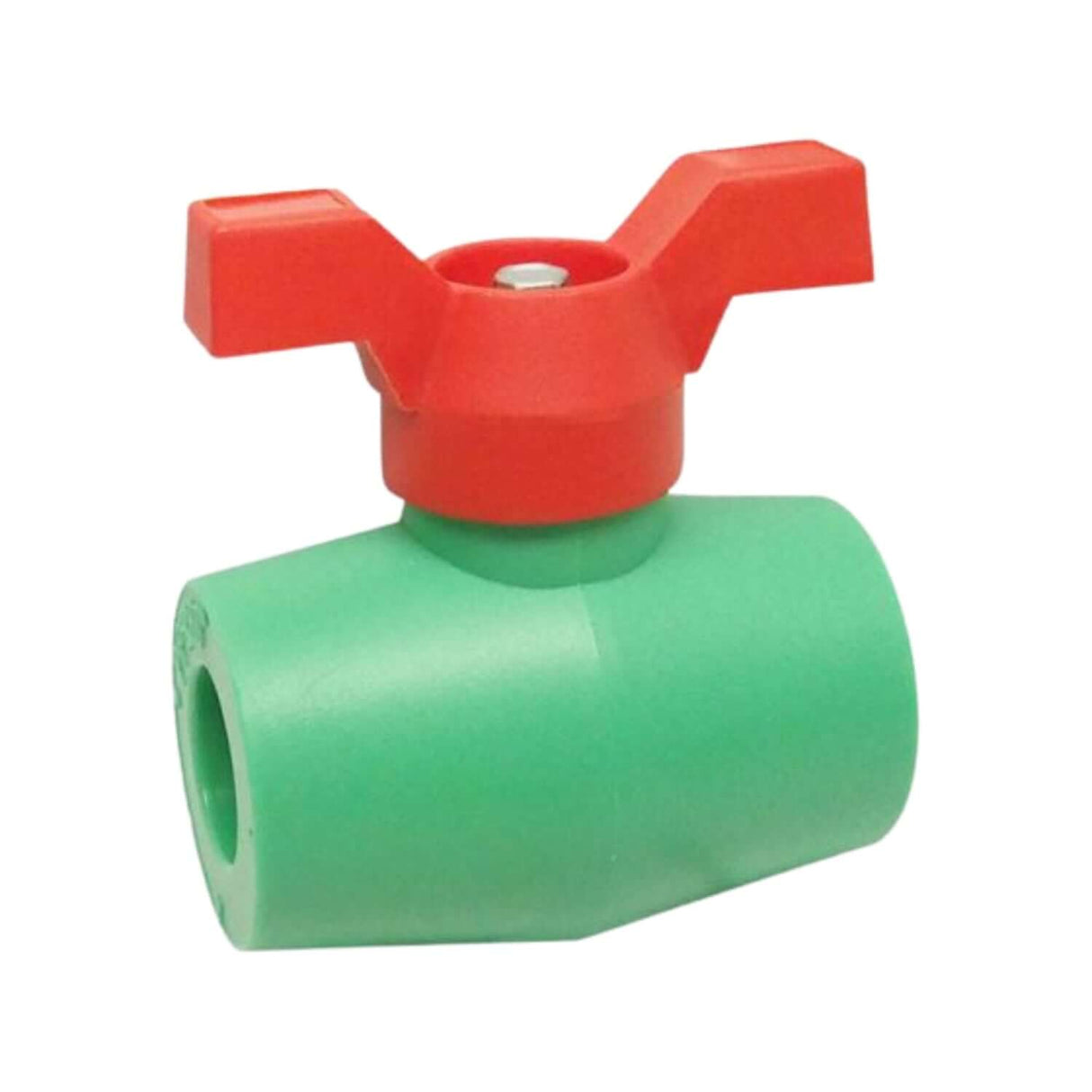

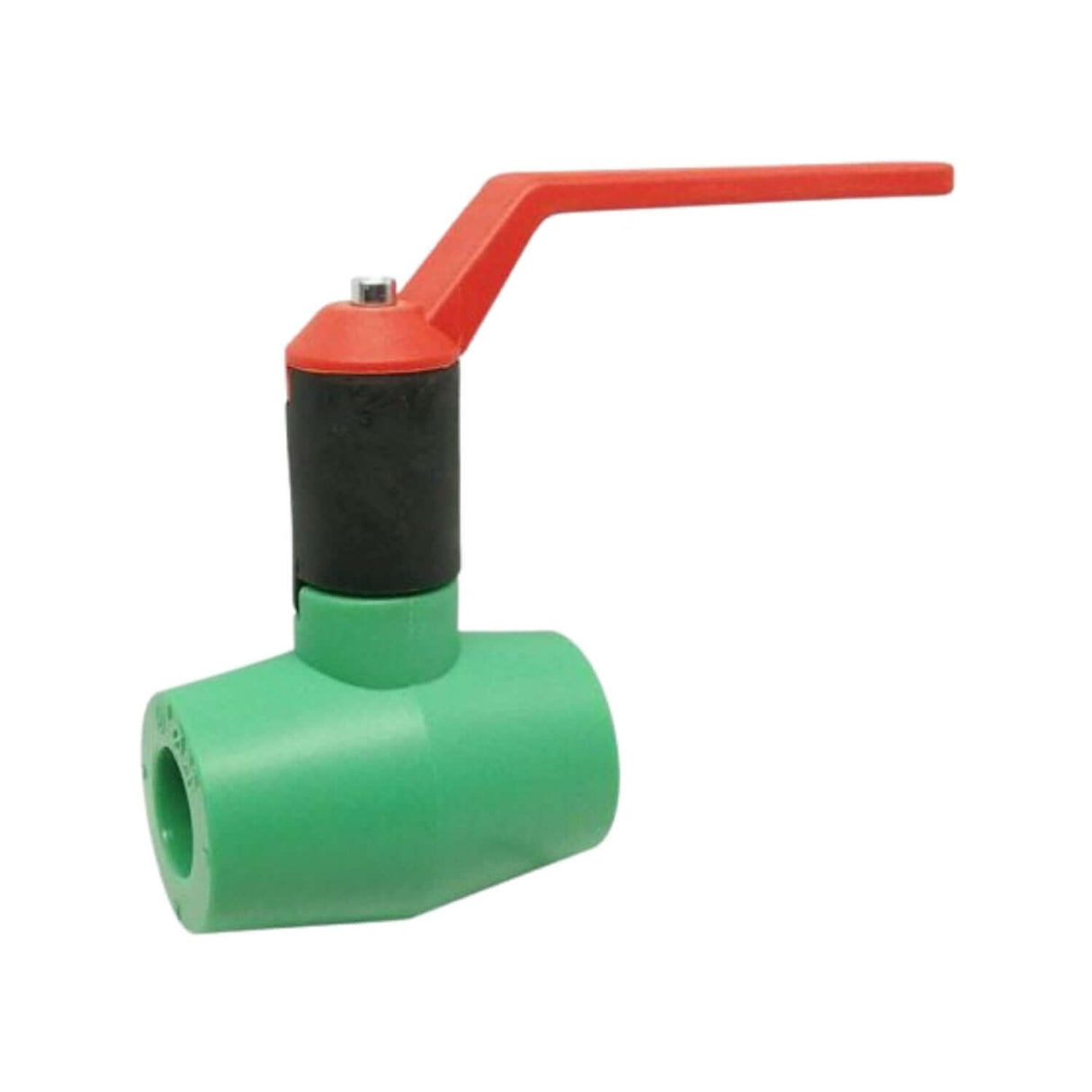

PP-R Ball Valve | 1515AB Series | Polyfusion x Barb
Red-White Valve’s 1515AB Eco-Valve is engineered for high-pressure performance and certified lead-free reliability. Built from durable PP-R80 polypropylene and DZR brass, this valve provides dependable shutoff for potable water and radiant heating systems, meeting the highest safety and compliance standards.
Key Features
- 300 PSI Pressure Rating — Higher than typical domestic ball valves, making it suitable for demanding water distribution systems.
- PP-R80 Polyfusion Body — Corrosion-resistant, thermoplastic body ensures chemical stability and long-term durability.
- DZR Lead-Free Brass Ball — Chrome-plated, compliant with AB1953 and NSF/ANSI 61 & 372 for safe potable water use.
- ASTM F1960 Barb Ends — Compatible with cold expansion PEX tubing for secure and leak-free installations.
- NSF-14 and IAPMO Z1157 Certified — Meets industry certifications for both safety and performance in potable water applications.
Technical Ratings
| Max. Pressure | Max. Temperature |
|---|---|
| 300 psi / 2068 kPa | 185°F / 85°C |
Material Construction
| # | Part | Material | Specification |
|---|---|---|---|
| 1 | PEX End | DZR Lead-Free Brass | ASTM B927 C27453 |
| 2 | Cartridge Body | Polypropylene | PP-R80 |
| 3 | Lever Handle | Nylon | PA6-50G |
| 4 | O-Ring | NBR | NSF Approved |
| 5 | Stem | DZR Lead-Free Brass | ASTM B927 C27453 |
| 6 | Seat | PTFE | PTFE |
| 7 | Ball | DZR Lead-Free Brass / Cr Plated | ASTM B927 C27453 |
| 8 | Cartridge Cap | Polypropylene | PP-R80 |
| 9 | Screw | Steel / Geomet Plated | Steel |
| 10 | Body | Polypropylene | PP-R80 |
