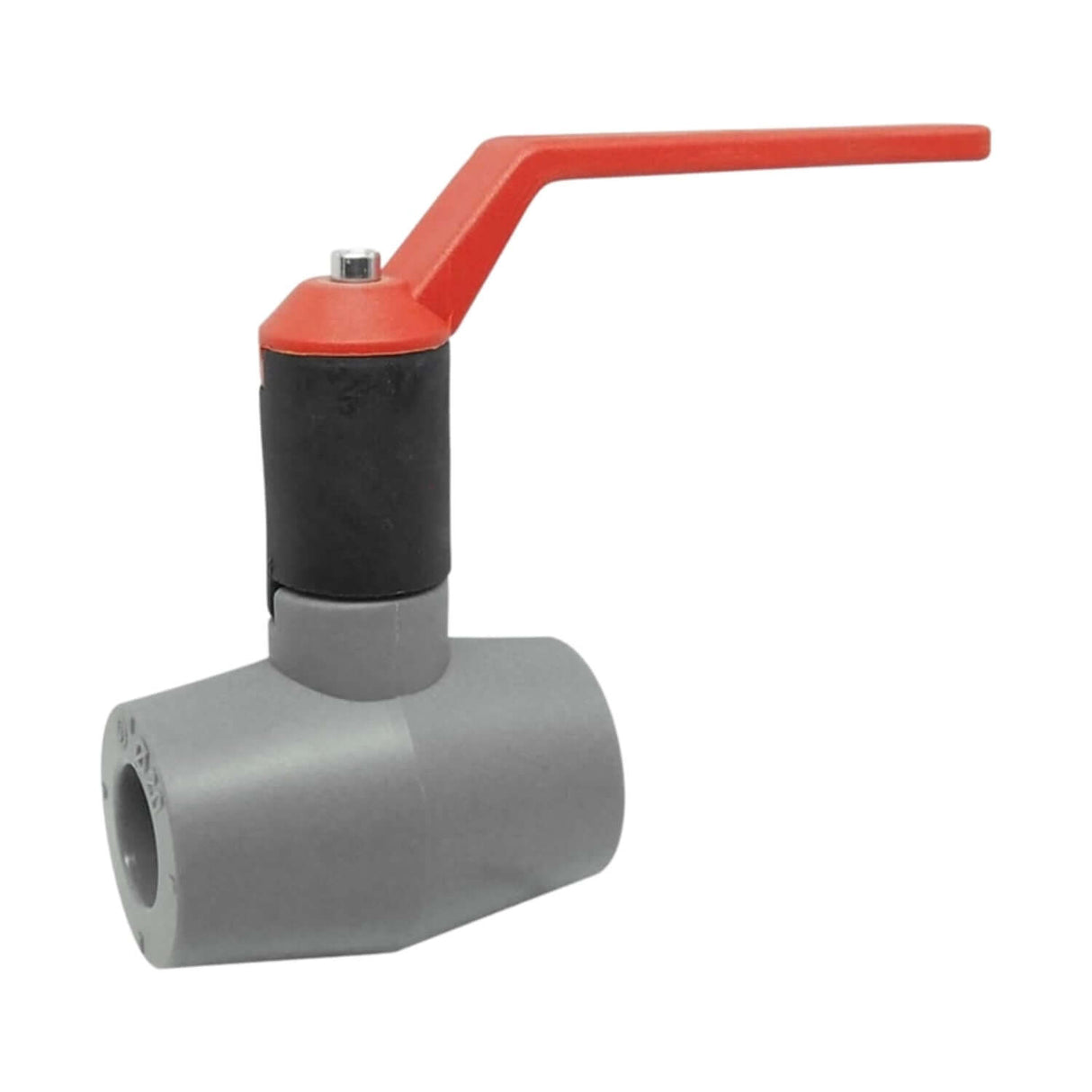

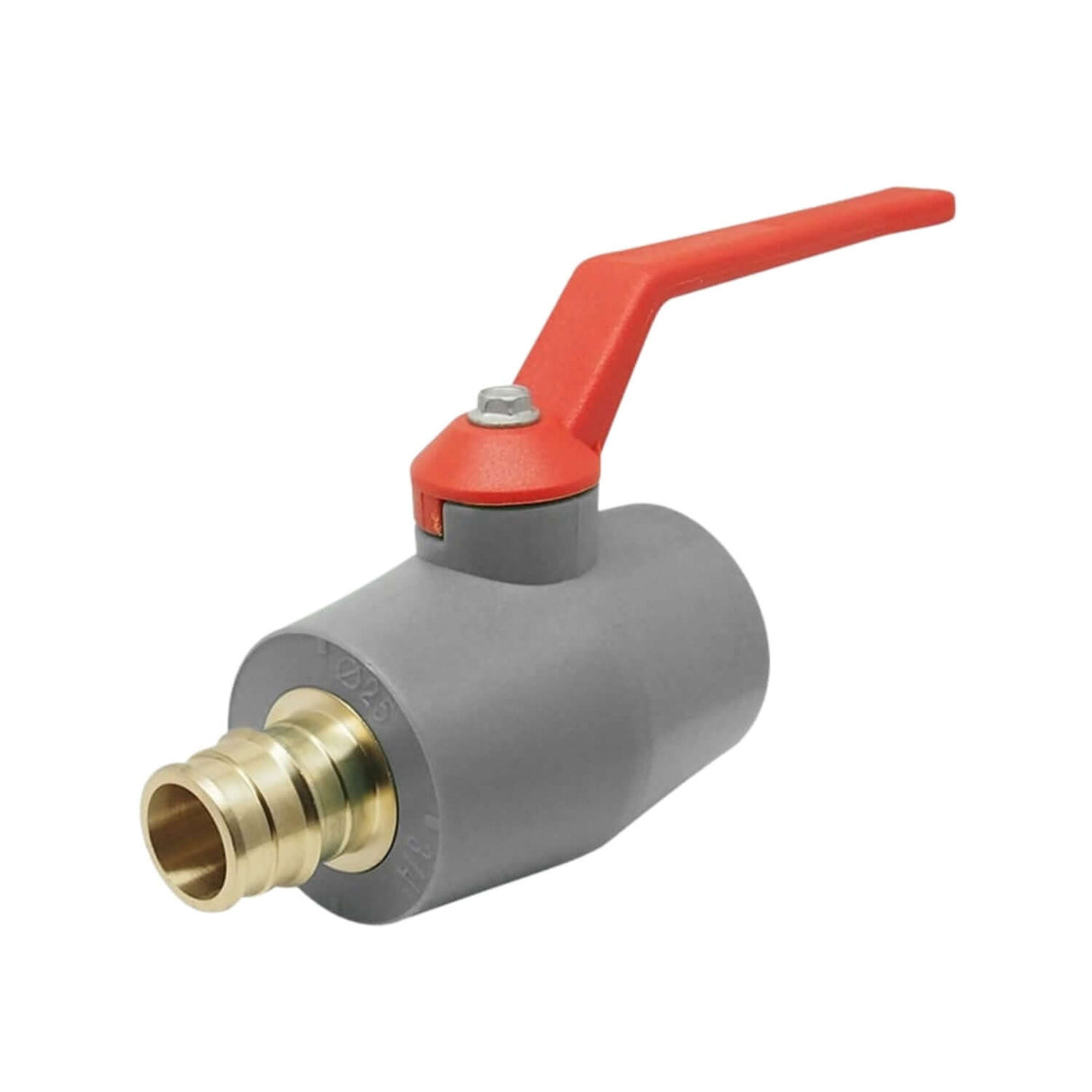

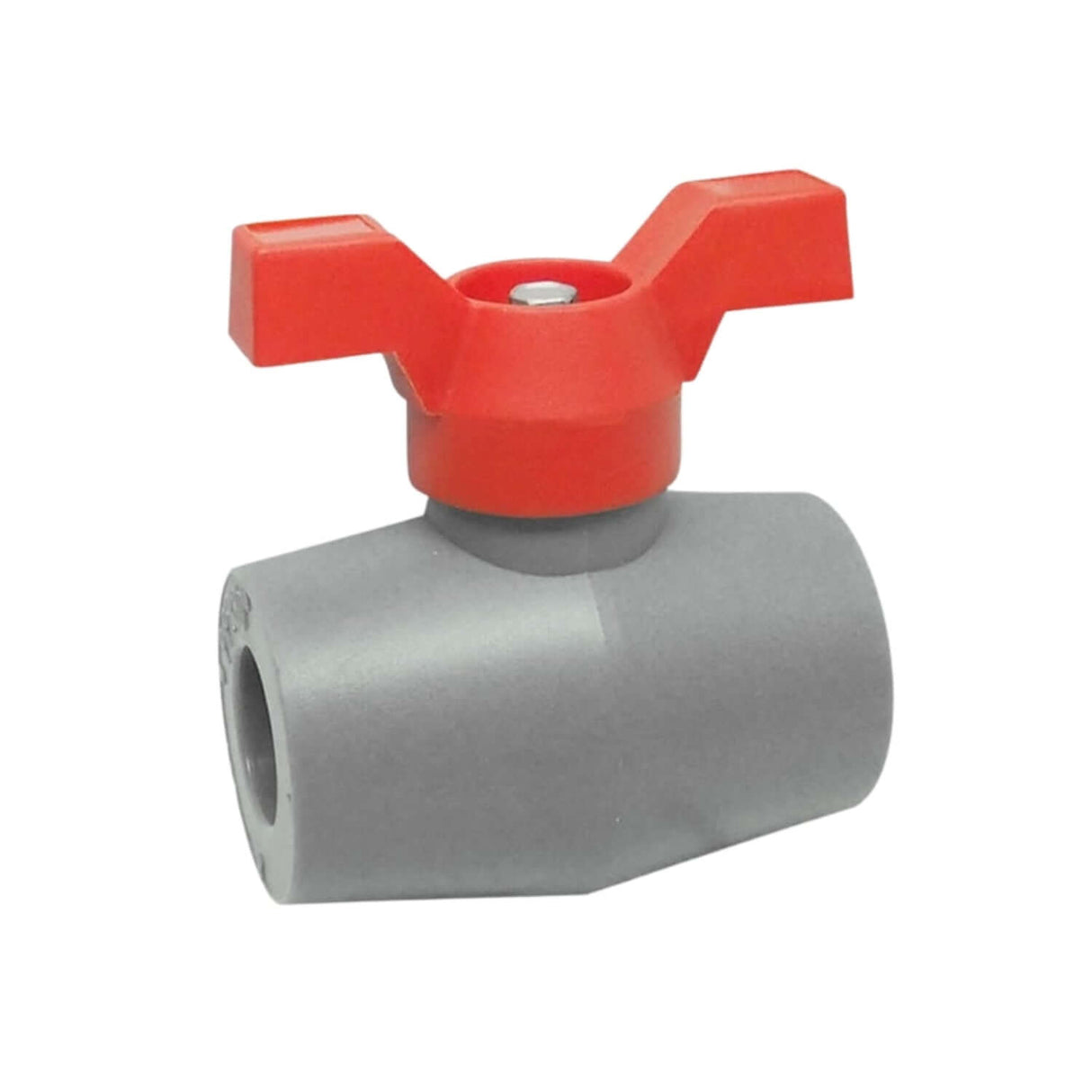

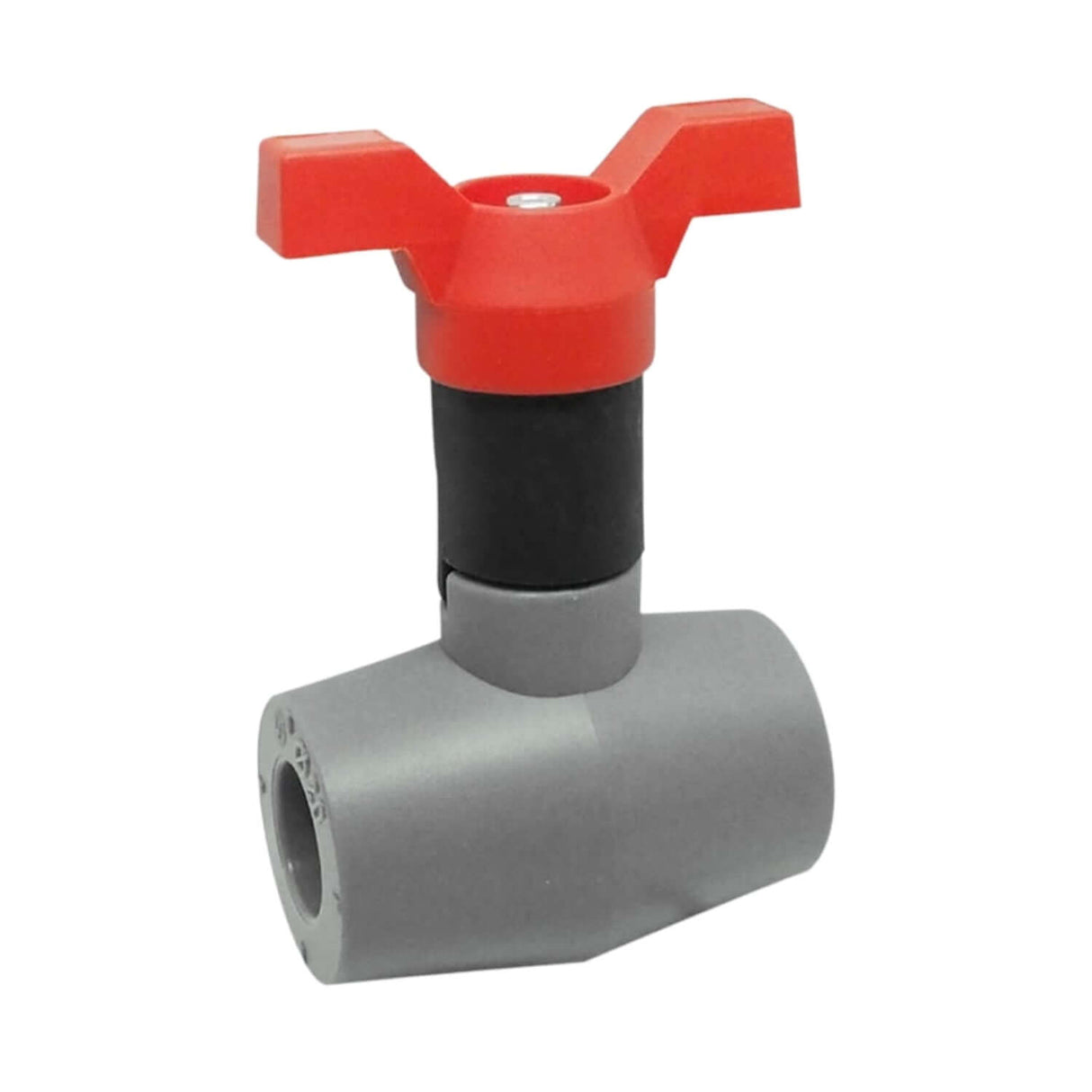

PP-RCT Ball Valve | 1516AB Series | Polyfusion x Barb | Lead-Free
$50.50
Unit price
/
Select Option
PP-RCT Ball Valve | 1516AB Series | Polyfusion x Barb
Red-White Valve’s 1516AB ECO-VALVE is engineered for strength, safety, and eco-conscious performance. Made with a PP-RCT body and DZR lead-free brass components, this valve delivers 300 PSI reliability and long-lasting service for potable water, radiant heat, and plumbing systems.
Key Features
- Certified Lead-Free & BAA Compliant — Meets AB1953, NSF/ANSI 61 & 372, and NSF-14 standards, making it ideal for potable water systems.
- Built for Strength & Safety — 300 PSI pressure rating and 185°F temperature threshold with a blow-out proof DZR brass stem and ball.
- Durable, Corrosion-Resistant Materials — DZR lead-free brass and PP-RCT body offer long-term performance and resistance to dezincification.
- Secure & Easy Connection — Polyfusion x Barb ends conform to ASTM F1960 for a tight, secure PEX fit in hot and cold systems.
- Low Maintenance Design — Virgin PTFE seats and NBR O-ring packing ensure smooth operation with minimal upkeep.
Technical Ratings
| Max. Pressure | Max. Temperature |
|---|---|
| 300 psi / 2068 kPa | 185°F / 85°C |
Material Construction
| # | Part | Material | Specification |
|---|---|---|---|
| 1 | PEX End | DZR Lead-Free Brass | ASTM B927 C27453 |
| 2 | Cartridge Body | Polypropylene | PP-RCT |
| 3 | Lever Handle | Nylon | PA6-50G |
| 4 | O-Ring | NBR | NSF Approved |
| 5 | Stem | DZR Lead-Free Brass | ASTM B927 C27453 |
| 6 | Seat | PTFE | PTFE |
| 7 | Ball | DZR Lead-Free Brass / Cr Plated | ASTM B927 C27453 |
| 8 | Cartridge Cap | Polypropylene | PP-RCT |
| 9 | Screw | Steel / Geomet Plated | Steel |
| 10 | Body | Polypropylene | PP-RCT |
