PP-RCT Ball Valve | 1501AB Series | Polyfusion x Polyfusion
$28.50
Unit price
/
Select Option

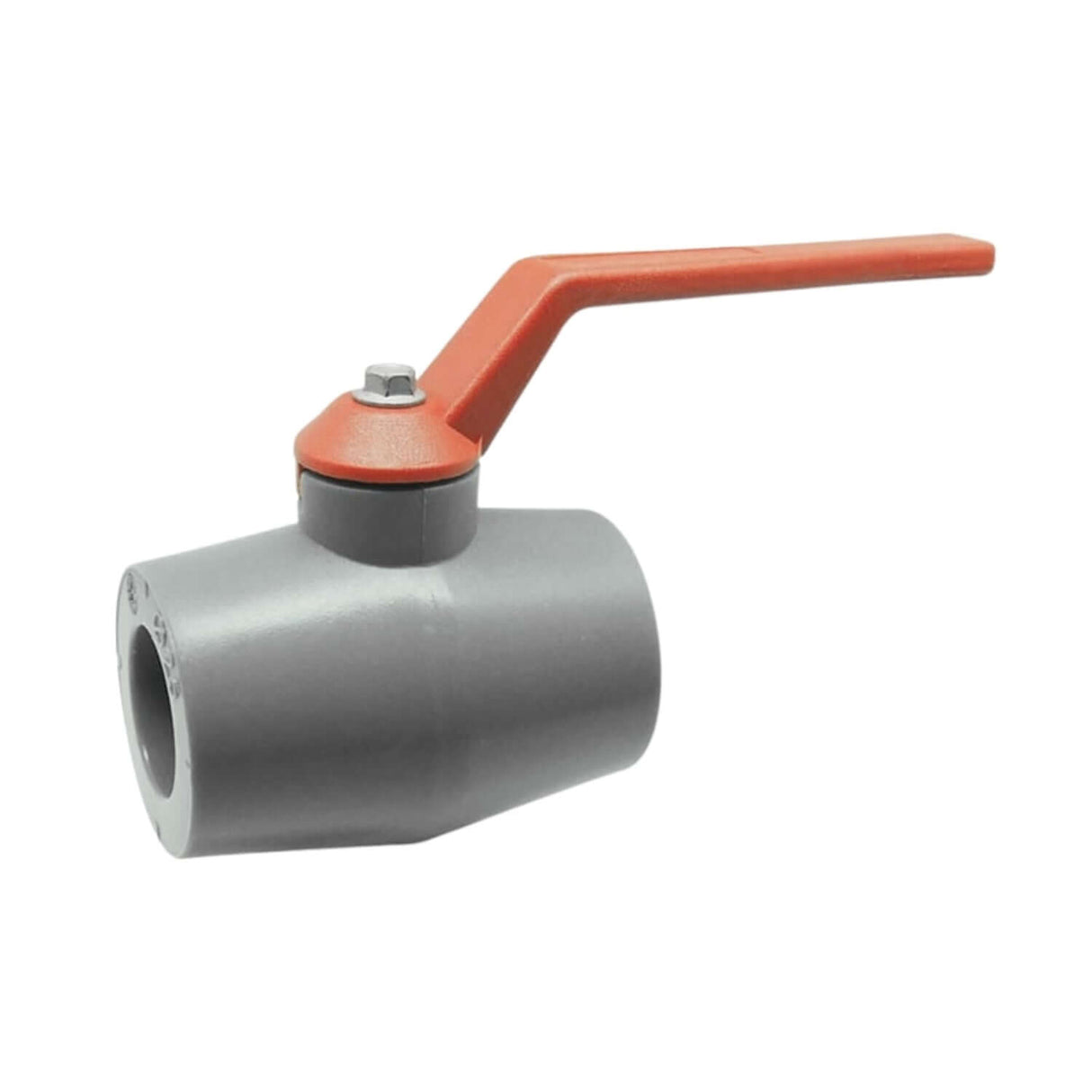

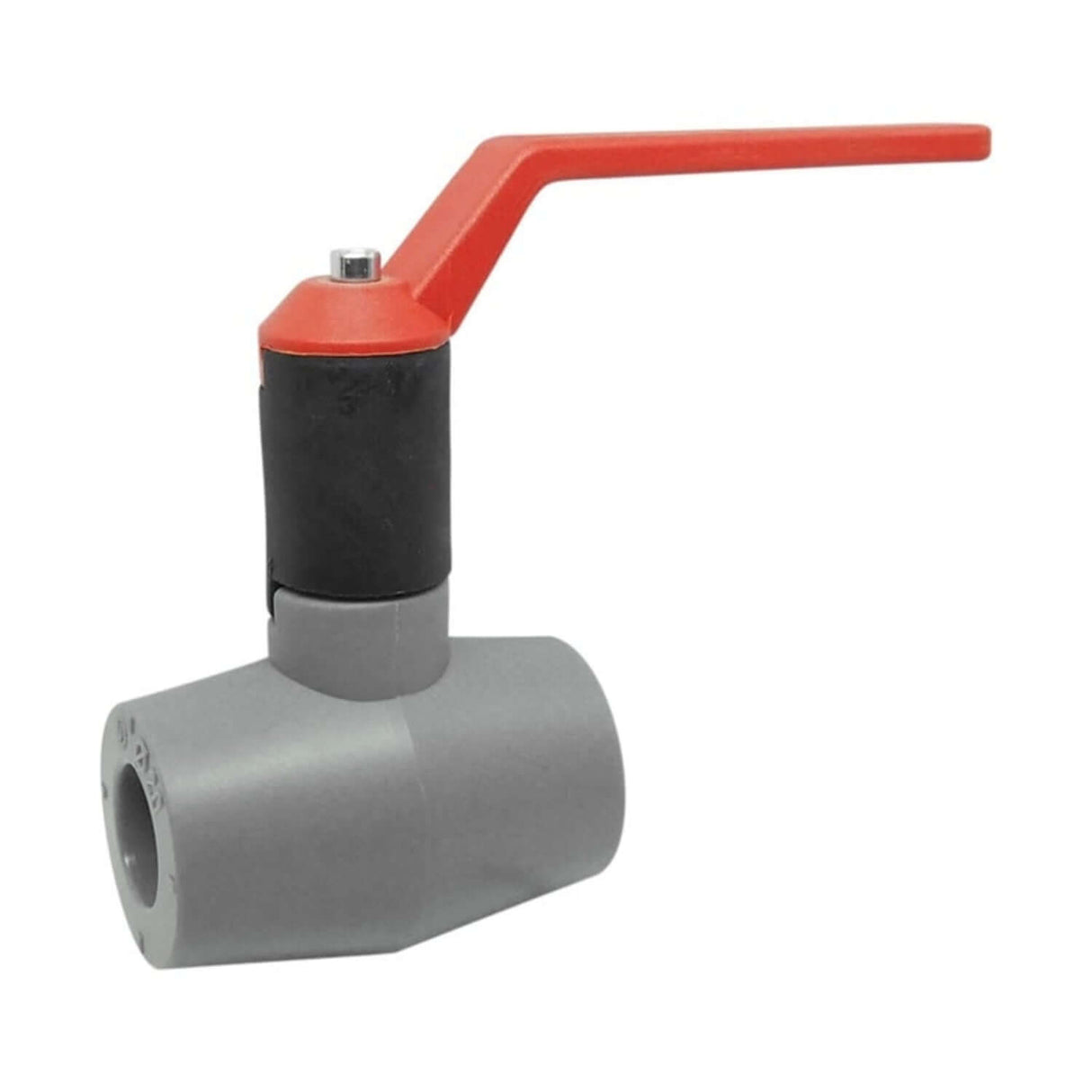

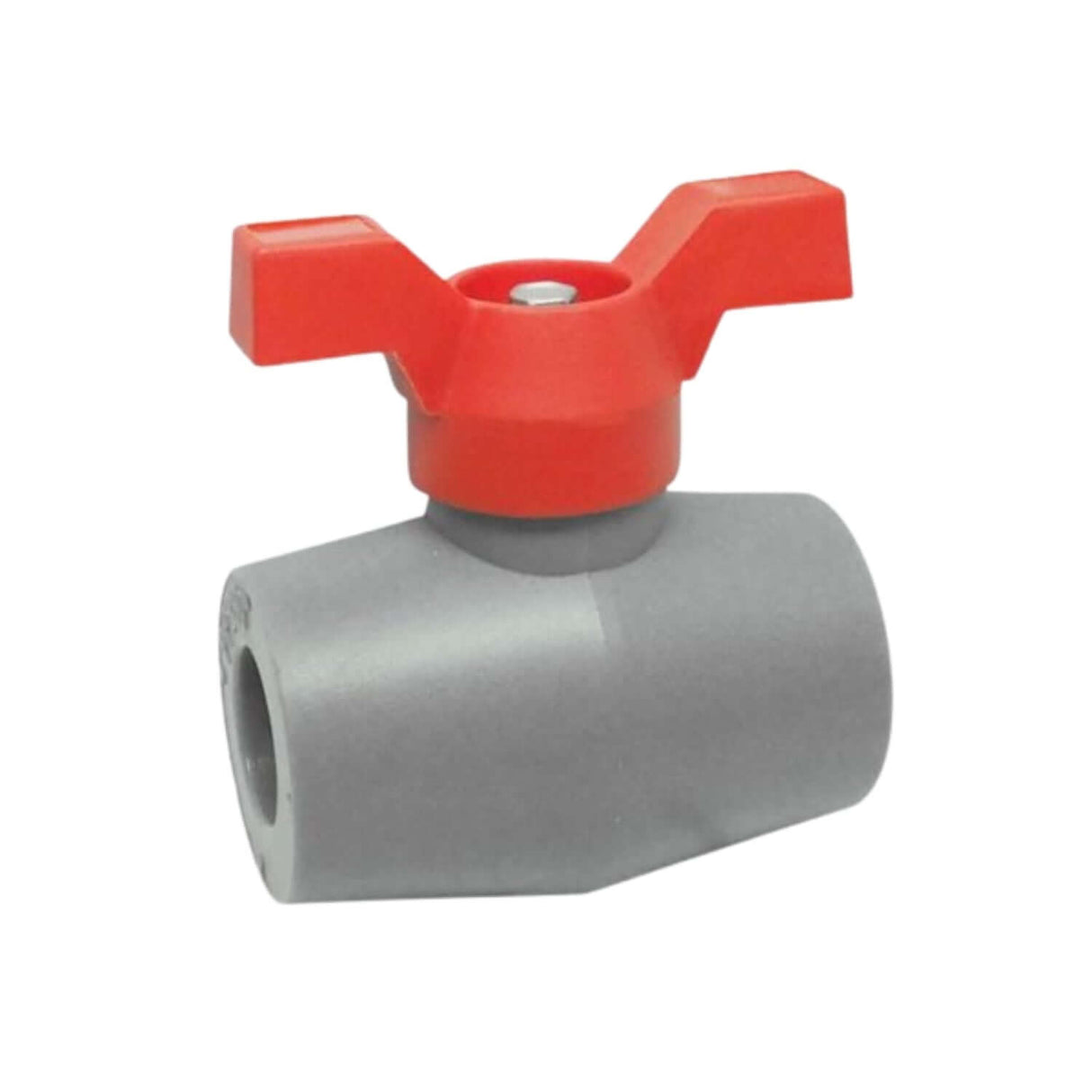

PP-RCT Ball Valve | 1501AB Series | Polyfusion x Polyfusion
Red-White Valve’s 1501AB ECO-VALVE is built to perform under pressure in potable water and hydronic systems. Featuring a PP-RCT polypropylene body, polyfusion-ready ends, and DZR lead-free brass components, this valve delivers reliable flow control with full compliance to NSF and BAA standards.
Key Features
- 300 PSI WOG Rated — Handles up to 300 PSI (2068 kPa) and 185°F (85°C), ideal for potable and hot water applications.
- Lead-Free DZR Brass — Ball and stem made from dezincification-resistant lead-free brass, ensuring corrosion protection and water safety.
- PP-RCT Polyfusion Body — Durable, high-strength thermoplastic construction enables heat-fused, leak-free joints with no threading required.
- PTFE Seats & NBR O-Rings — Resistant to chemicals and wear, ensuring a tight seal and extended service life.
- Blow-Out Proof Stem — Provides extra safety in pressurized systems, reducing failure risk.
- BAA & NSF Certified — Complies with AB1953, NSF/ANSI 61 & 372, IAPMO Z1157, NSF-14, and Buy American Act requirements.
Technical Ratings
| Max. Pressure | Max. Temperature |
|---|---|
| 300 psi / 2068 kPa | 185°F / 85°C |
Material Construction
| Part | Material | Specification |
|---|---|---|
| 1. Cartridge Body | Polypropylene | PP-RCT |
| 2. Lever Handle | Nylon | PA6-50G |
| 3. O-Ring | NBR | NSF Approved |
| 4. Stem | DZR Lead-Free Brass | ASTM B927 C27453 |
| 5. Seat | PTFE | PTFE |
| 6. Ball | DZR Lead-Free Brass / Cr Plated | ASTM B927 C27453 |
| 7. Cartridge Cap | Polypropylene | PP-RCT |
| 8. Screw | Steel / Geomet Plated | Steel |
| 9. Body | Polypropylene | PP-RCT |
