PE & PVC Pulling Eyes | Short-Sleeved or Non-Sleeved | Watertight O-Ring Seal | Aggressive Grip & Steel Expansion Plug
PE & PVC Pulling Eyes | Short-Sleeved or Non-Sleeved | Watertight O-Ring Seal | Aggressive Grip & Steel Expansion Plug — Product Overview

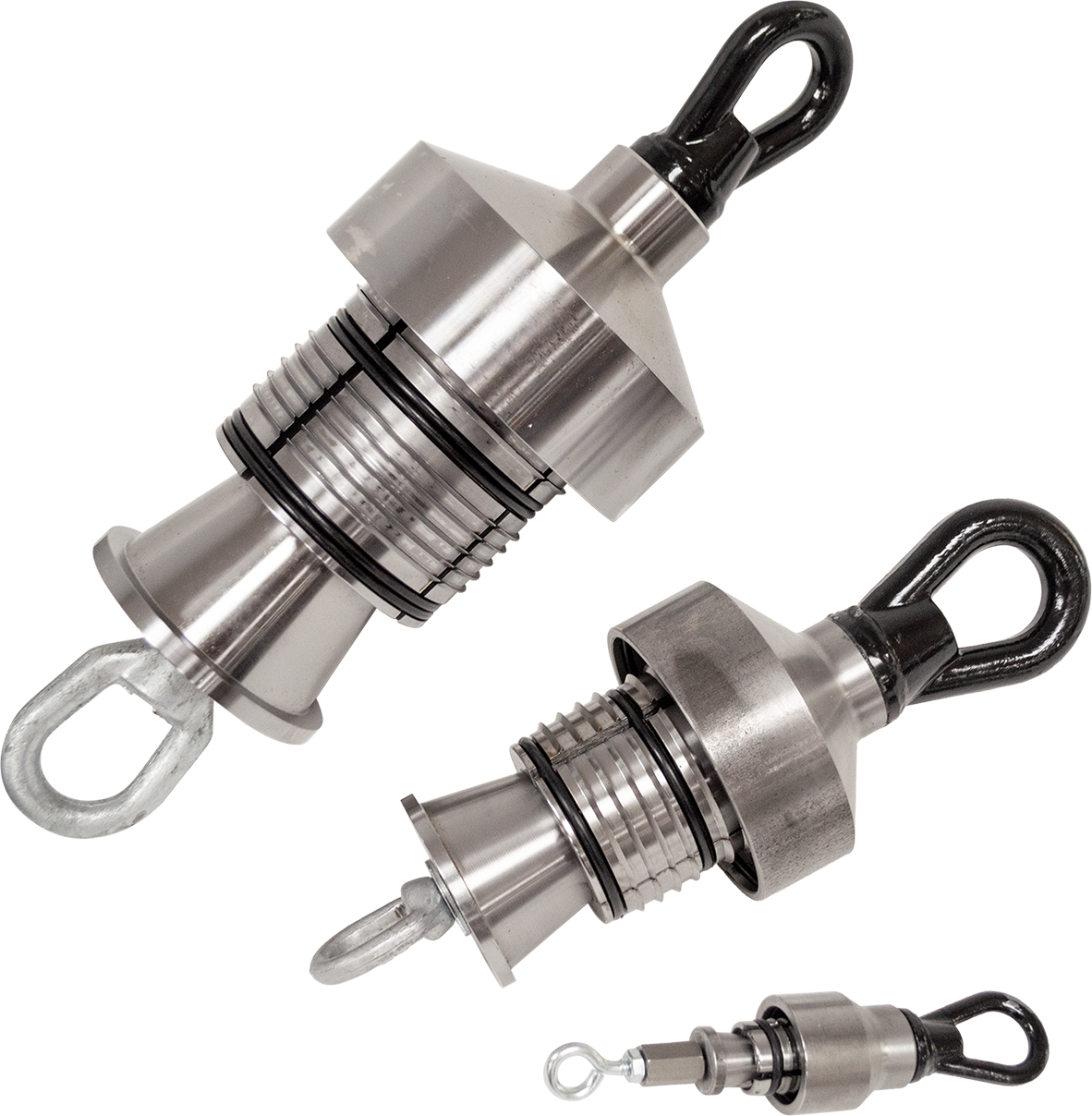

Ensure strong, watertight performance with Condux PE & PVC Pulling Eyes, available in both short-sleeved and non-sleeved versions. Engineered for polyethylene (PE) and polyvinyl chloride (PVC) conduits, these pulling eyes combine secure gripping strength with moisture-sealing reliability—perfect for underground and outdoor installations.

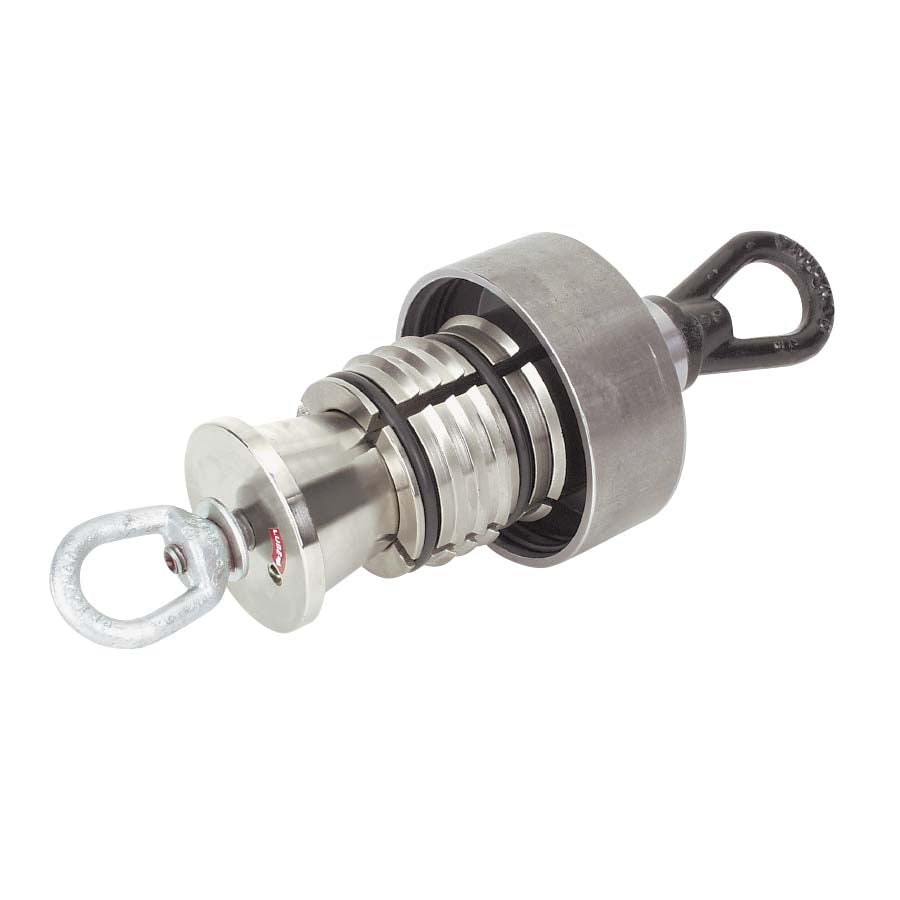

The short-sleeved model features a multiple O-ring configuration that creates a watertight seal, preventing moisture and debris intrusion during pulls. Both versions use split gripping segments with aggressive gripping threads and a steel expansion plug that expands inside the conduit for a secure, non-slip fit. Designed for ease of use, these pulling eyes deliver consistent, stable performance across a range of conduit inner diameters.
Key Features
- Watertight O-Ring Seal: Short-sleeved version provides superior moisture protection with multiple O-rings for a reliable barrier.
- Aggressive Gripping Threads: Split segments bite firmly into conduit walls to prevent slippage during high-tension pulls.
- Steel Expansion Plug: Expands internally for an ultra-secure grip across various conduit diameters.
- PE & PVC Compatible: Designed for both polyethylene and PVC conduit systems for maximum versatility.
- Durable & Field-Proven: Built for professional-grade use in telecom, electrical, and directional drilling applications.
Choose Condux Short-Sleeved and Non-Sleeved Pulling Eyes for dependable strength, watertight sealing, and efficient conduit pulling. Perfect for contractors who demand safety, reliability, and superior performance on every job.
Ordering Information — Non-Sleeved
| Part Number | Nominal Size (in) | Length (in) | Min (mm) | Max (in) | Nominal Duct I.D. (in) | Duct Type |
|---|---|---|---|---|---|---|
| 08220220 | 1.5 | 8.33 | 38 | 1.80 | 2.375 | 1.5 SDR 11–17, SCH 40, SIDR 1.53–1.66 |
| 08220020 | 2 | 8.18 | 48 | 2.15 | 2.375 | 2.0 SDR 11–17, SCH 40/80, SIDR 1.92–2.08 |
| 08220611 | 4 | 14.11 | 89 | 4.20 | 4.81 | 4.0 SDR 11–17, SCH 40/80, SIDR 3.63–3.94 |
Ordering Information — Short-Sleeved
| Part Number | Nominal Size (in) | Length (in) | Conduit I.D. | Min (in) | Max (in) | Lead Cone O.D. (in) | Duct Type | Nominal Duct I.D. (in) |
|---|---|---|---|---|---|---|---|---|
| 08220600 | 1.25 | 6.23 | 158 | 1.25 | 1.32 | 1.50 | PE/PVC | 1.33 |
| 08220602 | 2 | 8.18 | 208 | 1.88 | 2.15 | 2.15 | PE/PVC | 1.92 |
| 08220606 | 6 | 19.60 | 498 | 5.06 | 6.00 | 6.00 | PE/PVC | 5.78 |
Directional Drilling Swivel Compatibility
| Swivel Part Number | Swivel Size (in) | Swivel Size (mm) | Compatible PE/PVC Eye Size (in) |
|---|---|---|---|
| 08190016 | 1-5/8 | 41 | 1.0–3.0 |
| 08190025 | 2-1/2 | 64 | 2.0–6.0 |
| 08190431 | 3 | 76 | 4.0–8.0 |
