Jameson CL-TR22 Spinner-2 Cable Lasher | 3" Bundle Capacity | Aerial Cable Lashing Tool
Spinner-2 Cable Lasher for Aerial Lashing Work

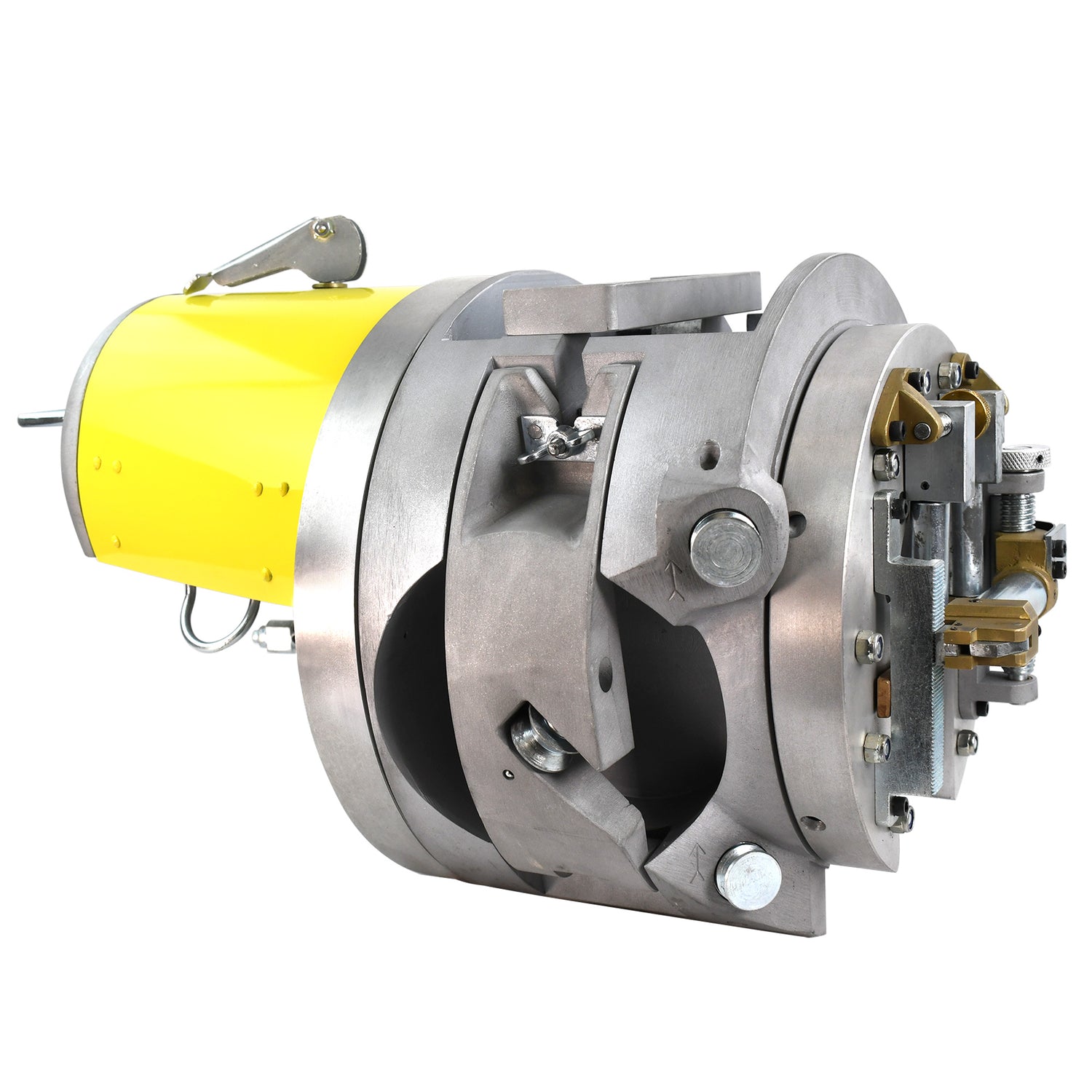

The Jameson CL-TR22 Spinner-2 Cable Lasher is a professional aerial cable lashing tool designed for reliable strand installation using stainless steel lashing wire. The traction-rotation drive system delivers controlled wire feed and consistent cable attachment while supporting both first-time lashing and overlashing applications. Built with rugged all-metal construction and field-ready safety features, the CL-TR22 handles cable bundles up to 3" in diameter for dependable aerial network installation.
Download Quick Guide / Instruction Manual

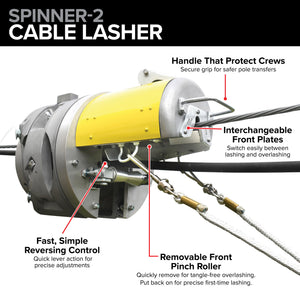

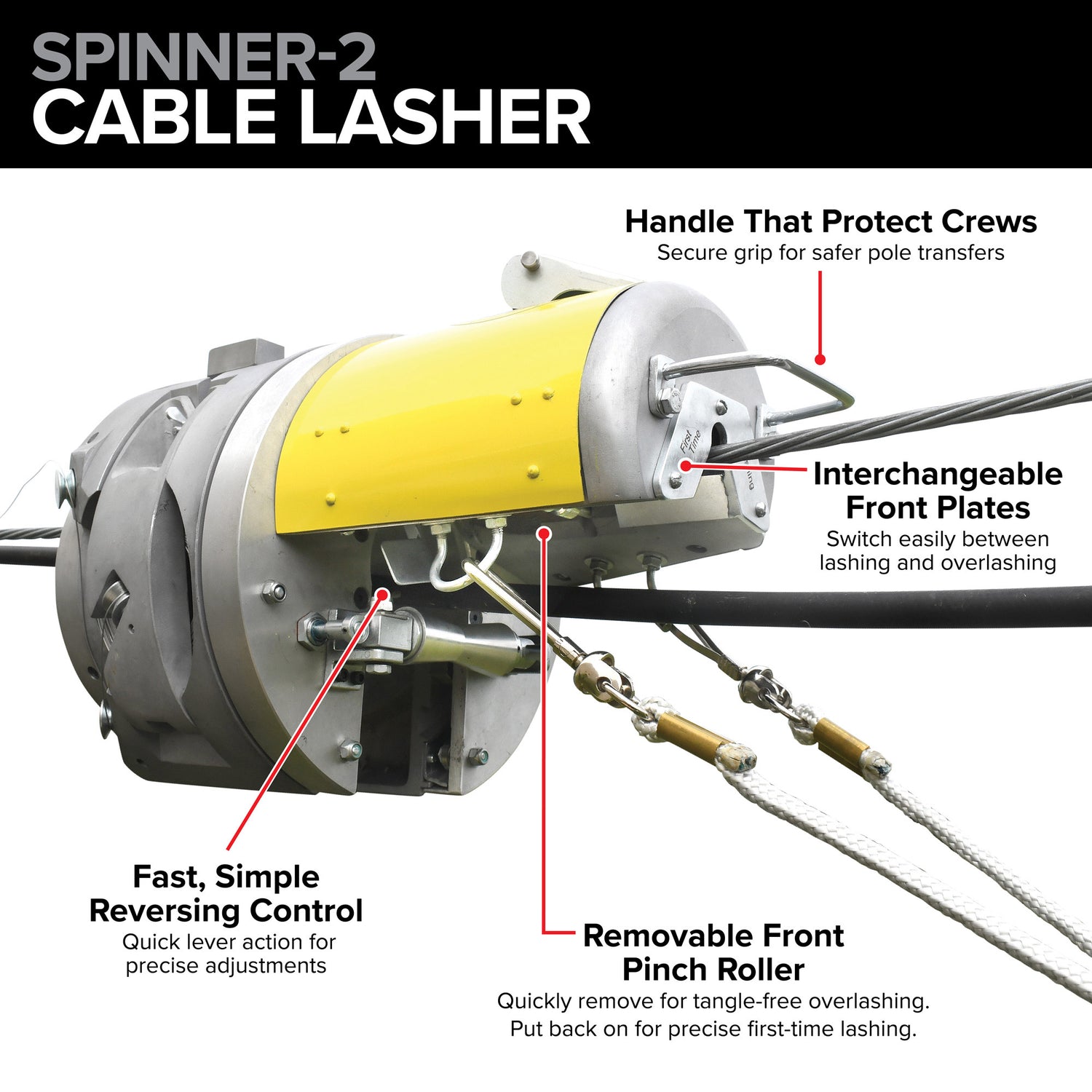

- Traction-rotation drive. Proven mechanism with rugged all-metal construction for reliable cable lashing performance.
- Safe pole transitions. Ambidextrous top handle and front handle support controlled movement around poles.

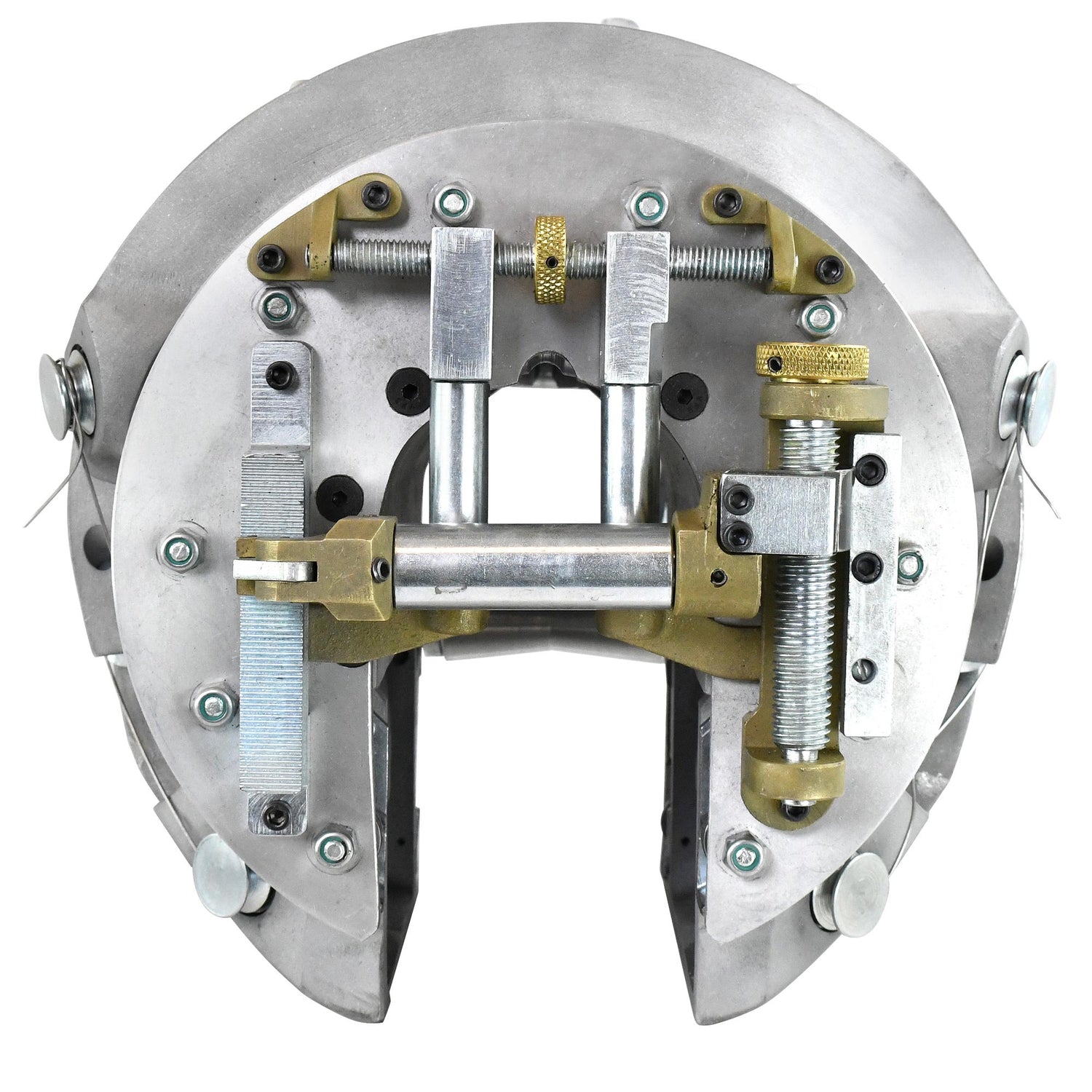

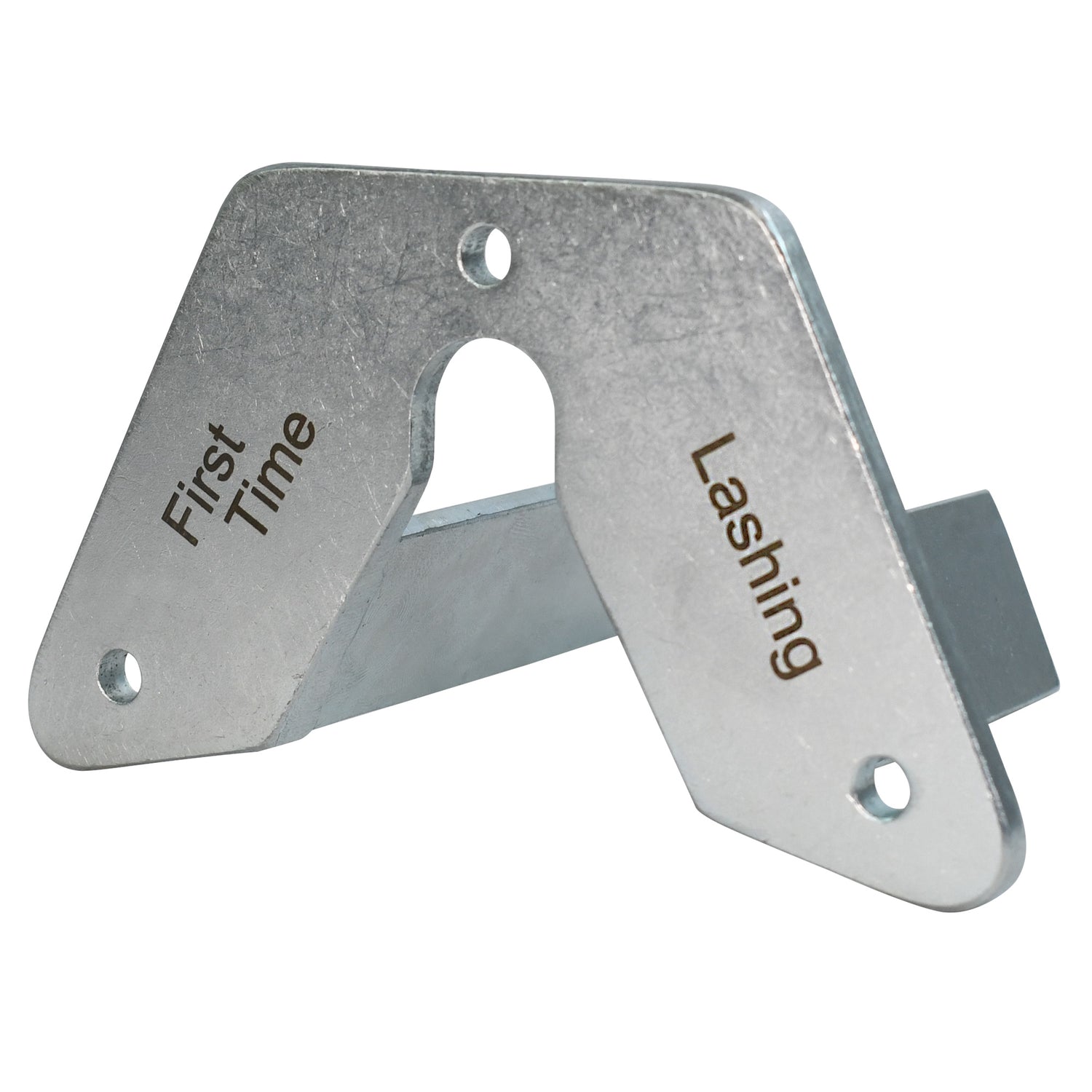

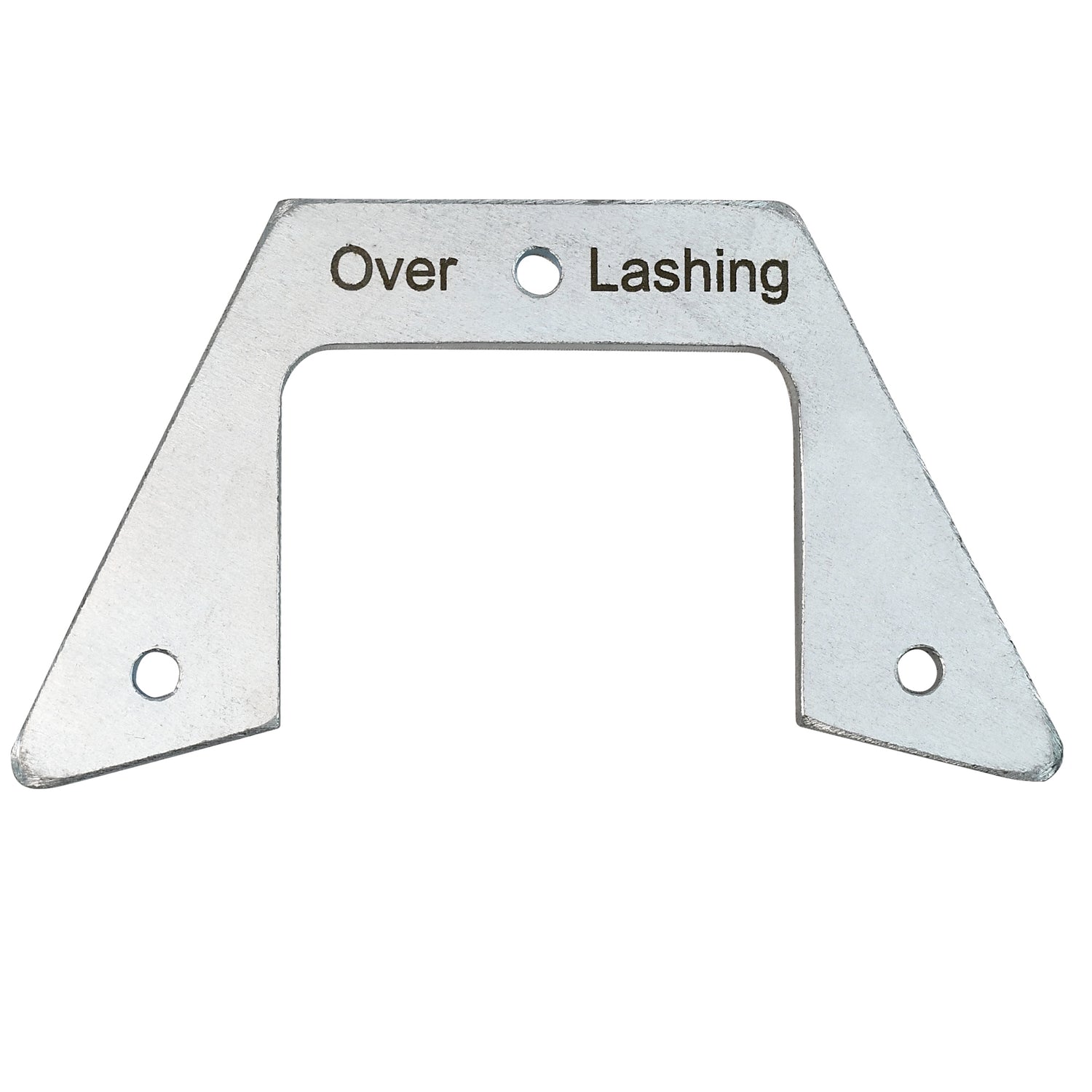

- Overlashing adaptable. Removable front pinch roller and interchangeable opening plates support first-time and over-lashing applications.
- Simple reverse control. Lever-activated reverse release allows precise control during lashing operations.
- Locked cable gate safety. Front cable gate locks movement so the Lasher only advances when intended.
Specifications
| Specification | Details |
|---|---|
| Product Type | Aerial Cable Lasher |
| Application | Aerial lashing of cable to strand using stainless steel lashing wire |
| Strand Diameter Range | 1/4" – 7/16" |
| Max Bundle Diameter | 3" |
| Lashing Wire Gauges | 0.038" and 0.045" |
| Wire Spool Capacity | 2 spools |
| Max Wire Spool Diameter | 5" |
| Tool Weight | 51 lb |
| Construction | All-metal body with removable front pinch roller |
Variant Options
Select your preferred package using the variant selector above.
- Spinner-2 Cable Lasher. Standard tool configuration for aerial cable lashing operations. (CL-TR22)

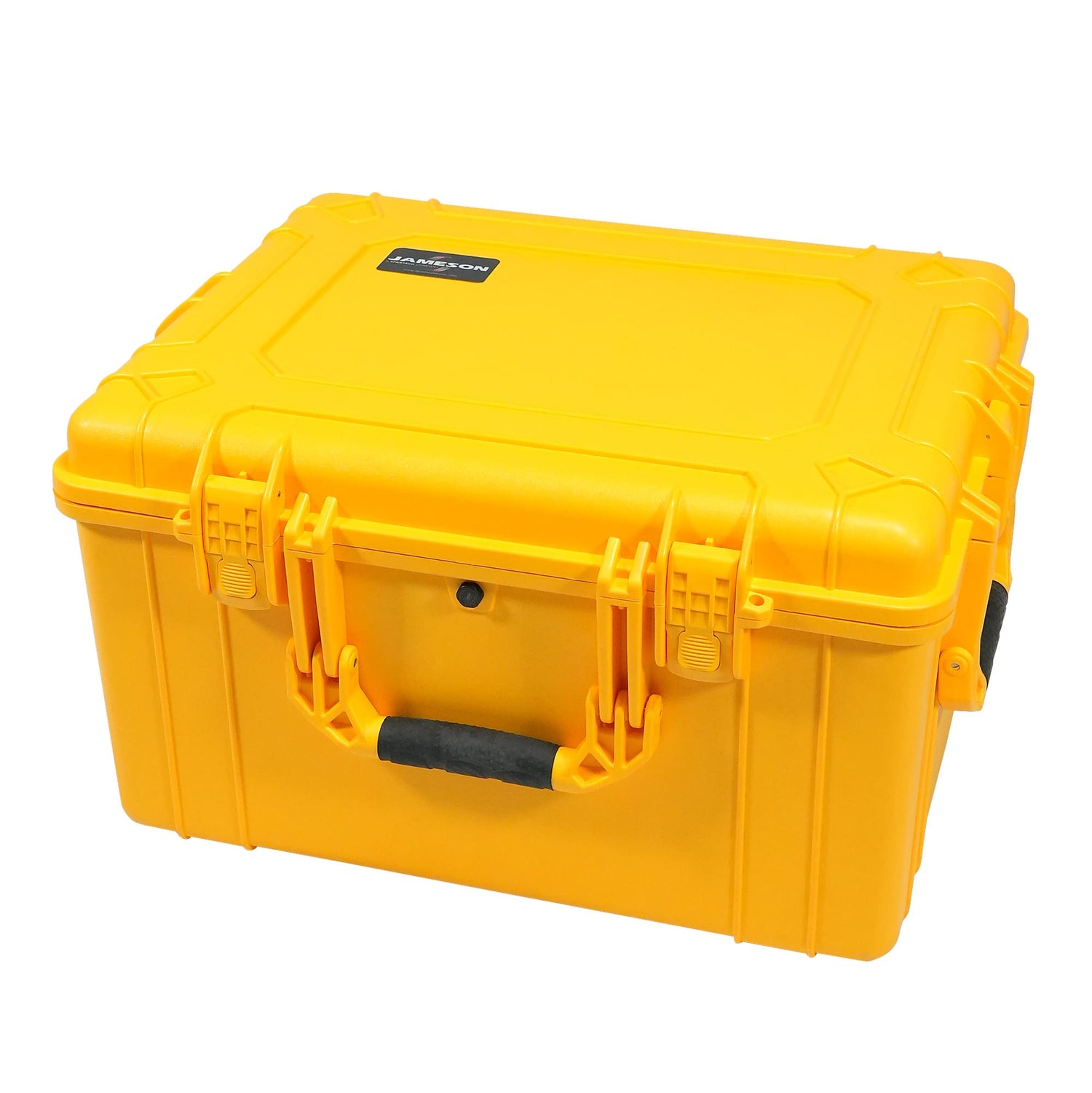

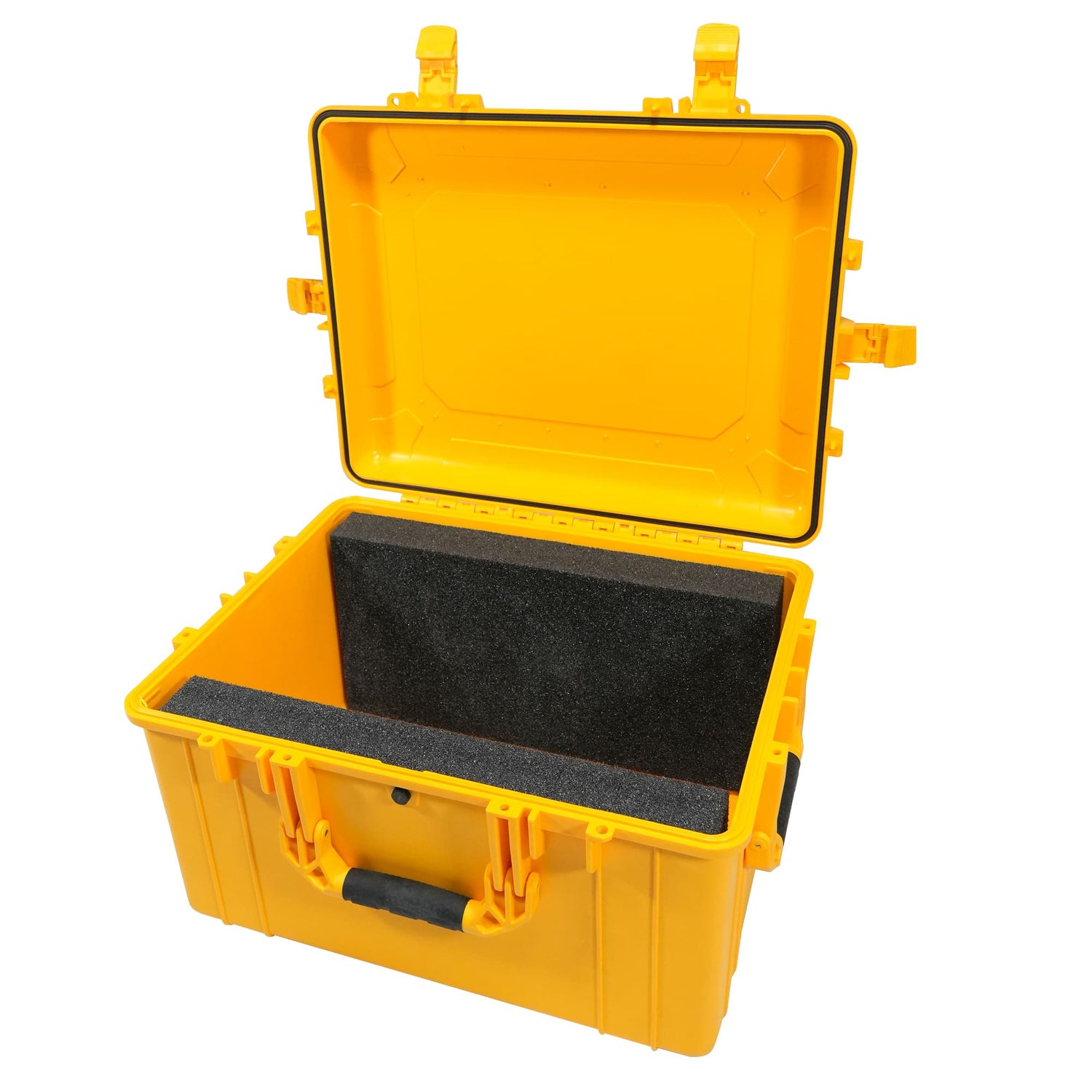

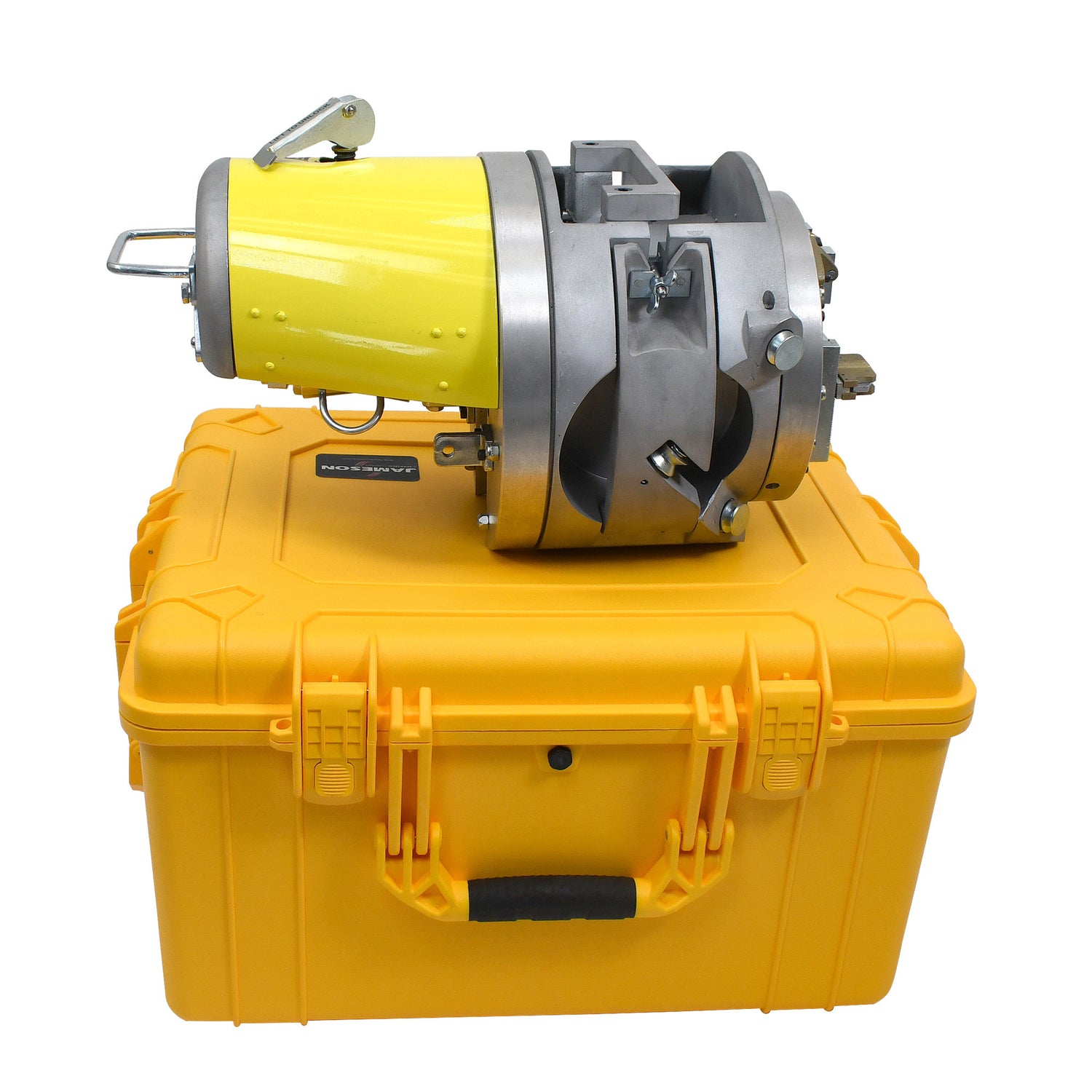

- Spinner-2 Cable Lasher with Protective Case. Includes heavy-duty yellow storage case for transport and jobsite protection. (CL-TR22-YC)
Safety Note
Follow all aerial safety procedures when lashing cable. Use proper PPE and ensure strand and cable are supported before operation. Keep hands clear of pinch points and confirm the front cable gate is secured before moving the Lasher.
