Wire Brush Mandrel | Flat Steel Bristles | 800 lb Load Capacity | 1-1/4″ - 8″ Duct Sizes
Wire Brush Mandrel | Flat Steel Bristles | 800 lb Load Capacity | 1-1/4″ - 8″ Duct Sizes — Product Overview

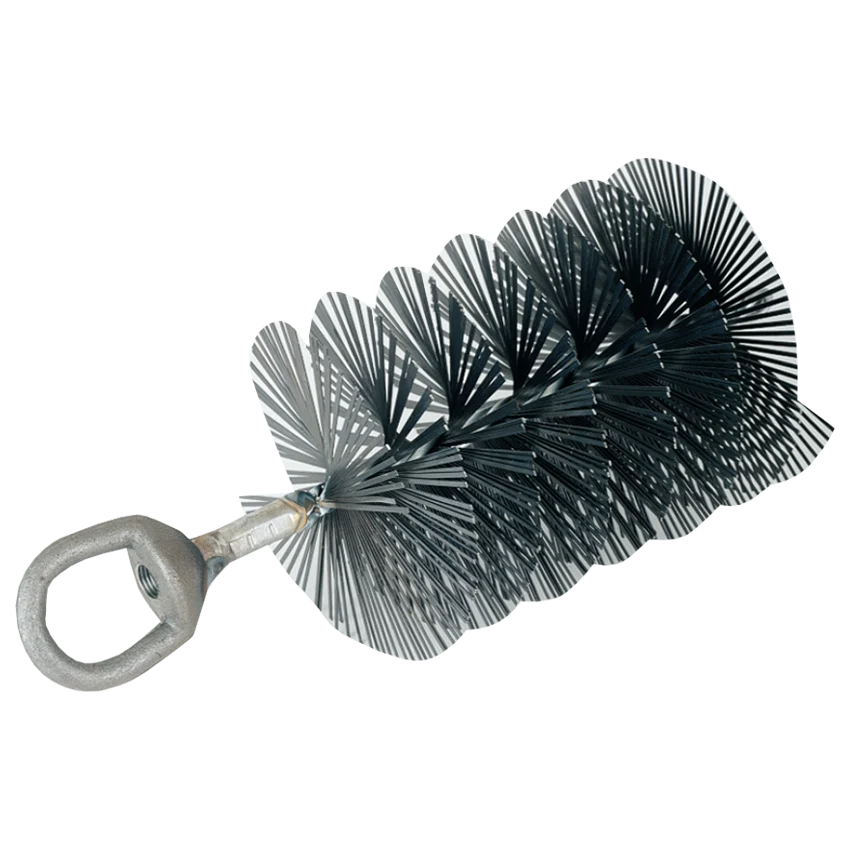

Wire Brush Mandrels are designed for efficient duct cleaning, featuring flat steel bristles that remove sand, grit, and light obstructions to maintain clear and smooth pathways. Built for reliability, each mandrel includes a pulling eye on one end and a loop on the other for easy attachment and maneuverability during maintenance operations.
Constructed from high-strength steel, these mandrels are ideal for both routine cleaning and pre-installation duct preparation. Capable of supporting up to 800 lbs. (3,558 N) of load, they provide the durability and performance required for tough field conditions.
Key Features
- Effective Cleaning – Removes sand, grit, and light debris to optimize duct performance and airflow.
- Durable Construction – Made from high-quality steel for long-term reliability in demanding environments.
- Dual-End Design – Equipped with a pulling eye and loop for convenient connection during cleaning or pulling operations.
- High Load Capacity – Rated up to 800 lbs. (3,558 N) to handle rigorous duct cleaning applications.
- Available in Multiple Sizes – Fits a range of duct diameters from 1-1/4″ to 8″ for flexible use across job sites.
Built for strength and ease of use, the Wire Brush Mandrel is an essential tool for maintaining duct systems and ensuring optimal conditions for cable installation or air flow efficiency.
Ordering Information
| Part Number | Duct Size (in) | Duct Size (mm) | Body Length (in) | Body Length (mm) | Total Length (in) | Total Length (mm) | Max O.D. (in) | Max O.D. (mm) |
|---|---|---|---|---|---|---|---|---|

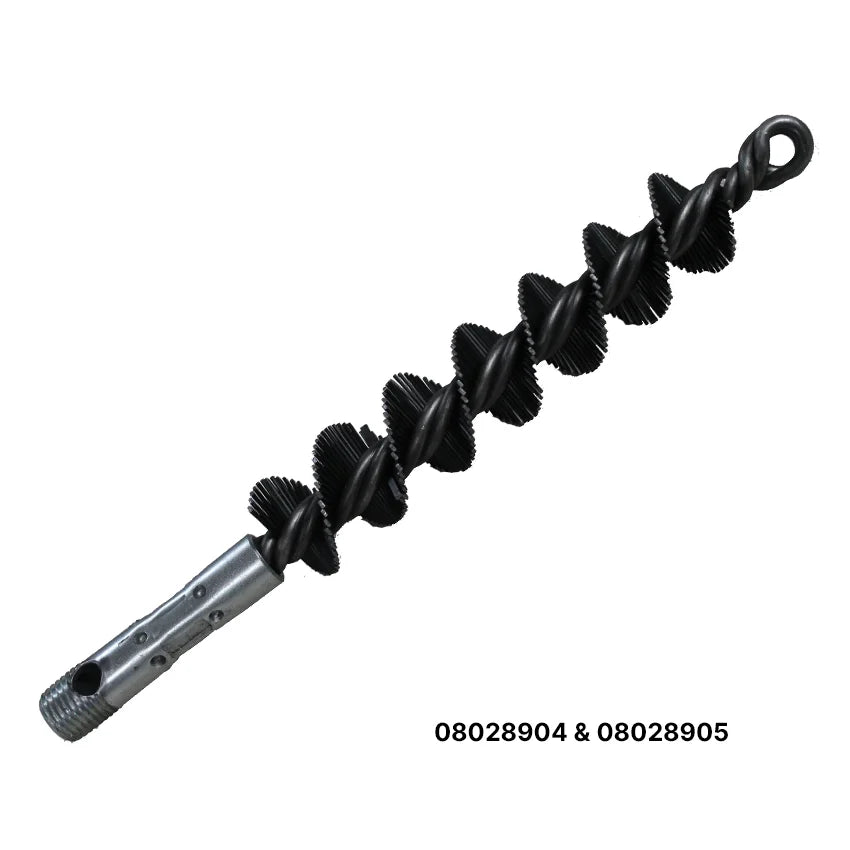

| 08028904 | 1-1/4 | 32 | 4.25 | 108 | 7.50 | 191 | 1.00 | 25 |
| 08028905 | 1-1/2 | 38 | 4.25 | 108 | 7.50 | 191 | 1.25 | 32 |
| 08028900 | 2 | 51 | 4.25 | 108 | 9.16 | 232 | 1.75 | 44 |
| 08046000 | 2-1/2 | 64 | 4.25 | 108 | 9.16 | 232 | 2.25 | 57 |
| 08067100 | 3 | 76 | 5.50 | 140 | 9.16 | 232 | 2.75 | 70 |
| 08067200 | 3-1/2 | 89 | 5.00 | 127 | 9.16 | 232 | 3.25 | 82 |
| 08029000 | 4 | 102 | 6.75 | 171 | 9.16 | 232 | 3.75 | 95 |
| 08029100 | 5 | 127 | 6.50 | 165 | 9.16 | 232 | 4.75 | 121 |
| 08068100 | 6 | 152 | 6.75 | 171 |
