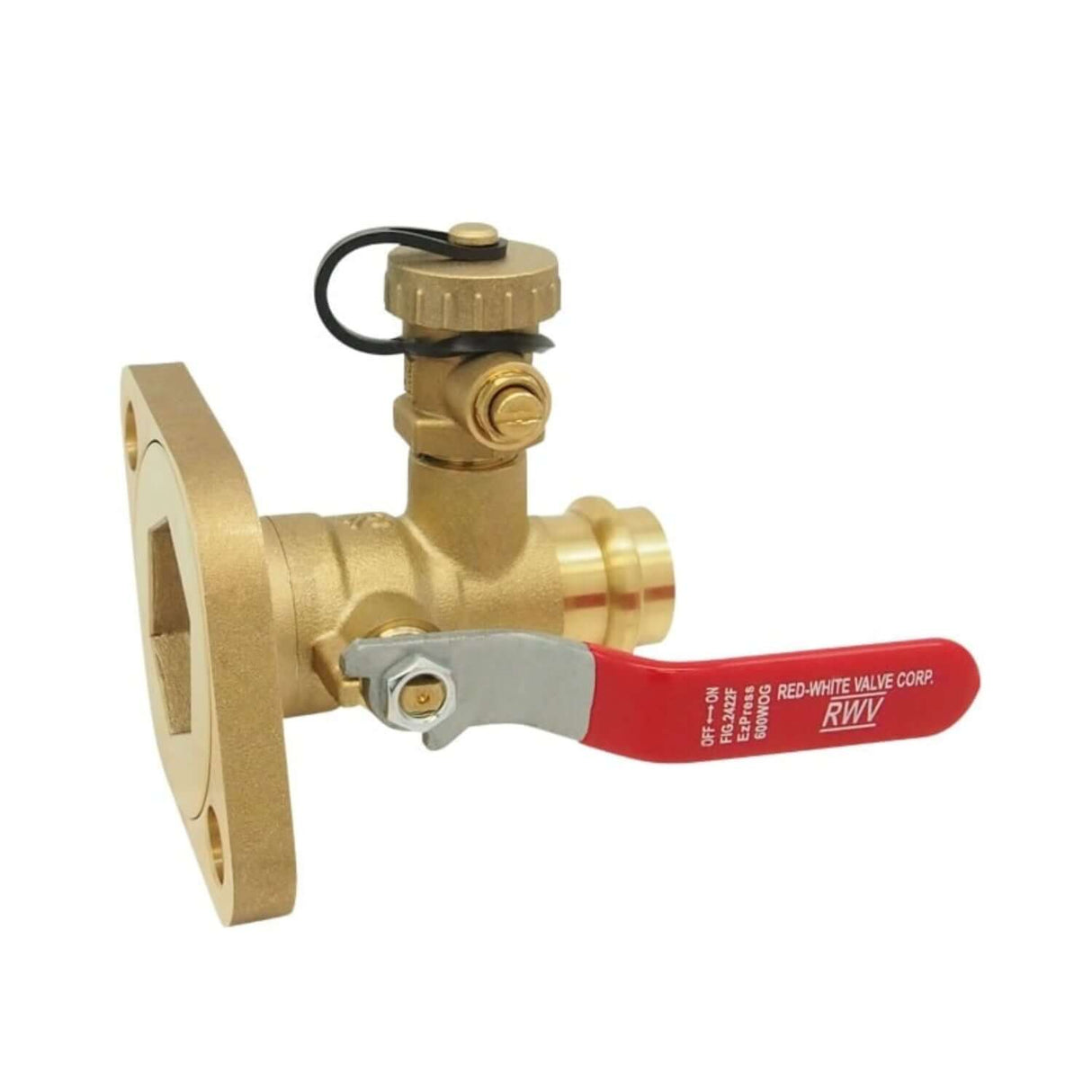

The Red-White Valve 2422F EzPress End Pump Flange Ball Valve with Drain provides reliable, high-performance flow control for hydronic, plumbing, and mechanical systems. Designed for easy installation and long-term service life, this 3-piece, full-port brass valve features a rotating flange, integrated drain valve, and 600 PSI WOG rating — making it ideal for commercial and industrial pump connections.
Constructed from DZR brass (UNS C35330) for dezincification resistance, the 2422F combines durability with convenience. Its Press x Flange connection supports fast, tool-free installation, while PTFE seats and FKM/EPDM seals ensure long-lasting, leak-free operation. Every valve ships complete with a bolt kit and wing handle for immediate setup.
Key Features
- 600 WOG Pressure Rating: Rated for water, oil, and gas up to 600 PSI for maximum reliability in hydronic systems.
- Press x Flange Connection: Flame-free installation with precision rotating flange for pump alignment.
- Full Port 3-Piece Body: Delivers unrestricted flow and easy internal maintenance access.
- Integrated Drain Valve & Cap: Simplifies service, bleeding, and winterization without removing the valve.
- DZR Brass Construction: Corrosion-resistant body ensures longevity even in aggressive water conditions.
- ¼-Turn Wing Handle: Smooth actuation and quick shutoff with Dacromet-coated steel handle.
- Includes Bolt Kit: Ready-to-install design minimizes downtime during installation.
Applications
- Hydronic heating and chilled water systems
- Circulator pump isolation and service points
- Commercial plumbing and mechanical rooms
- Industrial process fluid systems
Dimensions & Weights (inches-lbs.)
| Size | A | B | C | D | H | L | Φ | ΦP | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|
| 3/4″ | 3.46 | 2.53 | 0.91 | 4.89 | 2.07 | 3.59 | 0.89 | 0.73 | 1.62 |
| 1″ | 3.80 | 2.63 | 1.06 | 6.33 | 2.36 | 4.96 | 1.14 | 0.94 | 2.01 |
| 1-1/4″ | 4.42 | 2.80 | 1.22 | 6.63 | 3.60 | 4.96 | 1.43 | 1.22 | 2.34 |
| 1-1/2″ | 4.94 | 2.93 | 1.57 | 7.48 | 2.87 | 5.55 | 1.64 | 1.46 | 3.04 |
| 2″ | 5.94 | 3.23 | 1.73 | 8.08 | 3.25 | 5.55 | 2.14 | 1.95 | 4.44 |
Material & Specifications
| Part | Material | Specification |
|---|---|---|
| Body | DZR Brass | UNS C35330 |
| End Piece | Brass | ASTM B124 C37700 |
| Ball | Brass / Chrome-Plated | ASTM B30 C85700 |
| Seat | PTFE | PTFE |
| Flange | Brass | ASTM B124 C37700 |
| Stem | Brass | ASTM B124 C37700 |
| O-Ring | FKM / EPDM | NSF Approved |
| Packing Ring | PTFE | PTFE |
| Packing Nut | Brass | ASTM B124 C37700 |
| Handle | Steel / Dacromet Plated | ASTM A36 |
| Nut | Steel / Zinc Plated | ASTM A36 |
| Drain Valve | Brass | ASTM B124 C37700 |
* Only for 1-1/2″ and 2″ sizes
