RED-WHITE VALVE CORP.  |  SKU: 30078068  |  MPN: 380AB 1/2

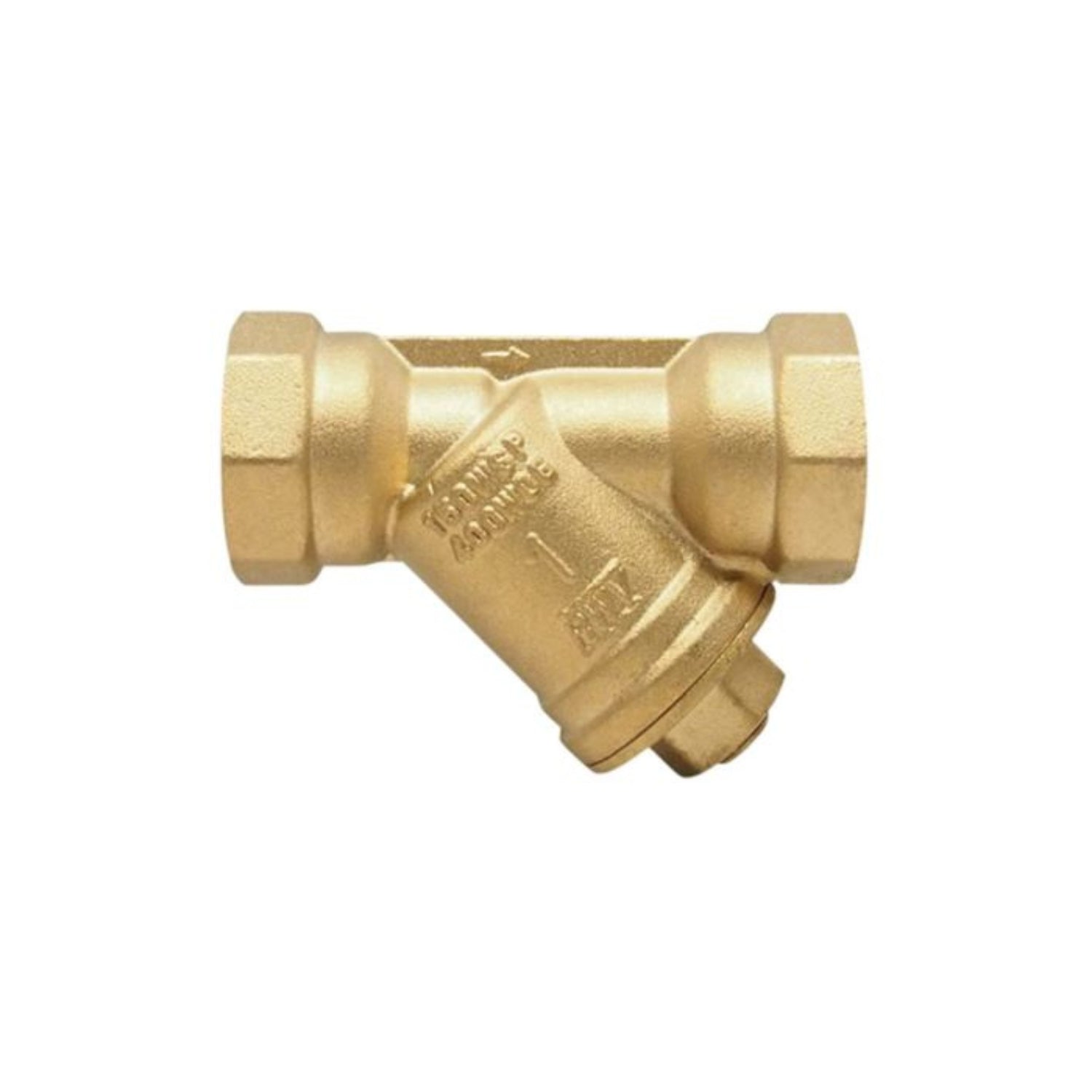

Lead-Free Y-Strainer | 380AB Series | FNPT x FNPT Threaded Ends

$19.18
Size | Connection Type | Min Order Qty (MOQ)
  • Certified Lead-Free Brass — Complies with AB1953, NSF/ANSI 61 & 372 for safe potable water use.
  • High-Pressure Rating — Rated for 150 PSI WSP and 400 PSI WOG, outperforming many standard brass strainers.
  • Durable Stainless Steel Screen — Built-in 304 SS 20 mesh screen filters debris without corrosion.
  • Easy Maintenance — Threaded cap includes a clean-out plug for fast flushing and maintenance.
  • Precision Threading — FNPT ends machined to ASME B1.20.1-NPT, ensuring leak-tight installation across all sizes.
📄 Download data sheet

Engineered for durability and optimal flow control, the Red-White Valve Corp 380AB Lead-Free Brass Threaded Y-Strainer is the ideal solution for protecting pipeline systems from sediment and debris. Designed with a high-performance stainless steel mesh screen and robust lead-free brass construction, this Y-strainer ensures long-term reliability in potable water systems and general industrial use.

Key Features:

  • Certified Lead-Free: Complies with AB1953, NSF/ANSI 61 & 372 standards, ensuring suitability for drinking water systems.
  • Heavy-Duty Construction: Body, cap, and plug made from ASTM B927 C27450 lead-free brass.
  • Efficient Debris Filtration: Equipped with a durable 20 mesh stainless steel (AISI 304) screen to trap particulates before they cause downstream damage.
  • Threaded Clean-Out Plug: Allows for easy maintenance and debris removal without disassembly.
  • FNPT x FNPT Connections: Threaded end connections per ASME B1.20.1-NPT standard for secure installation.
  • Rated for Performance: 150# WSP / 400# WOG pressure ratings make it suitable for demanding systems.

Technical Specifications:

  • Pressure Rating: 150 psi WSP / 400 psi WOG
  • Body & Cap Material: Lead-Free Brass (ASTM B927 C27450)
  • Screen: Stainless Steel (AISI 304, 20 mesh)
  • Gasket: PTFE
  • Certifications: NSF/ANSI 61 & 372, AB1953
  • Eco-Valve Designation: C US Certified

⚠️ WARNING: This product can expose you to chemicals including lead, known to the State of California to cause cancer and reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Dimension, Cv, Weight

Size Φ A [in] H [in] P [in] C [in] Cv Wt. [lb]
½" ½"-14 NPT 2.76 2.13 0.59 0.61 2.89 0.42
¾" ¾"-14 NPT 3.23 2.36 0.67 0.75 6.46 0.62
1" 1"-11.5 NPT 3.64 2.64 0.79 0.75 10.18 0.90
1¼" 1¼"-11.5 NPT 4.11 3.50 1.26 0.77 24.59 1.26
1½" 1½"-11.5 NPT 4.69 4.13 1.57 0.77 35.22 1.86
2" 2"-11.5 NPT 5.28 4.74 1.97 0.83 55.28 2.54

Material

No. Part Material Specification
1 Body Lead Free Brass ASTM B927 C27450
2 Screen Stainless Steel AISI 304 S30400
3 Gasket PTFE PTFE
4 Cap Lead Free Brass ASTM B927 C27450
5 Plug Lead Free Brass ASTM B927 C27450
