Stainless Steel Full Port Ball Valve | 4880 Series | FNPT x FNPT | 2000 WOG
Stainless Steel Full Port Ball Valve | 4880 Series | FNPT x FNPT | 2000 WOG

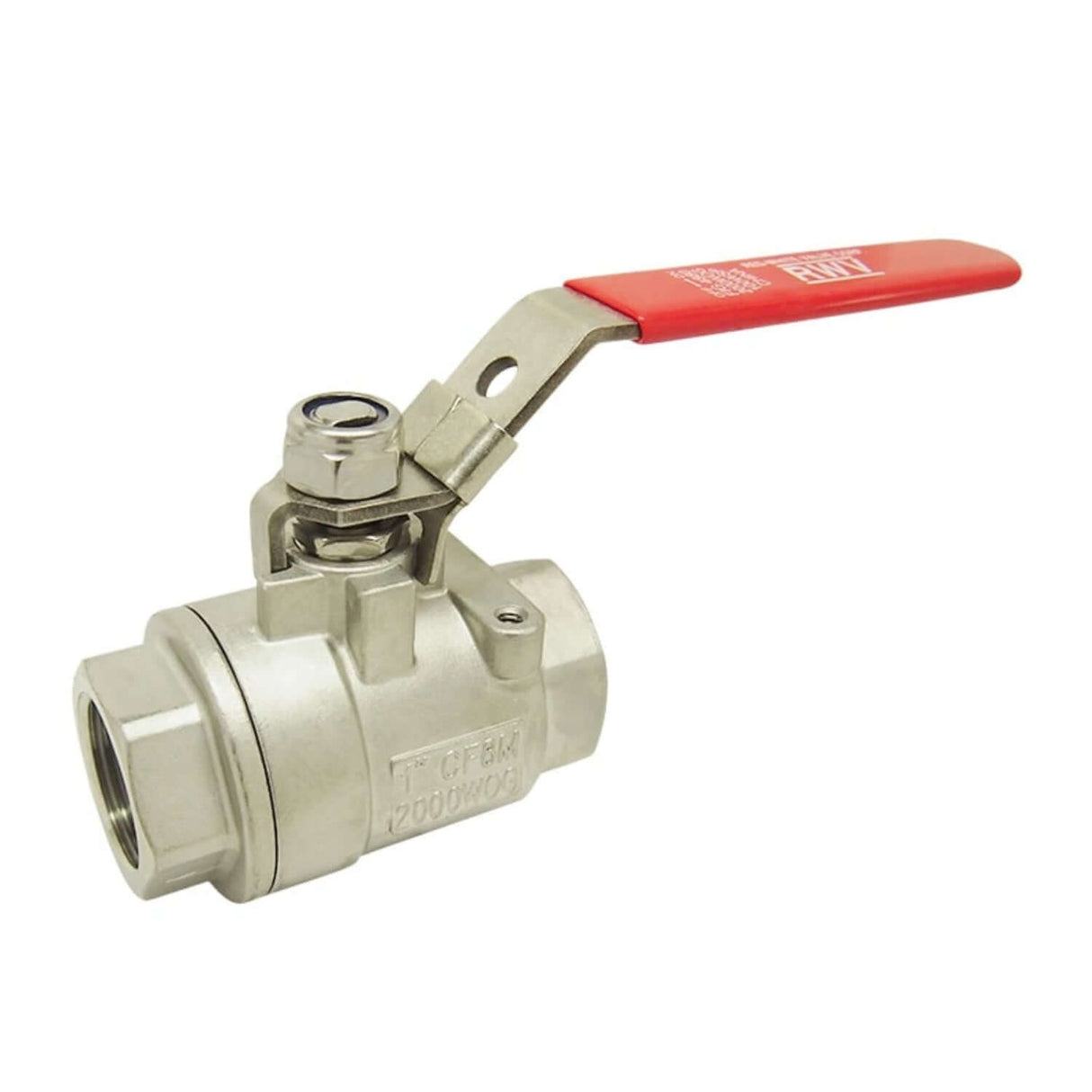

The Red-White Valve 4880 Series Full Port Ball Valve offers high-pressure performance and corrosion-resistant construction for demanding industrial, commercial, and chemical applications. Made from A316 CF8M stainless steel with reinforced PTFE seats and a blow-out proof stem, it ensures leak-free operation and long-term durability in tough environments.
Featuring a 2000 WOG / 100 WSP pressure rating, ANSI B16.34 threaded ends, and a locking stainless steel handle, this 2-piece full-port valve provides reliable shutoff and smooth operation at pressures up to 2000 PSI and temperatures up to 366°F. The integrated mounting pad makes it automation-ready for actuation upgrades.
Key Features
- 2000 WOG / 100 WSP Pressure Rating: Handles high-pressure service for water, oil, gas, and steam up to 366°F.
- A316 CF8M Stainless Steel Body: Delivers excellent corrosion resistance for harsh or chemical environments.
- Full Port Design: Provides unrestricted flow for maximum efficiency and minimal pressure loss.
- Threaded Ends (ANSI B16.34): Ensure secure, leak-free NPT connections and easy installation.
- Reinforced PTFE Seats & Seals: Maintain reliable sealing and chemical stability under temperature and pressure variation.
- Locking Handle & Blow-Out Proof Stem: Add operator safety and prevent unintentional operation.
- Mounting Pad (MSS-SP-110 Compliant): Ready for actuation or automation systems.
Dimensions, Cv & Weight (inches-lbs.)
| Size | d | D | H | L | Cv | Weight (lb) |
|---|---|---|---|---|---|---|
| 1/4″ | 0.37 | 4.07 | 2.13 | 2.26 | 8 | 0.74 |
| 3/8″ | 0.37 | 4.07 | 2.13 | 2.26 | 8 | 0.70 |
| 1/2″ | 0.50 | 4.07 | 2.22 | 2.44 | 11 | 1.10 |
| 3/4″ | 0.79 | 4.92 | 2.58 | 2.85 | 26 | 1.62 |
| 1″ | 0.98 | 4.92 | 2.74 | 3.39 | 55 | 2.62 |
| 1-1/4″ | 1.26 | 6.22 | 3.25 | 3.70 | 103 | 4.24 |
| 1-1/2″ | 1.49 | 6.22 | 3.46 | 4.57 | 111 | 6.50 |
| 2″ | 2.00 | 7.13 | 4.13 | 5.28 | 353 | 9.84 |
Pressure & Temperature Ratings
| Pressure | Max Temperature |
|---|---|
| 2000# WOG | 100 PSI max. at 366°F |

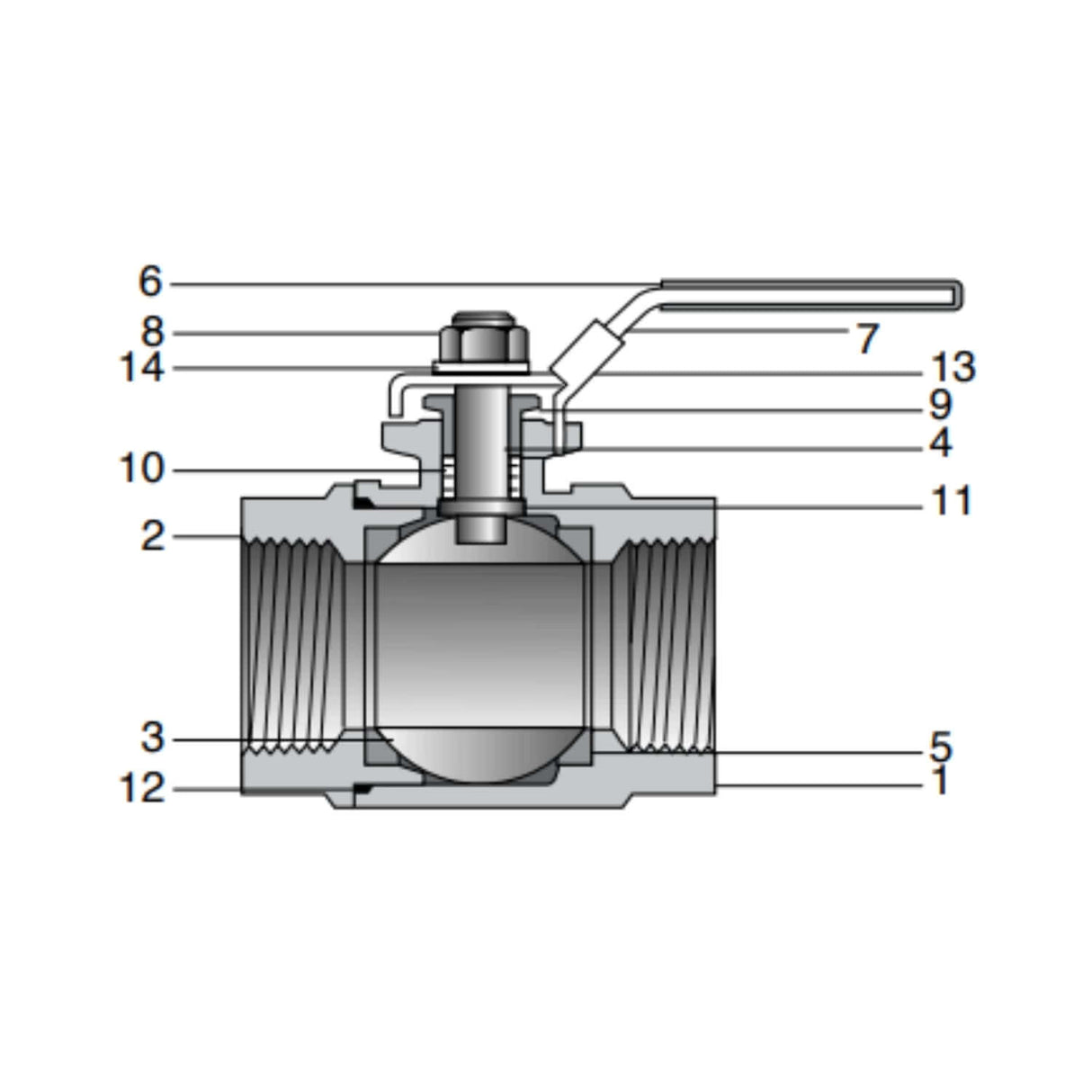

Material & Specifications
| # | Part | Material | Specification |
|---|---|---|---|
| 1 | Body | Stainless Steel | A316 CF8M |
| 2 | End Cap | Stainless Steel | A316 CF8M |
| 3 | Ball | Stainless Steel | A276 316 |
| 4 | Stem | Stainless Steel | A276 316 |
| 5 | Seat | PTFE | — |
| 6 | Handle Sleeve | Vinyl | — |
| 7–9 | Handle, Nut, Packing Nut | Stainless Steel | A276 304 |
| 10–12 | Packing, Washer, Gasket | PTFE | — |
| 13–14 | Locking Device, Washer | Stainless Steel | A276 304 |
