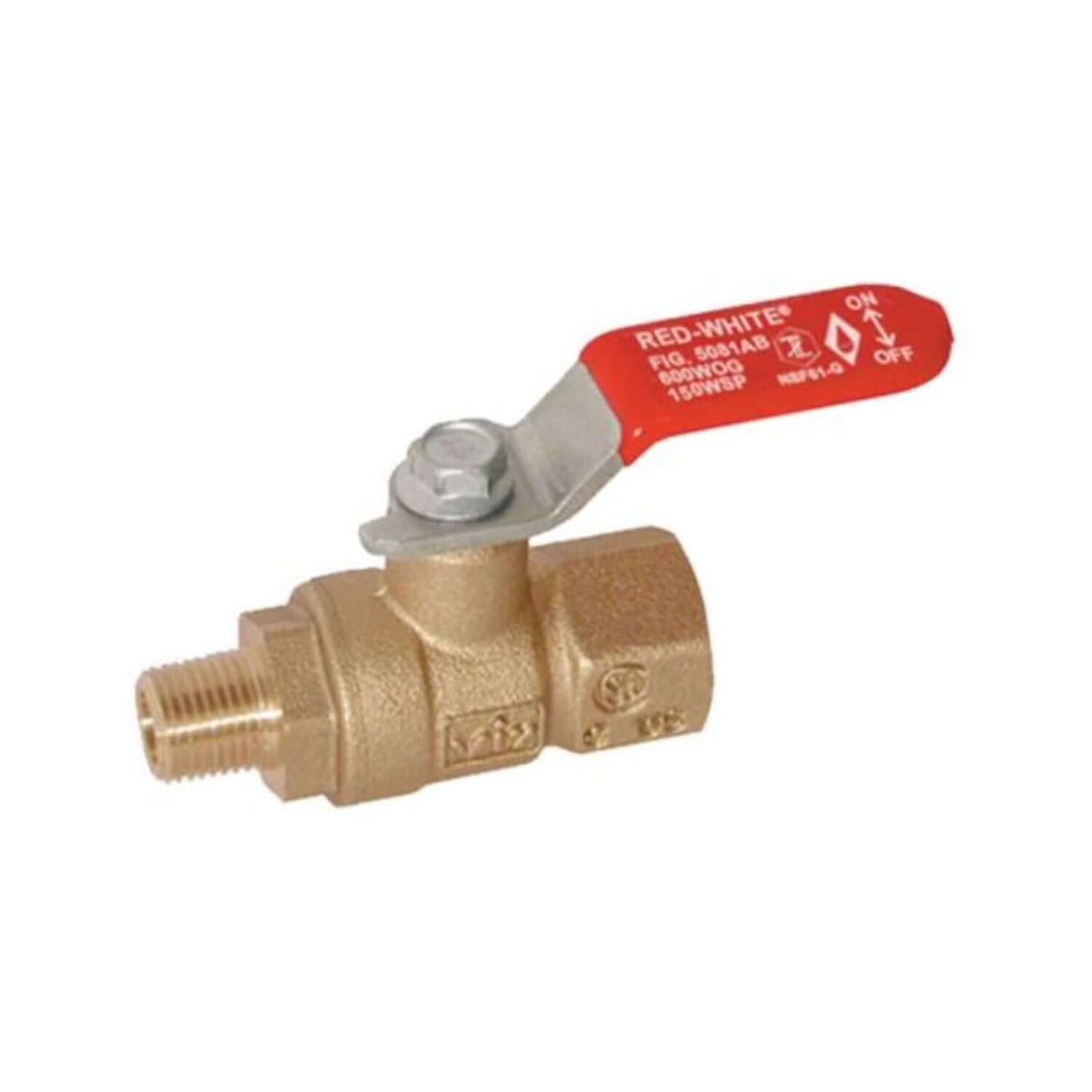

Mini Ball Valve | 5081AB Series | FNPT x MNPT | Lead-Free Brass | Full Port 600 WOG
Mini Ball Valve | 5081AB Series | FNPT x MNPT | Lead-Free Brass | Full Port 600 WOG
The 5081AB Lead-Free Brass Mini Ball Valve is a compact, high-performance solution for potable water, gas, propane, and general utility applications. Designed to meet strict lead-free standards (AB1953, NSF/ANSI 61 & 372), this valve delivers full-port flow and long-lasting reliability in a small, durable form factor.
Constructed from ASTM B927 C28500 lead-free brass and equipped with virgin PTFE seats, FKM O-ring packing, and a blow-out proof stem, the 5081AB ensures dependable sealing and smooth operation under demanding pressure and temperature conditions. The chrome-plated ball and Geomet®-plated steel handle resist corrosion for lasting performance in residential, commercial, and industrial systems.
Key Features
- Lead-Free Brass Construction: Compliant with AB1953, NSF/ANSI 61 & 372 standards for potable water applications.
- Full Port Design: Delivers unrestricted flow with minimal pressure drop and high Cv efficiency.
- Threaded FNPT x MNPT Ends: ASME B1.20.1-NPT threaded connections for fast and versatile installation.
- 600 PSI WOG / 150 PSI WSP Rated: Suitable for water, oil, gas, propane, and LPG service applications.
- CSA Certified: Approved for Natural Gas, Propane & LPG service up to ½ PSI.
- Durable & Compact: Chrome-plated brass ball, Geomet®-plated handle and bolt, and PTFE seals for long-term use in tight spaces.
- Meets BAA Requirements: Complies with the Build America, Buy America Act.
Pressure / Temperature Ratings
- 600 PSI WOG: from 15°F to 160°F
- 150 PSI Max: at 366°F
Certifications & Compliance
- AB1953 Lead-Free Compliant
- NSF/ANSI 61 & 372 Certified
- CSA Certified for Natural Gas, Propane & LPG
- BAA (Build America, Buy America) Compliant
- California Prop 65 Warning Compliant
Dimension, Weight
| Size | Thread φ | Thread φ1 | A (in) | A1 (in) | C (in) | C1 (in) | H (in) | L (in) | P (in) | P1 (in) | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ⅛″ | ⅛ - 27 NPT | ⅛ - 27 NPT | 1.81 | 0.79 | 0.45 | 0.37 | 1.09 | 1.61 | 0.31 | 0.24 | 0.18 |
Material
| # | Part | Material | Specification |
|---|---|---|---|
| 1 | Body | Lead-Free Brass | ASTM B927 C28500 |
| 2 | End Piece | Lead-Free Brass | ASTM B927 C28500 |
| 3 | Ball | Lead-Free Brass / Chrome-Plated | ASTM B927 C28500 |
| 4 | Seat | PTFE | PTFE |
| 5 | Stem | Lead-Free Brass | ASTM B927 C28500 |
| 6 | O-Ring | FKM | NSF Approved |
| 7 | Handle | Steel / Geomet® Plated | ASTM A36 |
| 8 | Handle Bolt | Steel / Geomet® Plated | ASTM A36 |
⚠ California Prop 65 Warning:
This product can expose you to chemicals including lead, known to the State of California to cause cancer and reproductive harm.
For more information, visit www.P65Warnings.ca.gov.
