RED-WHITE VALVE CORP.  |  SKU: 30075211  |  MPN: 5592F 1/4

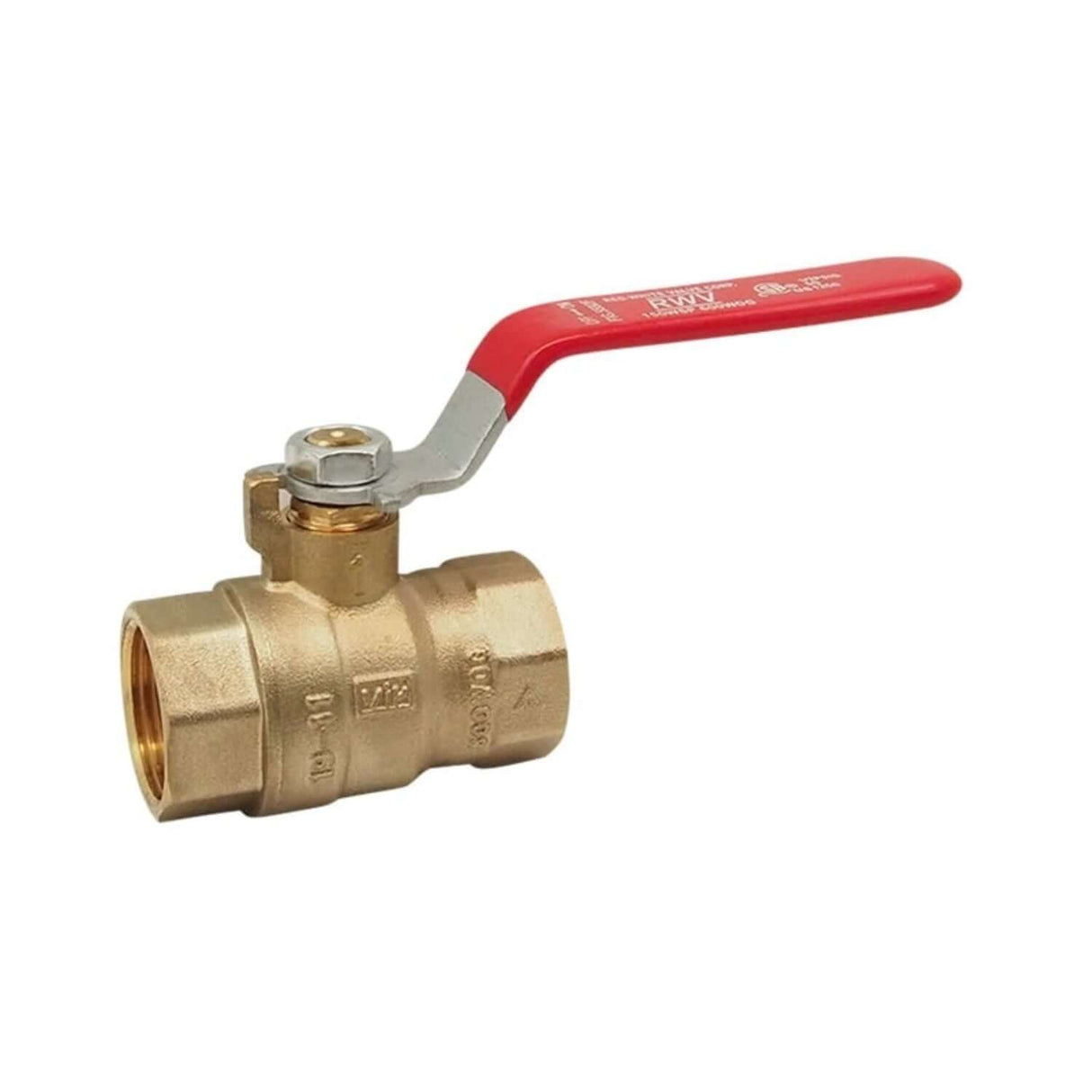

Brass Full Port Ball Valve | 5592F Series | FNPT x FNPT | 600 WOG

$14.10
  • 600 PSI WOG / 150 PSI WSP – Handles high-pressure fluid, gas, and steam service with reliable performance.
  • Full Port Brass Construction – Ensures maximum flow with minimal pressure drop for efficient system operation.
  • Threaded FNPT Ends – ASME B1.20.1 compliant threads provide tight, leak-free installation.
  • Blow-Out Proof Stem & PTFE Seats – Engineered for long-term sealing performance and easy maintenance.
  • Chrome-Plated Ball with Steel Handle – Smooth operation and corrosion resistance in demanding environments.
📄 Download Spec Sheet

Brass Full Port Ball Valve | 5592F Series | FNPT x FNPT | 600 WOG | Full Port Design

The 5592F Brass Full Port Ball Valve provides dependable shutoff performance and superior flow efficiency for industrial, commercial, and residential systems. Featuring a forged brass body, full port design, and blow-out proof stem, this valve ensures durability and safety in high-pressure environments.

Engineered to meet professional demands, it’s suitable for water, oil, gas, and steam service. The threaded FNPT ends make installation easy and leak-free, while the PTFE seats and packing guarantee smooth, long-lasting operation.

Key Features

  • Full Port Flow: Maximizes Cv (up to 530) and minimizes pressure loss for efficient fluid transfer.
  • 600 PSI WOG / 150 PSI WSP: Handles high-pressure water, oil, gas, and steam applications with consistent reliability.
  • Durable Brass Construction: Body, end piece, and stem made from ASTM B283/B124 C37700 brass for long-term strength.
  • Threaded FNPT Ends: Built to ASME B1.20.1 standards for secure, leak-free connections.
  • Blow-Out Proof Stem: Prevents ejection under pressure for safer operation.
  • Chrome-Plated Ball: Provides smooth operation and corrosion resistance.
  • PTFE Seats and Adjustable Packing: Deliver reliable sealing performance with minimal maintenance.
  • Steel Handle with Dacromet Coating: Ensures durability and rust protection in harsh environments.

Pressure / Temperature Ratings

  • 600 PSI WOG (non-shock): from 15°F to 160°F
  • 150 PSI Max: at 366°F
  • 150 PSI Steam Working Pressure (WSP)

Applications

  • Water, oil, gas, and steam systems
  • Industrial and mechanical piping systems
  • Commercial HVAC and plumbing applications
  • General-purpose shutoff control

Dimension, Cv, Weight

Size NPT Thread A (in) C (in) H (in) L (in) P (in) Cv Weight (lb)
1/4″ 1/4 - 18 NPT 1.77 0.45 1.54 3.19 0.39 8 0.28
3/8″ 3/8 - 18 NPT 1.77 0.45 1.54 3.19 0.39 8 0.28
1/2″ 1/2 - 14 NPT 2.17 0.61 1.93 3.58 0.50 11 0.42
3/4″ 3/4 - 14 NPT 2.40 0.63 2.05 3.58 0.73 26 0.58
1″ 1 - 11.5 NPT 2.91 0.75 2.36 4.96 0.95 55 0.98
1-1/4″ 1-1/4 - 11.5 NPT 3.31 0.77 2.60 4.96 1.22 103 1.36
1-1/2″ 1-1/2 - 11.5 NPT 3.54 0.77 2.87 5.55 1.46 111 1.88
2″ 2 - 11.5 NPT 4.09 0.79 3.25 5.55 1.95 353 2.94
2-1/2″ 2-1/2 - 8 NPT 5.31 1.06 4.17 7.91 2.44 409 6.20
3″ 3 - 8 NPT 6.02 1.14 4.53 11.06 2.91 530 8.92

Material

# Part Material Specification
1 Body Brass ASTM B283 C37700
2 End Piece Brass ASTM B283 C37700
3 Ball Brass / Chrome-Plated ASTM B283 C37700
4 Seat PTFE PTFE
5 Stem Brass ASTM B124 C37700
6 O-Ring FKM NSF Approved
7 Packing PTFE PTFE
8 Packing Nut Brass ASTM B124 C37700
9 Handle Steel / Dacromet® Plated A36
10 Handle Nut Steel / Zinc-Plated A36

⚠ California Proposition 65 Warning:
This product contains chemicals including lead, known to the State of California to cause cancer and reproductive harm. For more information, visit www.P65Warnings.ca.gov.
