RED-WHITE VALVE CORP. | SKU: 30075418 | MPN: CUTAQ25-08-120-MOD-0

Cutter-MOD Modulating Electric Actuator | Butterfly Valve

$6,059.00

Model | Power Supply | Torque | Power | Time

Product variants

Available Power Options — Choose between 115/120 VAC or 24 VDC versions for versatile control system integration.
High Torque Range — 443 to 4,425 in-lb torque output for reliable operation on butterfly valves up to F12 mount.
CSA Certified & NEMA 4X Protected — Weather-resistant epoxy-coated aluminum housing ensures safe indoor/outdoor operation.
Modulating Control & Feedback — Hall-effect absolute encoder and LCD display provide accurate position tracking and feedback.
Manual Override with Safety Declutch — Allows controlled adjustment during power loss or maintenance conditions.

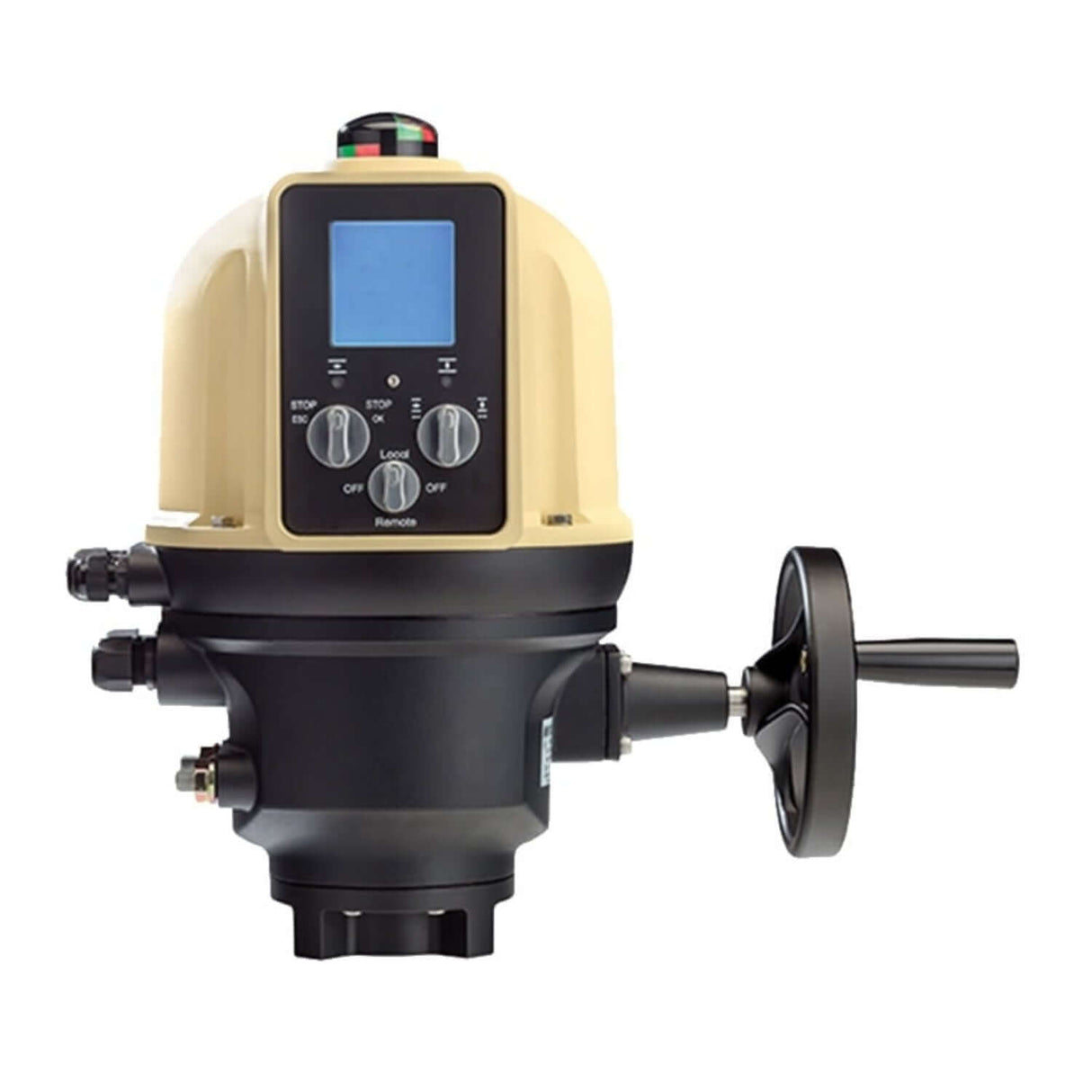

Cutter-MOD Modulating Electric Actuator | For Butterfly Valves | 24 VDC & 115-120 VAC

The Red-White Valve Cutter-MOD Modulating Electric Actuator delivers precise, automated control for butterfly valves in HVAC, waterworks, and process applications. Built with an epoxy-coated cast aluminum housing and a CSA-certified NEMA 4X enclosure, it offers long-lasting durability and protection against moisture and corrosion.

Available in both 115-120 VAC and 24 VDC models, the Cutter-MOD actuator provides torque outputs from 443 to 4,425 in-lb and modulating travel times from 13 to 60 seconds. Its Hall-effect absolute encoder and LCD feedback display ensure accurate valve positioning and smooth, modulating operation across all duty cycles.

Key Features

Torque Range: 443 – 4,425 in-lb across seven models (CUTAQ05 through CUTAQ50)
Travel Angle: 90° with modulating travel times of 13–60 seconds
Manual Override: Integrated handwheel with automatic declutch for safe emergency control
Enclosure Protection: NEMA 4X rated, epoxy-coated cast aluminum body
Control Type: Modulating operation with feedback via Hall-effect absolute encoder
Motor Duty Cycle: S4-50%, supporting up to 1,200 starts per hour
Self-Locking Gear Mechanism: Maintains valve position under load
ISO 5211 Mounting: Compatible with F05–F12 butterfly valve flanges
CSA Certified: Meets North American electrical and safety standards

Power Supply Options

115–120 VAC (50/60 Hz): Standard control voltage for building automation systems
24 VDC: Low-voltage option for integrated control panels and mobile installations

Construction & Ratings

Body Material: Cast aluminum with epoxy powder coat
Operating Temperature: -4°F to +140°F
Ingress Protection: NEMA 4X – suitable for indoor and outdoor environments
Electrical Connections: Dual ½″ NPT cable entries for simplified wiring and strain relief

Technical Data

Model	Power Supply	Max Torque (in-lb)	Power (W)	Operating Time
CUTAQ05	115-120 VAC	443	15	23 sec
CUTAQ10	115-120 VAC	885	15	36 sec
CUTAQ15	115-120 VAC	1328	30	43 sec
CUTAQ25	115-120 VAC	2655	40	50 sec
CUTAQ50	115-120 VAC	4425	60	50 sec
CUTAQ05	24 VDC	443	30	13 sec
CUTAQ10	24 VDC	885	30	21 sec
CUTAQ15	24 VDC	1328	30	25 sec
CUTAQ25	24 VDC	2655	50	35 sec
CUTAQ50	24 VDC	4425	50	60 sec

Mounting Dimensions

Model	Flange ISO 5211	Double-D Ø (in)	Double-D Width (in)	Weight (lb)
CUTAQ05	F05 / F07	0.496	0.394	33
CUTAQ10	F05 / F07	0.621	0.472	33
CUTAQ15	F05 / F07	0.744	0.551	33
CUTAQ25	F07 / F10	0.870	0.669	44
CUTAQ50	F07 / F10 / F12*	1.244	0.945	44

*F12 adaptor included with CUTAQ50 models. Allow 4.0″ top clearance for disassembly.
