Flanged Gate Valve | 415 Series | NRS | IBBM | Class 125 Iron
$716.00
Unit price
/
Select Option

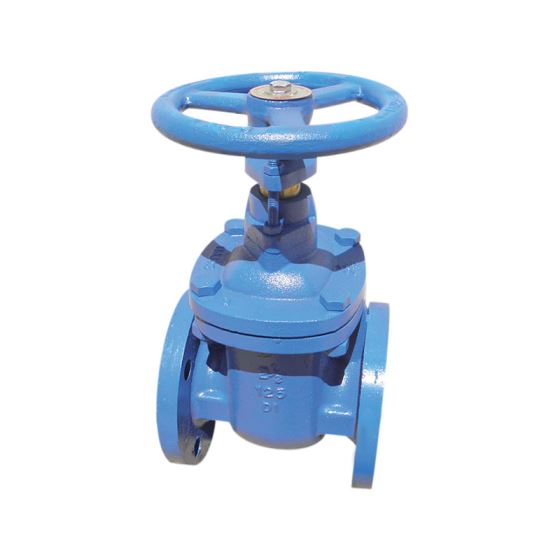

Flanged Gate Valve | 415 Series | NRS | IBBM | Class 125 Iron | ANSI B16.5
415 Series Non-Rising Stem (NRS) Flanged Gate Valves deliver dependable shutoff performance in water, steam, and general fluid service systems. Constructed with a ductile iron body and a bronze-seated IBBM wedge disc, these valves provide durable, corrosion-resistant operation across a wide range of commercial and industrial environments.
Key Features & Benefits
- Class 125 Rated — Rated 125# WSP / 200# WOG for water, oil, and gas service with operating temperatures from 14°F to 248°F.
- IBBM Solid Disc — Bronze-seated wedge design ensures tight shutoff, corrosion resistance, and long-lasting reliability.
- Non-Rising Stem (NRS) — Space-efficient configuration ideal for underground vaults and confined mechanical rooms.
- Flanged Ends per ANSI B16.5 — Standardized flanges for secure and easy system integration.
- Graphite Non-Asbestos Packing — Provides durable, high-temperature sealing without environmental hazards.
- MSS-SP-70 Compliant — Meets industry standards for cast iron gate valves used in general service applications.
Dimensions, Weights (inches-lbs.) & Valve Data
| Size | c [in] | h [in] | L [in] | H [in] | D [in] | N (Qty) | G [in] | Cv | Weight [lb] |
|---|---|---|---|---|---|---|---|---|---|
| 2" | 4.75 | 0.75 | 7.12 | 15.00 | 7.60 | 4 | 5/8 | 216 | 35.2 |
| 2-1/2" | 5.50 | 0.75 | 7.60 | 17.40 | 7.60 | 4 | 5/8 | 345 | 29.6 |
| 3" | 6.00 | 0.75 | 8.12 | 18.20 | 7.60 | 4 | 5/8 | 495 | 48.8 |
| 4" | 7.50 | 0.75 | 9.16 | 22.24 | 10.00 | 8 | 5/8 | 610 | 61.6 |
| 5" | 8.50 | 0.88 | 10.16 | 26.00 | 12.20 | 8 | 3/4 | 1370 | 107.8 |
| 6" | 9.50 | 0.88 | 10.68 | 30.40 | 12.20 | 8 | 3/4 | 1920 | 114.4 |
| 8" | 11.75 | 0.88 | 11.68 | 39.88 | 14.24 | 8 | 3/4 | 3600 | 176.0 |
| 10" | 14.25 | 1.00 | 13.20 | 47.88 | 16.20 | 8 | 7/8 | 5680 | 319.0 |
| 12" | 17.00 | 1.00 | 14.24 | 55.80 | 18.28 | 12 | 7/8 | 8290 | 391.6 |
Material Construction
| # | Part | Material | Specification |
|---|---|---|---|
| 1 | Body | Ductile Iron | A536 |
| 2 | Body Trim | Bronze | B62 C83600 |
| 3 | Wedge Trim | Bronze | B62 C83600 |
| 4 | Wedge | Ductile Iron | A536 |
| 5 | Wedge Nut | Bronze | B62 C83600 |
| 6 | Stem | Brass / Stainless Steel | B16 C36000 / AISI 420 |
| 7 | Bonnet | Ductile Iron | A536 |
| 8 | Gasket | Graphite | Non-Asbestos |
| 9 | Gland | Ductile Iron | A536 |
| 10 | Stuffing Box | Ductile Iron | A536 |
| 11 | Packing | Graphite | Non-Asbestos |
| 12 | Handwheel | Ductile Iron | A536 |
Compliance: Manufactured per MSS-SP-70 and ANSI B16.5 standards.
