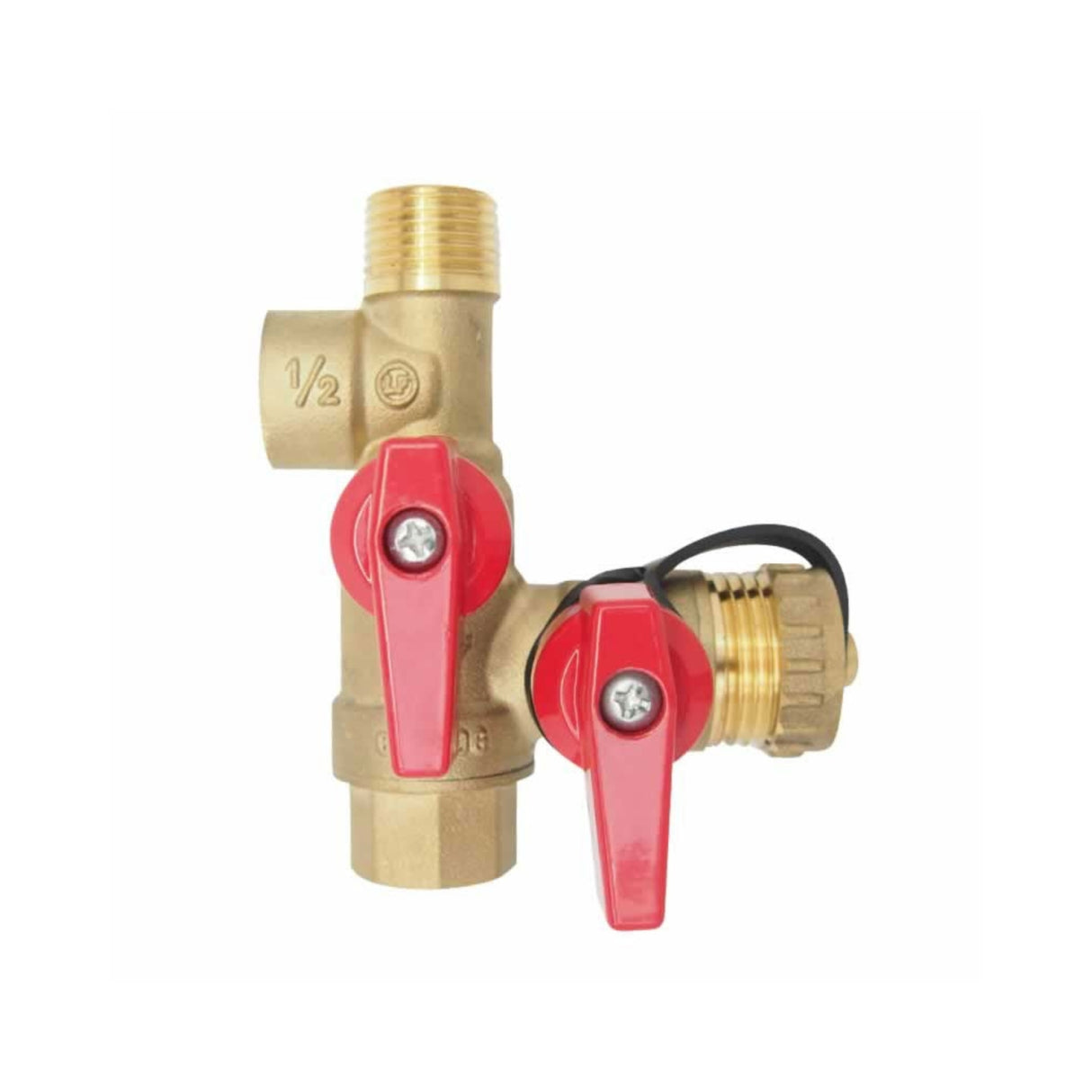

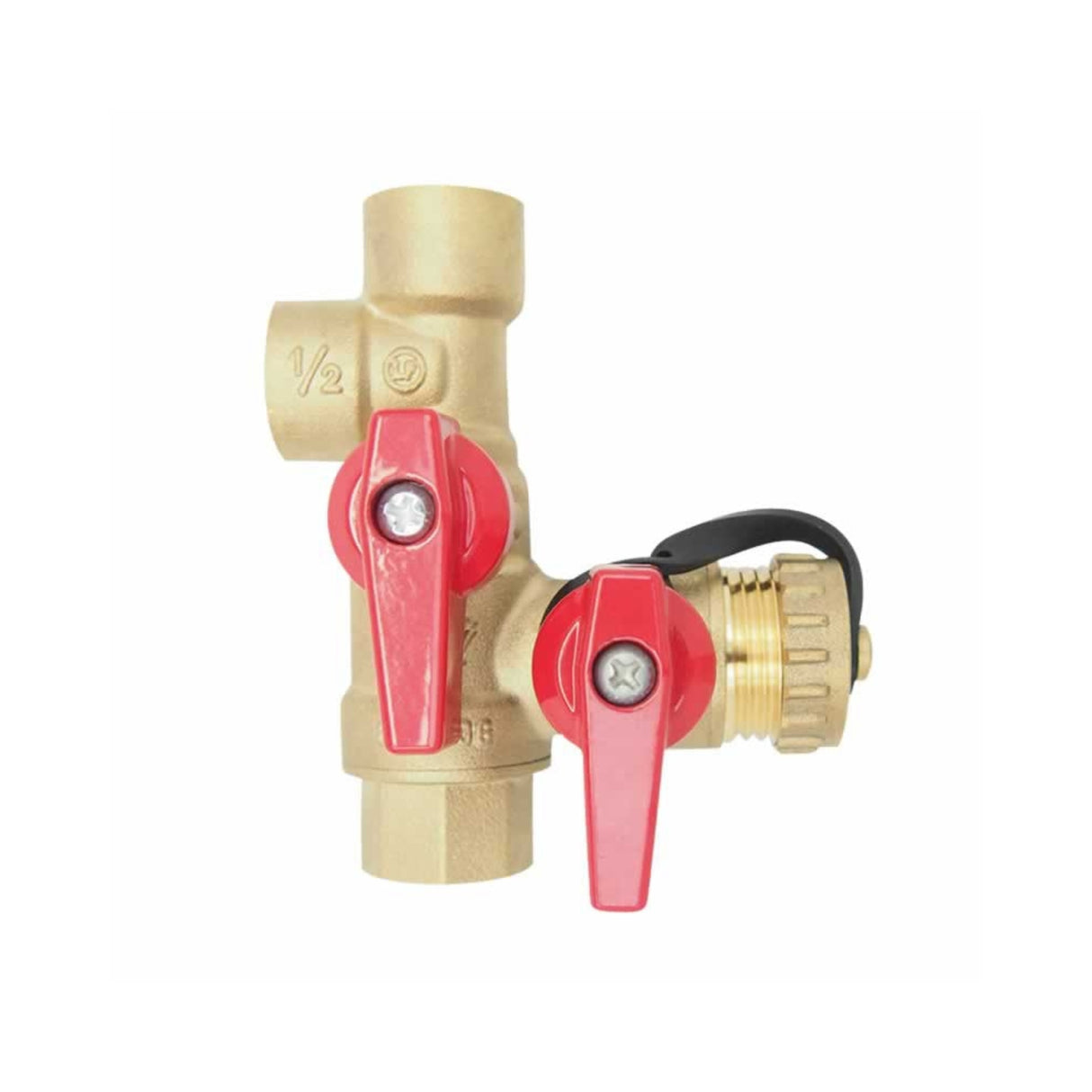

Expansion Tank Ball Valve | 8080 Series | NPT | Full Port | DZR Lead-Free Brass | 600 PSI WOG

RWV 8080 Series Expansion Tank Ball Valves are engineered for dependable performance in high-pressure, closed-loop hydronic, boiler, and industrial cooling systems. Designed with a full-port ball and 600 PSI WOG rating, these valves allow fast, leak-free isolation of expansion tanks without system shutdown—simplifying maintenance while enhancing safety.

Constructed from DZR (Dezincification-Resistant) lead-free brass and certified to NSF/ANSI 61 & 372 and AB1953 standards, the 8080FT valve offers superior corrosion resistance and long service life in harsh environments. A built-in high-flow hose drain with a tethered cap ensures quick, controlled draining, while an adjustable packing gland provides long-term sealing integrity under thermal cycling and pressure variations.

Key Features & Benefits

• 600 PSI WOG Rating — Ideal for hydronic, boiler, and industrial fluid isolation applications.
• Full-Port Ball Design — Maintains maximum flow capacity with minimal pressure drop.
• DZR Lead-Free Brass Body — Meets ASTM B927 C27453 and NSF-certified for potable water and corrosion resistance.
• High-Flow ½″ NH Drain — Integrated hose drain with chain-secured cap allows controlled draining and prevents loss.
• Adjustable Packing Gland — Ensures long-term leak-free performance and serviceability.
• Chrome-Plated Ball & PTFE Seats — Withstand scale, chemicals, and thermal cycling for smooth operation.
• Blow-Out-Proof Stem — Adds protection against stem ejection under pressure surges.
• Temperature Range — Operates from 15°F to 260°F; suitable for water, glycol, and thermal fluids with additives.

Working Conditions

Dimensions

Material Construction

Warning (California Prop 65): This product can expose you to chemicals including lead, known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
