Brass Mini Ball Valve | 5082 Series | FNPT x MNPT | 600 PSI
Brass Mini Ball Valve | 5082 Series | FNPT x MNPT | Full Port | 600 WOG

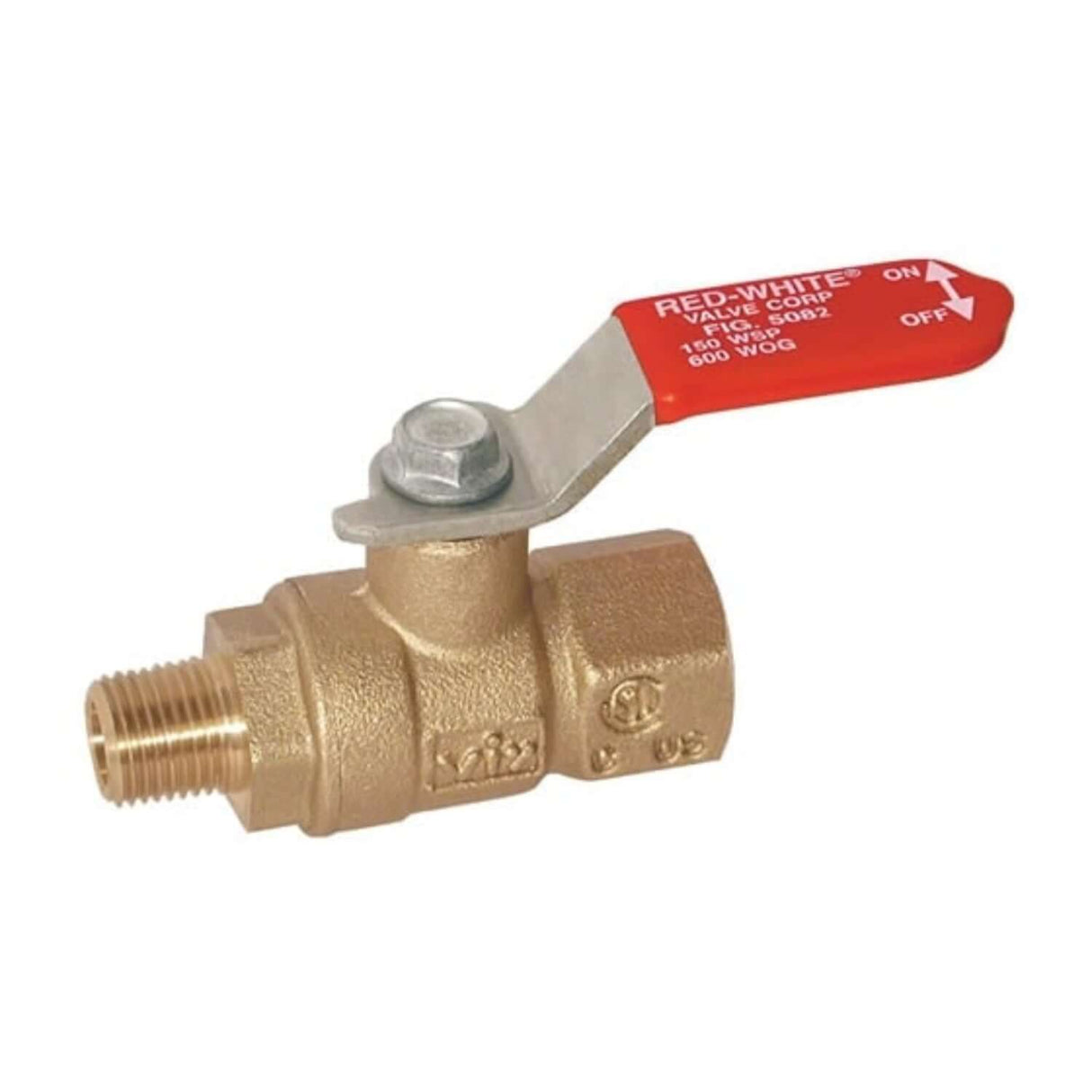

The Red-White Valve 5082 Brass Mini Ball Valve delivers compact, high-performance flow control for tight installations and demanding service conditions. Featuring FNPT x MNPT threaded ends built to ASME B1.20.1 NPT standards, this valve ensures secure, leak-free connections across residential, commercial, and industrial applications.
Built from ASTM B283 C37700 brass and designed with a full-port, chrome-plated brass ball, the 5082 provides smooth operation and minimal pressure drop. With a 600 PSI WOG rating and 150 PSI WSP steam service capability, it’s a durable, versatile option for water, oil, gas, and steam systems alike.
Key Features
- Full Port Design: Maximizes flow and efficiency with minimal turbulence or restriction.
- FNPT x MNPT Connections: Easy to install with precision threads ensuring tight, reliable joints.
- High Pressure Rated: 600 PSI WOG and 150 PSI WSP for reliable use across water, oil, and gas systems.
- Premium Construction: Brass body (ASTM B283 C37700) with chrome-plated brass ball and virgin PTFE seats for lasting performance.
- Leak-Resistant Seal: FKM O-ring packing and blow-out proof stem maintain a secure seal under pressure.
- Compact Design: Ideal for space-limited installations or retrofits.
- CSA Certified: Approved at ½ PSI for Natural Gas, Propane, and LPG applications.
- Buy American Act Compliant: Meets BAA domestic sourcing standards.
Dimensions & Weights (inches-lbs.)
| Size | φ | φ1 | A | A1 | C | C1 | H | L | P | P1 | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/4″ × 1/8″ | 1/4 - 18 NPT | 1/8 - 27 NPT | 1.81 | 0.79 | 0.45 | 0.37 | 1.09 | 1.61 | 0.31 | 0.24 | 0.14 |
Pressure & Temperature Ratings
| Pressure / Temperature |
|---|
| 600 PSI from 15°F to 160°F | 150 PSI max at 366°F |
Material & Specifications
| Part | Material | Specification |
|---|---|---|
| Body | Brass | ASTM B283 C37700 |
| End Piece | Brass | ASTM B283 C37700 |
| Ball | Brass / Chrome-Plated | ASTM B124 C37700 |
| Seat | PTFE | PTFE |
| Stem | Brass | ASTM B124 C37700 |
| O-Ring | FKM | NSF Approved |
| Handle | Steel / Dacromet Plated | ASTM A36 |
| Handle Nut | Steel / Dacromet Plated | ASTM A36 |
⚠ California Proposition 65 Warning:
This product can expose you to chemicals including lead, known to the State of California to cause cancer and reproductive harm.
For more information, visit www.P65Warnings.ca.gov.
