Mini Brass Ball Valve | 5084 Series | FNPT x FNPT | 600 PSI
Mini Brass Ball Valve | 5084 Series | FNPT x FNPT | Full Port | 600 WOG

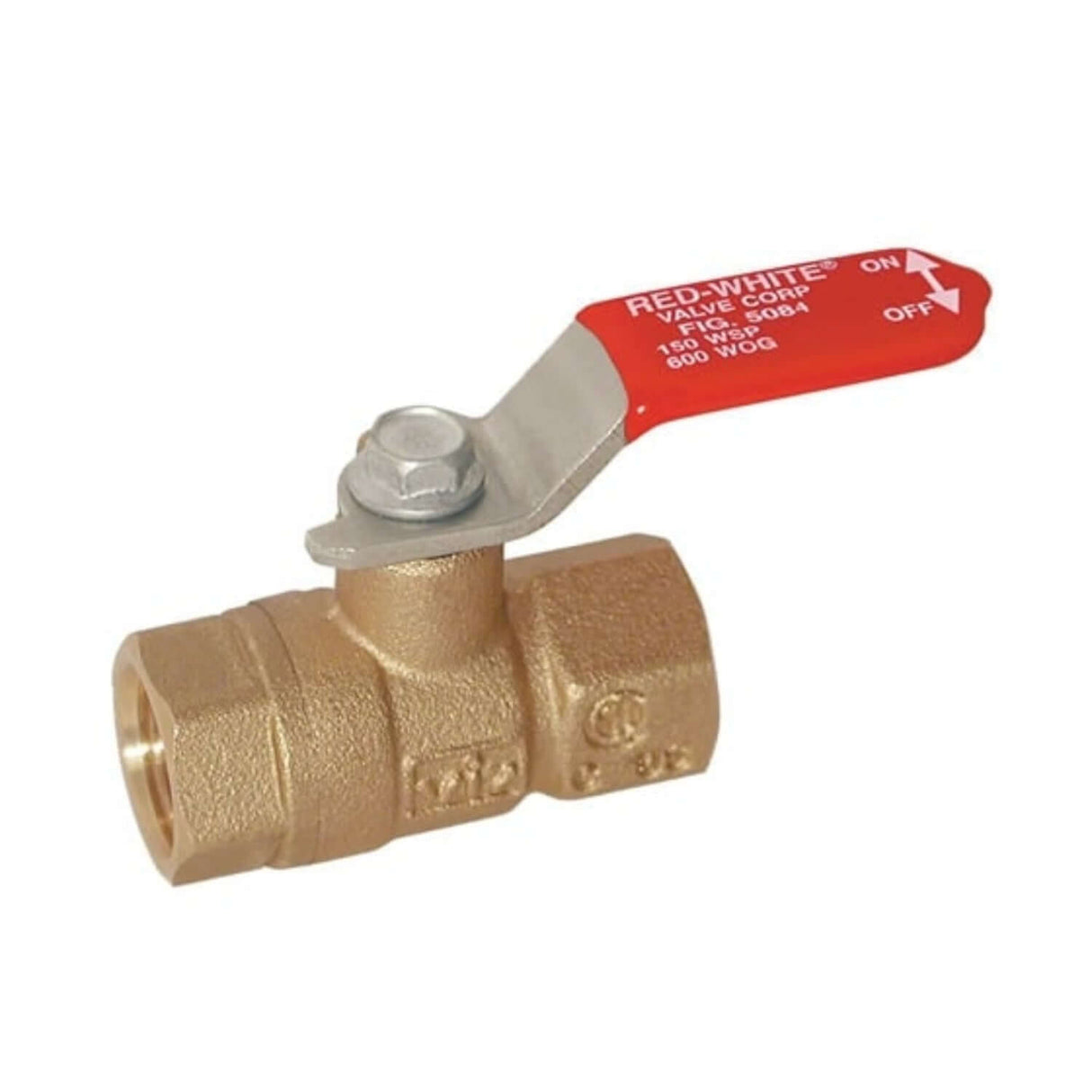

The Red-White Valve 5084 Brass Mini Ball Valve is a compact yet high-performance solution for shut-off and flow control in tight-space installations. Designed with full-port flow and FNPT x FNPT threaded ends (ASME B1.20.1-NPT), this durable brass valve delivers smooth, unrestricted flow across residential, commercial, and light industrial applications.
Featuring a chrome-plated brass ball and virgin PTFE seats, the 5084 offers long-term corrosion resistance and leak-free performance. It’s built to handle 600 PSI WOG and 150 PSI WSP service, making it suitable for water, oil, gas, and steam systems. CSA certification for natural gas, propane, and LPG service ensures safety and reliability for diverse system requirements.
Key Features
- 600 PSI WOG / 150 PSI WSP Rated: Provides high-pressure performance for water, gas, and oil systems.
- Full Port Design: Enables unrestricted flow with minimal pressure drop, enhancing efficiency and system balance.
- FNPT x FNPT Connections: Threaded ends meet ASME B1.20.1-NPT standards for secure, leak-free installation.
- Chrome-Plated Brass Ball: Ensures corrosion resistance and smooth valve actuation.
- PTFE Seats & FKM O-Ring: Delivers long-lasting, chemical-resistant sealing under varying pressures and temperatures.
- CSA Certified: Approved for ½ PSI Natural Gas, Propane, and LPG service.
- BAA Compliant: Meets Build America, Buy America sourcing standards.
Dimensions & Weight (inches-lbs.)
| Size | Thread φ | Thread φ1 | A | A1 | C | C1 | H | L | P | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|
| 1/4″ | 1/4 - 18 NPT | 1/4 - 18 NPT | 1.57 | 0.79 | 0.45 | 0.45 | 1.09 | 1.61 | 0.31 | 0.16 |
Pressure & Temperature Ratings
| Pressure / Temperature Rating | |
|---|---|
| 600 PSI from 15°F to 160°F | 150 PSI max at 366°F |
Material & Specifications
| # | Part | Material | Specification |
|---|---|---|---|
| 1 | Body | Brass | ASTM B283 C37700 |
| 2 | End Piece | Brass | ASTM B283 C37700 |
| 3 | Ball | Brass / Chrome Plated | ASTM B124 C37700 |
| 4 | Seat | PTFE | PTFE |
| 5 | Stem | Brass | ASTM B124 C37700 |
| 6 | O-Ring | FKM | NSF Approved |
| 7 | Handle | Steel / Dacromet Plated | ASTM A36 |
| 8 | Handle Nut | Steel / Dacromet Plated | ASTM A36 |
⚠ California Proposition 65 Warning:
This product can expose you to chemicals including lead, known to the State of California to cause cancer and reproductive harm.
For more information, visit www.P65Warnings.ca.gov.
