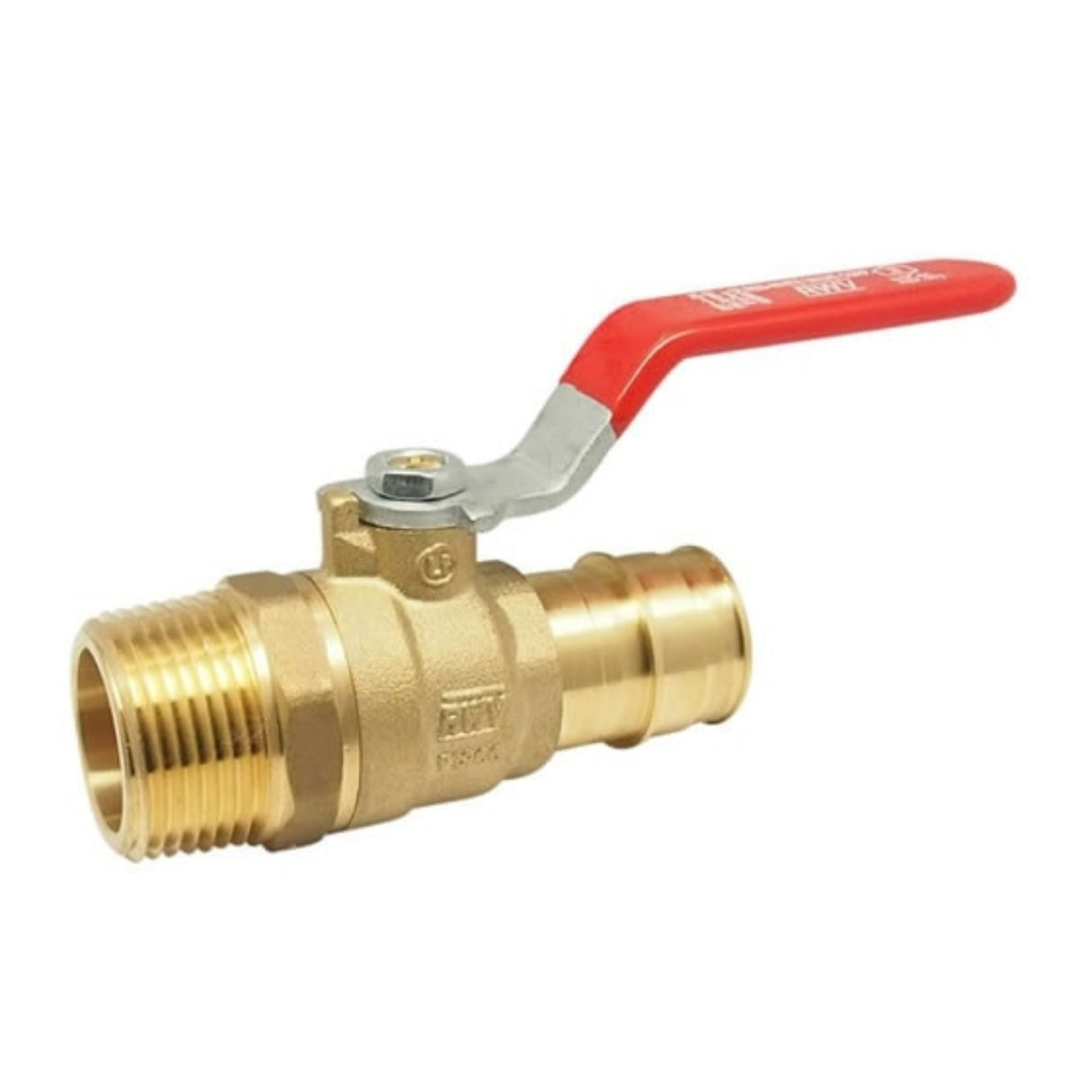

PEX x MNPT Brass Ball Valve | 5018AB Series | F1960 Full Port

PEX × MNPT Ball Valve | 5018AB Series | Full Port | DZR Lead-Free Brass

5018AB Series Ball Valves are engineered for reliability and long-term performance in potable water and hydronic systems. Constructed from DZR lead-free brass, this full-port valve provides smooth, unrestricted flow and corrosion resistance, with a F1960 PEX barb inlet and MNPT threaded outlet for secure and versatile installation.

Key Features & Benefits

• Lead-Free DZR Brass Construction — Built from ASTM B927 C27453 brass for corrosion resistance and compliance with NSF/ANSI 61 & 372 standards.
• Full-Port Flow Design — Maximizes flow rate and minimizes pressure drop for efficient plumbing and hydronic system operation.
• PEX × MNPT Connection — Combines ASTM F1960 expansion barb and ASME B1.20.1 threaded male ends for fast, leak-free installation.
• Reliable Sealing System — Features double NBR O-ring packing, PTFE seats, and a blowout-proof stem for long-term durability.
• High Pressure Rating — Rated 400 PSI WOG; 300 PSI from 15 °F to 160 °F, and 150 PSI max at 200 °F.

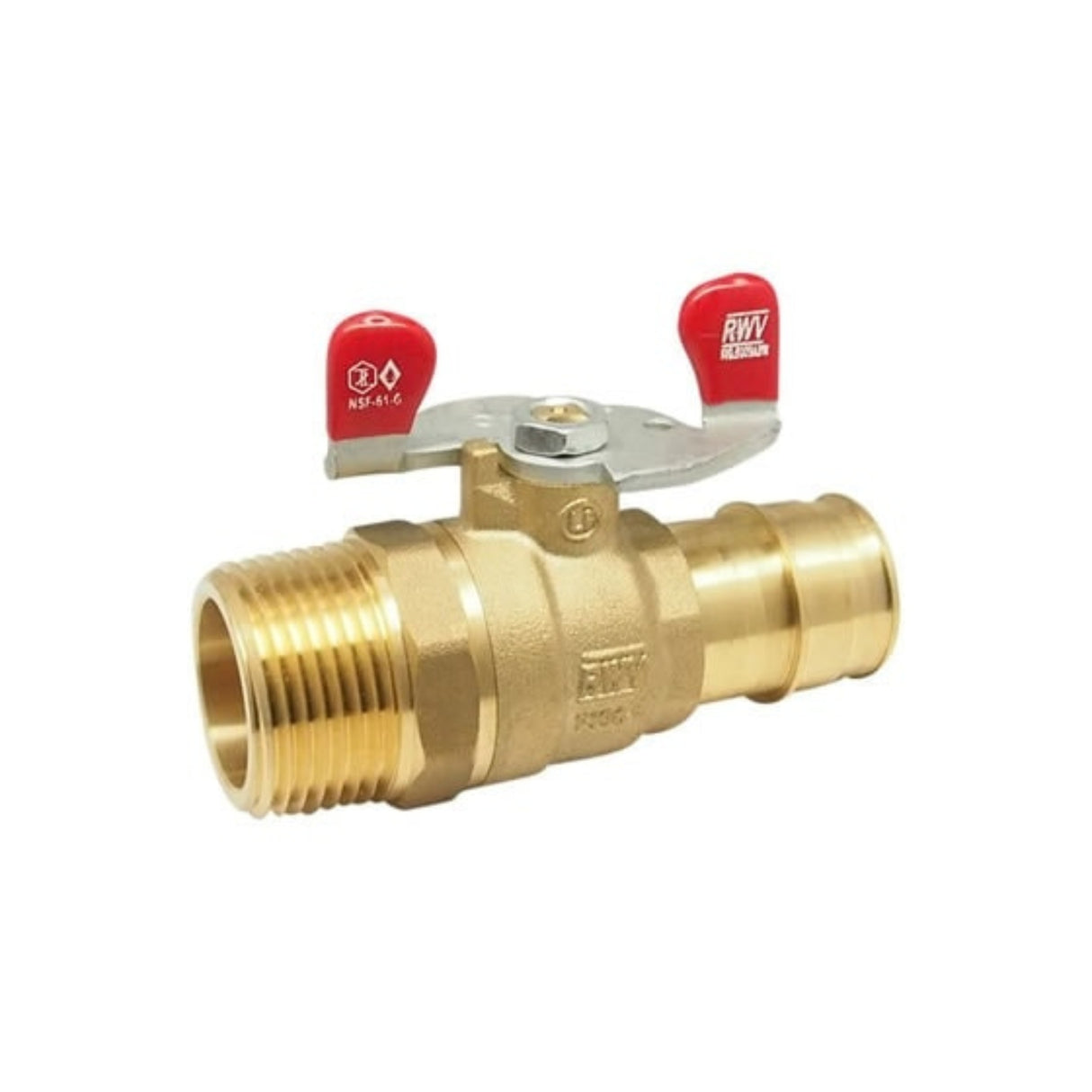

• Optional Wing Handle — Available as model 5018ABW for easier manual control in confined spaces.

Pressure / Temperature Rating

Dimension, Weight

Material Construction

Warning (California Prop 65): This product can expose you to chemicals including lead, known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
