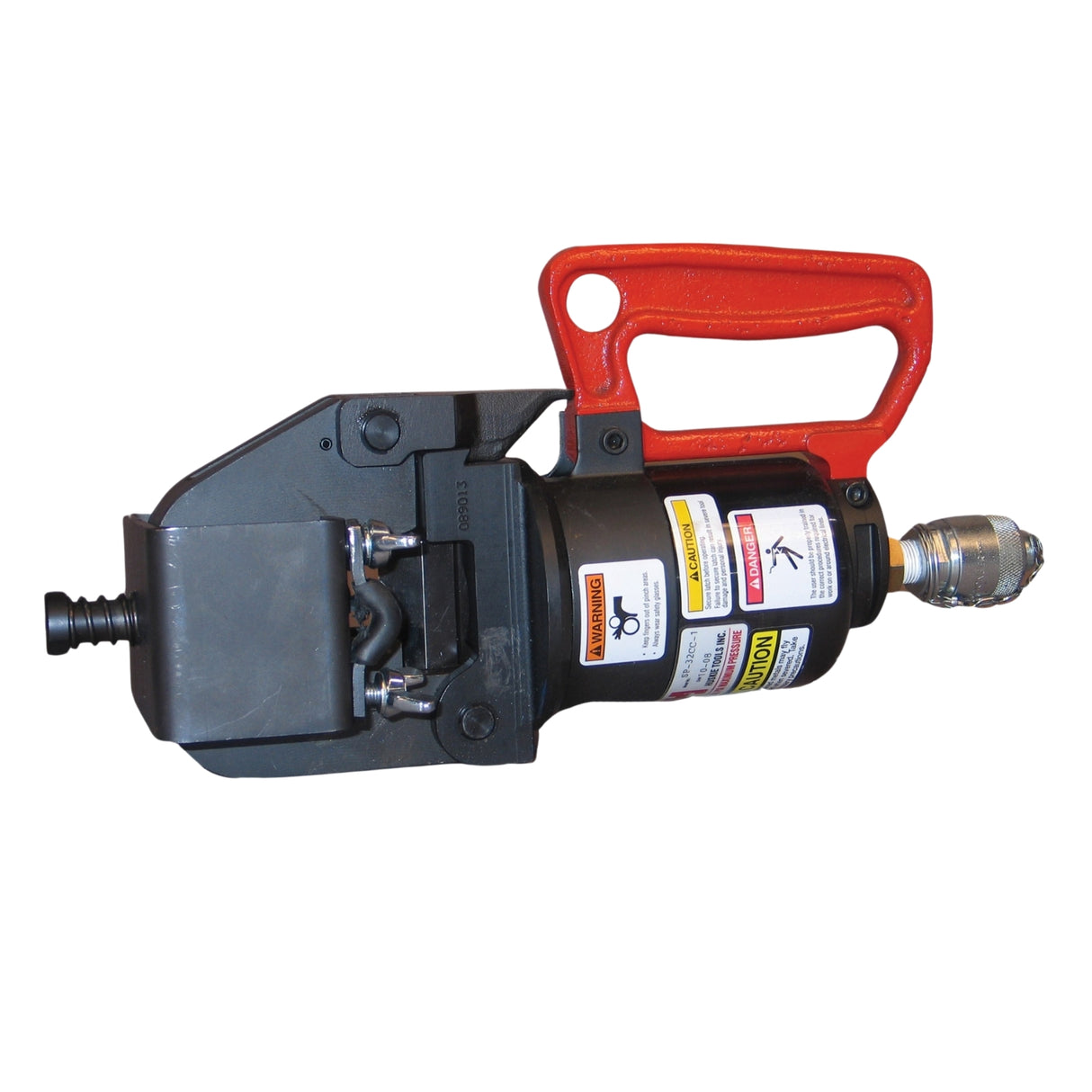

Remote Hydraulic Cutting Head | 24-Ton | SP-32CC1
$4,328.25
Unit price
/
Select Option
Remote Hydraulic Cutting Head | 24 Ton Super Cutter | SP-32CC1 — Product Overview
The SP-32CC1 Super Cutter is Huskie Tools’ most durable remote hydraulic cutting head—engineered to tackle materials that most cutter heads can’t handle. Delivering 24 tons of cutting force through a rugged flip-top latch design, it connects to any 10,000 psi hydraulic pump and cleanly slices through tough conductors, rods, bolts, and rebar.
This remote-style cutting head includes a heavy-duty adjustable clamping system for safer and cleaner cuts, especially in challenging industrial and utility applications. The head is built with easily replaceable blades and comes housed in a sturdy metal case for added protection during transport and jobsite use.
Key Features
- 24-Ton Output: Powerful cutting force handles hardened materials and large diameters
- Flip-Top Latch: Quick and easy material insertion for improved efficiency
- Adjustable Clamping System: Secures materials during cutting to reduce movement and improve cut quality
- Durable Build: Black oxide coating and rugged head design resist corrosion and damage
- Replaceable Blades: Cutting Blade (32C-06H) and Anvil Blade (32C-04H) sold separately
- Hydraulic Compatibility: Connects via 3/8" male screw-type coupler to 10,000 psi systems
- Includes Metal Carrying Case: For protection and portability
Specifications
| Specification | Details |
|---|---|
| Output | 24 Ton |
| Weight | 26 lbs. |
| Length | 13.5” |
| Jaw Opening | 1.25” |
| Hydraulic Pressure | 10,000 psi |
Cutting Capacities
| Material | Max Size |
|---|---|
| Soft Steel Bolts | 1" (26mm) |
| Standard Guy Wire (EHS) | 7/8" (22mm) |
| PC Strand | 0.6 Cable (16mm) |
| Solid Bar / Anchor Rods | #6 Bar* (18mm) |
| HI-TEN Strand Bolts | 0.9 Cable (23.5mm) |
| 500 Plus Rebar | 7/8" (24mm) |
| Rebar, Ground & Anchor Rod | 1" (25.5mm) |
| Chain | 1/2" |
| Wire Rope, Cu/Al Wire, ACSR | Do Not Cut |
Accessories
| Accessory | Part Number |
|---|---|
| Cutting Blade | 32C-06H |
| Anvil Blade | 32C-04H |
Documentation
Compare SP-32 vs SP-32CC1
| Feature | SP-32 | SP-32CC1 |
|---|---|---|
| Output Force | 20 Ton | 24 Ton |
| Jaw Opening | 1.25” | 1.25” |
| Weight | 21 lbs. | 26 lbs. |
| Cutting Capacity | Up to 1-1/4” soft steel, Cu/Al wire, ACSR, wire rope | Up to 1” ground rods, rebar, chain, bolts |
| Flip-Top Latch | ✔️ | ✔️ |
| Adjustable Clamping System | ✔️ | Heavy-duty version |
| Blade Type | Replaceable | Cutting: 32C-06H, Anvil: 32C-04H | Replaceable | Cutting: 32C-06H, Anvil: 32C-04H |
| Hydraulic Pressure | 10,000 psi | 10,000 psi |
| Includes | Tool, metal carrying case | Tool, metal carrying case |
| Best For | Utility & industrial cutting (standard duty) | Heavy-duty field cutting (larger rods & bolts) |
