High-density polyethylene fittings are a foundational component of modern underground utility infrastructure. Whether you are working on a municipal water main, a natural gas distribution system, a directional drilling project, or an electrical conduit installation, the right HDPE fittings determine whether your pipeline system performs reliably for decades or develops costly leaks and failures in the field.
This guide covers the main types of HDPE fittings, how each is used, and the key factors that determine which fitting is correct for a given application. Utility contractors, municipal engineers, and procurement professionals will find this a practical reference when specifying or sourcing fittings for pipe projects.
What Are HDPE Fittings?
HDPE fittings are connection components manufactured from high-density polyethylene resin, the same material used to make HDPE pipe. They are designed to join pipe sections, change direction, transition between pipe sizes, branch off a main line, or cap a run. Because HDPE fittings are made from the same or compatible material as the pipe itself, they can be thermally fused to create joints that are as strong as, or stronger than, the pipe wall.
The key advantage of HDPE fittings over traditional metal or PVC fittings in underground applications is their resistance to corrosion, chemical attack, and soil movement. HDPE fittings do not rust, are unaffected by most industrial chemicals, and can flex with ground settlement without cracking.
Types of HDPE Fittings
Butt Fusion Fittings
Butt fusion fittings are the most common type used in large-diameter HDPE pipeline systems. These fittings are joined to pipe using a butt fusion machine that heats the pipe end and fitting face simultaneously, then presses them together to form a monolithic joint.

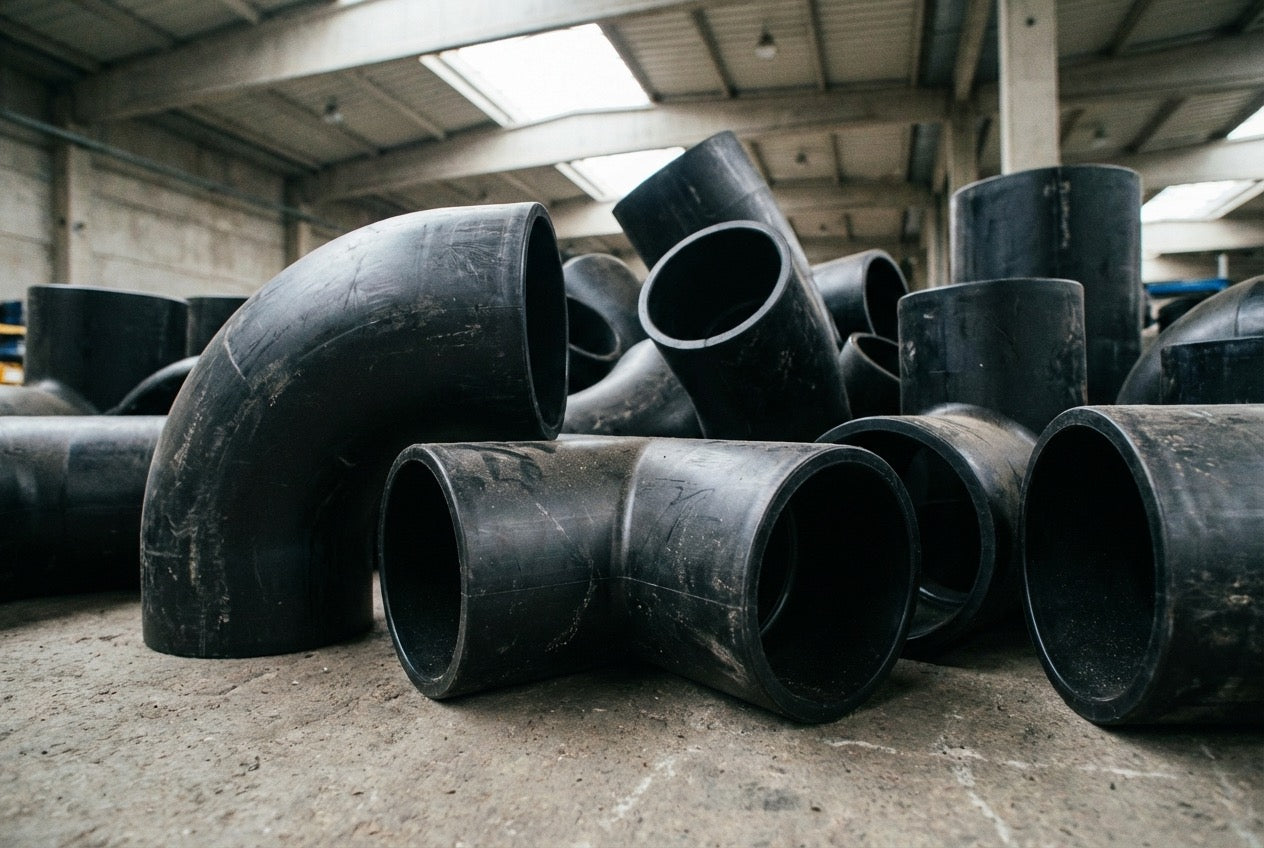

Common butt fusion fitting types include elbows (45 and 90 degree), tees, reducers, end caps, and crosses. Butt fusion is well suited for straight runs and larger-diameter systems where the joint must handle significant internal pressure and mechanical load.
Electrofusion Fittings
Electrofusion fittings contain embedded heating coils that melt the pipe surface and fitting bore when an electrical current is applied, fusing the materials together. Electrofusion is ideal for repairs, tight spaces, and field connections where a butt fusion machine cannot be positioned correctly.
Couplers, saddle tees, and elbows are all available in electrofusion configurations. Electrofusion is also commonly used when connecting dissimilar pipe wall thicknesses or when working within directional drilling exit pits.
Socket Fusion Fittings
Socket fusion fittings are used for smaller-diameter HDPE systems, typically up to 4 inches. A heated tool melts the pipe OD and fitting socket simultaneously, then the two are quickly pressed together and held until cooled. Socket fusion is fast for repetitive small-diameter connections in distribution systems and service line work.
Mechanical Fittings
Mechanical HDPE fittings, including compression couplings, flange adapters, and stab fittings, do not require heat fusion. They are used for temporary repairs, transitions to metal pipe, or in applications where fusion equipment is not available. Mechanical fittings are not recommended for high-pressure permanent installations but are an excellent solution for trenchless rehabilitation projects and transitions to gate valves or other metal components.
Flange Adapters and Stub Ends
Flange adapters allow HDPE pipe to connect to ANSI-standard flanged valves, pumps, and other infrastructure. The flange adapter is thermally fused to the HDPE pipe, while the backing ring slips over the pipe before fusion and bolts to the mating flange. Stub ends are used similarly in stub-end and backing-ring configurations common in water treatment and industrial applications.
Transition Fittings
Transition fittings connect HDPE pipe to different pipe materials, steel, ductile iron, PVC, or copper. These fittings are threaded, flanged, or mechanically restrained on the non-HDPE side and fusion-welded on the HDPE side. Properly selected transition fittings are critical anywhere HDPE interfaces with legacy infrastructure.
How to Select the Right HDPE Fitting
Match the SDR Rating
HDPE pipe and fittings are rated by Standard Dimension Ratio (SDR), which defines wall thickness relative to outside diameter. A fitting must have an SDR rating equal to or lower (thicker wall) than the pipe it connects to in order to maintain the system pressure rating. Using a fitting with a higher SDR number than the pipe reduces the overall pressure capacity of the joint.
Confirm Resin Compatibility
Not all HDPE resins are compatible for fusion. PE4710 resin is the current industry standard for pressure pipe, and fittings should be manufactured from compatible PE4710 or PE3608 resin depending on the application. Check manufacturer specifications before combining fittings from different suppliers in a fused system.
Size for the Application
HDPE fittings are available in IPS (Iron Pipe Size) and DIPS (Ductile Iron Pipe Size) outside diameter profiles. Many municipal water systems use DIPS to match legacy ductile iron infrastructure, while newer construction and telecom and conduit applications typically use IPS. Confirm which standard applies to your existing pipeline before ordering fittings.
Consider Pressure Rating
HDPE fittings for pressure applications carry a rated working pressure at 73 degrees F. Pressure ratings decrease at elevated temperatures, so projects in warm climates or near heat sources should factor in a de-rating. For non-pressure conduit applications, the pressure rating is not a constraint, but SDR matching still matters for fit and fusion quality.
Common Applications for HDPE Fittings
HDPE fittings are used across water distribution, natural gas, industrial chemical piping, force main sewer, electrical conduit, and telecommunications conduit systems. In directional drilling projects, the ability to pull fabricated fitting assemblies through the bore makes HDPE the preferred pipe material. In trenchless rehabilitation, electrofusion fittings allow repairs without extensive excavation.
Municipal utility contractors frequently use HDPE fittings in water main extensions, water service saddles, pressure zone interconnects, and leak repair in systems that have already transitioned to polyethylene pipe. Utility Pipe Supply stocks the full range of HDPE fittings needed for these applications and can assist with specifications for your project.
Frequently Asked Questions
What is the difference between butt fusion and electrofusion HDPE fittings?
Butt fusion joins the flat faces of pipe and fitting using external heat and pressure, making it ideal for large-diameter mainline connections where the fusion machine can be set up properly. Electrofusion uses embedded coils inside the fitting to melt the interface when current is applied, making it better for repairs, tight spaces, and field connections where positioning a large fusion machine is impractical.
Can HDPE fittings be used with PVC pipe?
HDPE and PVC cannot be thermally fused together because they have different melt temperatures and incompatible resin chemistry. Transition fittings with mechanical connections, such as flange adapters, mechanical couplings, or threaded adapters — are used wherever HDPE must interface with PVC pipe.
What does SDR mean on an HDPE fitting?
SDR stands for Standard Dimension Ratio, which equals the pipe outside diameter divided by the wall thickness. A lower SDR number means a thicker wall and a higher pressure rating. SDR 11 pipe and fittings are rated for higher working pressures than SDR 17 pipe and fittings of the same diameter. Always match or exceed the pipe SDR rating when selecting fittings for pressure systems.
Are HDPE fittings suitable for underground installations?
Yes, HDPE fittings are specifically designed for buried utility applications. Their resistance to corrosion, soil chemicals, and ground movement makes them superior to iron or steel fittings for long-term underground service. Butt fusion and electrofusion joints create leak-free connections that perform well under surge pressure and soil loading.
What sizes are HDPE fittings available in?
HDPE fittings are commercially available from 1/2 inch through 54 inches in both IPS and DIPS profiles. Smaller-diameter fittings are commonly available in socket fusion configurations, while larger diameters typically use butt fusion. Custom fittings and fabricated assemblies are available for special configurations outside standard catalog sizes.
