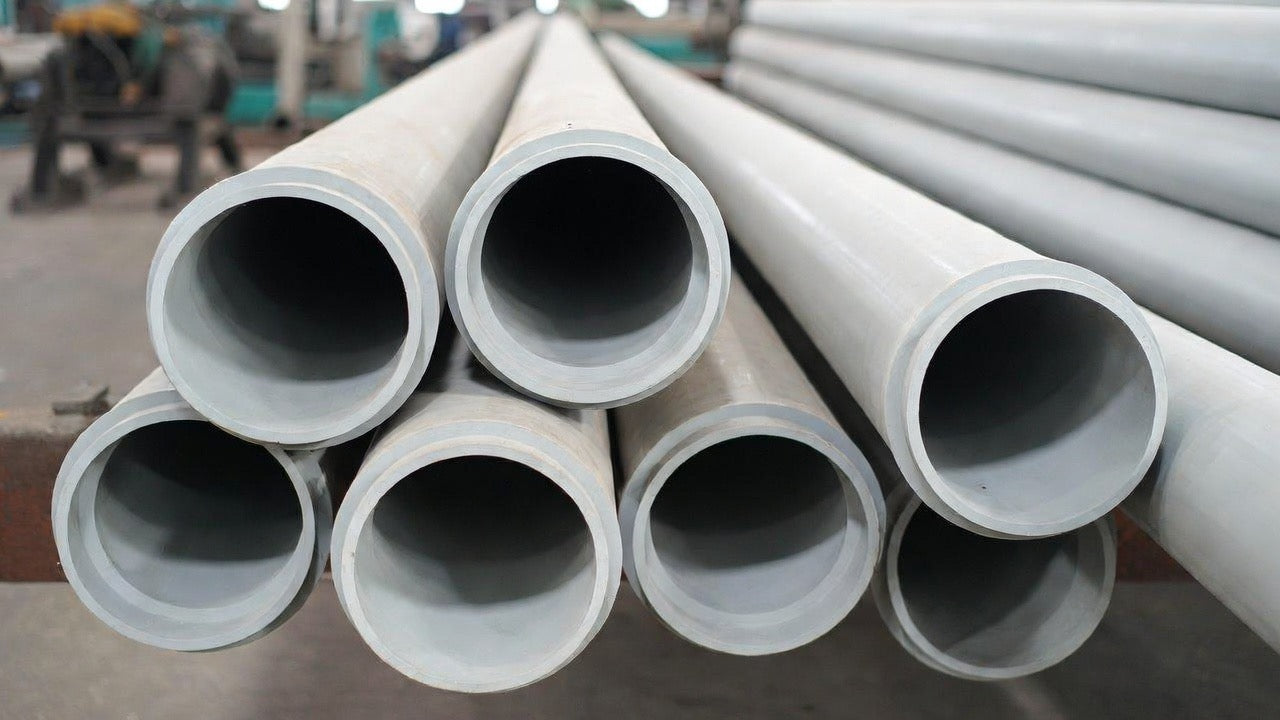

HDPE Pipe Sizes: Dimensions, Wall Thickness, and Selection Guide

Selecting the correct HDPE pipe sizes is one of the most consequential decisions in any underground utility project. Get it wrong and you face pressure failures, flow restrictions, incompatible fittings, or costly rework. Get it right and the pipe performs reliably for decades with minimal maintenance.

The challenge is that HDPE pipe sizing is not as straightforward as ordering a nominal pipe diameter and calling it done. Multiple sizing systems (IPS, DIPS, CTS, SIDR) define outside diameters differently for the same nominal size. Wall thickness varies by SDR rating, which directly controls pressure capacity. And the right combination of size, wall thickness, and sizing system depends entirely on the application, water, gas, sewer, conduit, or industrial service.

This guide walks through HDPE pipe dimensions, sizing systems, SDR ratings, and selection criteria so contractors and engineers can specify the right pipe without second-guessing the numbers.

How HDPE Pipe Sizing Works

HDPE pipe sizing operates differently from steel or copper pipe sizing, and understanding the fundamentals prevents specification errors.

The majority of HDPE pipe is manufactured with a controlled outside diameter (OD). The wall thickness is then set by the selected SDR (Standard Dimension Ratio), and the inside diameter (ID) becomes the resulting variable. This means the OD stays constant regardless of wall thickness, a 4" IPS HDPE pipe always has a 4.500" OD whether it is SDR 7 or SDR 17. What changes is how much of that diameter is wall versus open bore.

A less common alternative is ID-controlled pipe, where the inside diameter is the fixed dimension and the OD varies with wall thickness. ID-controlled pipe (designated SIDR) is used primarily in conduit applications where maintaining a consistent internal bore matters more than matching external dimensions to standard fittings.

All modern HDPE pressure pipe is manufactured from PE4710 resin, the highest-performance classification under ASTM D3350. The "4710" designation indicates a density class of 4, a slow crack growth resistance rating of 7, and a hydrostatic design stress of 1,000 psi at 73°F. PE4710 has replaced older PE3408 resin in virtually all pressure pipe applications due to its superior long-term strength and stress crack resistance.

HDPE Pipe Sizing Systems Explained

Four distinct sizing systems define HDPE pipe dimensions, each developed to maintain compatibility with the piping materials it was designed to replace.

• IPS (Iron Pipe Size) is the original and most widely used system. IPS HDPE pipe has the same outside diameter as carbon steel or black iron pipe of the same nominal size. Available in sizes from ¾" to 65", IPS is the predominant sizing system for oil and gas gathering, gas distribution, mining, electrical conduit, and many industrial applications.

• DIPS (Ductile Iron Pipe Size) matches the outside diameter of cast and ductile iron pipe. Available from 4" to 36", DIPS is the standard sizing system for municipal water distribution and sewer applications. A critical distinction: DIPS pipe has a larger OD than IPS pipe at the same nominal size. A 6" DIPS pipe has an OD of approximately 6.90", while a 6" IPS pipe measures 6.625". This difference affects fitting selection, fusion equipment setup, and connections to existing infrastructure.

• CTS (Copper Tube Size) follows copper tubing dimensions, where the OD is always ⅛" larger than the nominal size. A 2" CTS HDPE pipe has an OD of 2.125". CTS pipe is available in sizes ½" to 2" and is most commonly used for gas distribution service lines and small-diameter potable water connections.

• SIDR (Standard Inside Dimension Ratio) is the ID-controlled sizing system, available from ½" to 3". SIDR pipe maintains a consistent inside diameter regardless of wall thickness. It has been used primarily in conduit applications where a uniform bore is required for cable pulling. SIDR is being phased out of water applications, it was removed from AWWA C901 in the 2020 revision, but remains available for specialty conduit uses.

Understanding SDR and Wall Thickness

SDR, Standard Dimension Ratio, is the single most important specification after nominal pipe size. It defines the relationship between the pipe's outside diameter and its minimum wall thickness using a simple formula:

SDR = Outside Diameter ÷ Minimum Wall Thickness

A lower SDR number means a thicker wall relative to the pipe diameter, which translates to a higher pressure rating. An SDR 11 pipe has approximately 25% more wall thickness than an SDR 13.5 pipe of the same diameter, and roughly 50% more wall than an SDR 17.

The term DR (Dimension Ratio) is technically interchangeable with SDR. The distinction is that "SDR" applies specifically to ratios that fall within an ASTM-defined preferred number series (7, 9, 11, 13.5, 17, 21, 26, 32.5), while "DR" can refer to any ratio. In practice, most engineers and contractors use the terms interchangeably.

Because SDR defines a ratio rather than an absolute wall thickness, the pressure rating remains consistent across all diameters for the same SDR and material. An SDR 11 PE4710 pipe is rated at 200 psi whether it is 2" or 24" in diameter. The wall thickness increases proportionally with diameter, but the pressure capacity stays the same.

HDPE Pipe Size Chart: IPS Dimensions by SDR

The following table provides dimensions for common IPS HDPE pipe sizes manufactured from PE4710 resin. All measurements are in inches. Weight is listed in pounds per linear foot.

Wall thickness values shown are minimums per ASTM standards. Average ID values account for manufacturing tolerances. Dimensions for SDR 21 and SDR 26 are also available for lower-pressure applications. DIPS dimensions differ from these IPS values at every nominal size, always confirm the sizing system before ordering pipe or fittings.

SDR Pressure Ratings for PE4710

For PE4710 resin at 73°F (23°C), the standard pressure ratings by SDR are:

These ratings assume continuous operation at 73°F. At elevated temperatures, pressure capacity decreases. At 140°F, the maximum recommended operating temperature for HDPE, pressure ratings are typically derated to approximately 50% of the 73°F value.

HDPE pipe also handles pressure surges better than rigid pipe materials. Per AWWA C901 and C906, PE4710 pipe can safely withstand recurring surge pressures up to 1.5 times its rated pressure and occasional surges up to 2.0 times its rated pressure. An SDR 11 pipe rated at 200 psi can tolerate recurring surges to 300 psi and occasional spikes to 400 psi without damage.

Matching HDPE Pipe Sizes to Applications

Each application has established sizing conventions that reflect both pressure requirements and infrastructure compatibility.

• Water Distribution and Transmission projects typically specify DIPS sizing for compatibility with existing ductile iron systems. SDR 11 (200 psi) and SDR 9 (250 psi) are the most common wall thicknesses for pressurized water mains. Service connections often use CTS SDR 9 in sizes ¾" to 2". All potable water pipe must meet NSF 61 certification and AWWA C901 (sizes 2" and under) or C906 (sizes 4" and larger) standards.

• Gas Distribution follows ASTM D2513 specifications. Gas mains typically use IPS SDR 11, while service lines use CTS SDR 7 or SDR 11 depending on operating pressure. Yellow pipe with co-extruded stripes is standard for visual identification in gas service.

• Sewer and Drainage systems use larger-diameter IPS or DIPS pipe in SDR 17 or SDR 21 for gravity flow applications. The thinner wall is acceptable because these systems operate at minimal or zero internal pressure. Profile wall and corrugated HDPE options are also available for large-diameter storm drainage.

• Electrical and Telecommunications Conduit uses IPS sizing in SDR 13.5 or SDR 17 for underground cable protection. HDPE conduit and pipe in these SDR ranges provide adequate crush resistance for burial while maintaining a smooth bore for cable pulling. Specialty products like FuturePath HDPE microduct systems pack multiple pathways into a single conduit for high-density fiber optic installations.

• Industrial and Mining applications often require SDR 7 or SDR 9 pipe to handle abrasive slurries, chemical process fluids, or high-pressure service. Larger diameters (16" to 54" IPS) are common in mining tailings lines and industrial water supply.

How to Select the Right HDPE Pipe Size

Choosing the correct HDPE pipe size involves balancing five primary factors.

• Pressure Requirements: Start with the maximum operating pressure including surge conditions. Select an SDR that provides adequate pressure rating with a reasonable safety margin. For pressurized water systems, most specifications call for a pipe pressure class at least 1.5 times the maximum anticipated working pressure.

• Flow Rate and Velocity: Pipe ID directly determines flow capacity. Use the Hazen-Williams formula (C factor of 150 for HDPE) to calculate the diameter needed for the required flow rate. HDPE supports higher flow velocities than PVC, up to 14 fps versus 5.5 fps, which can allow smaller pipe diameters in some applications.

• Installation Method: Horizontal directional drilling (HDD) and other trenchless methods place additional stress on the pipe during pullback. Most HDD specifications require SDR 11 or lower (thicker wall) to withstand installation forces, even if the operating pressure would allow a thinner wall. Open-cut trenching is more forgiving and allows SDR selection based solely on operating conditions.

• Compatibility with Existing Infrastructure: When connecting to existing ductile iron water mains, DIPS sizing ensures dimensional compatibility at transition points. When tying into steel or threaded systems, IPS pipe with HDPE transition fittings provides the correct OD match. Tool-free HDPE IPS couplings simplify field connections for conduit applications.

• Fittings and Equipment Availability: Fusion equipment, mechanical fittings, and electrofusion couplings are all sized to specific OD dimensions. Verify that fittings and fusion tooling are available for the selected size and sizing system before committing to a specification. Proper field tools, including HDPE ratchet cutters for clean square cuts, ensure reliable joints and connections.

ASTM Standards for HDPE Pipe Dimensions

Several ASTM and AWWA standards govern HDPE pipe dimensions, tolerances, and performance requirements. Understanding which standards apply to a given application helps ensure the pipe meets project specifications.

• ASTM D3035 covers polyethylene pipe in sizes ½" through 3" based on controlled outside diameter. It defines OD and wall thickness tolerances for IPS pipe in this size range and is commonly referenced for water service lines and small-diameter distribution.

• ASTM F714 governs polyethylene pipe in sizes 4" and larger. This is the primary dimensional standard for large-diameter water mains, sewer force mains, and industrial piping. It covers both IPS and DIPS sizing systems.

• ASTM D2513 specifies polyethylene pipe and tubing for gas distribution, including both IPS and CTS sizes. This standard defines the material, dimensional, and performance requirements for pipe used in natural gas service.

• ASTM F2619 covers polyethylene pipe for oil and gas gathering applications, a growing market for HDPE due to its corrosion resistance and flexibility in remote terrain.

• AWWA C901 governs polyethylene water service pipe in sizes ½" through 3", while AWWA C906 covers transmission and distribution pipe in sizes 4" through 65". Both standards define pressure classes, dimensional requirements, and performance criteria for potable water applications.

When ordering HDPE pipe, specifying the applicable ASTM or AWWA standard along with the sizing system, SDR, and nominal size eliminates ambiguity and ensures the correct product is delivered. For conduit applications, verifying compatibility with PVC conduit and conduit fittings already in use on a project prevents field compatibility issues.

About Utility Pipe Supply

Utility Pipe Supply is a certified Woman-Owned Business Enterprise (WBE) and Disadvantaged Business Enterprise (DBE) with over 25 years of experience supplying underground utility products to contractors across the United States. We stock HDPE pipe, conduit, fittings, and installation tools across multiple sizing systems and SDR configurations to support water, gas, electrical, and telecommunications projects.

Frequently Asked Questions

What HDPE pipe sizes are available?

HDPE pipe is manufactured in IPS sizes from ¾" to 65", DIPS sizes from 4" to 36", CTS sizes from ½" to 2", and SIDR sizes from ½" to 3". Standard lengths are typically 40 to 50 feet for straight sections. Smaller diameters (generally 4" and under) are also available in coils ranging from 100 to 2,000 feet depending on diameter and manufacturer.

What is the difference between IPS and DIPS HDPE pipe?

IPS (Iron Pipe Size) matches the outside diameter of carbon steel pipe, while DIPS (Ductile Iron Pipe Size) matches the outside diameter of ductile iron pipe. At the same nominal size, DIPS pipe has a larger OD than IPS pipe. A 6" DIPS pipe has an OD of approximately 6.90" compared to 6.625" for 6" IPS. The two systems are not interchangeable, fittings, fusion tooling, and couplings must match the sizing system specified.

How do I determine the SDR of an existing HDPE pipe?

Measure the outside diameter and wall thickness with calipers, then divide the OD by the wall thickness. The result should correspond to a standard SDR value (7, 9, 11, 13.5, 17, 21, 26, or 32.5). Most HDPE pipe also has print line markings that include the SDR, nominal size, material designation, manufacturer, and production date.

What SDR should I use for HDPE conduit?

Electrical and telecommunications conduit applications typically use SDR 13.5 or SDR 17 IPS pipe. These wall thicknesses provide adequate protection for underground cable installations without the cost of heavier-wall pressure-rated pipe. For directional drilling installations, SDR 11 or SDR 13.5 is recommended to withstand pullback forces.

Is HDPE pipe available in coils or only straight lengths?

Both. Pipe sizes 4" and under are commonly available in coils, which allow continuous installation runs without joints—a significant advantage for directional drilling and long-distance service connections. Larger diameters (6" and above) are supplied in straight lengths, typically 40 or 50 feet, and joined by butt fusion or mechanical fittings in the field.

Does temperature affect HDPE pipe sizing?

Temperature does not change the physical dimensions of the pipe in any meaningful way for specification purposes. However, temperature does affect pressure ratings. At 140°F, the pressure rating of PE4710 pipe is approximately 50% of its rating at 73°F. Engineers must account for this derating when selecting SDR for applications that operate above ambient temperatures.

Can different HDPE sizing systems be connected?

Yes, but transitions require the correct fittings. IPS-to-DIPS transitions use adapter fittings or flange connections. HDPE-to-PVC and HDPE-to-steel transitions use mechanical joint adapters, compression fittings, or flange assemblies. Always verify that the transition fitting is rated for the pipe's pressure class and compatible with both sizing systems.
