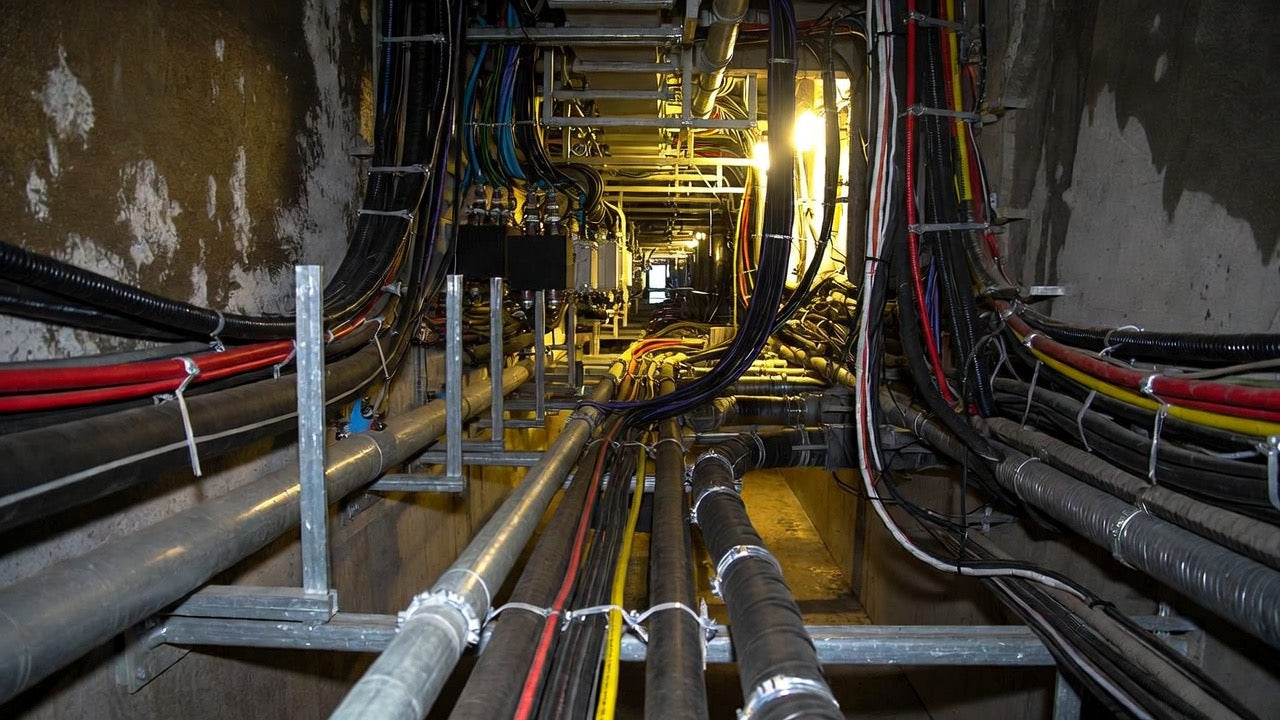

How Underground Power Systems Help Prevent Brownouts and Service Interruptions

A brownout is a temporary drop in voltage across an electrical power system that reduces the energy available to homes, businesses, and critical infrastructure without cutting power entirely. Lights dim, motors overheat, and sensitive electronics malfunction or shut down. For utility providers and the contractors who build and maintain distribution networks, preventing brownouts starts with the physical infrastructure that carries power from substations to end users.

Underground power distribution systems eliminate many of the conditions that cause brownouts in the first place. By routing cables through conduit systems buried below grade, utilities remove the exposure to wind, ice, fallen trees, vehicle collisions, and wildlife contact that account for the majority of service disruptions on overhead networks. The result is a distribution system that maintains more consistent voltage delivery, reduces the frequency and duration of outages, and gives utility operators greater control over load management during periods of peak demand.

This guide explains what causes brownouts, how they differ from blackouts, why underground power infrastructure delivers better reliability, and what conduit system components are essential for a distribution network built to prevent voltage interruptions.

What Causes a Brownout

A brownout occurs when voltage on the distribution grid drops below the nominal level but does not fall to zero. Standard residential service in North America delivers 120 volts, and most appliances and electronics are designed to operate normally within a range of 115 to 125 volts. When voltage drops below this range, the effects become visible and potentially damaging.

Several conditions cause brownouts on electrical distribution networks. High demand during extreme heat or cold is the most common trigger. When large numbers of air conditioning or heating systems operate simultaneously, total load on the grid can exceed the capacity of transformers, feeders, and conductors serving a given area. Rather than allow the system to collapse entirely, utility operators may reduce voltage intentionally to keep the grid functional at lower capacity.

Equipment failure is another frequent cause. A damaged transformer, a corroded connection, or a failed voltage regulator on a feeder circuit can reduce the voltage delivered to every customer downstream. On overhead systems, these failures often result from weather exposure, animal contact, or physical damage from vehicles and falling debris.

Conductor damage and line losses also contribute to brownouts. Voltage drops naturally along any conductor as current flows through resistance. When overhead lines are damaged, corroded, or undersized for the load they carry, voltage at the far end of a feeder circuit can fall below acceptable levels during periods of moderate to high demand.

Brownout vs Blackout: How They Differ

Brownouts and blackouts are related but distinct types of power disruption. A brownout is a partial reduction in voltage. Power continues to flow, but at a level that may not support normal operation of connected equipment. A blackout is a complete loss of power where voltage drops to zero and all connected loads lose supply.

Brownouts can last anywhere from a few minutes to several hours. They may affect a single feeder circuit, a neighborhood, or an entire service territory depending on the cause. Blackouts typically result from more severe events such as catastrophic equipment failure, transmission line collapse, or coordinated system protection actions that isolate sections of the grid to prevent cascading failures.

The risk with brownouts is that many consumers do not realize one is occurring until equipment begins to malfunction. Induction motors in refrigerators, air conditioners, and pumps draw more current to compensate for reduced voltage, which can cause overheating and premature failure. Computers and digital control systems may experience data corruption or latch into incorrect states as logic circuits receive signals below their detection thresholds. When voltage returns to normal, the resulting surge can damage equipment that was already stressed by the low-voltage condition.

From a utility infrastructure perspective, brownouts often signal underlying capacity or reliability problems in the distribution network. Repeated brownouts in the same area typically indicate that the feeder circuit, transformer bank, or conductor system serving that area needs upgrading, reconfiguration, or replacement.

How Underground Power Distribution Reduces Brownouts

Underground power distribution addresses several of the root causes of brownouts by protecting cables and equipment from the environmental factors that most frequently damage overhead systems.

Weather protection is the most significant advantage. Research compiled across seven state-commissioned studies found that underground power lines experience 69% less total downtime than overhead lines. During hurricanes and major storms, underground systems are 97% less likely to fail compared to overhead networks. Wind, ice loading, and falling trees account for the largest share of overhead system failures, and none of these hazards affect properly installed underground conduit systems.

Reduced physical damage lowers the frequency of equipment failures that cause localized brownouts. Overhead conductors and transformers are exposed to vehicle impacts, animal contact (squirrels and birds cause a surprising number of faults), and vandalism. Underground cables routed through conduit and connected to pad-mounted transformers and enclosed switchgear eliminate virtually all of these failure modes.

Improved thermal management also plays a role. Underground cables surrounded by properly compacted backfill maintain more consistent operating temperatures than overhead conductors exposed to direct sunlight and ambient air temperature swings. Consistent temperature means consistent conductor resistance, which translates to more predictable voltage drop across the distribution circuit. Utility engineers can size underground feeders with greater confidence that the voltage at the end of the circuit will remain within acceptable limits.

Underground systems also support more sophisticated sectionalizing and switching configurations. Pad-mounted switchgear, loop-feed designs, and automated switches allow utility operators to reroute power around a faulted section of cable without interrupting service to the entire circuit. On overhead systems, fault isolation often requires manual patrol, visual inspection, and physical switching at pole-mounted equipment, all of which extend the duration of any voltage event.

Key Components of an Underground Power Distribution System

A reliable underground power system depends on several interconnected components, each serving a specific function in protecting cables and maintaining continuous service.

• Conduit and duct banks. PVC rigid conduit is the most widely used raceway for underground power distribution. Schedule 40 PVC conduit meeting UL 651 and NEMA TC-2 provides the mechanical protection, electrical isolation, and moisture resistance needed for direct burial and concrete encasement. Duct banks arrange multiple conduits in a grid pattern using spacers (conduit chairs) and encase them in concrete to create a structural system that protects primary and secondary feeders across long distances. Spare conduits are included in most duct bank designs to allow future cable additions without new excavation.

• Sweeps and elbows. Direction changes in underground conduit runs require factory-made fittings with controlled bend radii. DB-100 PVC sweeps provide the long-radius transitions needed where conduit enters manholes, pull boxes, and transformer pads. These fittings maintain consistent internal diameter through the curve, which reduces cable pulling tension and protects conductor insulation from damage during installation.

• Manholes and pull boxes. Manholes serve as access points for cable installation, splicing, and maintenance. They are spaced at regular intervals along duct bank routes, typically every 400 to 500 feet on primary circuits. Each manhole must provide working space for crews, cable racking systems for organizing conductors, and drainage provisions to prevent water accumulation. Safety equipment including manhole guard rail systems protects workers during entry and cable operations. 60-degree quad blocks mounted inside manholes guide cables through direction changes during pulling operations without exceeding the cable manufacturer's minimum bend radius or maximum sidewall pressure limits.

• Conduit sealing. Water infiltration is the primary threat to underground cable longevity. Polywater EPDM seals installed at conduit entries to manholes, pull boxes, and transformer pads create watertight barriers that prevent groundwater, soil, and debris from entering the conduit system. Fiberglass end caps seal spare conduits that are not yet occupied by cable, keeping the raceway clean and dry for future use.

• Expansion fittings. PVC conduit expands approximately 3.38 inches per 100 feet for every 50-degree Fahrenheit temperature change. In long duct bank runs, this thermal movement can stress joints and fittings if not properly accommodated. Fiberglass expansion joints installed at calculated intervals absorb this movement and prevent conduit separation or joint failure that could expose cables to moisture and soil contamination.

Overhead vs Underground Power: Reliability Comparison

The data consistently shows that underground systems deliver fewer total outage hours per customer per year despite the longer repair times when failures do occur. The reduced frequency of events more than compensates for the increased time required to locate and repair underground faults.

For brownout prevention specifically, the combination of weather protection, reduced equipment failure, and more consistent voltage drop characteristics makes underground distribution the stronger option. The higher installation cost is the primary barrier to wider adoption, though the gap narrows when lifecycle costs including vegetation management, storm restoration, and equipment replacement are factored in.

Design Practices That Maximize Underground System Reliability

Building an underground system that prevents brownouts requires attention to several design and construction practices beyond simply burying conduit.

• Proper conduit fill and sizing. NEC Chapter 9, Table 1 limits conduit fill to 40% for three or more conductors. Oversizing conduit reduces heat buildup during high-load periods, which keeps conductor resistance lower and minimizes voltage drop. It also makes cable replacement easier when system capacity needs to increase.

• Loop-feed circuit design. Connecting pad-mounted transformers and switchgear in a loop configuration rather than a radial layout allows power to reach each customer from two directions. If a cable fault occurs on one segment, automated switches can isolate the faulted section and restore power from the opposite direction within seconds. This design virtually eliminates sustained outages for most customers on the circuit.

• Adequate drainage. All duct banks should slope toward manholes where sump systems or drainage connections remove accumulated water. Standing water in conduit accelerates cable insulation degradation and can cause tracking faults that reduce voltage on the circuit over time.

• Spare capacity. Including spare conduits in every duct bank installation allows utilities to add feeders as load grows without excavating new routes. This forward planning prevents the capacity constraints that cause brownouts when a service area experiences growth beyond the original system design.

• Detectable marking. Locator tape installed above duct banks protects underground infrastructure from third-party dig damage, which is one of the few failure modes that affects underground systems at rates comparable to overhead lines.

About Utility Pipe Supply

Utility Pipe Supply has supplied conduit, fittings, seals, pulling equipment, and safety products to underground utility contractors since 1997. As a certified WBE/DBE/FBE distributor, the company provides the materials and technical support that keep underground power distribution projects moving from first trench to final energization.

Frequently Asked Questions

What is a brownout?

A brownout is a temporary reduction in voltage on the electrical distribution grid. Unlike a blackout, which is a complete loss of power, a brownout delivers electricity at a lower-than-normal voltage level. This causes visible effects such as dimming lights and sluggish motor performance, and can damage sensitive electronics, overheat motors, and corrupt data on computers and digital control systems.

What causes brownouts?

The most common causes are excessive demand during extreme heat or cold, equipment failures such as damaged transformers or voltage regulators, conductor damage from weather or physical impact, and aging infrastructure that cannot support current load levels. Utility companies sometimes impose controlled voltage reductions (intentional brownouts) to prevent total system collapse during peak demand periods.

How do underground power systems prevent brownouts?

Underground systems prevent brownouts by eliminating the weather exposure, animal contact, vehicle impacts, and vegetation interference that cause the majority of overhead system failures. Cables protected inside conduit maintain more consistent operating temperatures, which stabilizes conductor resistance and reduces voltage fluctuation. Automated switching in underground networks also allows faster fault isolation and power rerouting.

Are underground power lines more reliable than overhead lines?

Yes. Data from multiple state-commissioned studies shows that underground distribution lines experience 69% less total downtime than overhead lines. During major storms, underground systems are 97% less likely to fail. The trade-off is that when underground faults do occur, they typically take longer to locate and repair than overhead faults.

How much does it cost to bury power lines underground?

Underground power distribution costs 4 to 10 times more than equivalent overhead construction for new installation. Converting existing overhead lines to underground is even more expensive because it includes the cost of building the new underground system plus removing the old overhead infrastructure. However, lifecycle cost analysis that includes vegetation management, storm restoration, and reduced outage costs narrows this gap significantly.

What type of conduit is used for underground power distribution?

PVC Schedule 40 rigid conduit meeting UL 651 and NEMA TC-2 standards is the most widely used raceway for underground power distribution. It provides mechanical protection, electrical isolation, and moisture resistance for both direct burial and concrete-encased duct bank installations. Fiberglass conduit is used in applications requiring higher temperature ratings or chemical resistance.
